The Owencarrow Viaduct Accident in 1925. ….

Leave a reply

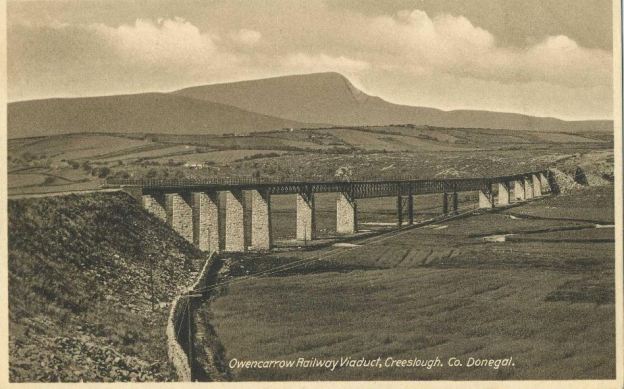

The featured image above shows the Viaduct in good condition. [7]

In the February 1963 edition of The Railway Magazine there was a letter from L. Hudlass which said: “The accident on the Owencarrow Viaduct, on the Letterkenny & Burtonport line, Ireland, of January 30, 1925, involved a westbound train running from Londonderry to Burtonport, on the Burtonport extension of the Londonderry and Lough Swilly Railway. The 380 yd.-long viaduct, sited between Kilmacrenan and Creeslough in County Tirconaill is in wild and open country and, on the day in question, a gale of 100mph caught the train broadside on and one carriage plunged through the parapet, pulling another with it. The couplings held and neither of the vehicles fell into the valley, but roof destruction caused several passengers to be thrown out, three people being killed outright, a fourth dying later in hospital. Being situated on a north-south section of the line, the 30ft.-high viaduct, across Glen Lough and over the Owencarrow River, caught the full force of the westerly gales. When the line was in operation a wind velocity of 60mph meant the exclusion of open wagons from the train, while a wind speed of 80mph caused the suspension of all traffic. The breach in the viaduct parapet was still visible in 1949. Other derailments due to gales gave been recorded on the west coast of Ireland.” [1]

One day, I will get round to covering the route of the Londonderry and Lough Swilly Railway (L&LSR) which ran from Derry to Burtonport through some of the wildest of Co. Donegal scenery.

This article is by way of a taster and focusses on an incident at Owencarrow Viaduct in the 1920s.

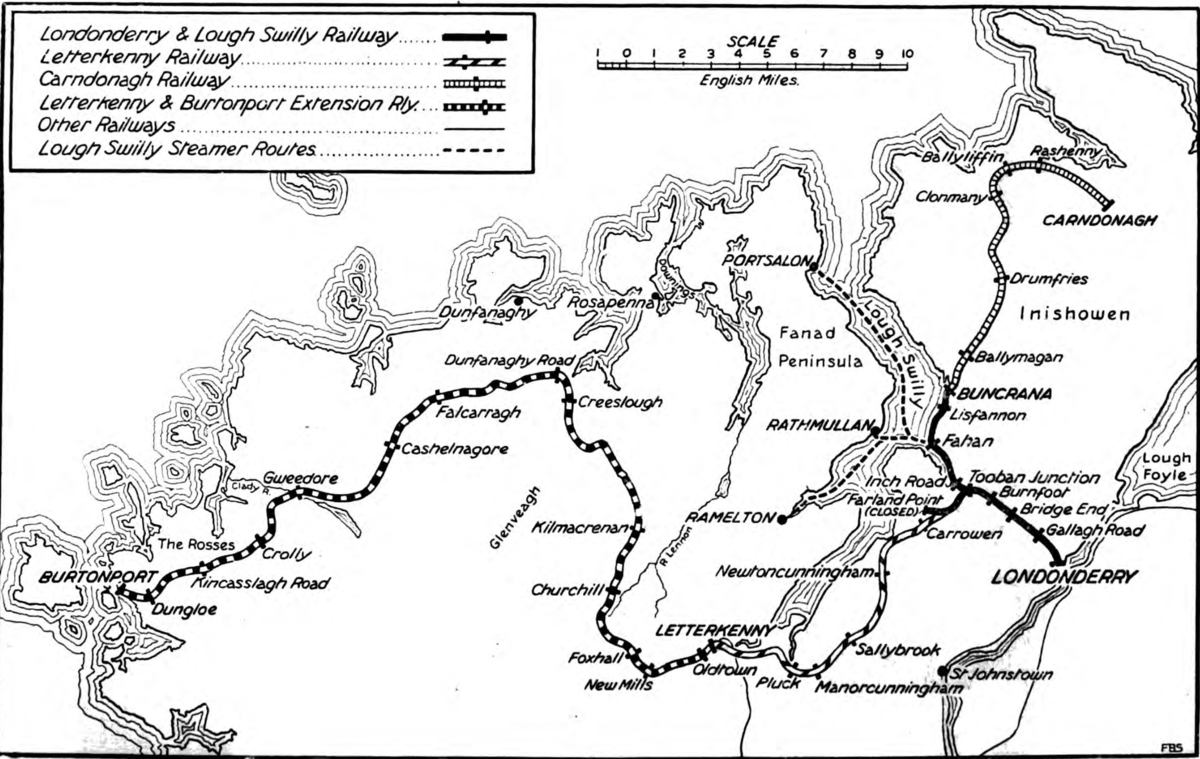

The Londonderry and Lough Swilly Railway ran from Derry to Burtonport via Letterkenny. [2]

The Owencarrow Viaduct was sited between Barnes Gap and Creeslough and was, other than earthworks, the major civil engineering structure on the L&LSR.

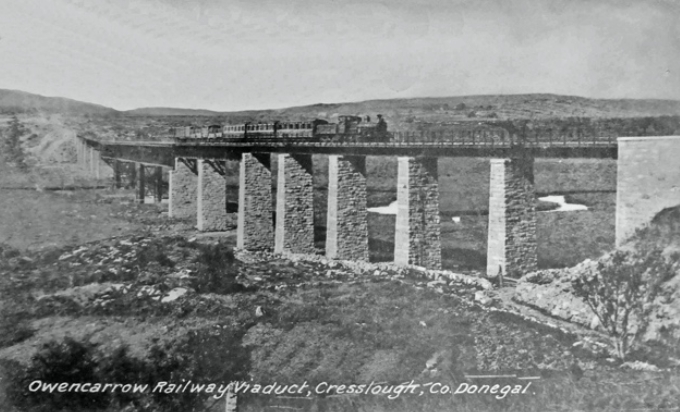

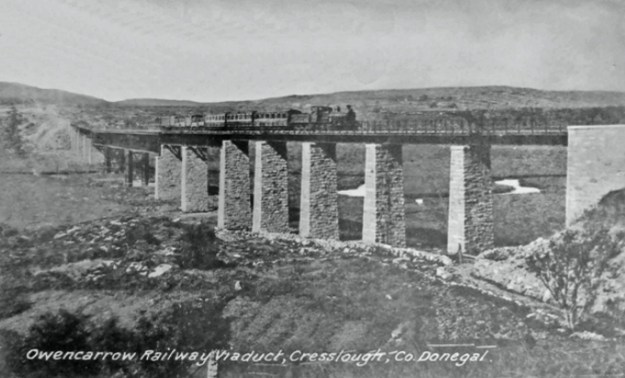

The Owencarrow Viaduct with a Burtonport train crossing. From an old postcard. The photographer is not known. [8]


The Google Maps satellite image and Google Street view images below show what remains of the structure in the 21st century.

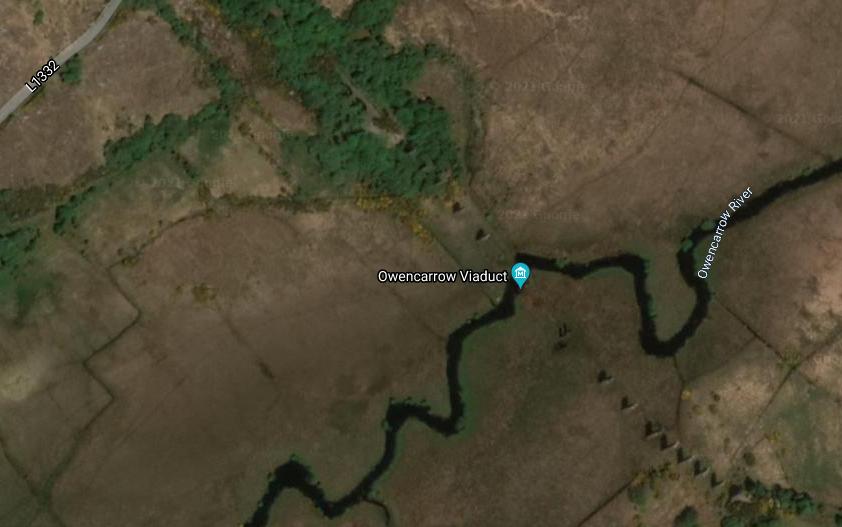

The Owencarrow Viaduct in Co. Donegal. [Google Maps]

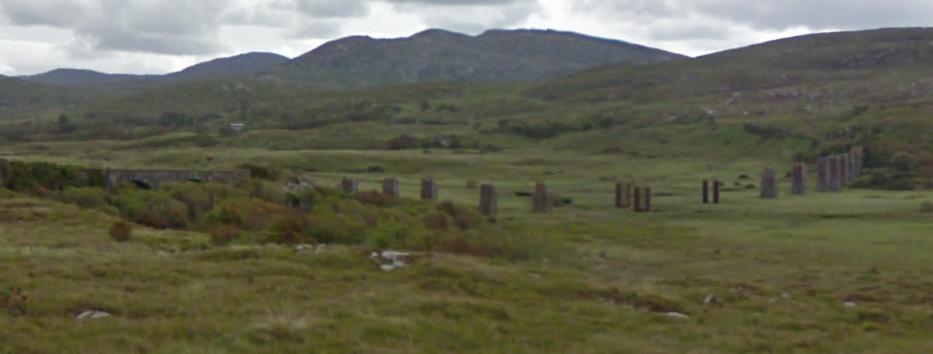

The remains of the Owencarrow Viaduct, seen from the Northwest on the L1332. [Google Streetview]

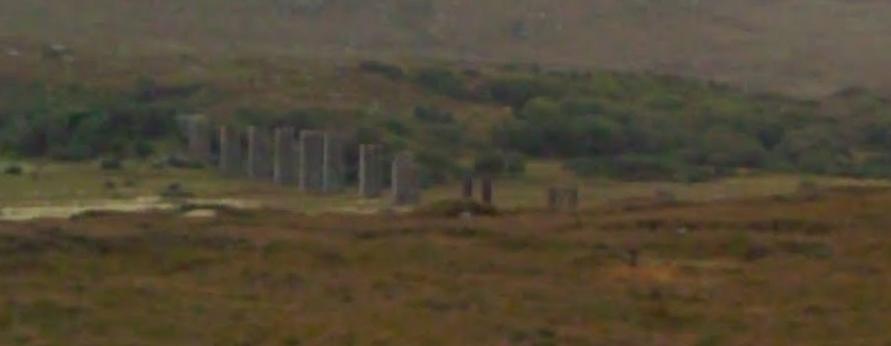

The remains of the Owencarrow Viaduct seen from the West on the L1332. [Google Streetview]

Wikipedia/Wikiwand covers the accident in a single paragraph: “Disaster occurred on the night of 30 January 1925 at around 8pm at the Owencarrow Viaduct, County Donegal. Winds of up to 120 mph derailed carriages of the train off the viaduct causing it to partially collapse. The roof of a carriage was ripped off throwing four people to their deaths. The four killed were: Philip Boyle and his wife Sarah from Arranmore Island, Una Mulligan from Falcarragh and Neil Duggan from Meenbunowen, Creeslough. Five people were seriously injured. The remains of the viaduct can today be seen from the road (N56) which carries on from the Barnes Gap on the road to Creeslough.” [2]

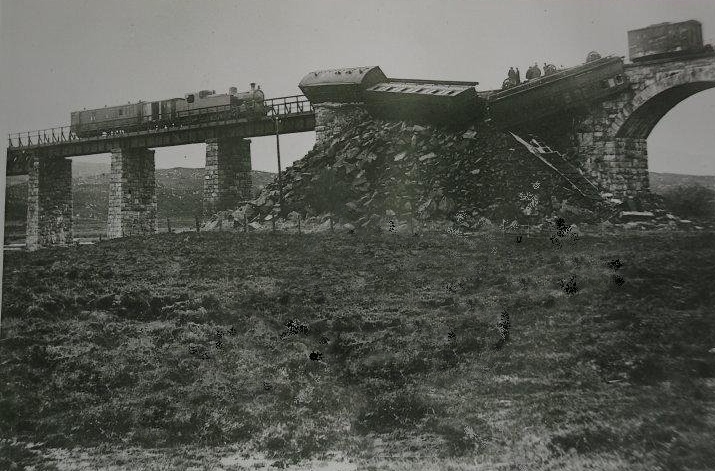

The scene of the accident. This picture was taken on 31st January 1925, the day after the disaster. The photographer is not known. [3]

There are a number of accounts of the accident available online which provide a bit more detail of the tragic events of 30th January 1925.

Walking Donegal looks at the event through the eyes of fireman John Hannigan who was on the footplate that day. [4] Long after that day Hannigan recalled “vividly the events of the night, the passing years ha[d] not erased the memory of the harrowing scenes or stilled the sound of the screams of agony. He still relive[d] the feeling of hopelessness he endured as he surveyed the scene of desolation in the fleeting moments, oblivious to his own danger, he scrambled over the wreck-strewn terrain to run the two odd miles to Creeslough to raise the alarm.” [4]

Hannigan was interviewed in 1984. [5] He was 85 when he gave that interview, a few years before he died in 1987 at the age of 88. Much of the text of the interview was reproduced in a Donegal Daily news item on 14th November 2019 and was extracted from a Christmas Annual published by Letterkenny Community Centre in the 1980s.

Hannigan spoke eloquently of his experience of working on the railway, first joining the staff of the L&LSR when he was just 15 years old, he was just 26 the night the train left the rails in the storm. After years of efficient service on the footplate, he realised his youthful ambition and was promoted to the position of driver the following year.

John Hannigan. [5]

Speaking of the first part of the journey from Derry, Hannigan said, “We left Derry that evening around 5.15pm, we had two wagons of bread next to the engine. They were sent out from Derry by Stevensons and Brewsters Bakeries. After that was three carriages, a first, a second and a third class, behind that were six wagons of general merchandise and the guards’ van at the end. Neilly Boyle was in charge as guardsmen who was from Burtonport, who later was a conductor on the buses.” [5]

When the train reached Letterkenny a bit of shunting was required to remove the six wagons and replace them with others. Hannigan remembered that they were using locomotive No. 14 which was a 4-6-2T and is shown below.

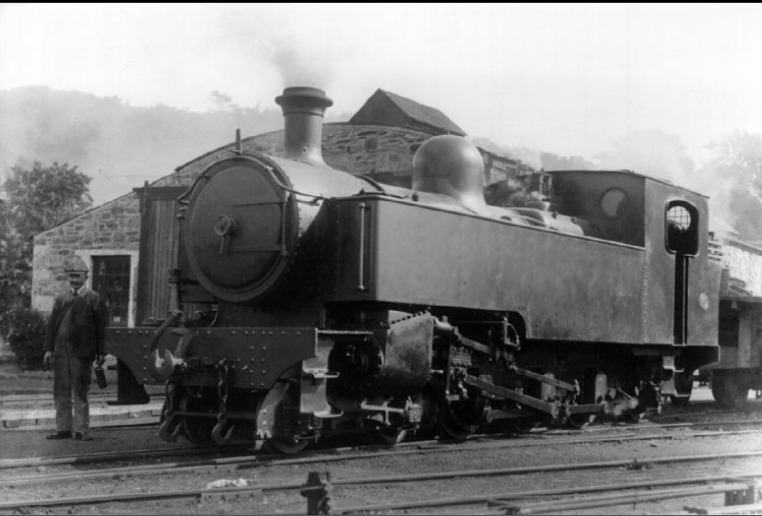

Locomotive 4-6-2T No 14 seen here at Pennyburn, Derry, 1931. Donegal Railway Heritage Centre (DRHC) Collection. [8]

By the time that they reached Kilmacrennan Station the wind was starting to blow hard and Hannigan and the train driver, Bob McGuinness, consulted about the state of the weather, wondering about whether it would be safe to go ahead.  Hannigan commented: “I had often gone over the viaduct in a smaller engine. We decided to proceed. Bob slowed down to a snails pace and as we crossed the bridge we did not think that the storm was all that bad.”

From Hannigan’s recollection of the evening it seems as though a freak gust of wind hit the train close to the end of the viaduct. He said:  “The carriage behind the two bread wagons was raised up on the line, it was like a hump on its back. It then fell against the parapet and the roof was smashed, two passengers were thrown out, Phil Boyle was killed, his wife was injured and died afterwards.” [5]

“A Mrs Mulligan also lost her life, they had fallen through the roof and into the river below. Another man, Andy Doogan, was found dead near the viaduct, he must have also been on the train.” [5]

As the minutes ticked by, the wind continued increasing in strength, the hostility of the gale made it hard for voices to be heard. Hannigan remembered managing to stumble across the bridge to the end of the train to free Neilly Boyle jammed against the bridge railing. He then trekked the two miles to Cresslough Station for help. “Between running, walking and falling I finally made it. On the way, I called at the homes of the two-level crossing men and brought them with me. We told John Gallagher the Station Master what had happened. Next we alerted the local guards and doctors. I got a lift back to the scene. It was about quarter to eight. A young priest, Fr. Gallagher was attending to the dead and injured.” [5]

The ‘Why Donegal?’ Facebook page carries a less personal account of events. [6] The train apparently left Letterkenny at 7:05PM. The journey to Kilmacrennan was uneventful, but “by the time they reached Barnes Gap, the driver remarked that the wind was bad. As the train approached the Owencarrow viaduct a strong gale was blowing. He slowed down to 10m.p.h. and was a few dozen yards from the Creeslough side of the viaduct and almost clear of it, when a sudden gust came so strong that it blew the carriage nearest to the engine off the rails. Two were derailed in all. One somersaulted and the roof was smashed. The four occupants of the coach were thrown through the roof into the rocky ravine forty feet below. The victims were Philip and Sarah Boyle from Arranmore Inland, Una Mulligan from Falcarragh and Neil Duggan from Meenbunowen, Creeslough. Duggan’s home was only a stones throw from the crash.” [6]

“Six of the injured were taken to Letterkenny General Hospital. Of the 14 passengers, just one was unhurt, a young woman who was flung from the upturned carriage and landed on the soft boggy soil.” [6]

The ‘Why Donegal’ Facebook page includes a few photographs of the viaduct as it remains today which were taken by Jacqui Reed.

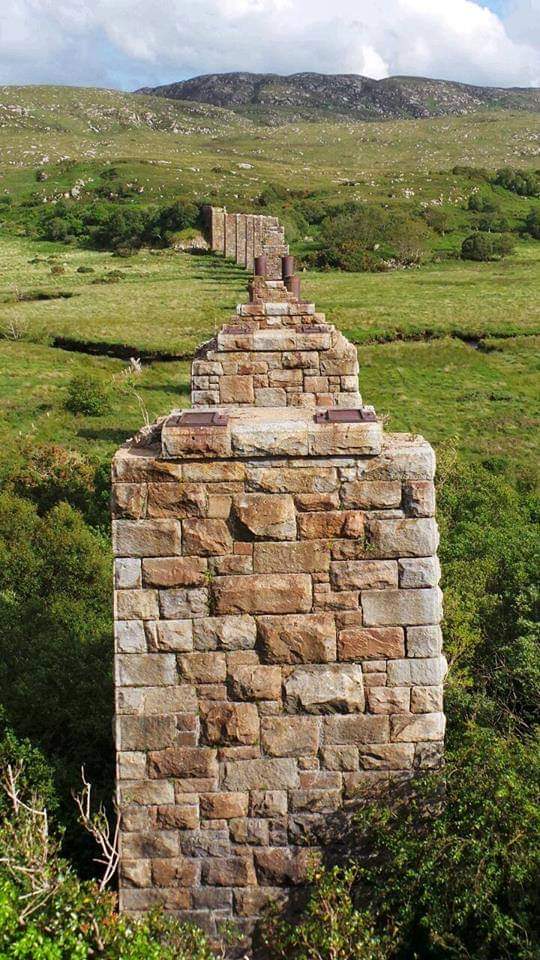

The Owencarrow Viaduct in the 21st century (c) Jacqui Reed. [6]

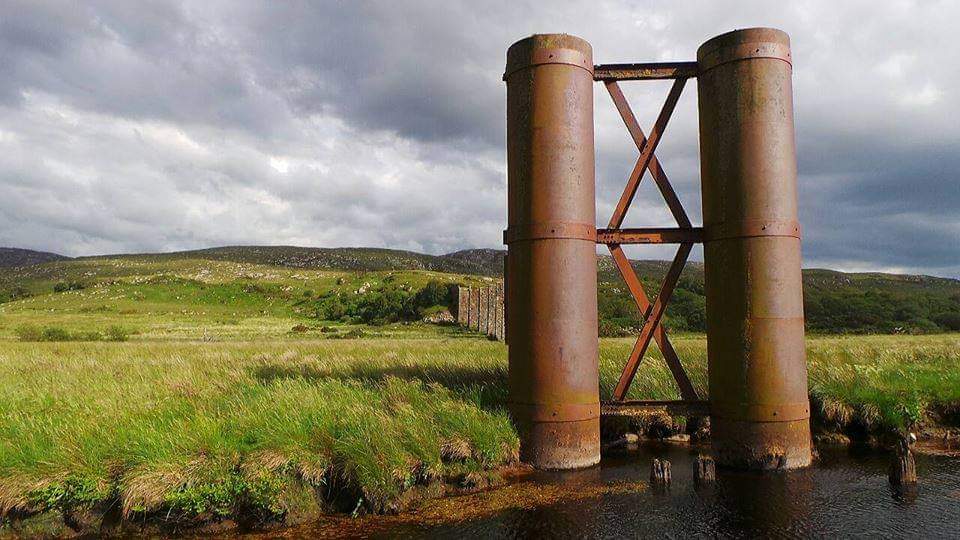

The Owencarrow Viaduct in the 21st century (c) Jacqui Reed. [6]

References

  1. L. Hudlass; Owencarrow Viaduct Accident; a letter in The Railway Magazine, February 1963, p148-149.
  2. https://www.wikiwand.com/en/Londonderry_and_Lough_Swilly_Railway, accessed on 30th May 2021.
  3. https://www.monreaghulsterscotscentre.com/owencarrow-viaduct, accessed on 30th May 2021.
  4. http://www.walkingdonegal.net/owencarrow-viaduct-disaster-by-john-hannigan
  5. https://www.donegaldaily.com/2019/11/14/dd-motoring-brian-mcdaid-recalls-the-owencarrow-viaduct-disaster, accessed on 30th May 2021.
  6. https://m.facebook.com/story.php?story_fbid=416203555247099&id=358197231047732, accessed on 30th May 2021.
  7. https://twitter.com/Donegalcomuseum/status/956480040069488640?s=09, accessed on 30th May 2021.
  8. https://donegalheritage.wordpress.com/2020/01/31/the-owencarrow-viaduct-disaster, accessed on 30th May 2021.

A Steam Tram at Heywood, Middleton, Manchester (UK)

Leave a reply

The February 1963 edition of the Railway Magazine included a photograph of a Steam Tram which used to serve Heywood. [1] Until coming across the image above, I had no idea that steam trams served boroughs in the Manchester conurbation.

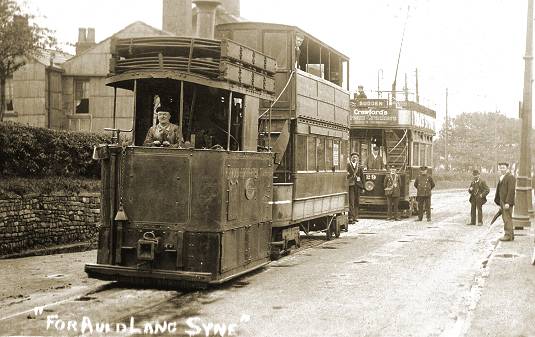

This postcard by an unknown publisher shows the final days of the Heywood Corporation steam tramway in 1905. Just behind is Rochdale Corporation electric car 29 at the borough boundary south-west of Rochdale at the Sudden terminus where Rochdale Road and Bolton Road meet.The postcard bears the title “For Auld Lang Syne”, thereby clearly indicating the imminent demise of the steam tram service. [2]

Heywood, sits about 8 miles north of Manchester, 3 miles east of Bury and 4 miles south-west of Rochdale, and only a couple of miles from where I served my curacy in Middleton.

John R. Prentice says that “the Manchester, Bury, Rochdale and Oldham Steam Tramways Co. Ltd. (MBRO, founded c.1883) became the second largest steam tramway operator in Britain with over 90 tram engines, 80 double-deck passenger trailers and 30 miles of routes. Of all these, two-thirds of stock and track were narrow gauge (3ft 6ins), including the section between Bury and Rochdale, through Heywood.

The MBRO system was split into three areas: “standard gauge southwards from Bury (to Whitefield, Prestwich and Kersal) and from Royton (to Oldham and Hathershaw), but everything else between these points (i.e, nearly all the lines in Bury, Rochdale and their environs) built to a gauge of 3ft 6ins.” [3]

By 1896, “it was clear that several of the local authorities intended to build municipal electric tramways, and that the company’s days were numbered.” [3]

Ashley Birch says that, “Oldham took control of its lines (which it had always owned) in June 1902, and a year later, in June 1903, initial agreement was reached between the remaining various local authorities and the company on a sale. … The parties eventually signed a binding agreement on the 24th February 1904, so that work on electrification could progress, with a price being set by an independent referee.” [3]

The last steam tram ran “in Royton … on the 30th May 1904, the last tram in Bury on the 10th July 1904, and the last tram in Rochdale, probably on the day before the company’s assets were sold … 12th October 1904.” [3]

After nearly 20 years of operation, the MBRO network was no more. The withdrawal of steam tram services generally coincided with the electrification of the lines and the inauguration of an electric tram service. This was true for the Bury Corporation service to Heap Bridge (west of Heywood) But when Rochdale Corporation replaced its steam trams with standard gauge electric cars, it only did so “as far as the district of Sudden, a three-quarters of a mile walk to and from the Heywood borough boundary and the steam tram terminus. In December 1904, Heywood Corporation decided to run its own steam tram service by buying 13 tram engines and 10 trailers (by then, 20 years old) from the former MBRO company when it closed down.” [2]

Peter Gould says that, “On the 20th December 1904 the main line across Heywood was re-opened to the steam trams. On the 22nd December the service on the Hopwood branch was re-instated. … The locos and trailers retained their former brown and cream livery and fleet numbers, although from 24th March 1905, the legend ‘Heywood Corporation Tramways’ began to appear on the sides of locos.” [4]

Gould continues: “The initiative was not a great success and began to flounder when Rochdale initially refused permission for the trams to use the stretch of line between the Heywood boundary and Sudden, where their electric trams currently terminated, leaving a gap of around 1 mile for weary passengers to trudge. … Although Rochdale later relented, the conditions they sought to impose were unacceptable to Heywood and the steam trams continued to terminate at the Heywood boundary.” [4]

However, by April 1905, “Rochdale extended its electric service at Sudden to the Heywood boundary in Bolton Road to establish a direct transfer to the Heywood steam trams. Later the same year, on September 20th 1905, the last steam tram ran and the through service was converted to standard gauge electric operation using Rochdale and Bury cars. Thus, as a tram operating municipality, Heywood Corporation Tramways was very short-lived and lasted less than a year; something of a record in British tramway history.” [2]

References

  1. Alan P. Voce; A Relic of the Steam Tram Era; Letter in The Railway Magazine, February 1963, p137
  2. John R. Prentice; Heywood Corporation Steam Tram Engine 63; https://www.tramwayinfo.com/Tramframe.htm?https://www.tramwayinfo.com/trampostcards/Postc188.htm, accessed on 29th May 2021.
  3. Ashley Birch; Manchester, Bury, Rochdale and Oldham Steam Tramways (from 1888, Bury, Rochdale and Oldham Steam Tramways); http://www.tramwaybadgesandbuttons.com/page148/styled-79/page312/page312.html, accessed on 29th May 2021.
  4. Peter Gould; Heywood Corporation Tramways 1904-1905; https://petergould.co.uk/fleetlists/tramways/heywood1, accessed on 29th May 2021.

The Railways of Jamaica again. …..

3 Replies

I have been reading historic copies of the Railway Magazine again. This time it was a bound copy of the magazines from 1963. …….. I came across an article about the Railways of Jamaica in the September 1963 edition which was written by H. G. Forsythe. [1]

My previous article about the Jamaican network can be found at:

The Railways of Jamaica

Forsythe visited the island’s railways in the early 1960s and quotes figures from the late 1950s as part of his article.

In 1959, the Government “transferred ownership of the railway to a statutory corporation – the Jamaica Railway Corporation – which now [1963] operates the system.” [1: p644]

Forsythe talked in 1963, of the network having “some 205 route miles open to traffic, 112 miles being in the mountain sections. Mainline standard rail [was] 80 lb. per yd. and was laid on native hardwood sleepers. The highest point reached [was] at Green Vale, on the Montego Bay line, 1,705ft above sea level. This altitude [was] reached rapidly from the foothills and there [were] long stretches at a ruling gradient of 1 in 30 and right curves of a minimum radius of 320ft.” [1: p644]

Forsythe noted that the mountain sections of the network had a total of 41 tunnels which were cut straight through solid rock were generally unlined and had no portals.

Later in his article, Forsythe points out that the Jamaican railways “cover some of the most difficult standard-gauge mountain sections in the world. The schedule on the Montego Bay line [was] a generous 6 hrs and 45 mins allowed for the 112-mile run.” [1: p649]

He also commented that there were a total of 234 bridges/viaducts on the network. Some of these were combined road/rail bridges. He mentions 46 fully-staffed stations and 41 unmanned halts. The station buildings were to a standard design.

Wikipedia provides a full list of all the stations on the network on this link:

https://en.wikipedia.org/wiki/List_of_railway_stations_in_Jamaica

That link also includes a map of the rail network, [2] which appears below. …

784px-Map_of_the_Jamaica_railway_system_at_its_pre-bauxite_peak_(1945)_-_small_borders

When Forsythe was writing his article, the latest available statistical reports for the railway network were dated 1959. By that date the Bauxite industry on the island had become well-established. In 1959, the railways on the island carried passengers on 1,084,588 journeys [1: p645] and 900,000 tons of freight, [1: p644-645] including:

380,000 tons of Alumina; [3]

210,000 tons of Alumina processing materials; [3]

94,000 tons of bananas;

125,000 tons of sugar cane;

5,000 tons of citrus fruit;

15,000 tons of sugar; and

71,000 tons of general goods.

Rolling stock was largely of an American style. Forsythe notes that goods wagons were bogie-wagons with buck-eye couplings and Westinghouse air-brakes. He comments: “Box cars have the familiar American high handbrake wheels and ‘catwalks’ for the brakeman on top, the sides carrying gaily painted advertisements.” [1: p645] He also remarks on the Jamaican practise of converting goods wagons into ‘market cars’ which had seating provided inside a box car with added windows. On market days passengers were able to travel with their goods.

Train control used the block telegraph system, ” three telegraph lines emanate[d] from the Train Controller’s office at Kingston. … A dispatcher [was] in charge of each line and [was] linked by telegraph and telephone with each station … each station was similarly linked with every other station on its line.” [1: p645]

Signalling was “carried out by hand-held flags or lamps. Trains [could not] enter station areas until a yellow and green flag [was] displayed.” [1: p646] An additional precaution was employed at busier centres. … Trains were not permitted to move unless the pilotman was on-board. There was only one pilotman on duty in such centres. His duties included, “setting and locking points for incoming trains before walking to station limits to meet them.” [1: p646]

At the time of Forsythe’s visit, dieselisation of the motive power on the network was taking place. However, the steam locomotives were all oil-powered, so rather than seeing coaling stages, oil tanks and hoses were in place across the network.

Forsythe provided an update on the locomotives available on the network at the time of his visit. He wrote: ” Motive power comprises, first and foremost, a rapidly vanishing group of superb-looking Canadian-built 4-8-0 steam locomotives. Designated classes ‘M1’, ‘M2’ and ‘M3’, they are all of the same general design and were built by the Canadian Locomotive Company between the years 1920 and 1944. Originally coal-burners, they were converted to oil after the last war when good quality coal became far too expensive. The maximum locomotive axle loading which the line can accommodate is 15.4 tons and the sharp curves restrict the rigid wheel-base to little more than 15ft.” [1: p647]

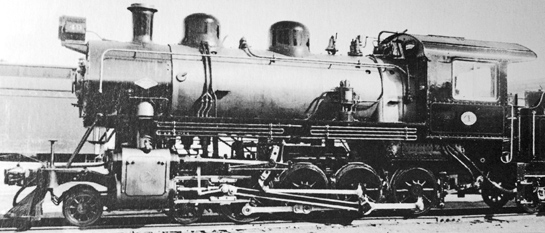

sljmjgrM2Built in Canada, these 4-8-0 locomotives were, according to Forsythe, the main stay of the Jamaican steam loco fleet. [5]

Forsythe continues: “These ‘Mastodons’ are typically American in appearance and are fitted with bells (now inoperative), ‘cowcatchers’, and electric headlamps. Cowcatchers are a very necessary piece of equipment, much livestock straying into the largely unfenced main lines.” [1: p647]

In addition to these 4-8-0s, there were a couple of US-built 0-6-0 tank shunting locos which Forsythe observed in Kingston Goods Yard working alongside a General Electric Bo-Bo 360 horsepower diesel-electric shunter.

US-built 0-6-0T locomotive. [5]

He also came across an elderly 0-8-0T built by Liston & Co. of Leeds standing used in the roundhouse of Kingston MPD.

These steam locos are tabulated by J.D.H. Smith on this link: [4]

https://jdhsmith.math.iastate.edu/term/sljmjgr.htm

Forsythe also pointed out the innovative attitude of the management of the Jamaican railways. As early as 1938, “the internal combustion engine was in use in the form of s small fleet of 110-hp railcars supplied by D. Wickham & Co. Ltd., Of Ware. Some of these railcars are still in use and performing well. At least one has been thoroughly refurbished and painted in silver. It operates a popular and interesting rail tour from Montego Bay, known as ‘The Governor’s Coach’.” [1: p649]

More information about the developing use of Modern Traction in Jamaica can be found via Wikipedia: [6]

https://www.wikiwand.com/en/Rail_transport_in_Jamaica

Forsythe refers to delivery of some Kalamazoo railcars from the US during the war. The name ‘Kalamazoo’ is now used in Jamaica to refer to any diesel railcar. He also mentions Metropolitan-Cammell units which were being delivered at the time of his visit, and a series of ten English Electric general-purpose Bo-Bo 750-hp diesel-electric locos. These EE locos were apparently mist successful under Jamaica’s arduous operating conditions.

References

1. H. G. Forsythe; The Railways of Jamaica; in The Railway Magazine, September 1963; p642-649. The full article can be accessed in the Railway Magazine Archive which is available for a subscription over and above the regular magazine subscription price.

2. https://en.wikipedia.org/wiki/List_of_railway_stations_in_Jamaica.

3. Alumina is produced from bauxite, an ore that is mined in various tropical and subtropical regions. Jamaica’s bauxite occurs in a series of deposits across the middle of the island, east to west. The largest deposits are in the parishes of St. Ann, Manchester, St. Elizabeth, and Trelawny. … The Bayer process, discovered in 1887, is the primary process by which alumina is extracted from bauxite. To produce pure aluminum, alumina is smelted using the Hall–Héroult electrolytic process.

4. https://jdhsmith.math.iastate.edu/term/sljmjgr.htm. Smith has tabulated a whole series of different locomotive rosters. This is just one table of many!

5. https://jdhsmith.math.iastate.edu

6. https://www.wikiwand.com/en/Rail_transport_in_Jamaica
