Cannop Colliery

My wife and I were in the Forest of Dean on 30th August 2018 and visited a small garden centre that we have been to many times before – the Pigmy Pymetum. Later in the day I was reading an older copy of “The New Regard” – Number 23 from 2009. [1] The first article in that edition of the magazine was about Cannop Colliery and was written by Ian Pope. The colliery was just north of the location of the garden centre. It is the present location of a cycle-hire firm which services the cycleways of the Forest of Dean and a Council Depot. Cannop is one of the collieries represented in my collection of N-gauge wagons from the Forest of Dean.This view is one of the aerial views of the Colliery included in the magazine article [1] It shows the backs of the Cannop Villas in the lower left-hand corner. The railway sidings into the colliery are also clearly visible. They ran alongside the old Wimberry Branch of the Severn and Wye Railway. This was the original terminus of the railway when built as broad-gauge in 1868. It served the collieries and quarries in the Wimberry Slade. An interchange wharf existed off the top left of the picture where the old Wimberry Tramway was truncated and terminated. The later Severn and Wye ‘mainline’ can be seen in the bottom right of the image. It did not arrive until 1872, having been built as part of the Mineral Loop. The colliery slag heap can be seen on the left of the picture. [1]

The Cannop Coal Co. Ltd was formed in June 1906, taking over the Union & Cannop and Prince Albert deep gales from Henry Crawshay & Co. Ltd. The aim was to work the Coleford High Delf Seam in the Pennant Group (middle Upper Coal Measures) beneath the workings of the Speech House Hill Colliery. Two shafts were sunk, the 4 ft 9 in thick High Delf being reached at a depth of 612 ft in no.1 pit by November 1909, although the seam was already being worked from a drift mine a short distance up Wimberry Slade. [2]

Sidings and a connection with the Wimberry Branch of the Severn and Wye Railway were installed. Winding of coal from the deep pit began in 1912, output reaching 1000 tons/day by March 1915. Production peaked in 1937 (402,784 tons), making it the largest colliery in Dean, and the workforce was about 1040 around this time. The colliery was an extremely wet one and was flooded on several occasions. Electric pumps were used and 1140 million gallons were pumped in 1928. The high cost of pumping was a major factor leading to closure in September 1960. [2]

As already noted, the colliery buildings are now offices for a Council depot, and a cycle hire centre also uses the site. The overgrown tip and the brick-lined entrance (now gated) to the drift mine survived in April 2002. [2]

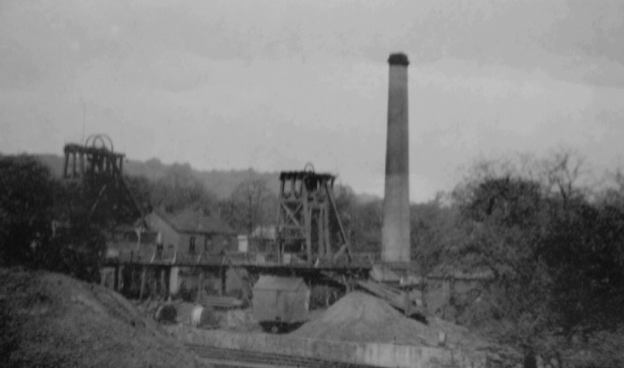

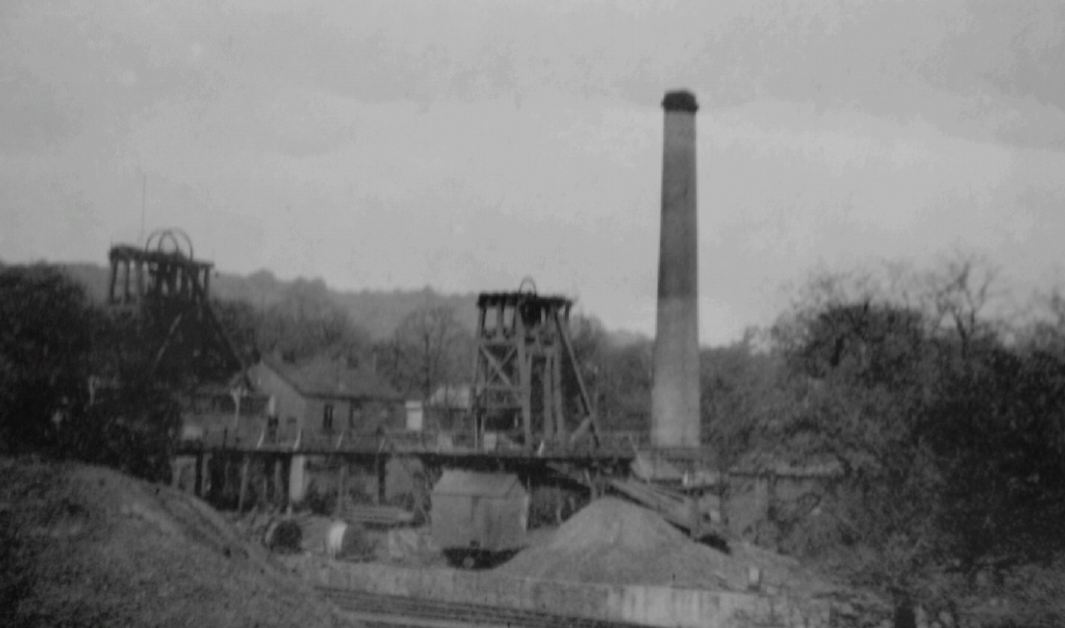

This view was taken by E. Runicles from the colliery slag-heap looking north, and is part of a collection held by Ian Pope. It shows the general setting and layout of the colliery which was heavily camouflaged by the trees of the forest. Pope points out that Cannot was known as ‘the colliery in the woods’ as trees were to be found right up to the colliery buildings and, indeed, in and amongst them. This was a stipulation of the Crown who prior to the opening of the colliery had recently constricted a new road between Lydney and Mierystock, which was intended to allow access for tourists to the centre of the forest. The last thing they wanted was an unsightly colliery immediately alongside the road. The large corrugated iron building in the centre of the picture contains the screens where coal was sorted and graded before being loaded into railway wagons. Four sidings passed through the screens which allowed four grades of coal to be loaded into wagons. To the right of the screens are two wooden head frames, one over each colliery shaft. The bridges coining out over the Wimberry Branch allowed waste material from the shafts or screens to be taken up the tip. The brick chimney stands behind a row of 10 ‘Lancashire Boilers’ which provided the colliery with steam power for the widening engines and for electricity generation. [1]In this image we can see the ‘land sales’ wharf, where local merchants or businesses could bring a cart or lorry and collect coal directly from the colliery. The coal would have passed through the screens and been loaded onto a railway wagon which then was emptied at the wharf. This was also a point where materials brought into the colliery by rail could be unloaded. This would have included things like steelwork, pipes, etc. Pit props went into an area off the empty wagon sidings and would have been unloaded there. The building in the centre is the main winding-engine house. [1]

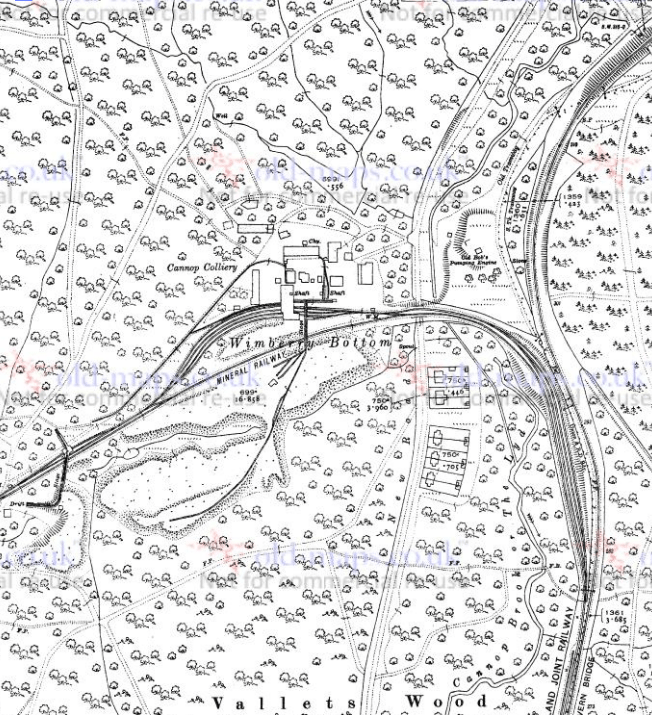

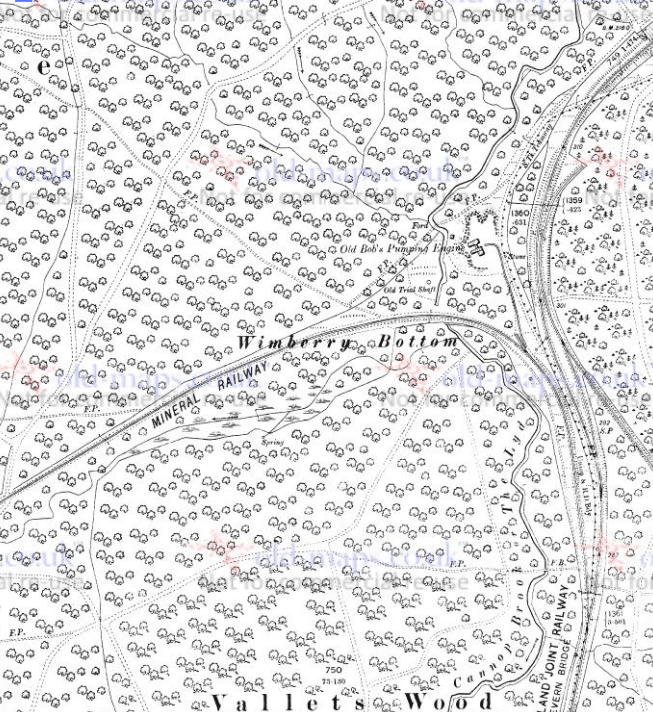

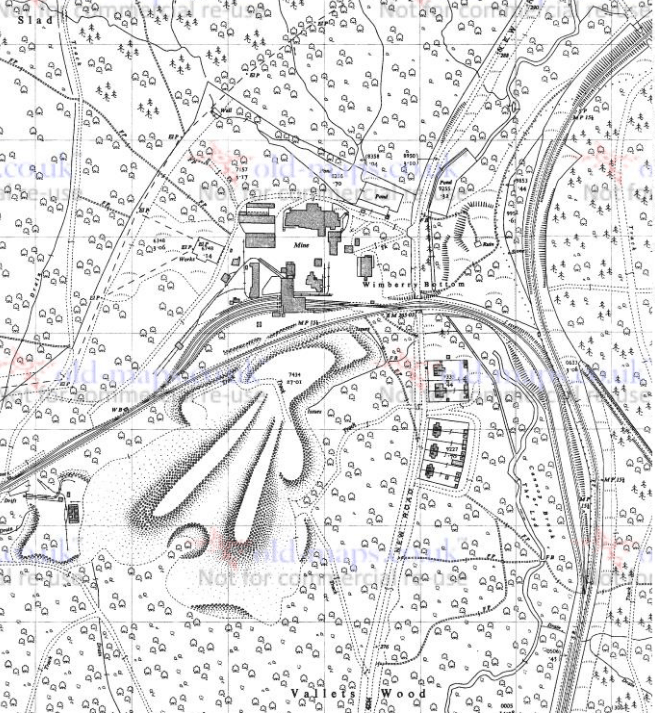

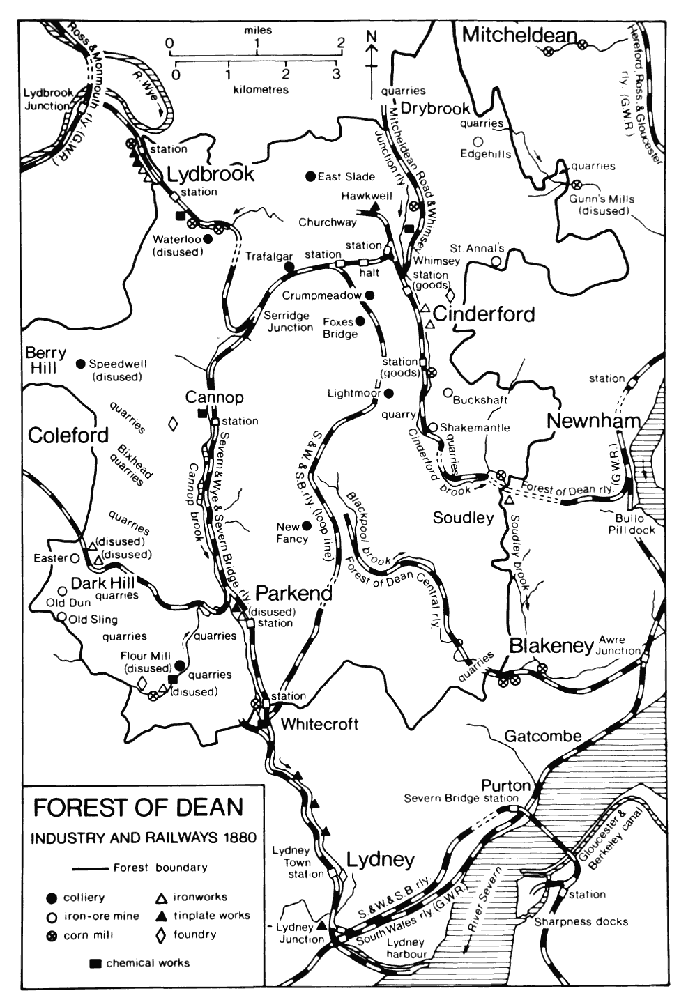

The remaining images in this post are maps. The first shows the position of Cannot Colliery in relation to the railways of the Forest of Dawn. This is followed by three maps showing the site of the colliery in 1903, 1921 and 1968. These three images are taken from the website “old-maps.co.uk.” The last of the maps shows the site after closure.

References

1. Ian Pope; Cannop – A Troubled Colliery; in The New Regard No. 23, 2009, p4-17.

2. https://www.forestofdeanhistory.org.uk/resources/sites-in-the-forest/cannop-colliery, accessed on 31st August 2018.

Tramways de l’Aude – Overview – Part 2

This second part of the overview of Les Tramways de l’Aude is based on the first of a series of three articles provided by Loco-Revue in its magazine in late 1961, written in French by C. Lacombe. It is not a direct translation, and it seeks not to repeat information already provided in the first post in this series. [1] In addition a short set of notes are provided about the Compagnie du Midi which also served the department de l’Aude. Another post will look at the remaining articles by C. Lacombe. ….

Lacombe said, in 1961, that network of the Tramways de l’Aude was not remembered well. By 1961, it had disappeared from the public consciousness.

In his first artic!e, published in October 1961, he covers the history of the network and some basic network details. [2]

History: The Department de l’Aude was not well-served by standard gauge lines (and the network of general interest). It was crossed at its widest point by the Bordeaux-Sete line. The Department provided an overabundance of agricultural produce and its vineyards were prolific but transport difficulties were almost insurmountable.

Transport by road was at a premium, capacity was low and tariffs were high. A series of different tramway/railway projects were considered and by 1895 the Department set up a study group to look at the creation of a network of line ‘of local interest’. This work culminated in a public utility inquiry sanctioned on 8th January 1898. The result was the adoption of a planned departmental network of over 300km in total.

We outlined the lines involved in the first post in this series:

https://rogerfarnworth.com/2018/08/27/tramways-de-laude-overview-part-1

The network linked the chief towns of the canton which were not served by the Compagnie du Midi. It also extended outside the Department de l’Aude to allow important connection to the Bordeaux to Sets railway line. This is particularly true for the line to Olonzac in Hérault.

The proposed network was declared as being of public utility in a decree dated 25th March 1898. A limited company was very quickly constituted in Paris (56, Rue de Provence) with a capital of 4,500,000 francs. It was named as the “Compagnie des Tramways a Vapeur du Department de l’Aude” (TVA or TA). Mr Hely d’Oissel was the Chairman of the Board of Directors. A decree dated 8th March 1899 replaced a company owned by Mr. Hugues Bardol  by this new company. The line located in the Hérault, and the connection to Caunes were separately added to the concession in June 1900 and declared to be of public utility in October 1900.

Construction work started on 1st May 1898. Completion/opening dates were provided in the first post in this series. [1]

The first line to open to the public was that between Carcassonne, Caunes and Conques, on Sunday, 10th March 1901. Routinely, three daily round trips took place on this line. As a result of the popularity of this line, the Compagnie des Tramways de l’Aude was authorized, by decree of 1st July 1901, to raise its capital to 12,850,000 francs, which provided sufficient funds for the completion of the network.

Various changes were made to the planned works during construction. Some lines were extended, some shortened. Particular lengths were clearly unlikely to be profitable and were abandoned. These lengths included sections between: Saint-Pierre-des-Champs and Pierredroite; St~Martin~le~Viel and Alzonne; Ferrals, Corbieres and Villerouge; Bizanet and Villedaigne. A decree made on 6th September 1904 regularised these changes and a second decree on 2nd February 1905 confirmed the final table of lines.

Ultimately, 12 years after work commenced in 1898, the last line was completedcompleted in 1910. This, says Lacombe, is worthy of note as there were many unfinished networks of this type in France. However the war of 1914-1918 brought significant disturbance to the network, as it did to many French networks then in service. Until the Great War, the permanent way was well-maintained. Then. during hostilities, no maintenance work was undertaken, and by 1919, the permanent way was in a deplorable states. The company discovered that it needed to change at least 180,000 sleepers to stabilise the line, in the end, the number of sleepers replaced came to 208,000. The work was not completed until 31st December 1923.

Apart from the need to undertake significant maintenance, the post-war period seems to have been a period of relative prosperity, despite the improving road conditions meaning that competition from private cars was developing rapidly. The commissioning, in 1926, of petrol railcars retained passengers who seemed to appreciate what was an innovative form of transport. However, low railway tariffs for passengers and goods resulted in increasing deficits as the years passed.

Mixed-mode train/bus services were tried from 1930 with little success. The bankrupt company sought the support of the Department. The Department took control of the network and maintained services without alteration until 23rd July 1932 when it offered the whole network to La Société générale des transports départementaux (SGTD) for va period of 8 years. The rail service did not last. The mixed rail-road service lasted only until 1st January 1933. The railway operation was closed on this date and buses took over the service. Decommissioning was authorised by decree on 7th August 1934.

The Network: All the lines of the network were designed with steep gradients and tight curves, with a view to keeping costs of construction to an absolute minimum. Gradients could be as steep as 1 in 20 and curve radii as tight as 40 metres. The metre-gauge track was made with Vignole rail weighing 20kg per metre laid on sleepers spaced at 0.85m. In stations, tracks were separated by 1.7m. For much of the network, rails were laid within the road construction. There were no signals and train safety was secured by phone calls.

There were no major structures on the network, although the trams crossed some relatively significant road bridges. An example being the 3-span masonry arch viaduct over the River Vixiege on the present D625 north of Plaigne. There were a number of smaller bridges built specifically for the network:

  • Small girder bridge over the River Jammas at Salles-sur-l’Hers.
  • The track crosses the “canal due Midi” on a 15 metre span metal bridge at Homps.
  • The railway crosses the River Aude on a metal bridge at Cuxac.

At certain points the Tramways de l’Aude cross the lines of other companies, particularly the Compagnle du Midi. At Castelnaudary, the tramway and GC 19, crossed the Midi tracks at PN 226. An overpass, adopted by ministerial decision of October 20, 1916, replaced this NP and was completed in March 1922. In Bram, the Fanjeaux line cuts the Bordeaux-Séte railway line. In Lézignan-Corbieres, the link between freight and passenger stations crosses the Midi tracks by means of a skew-bridge (74°) of 11.71m span. Incidentally, this bridge was opened to traffic in 1910, too soon after its completion: the recently laid masonry reveals disturbing cracks!

Compagnle du Midi: The Compagnie des chemins de fer du Midi (CF du Midi), was an early French railway company which operated a network of routes in the southwest of the country, chiefly in the area between its main line – which ran from Bordeaux, close to the Atlantic coast, to Sète on the Mediterranean – and the Pyrenees. [3]

The company was established by the Pereire brothers, who thus broke the virtual monopoly held in France by James Rothschild on the slow-paced railway projects taking place in the area of Paris during the 1840s and 1850s. Rothschild responded by strengthening his grip on the sector with an alliance to the industrialist Talabot. The Pereires in turn founded their financial company Crédit Mobilier. [4]

In 1934 the company was merged with the Chemin de fer de Paris à Orléans to become part of the Chemins de fer de Paris à Orléans et du Midi (PO-Midi).

In 1856, the Midi completed its rail line from Bordeaux to Toulouse. [5][6] In 1857, it continued on from Toulouse through Narbonne to Sète. [5] This put it in competition with the Canal du Midi, and on 28 May 1858 the railway took over the lease of the canal. [5][7]

The Compagnie du Midi’s interests spread across the whole area north of the Pyrenees. Its interests in the Department de l’Aude were limited to a few key lines. This left significant space for a company such as Les Tramways de l’Aude to provide local services.

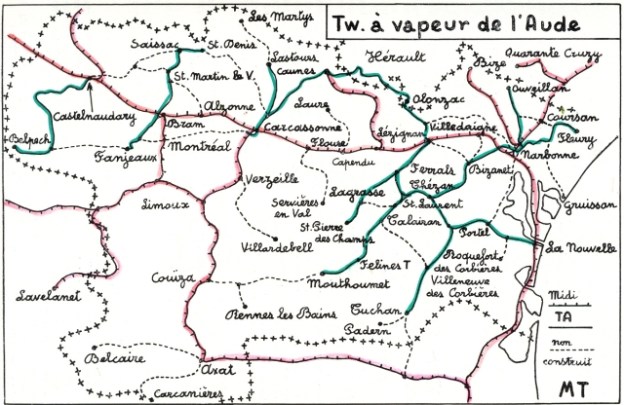

The creatures image at the top of this blog shows the lines of Le Compagnie du Midi marked in red, those of the Tramways de l’Aude marked in blue. It also shows the lines referred to in the text above which eventually were not constructed by the Tramways de l’Aude. These are shown as dotted lines.



References:

  1. https://rogerfarnworth.com/2018/08/27/tramways-de-laude-overview-part-1
  2. C. Lacombe; Les Tramways de l’Aude; Loco-Revue No. 211 – LRPresse, October 1961.
  3. https://en.m.wikipedia.org/wiki/Chemins_de_fer_du_Midi, accessed on 31st August 2018.
  4. Migule A López-Morell; Rothschild; Una historia de poder e influencia en España. Madrid: MARCIAL PONS, EDICIONES DE HISTORIA, S.A. p. 141, 2015.
  5. L.T.C. Rolt; From Sea to Sea. Ohio University, 1973.
  6. Chandra Mukerji; Impossible Engineering. Princeton University Press, 2009.
  7. http://fr.structurae.de/projects/data/index.cfm?id=p0000077https://structurae.info/ouvrages/canal-du-midi, accessed on 31st August 2018.

Bibliography:

Henri Domengie; Les Petits Trains de Jadis/Sud-Ouest de la France; Editions de Cabri, 1986, p226-233.

C. Lacombe; Les Tramways de l’Aude; Loco-Revue No. 211 – LRPresse, October 1961, p338ff & p361.

C. Lacombe; Les Tramways de l’Aude; Loco-Revue No. 212 – LRPresse, November 1961, p

C. Lacombe; Les Tramways de l’Aude; Loco-Revue No. 213 – LRPresse, December 1961, p

Michel Vieux (ed: Roger Latour); Tramways à Vapeur de l’Aude – Le petit train des vignes.

Les tramways à vapeur de l’Aude; Fédération des Amis des Chemins de Fer Secondaires – Patrimoine Ferroviaire (https://www.facs-patrimoine-ferroviaire.fr), No. 171, 1982.

Tramways de l’Aude – Belpech to Castelnaudary – Part A

The tramway from Belpech to Castelnaudary was about 40.5 km long and for much of its length followed the shoulders of the different roads that it shadowed! It was known as the Tramway de la Piege.

The village of Belpech is an old medieval village located at the foot of the slopes of the Lauragais in the Piège, it is adjacent to the department of Ariege. [1]. It has a population, in the early 21st Century, of about 1300 people.

Castlenaudary is a larger town on the main railway line between Bordeaux and Sete, and on the Northeast side of the A61 motorway. Castelnaudary is a market town, and the capital of the territory of Lauragais. The town is located 50 kilometres (31 miles) southeast of Toulouse, about midway along the route from that city to the Mediterranean. This route has been used since at least Roman times, and today carries road, motorway (A61), rail and canal links. Castelnaudary is the main port of the Canal du Midi to which it owed a period of prosperity in the 17th century when agricultural and manufactured produce became easier to export. The Grand Bassin in the town is the largest open area of water along the length of the canal, and is today its major pleasure port. Castelnaudary’s population early in the 21st Century is between 11,000 and 12,000. [2]

The old tramway took a circuitous route between Belpech and Castelnaudary, partly because of the landscape through which it travelled but also because of the need to connect to various centres of population, the largest of which, on the route, is Salles sur l’Hers.

Salles sur l’Hers is a small population centre of around 500 persons. [3]

There were halts or stations at Belpech, Tresmezes, Blazens, Plaigne, Pecharic-le-Py,  le-Py, Pesquiès, Pech-Luna, Mayreville, Peyrefitte-sur-l’Hers, Sainte-Camelle, Saint-Hubert on the way from Belpech to Salles-sur-l’Hers.

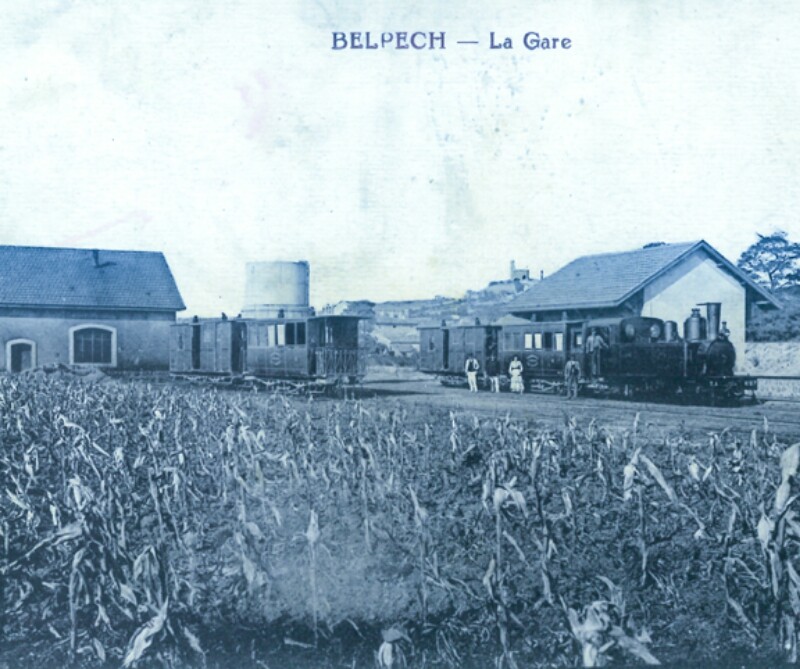

We start the journey at Belpech Station. A schematic drawing of the station is adjacent to these notes. [4]

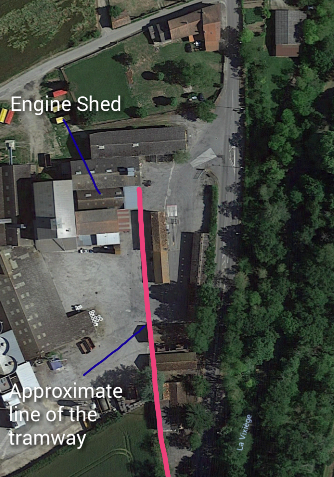

The station was located on the south side of the village. The line was not primarily designed for passenger transport and the facilities at Belpech Station bear this out. The platform was provided for the unloading of wagons rather than for pedestrian access to carriages.

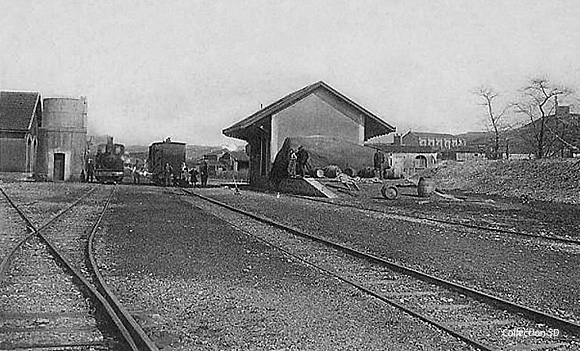

In the image below, the goods facilities are centre stage, with the water tower appearing to the left and with the engine-shed beyond. The station site was compact and necessitated small turn-tables to permit access for locomotives to the shed roads.

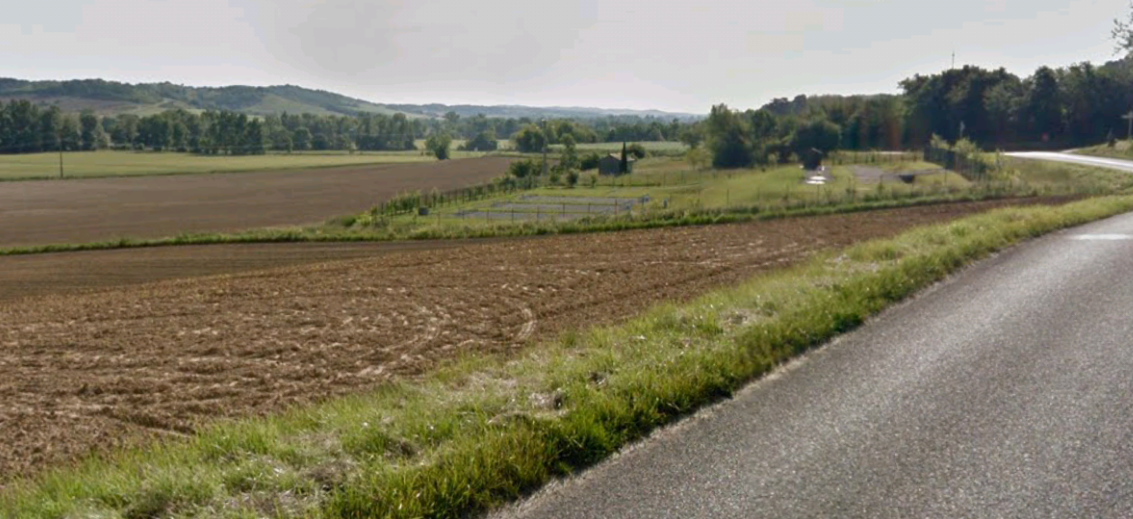

The station has almost entirely disappeared and its site was occupied in 1934 by “La coopérative de Hers, Vixiège et Razes” which is now the “Société Coopérative Agricole Arterris”. The engine-shed apparently still exists but has been incorporated into a complex of other buildings and only the gable-end can be picked out. [6]The Belpech station is located at 40.5 kilometer point. The waiting train is consisting of the No. 26 locomotive, a coach and a van. The train is located on one of the two tracks equipped with turntables which allowed access to the engine shed which is located behind the water tower. The water tower on the left, the station in the centre, and the hall on the right offer a complete picture of Belpech railway facilities. [12]

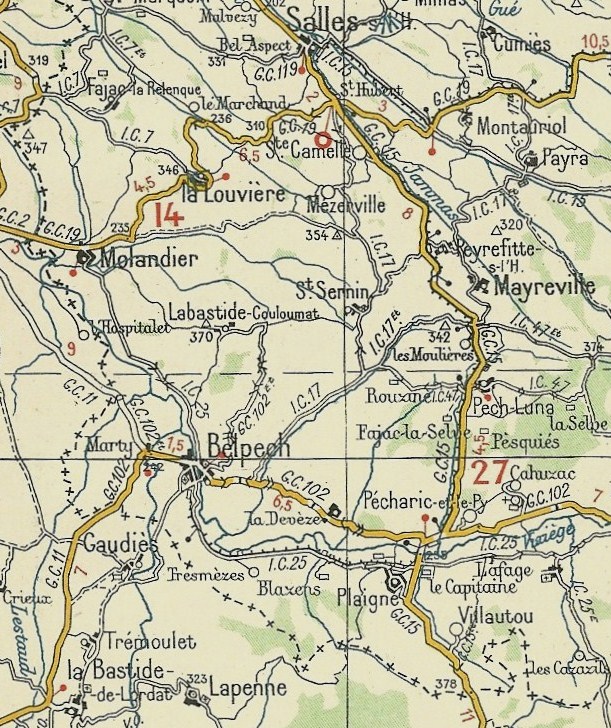

The 1930s Michelin map below shows the tramway marked as a castellated black line alongside the IC25 (now D25) south of Belpech and on the south side of the River Vixiege. Careful study of the map allows the station site in the village to be picked out. [5] Leaving the station the tramway ran on the west side of the IC25 for a short distance before crossing to the opposite side of the road just before it turned eastward. The trams then ran on the north shoulder of the road until it met the GC15 at Plaigne. On the way they passed through the halts at Tresmezes and Blazens.Evidence of the existence of the tramway between Belpach and Plaigne is sparce. This image may be the best evidence we can find. At this point on the road we know that the tramway was on the north (left) side of the road. The culvert is wider on the left than on the right which suggests room left for the tramway.

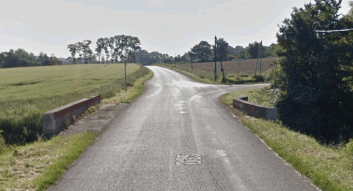

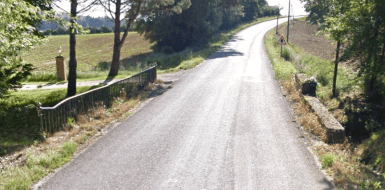

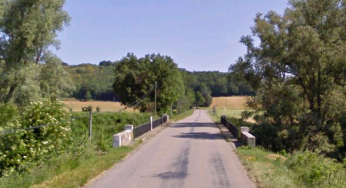

Further evidence is visible at another bridge closer to Plaigne where the parapet next to the old tramway line is completely different to that on the south side of the road – more ornate and more fragile!

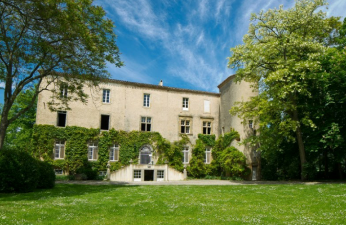

The bridge above is immediately adjacent to the Chateaux de Commanderie which is now a hotel and conference facility.

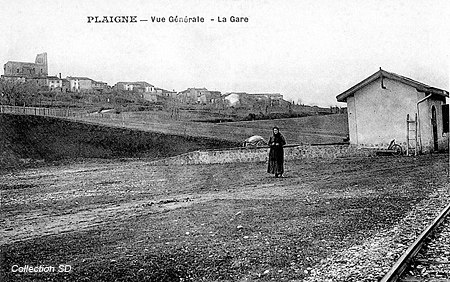

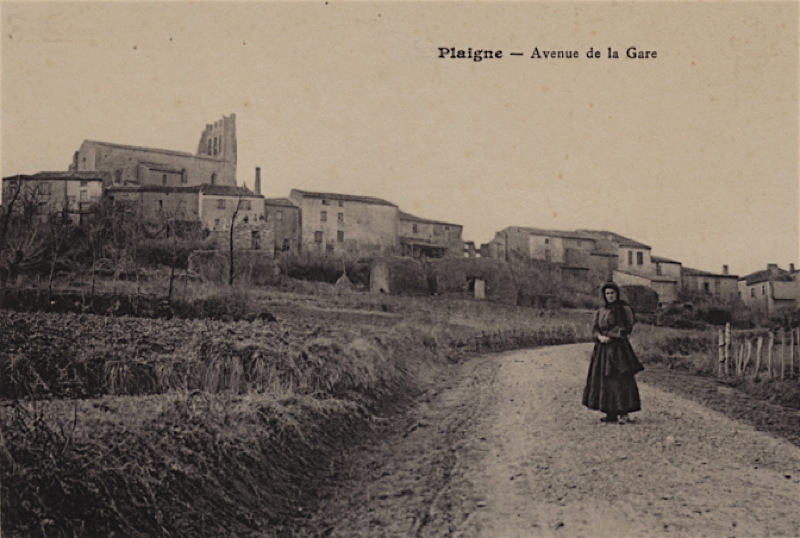

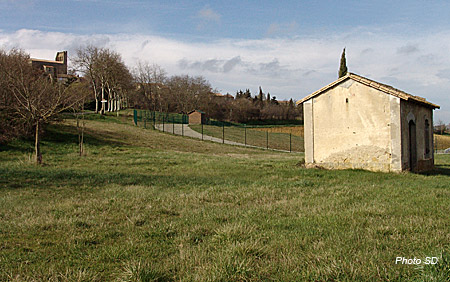

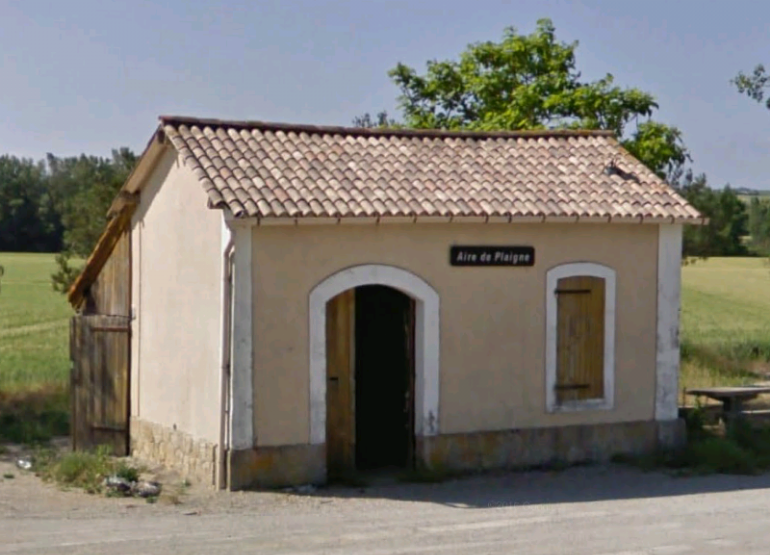

Plaigne is a small village of a little more than 100 people. It is situated to the south of what is now the D25.

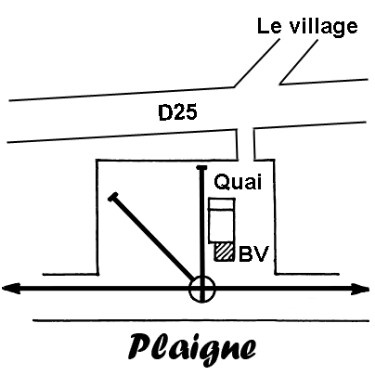

Close to Plaigne, the tramway formation and the IC25 (D25) diverge for about 700 metres. The small station building remains in the middle of a field to the north side of the D25. The line of the Tramway runs to the left of the fence in the centre of the image below. The station building can be picked out at the centre top of the picture with the Cyprus conifer adjacent to it. The image comes from Google Streetview.The pink line above shows the tramway route. The village of Plaigne is immediately to the south of the satellite image. The station building stands isolated just to the south of the tramway alignment. The adjacent sketch plan shows the limited facilities at the station. [4] The plan is inverted with North at the bottom.

A turntable was used rather than points to ensure that the facilities remained compact. Here as at Belpech, no passenger facilities were provided.In this modern view of the station building the view mirrors the older monochrome image immediately above. The D25 runs across the picture in front of the silver birches. [6]

Just beyond Plaigne the D25 meets the D625, the erstwhile GC15. The tramways allegiance to the D25 is shattered by the opportunity to cross the River Vixiege and head north along what is now the D625. The tramway and road cross the river on a three-span masonry arch viaduct and head north. My wife and I were able to travel the length of the tramway from Plaigne to Salles sur l’Hers on 10th September 2018. The material that follows has been confirmed first hand.

Not so far north of the river the tramway reached Pecharic et le Py. This time the sketch map in oriented as one would expect with North at the top. [6]

The station layout allows for two trams to pass, although, once again the provision for passenger traffic is minimal.

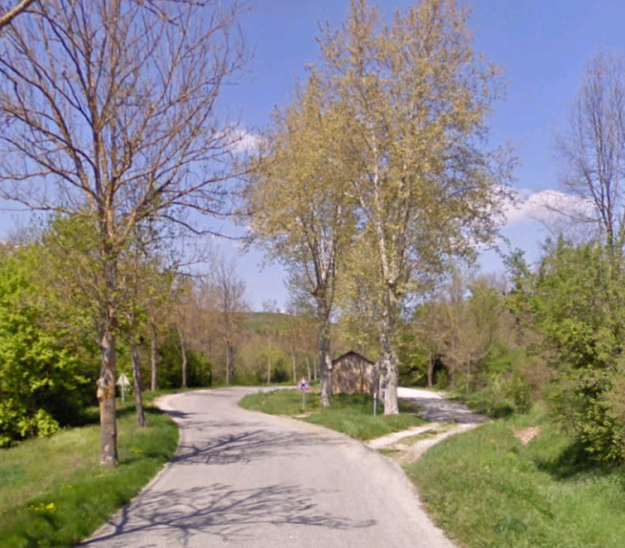

The village is tiny, the population in 2008 was 29! [7]The station building at Pecharic et le Py taken from a vehicle approaching from Paigne.Pecharic et le Py Station facilities in the early years of the 21st Century.

At the East end of the passing loop, the tramway crossed the GC15  (D25) so as to be on the West side travelling North. From Pecharic et le Py, the tramway and road travelled in a generally northerly direction through a series of halts and stations which included, le Py (halt), Pech-Luna, Mayreville and Peyrefitte-sur-l’Hers.

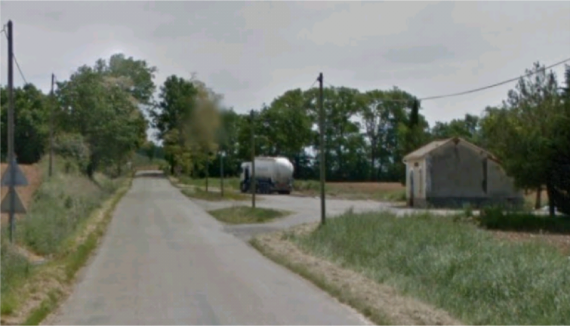

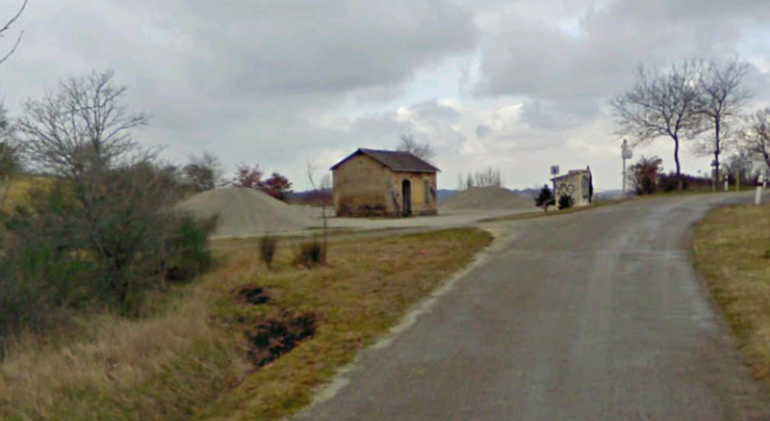

The images below show the stations, starting with that at Pech-Luna. The first photograph shows the approach to the station site. The tramway was on the left (west) side of the road and the tiny hamlet off the picture to the right. The open areas in the picture was the station area. All structural evidence of the tramway has been removed and a bus shelter sits forlornly awaiting the next service.

The next stop at Mayreville served a similarly small hamlet which, like Pech-Luna, was situated to the east of the road. Pech-Luna is a hamlet of  around 100 persons, Mayrevellie, of around 70. [9] Peyrefitte-sur-l’Hers is a hamlet of about 75 people. [10]

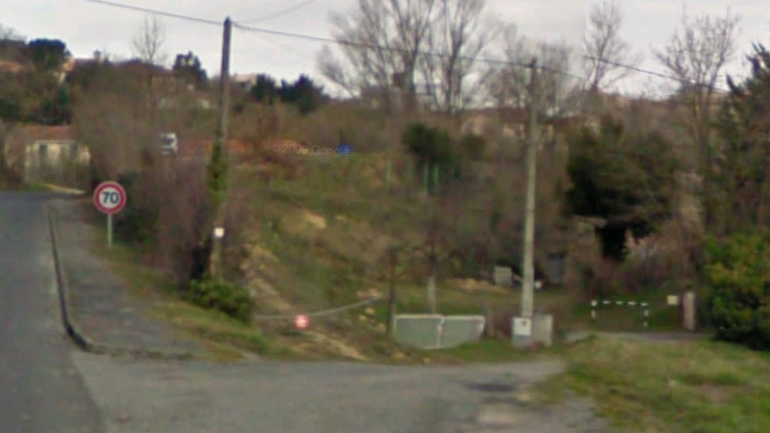

He remains of Peyrefitte-sur-l’Hers Station are on the East side of the D625, so by this stage, the tramway has switched from the western shoulder of the road to that on the eastern side. The facilities at Peyrefitte-sur-l’Hers included a loop which allowed trains to pass easily.The approach to the station at Pech-Luna from the South.

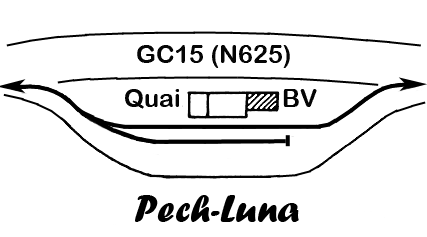

The sketch plan of Pech-Luna Station shows similar facilities to other stations on the route. North is approximately to the left of the sketch.

The remains of the station at Mayreville.

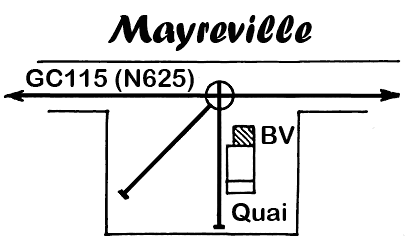

The station facilities at Mayreville were at right-angles to the line. North is once again to the left of the sketch. Passengers were not provided with a platform. The two images immediately above show Peyrefitte-sur-l’Hers Station site in the early 21st Century. The trams ran on the east (right) side of the road as shown in the first image which is taken from a moving vehicle approaching the site from the South.

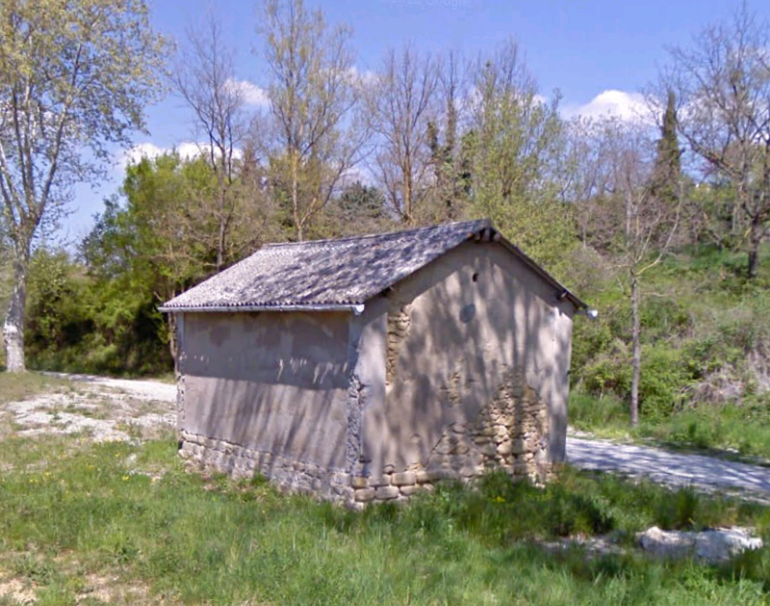

Routinely the stations on the line were built to a standard design, either at right-angles to the tramway or parallel to it. There was a small ticket office and and a goods platform. Unless provision was made for a passing loop the station buildings were usually at right-angles to thee tramway and consisted of a single track, with turntable that supplied a 6m x 9m goods platform and a shelter/ticket office of 6.59m x 4.08 m. [4]

Beyond Peyrefitte-sur-l’Hers, the tramway and road turn westward towards Salles-sur-l’Hers. On the way to Salles, two halts were offered to travellers at Sainte-Camelle and Saint-Hubert.

What might be of significant interest is that the original plans for the tramway bypassed the village of Salles-sur-l’Hers. The dotted line, following the D624, on the map above was the originally proposed route. The station for the village would have been at Saint-Hubert, a distance of some 1.8km from the village. Salles’ residents and the village council protested the proposals.

The initial response of the powers-that-be was that plans were too far advanced to be changed. The evolution found was for the villages of Salles to fund the deviation by purchasing the necessary land. In the light of this the route of the line was revised in 1898 to include Salles-sur-l’Hers. [4]

The tramway from Peyrefitte-sur-l’Hers followed the northeastern shoulder of the GC15 (D625) towards the village before deviating to the right down what is now a green-lane. In the Google Street view image below the rout can be seen on the right with a yellow and black painted metal hurdle preventing vehicular access.Trams crossed the River Jammas on a bridge which is still in use by the footpath and then headed across the south side of the village to reach the station site.

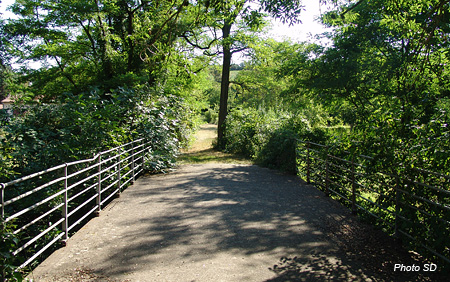

The bridge over the River Jammas and the green-lane beyond. [6]











The site of the Station as it appears in the early 21st Century. [6]











An early view of the station site taken from approximately the same position as the modern image above. [6]

The sketch plan below has been oriented to best suit its position on the webpage from which it is taken. [6]

The village of Salles-sur-l’Hers is to the North and West of the station. On the sketch plan, this means that it is to be found off the bottom side of the image! It has a population of around 600 persons and  is the largest village on the old tramway between Belpech and Castelnaudary. It made little sense for the original tramway plans to bypass the village.

We take a rest here before travelling on along the line.











References

1. https://fr.m.wikipedia.org/wiki/Belpech, accessed on 28th August 2018.

2. https://en.m.wikipedia.org/wiki/Castelnaudary, accessed on 28th August 2018.

3. https://en.m.wikipedia.org/wiki/Salles-sur-l%27Hers, accessed on 28th August 2018.

4. http://sgdelestaing.pagesperso-orange.fr/English/ETram1.htm, accessed on 27th August 2018.

5. http://forum.e-train.fr/viewtopic.php?f=4&t=40082&start=15, accessed on 26th August 2018.

6. http://sgdelestaing.pagesperso-orange.fr/Francais/Tramway4.htm#Epilogue, accessed on 28th August 2018.

7. https://en.m.wikipedia.org/wiki/Pécharic-et-le-Py, accessed on 29th August 2018.

8. https://en.m.wikipedia.org/wiki/Pech-Luna, accessed on 29th August 2018.

9. https://en.m.wikipedia.org/wiki/Mayreville, accessed on 29th August 2018.

10. https://en.m.wikipedia.org/wiki/Peyrefitte-sur-l%27Hers, accessed on 29th August 2018.

11. https://en.m.wikipedia.org/wiki/Salles-sur-l%27Hers, accessed on 29th August 2018.

12. Michel Vieux (ed: Roger Latour); Tramways à vapeur de l’Aude – Le petit train des vignes.

TNL Tramways during the First World War (Chemins de Fer de Provence 80)

A very large part of the information contained in this blog is translated from the French.

Jose Banuado is the author of the book written in French about the tramways of Nice and the Cote d’Azur. [1] I have translated the part of that book which refers to the Great War with the help of internet-based translation software. His text is supplemented with additional information where available.

World War 1

In the fifteen years prior to the great War, the growth of the population of Nice and the surrounding towns and villages necessitated a rapid development of the tram network. The advent of the Great War prevented any further significant development of the network and by the end of the war, the network was in need of an in-depth modernization programme. However, it was not until 1924 that the authorities granted the TNL the authorization to increase tariffs.

During the War, a number of small schemes were undertaken with military needs in mind. Among other things, the network managed to obtain a connection to the PLM at the Saint Roch station and a connection with the Cannes tramways in the streets of Antibes. [2]From July 1915, the laying of a TNL track to the new PLM station of Nice-St. Roch finally created a link between the two networks. In operation, this facility is used to ship the No. 7 Bogie Van required by the Military Authority for the Schlucht Line. (Photos -Jacques Schoffer – TCA Collection). [1]

Traffic decreased, especially that of tourists. The condition of the tracks was deteriorating, especially on the Monte Carlo line. Studies were undertaken to modify the lines of certain curves in order to admit bogie engines on the line, with the restoration of a few sections of track. This work was completed on 3rd September 1918.

Trams Serving the War Economy

The TNL was called upon to undertake a very important role in the national war effort and in supplying the region. As Nice was in a border zone, the arrangements for making tramways available to the military authority “in the event of a mobilisation, alert or unexpected attack” were established on 14 January 1910 by an agreement between the authorities in Nice, the TNL and the EELM company which was in charge of ensuring the electricity supply to the network.

From the day of the mobilisation, all the rolling stock assigned to the transport of goods (i.e. twelve tractors and one hundred and forty wagons) was made available to military. Within three days. 2110m of tracks were laid to connect the military establishments in the Riquier, St. Roch and Bon-Voyage districts, east of Nice, to the tramway network, to barracks, handling yards, subsistence shops and forage yards. An animal park was set up at the Var racecourse in St. Augustin, and a military training camp was created in the St. Véran district at the exit of Cagnes.

On the Nice-Antibes line, the motor bogie tram No. 201 stops at the entrance of the military camp in Saint Veran, on the site of the current racecourse of Cagnes (Rene Clavaud Collection).

The tramways transported to these parks and warehouses nearly a thousand tons of food, military equipment and materials, ammunition and medicines, horses, mules, straw and fodder. Some of the supplies were unloaded at the port, often from the colonies. Other supplies arrived in Nice by the PLM, whose wagons transferred over a street connection in Falicon towards a transhipment platform in La Gare du Sud where a company of territorials, relieved every three hours, ensured day and night the transhipment onto the wagons of the TNL.

In the months following mobilisation, these military movements gave way in part to those needed for civil life: coal for the gas plant, wheat for the flour mills, goods  for other French regions and even for Switzerland, etc. La Gare du Sud was heavily congested and in order to relieve that pressure and accelerate the transshipment of goods, the TNL, the PLM and the Chamber of Commerce concluded an agreement in March 1915, to establish a connection between the tramway to Contes and the new station at Nice-St. Roch, where a a series of sidings were created to facilitate transshipment. This installation, had a capacity of a thousand tonnes per day, was made operational in July. The following year, one lane was lengthened
to receive coal shipments to PLM locomotive depot nearby.In 1916, the connection of the trams to the PLM station in Nice-Saint-Roch was extended to establish a reserved lane for the unloading of English coal imported by sea. The TNL tractor No. 9 is pushing back a train of five high-sided open wagons containing coal onto this raised siding. The siding was 1.93m above its surroundings and over a good part of its length it was made up of scrap sleepers supplied by the PLM and simply stacked without any form of binding. (Jose Barnaudo Collection.)

The tramway workshop at boulevard Sainte-Agathe was one of the best industrial establishments of the city of Nice, and the military authorities took it over in January 1915  and conferred on the TNL the responsibilty for machining 75 mm shell blanks and training some 30 small businesses in the region to do this type of work. Manufacturing subsequently extended to 120 mm shells and small bombs. These small bombs were intended to be dropped by hand from aeroplanes. The raw materials were transported by railway from the Toulon arsenal to Nice, and the finished items were transferred in the opposite direction. Congestion on the PLM coastal line eventually led to these exchanges being undertaken by sea.

An abundant female workforce, provided in particular by the wives of combantants,
was used until 1917 in this war effort.

The depot of Sainte-Agathe also worked to transform wagons required on the other networks for by the 10th section of the military field railway. In 1916, the port of Nice received large shipments of American wheat which were removed by tramway to St. Roch station, the mill of Ariane and that of Monaco.Above, two trains for the needs of the Army during the 1914-1918 war: the first is No. 13 bogie tractor at the head of a train of straw or fodder at the depot of Sainte-Agathe. And the second, carries cars involved in an accident in a barracks. (Photos Jacques Schopfer – TCA collection.)

When more than one ship berthed at the same time, loads could not be moved by the TNL immediately. There was a lack of covered warehousing on the quays, so it was decided to convert the TNL depot at the port into a warehouse for the stacking of wheat. AS a result a storehouse for nearly 3000 tons of cereals in bags was created, which was still used by the civil supply administration for two years after the war.

The year 1917 saw tramway traffic increase in several areas. On 26 March 1917, after connecting the TNL and CTC tracks which until then had only crossed each other on the Place Jean-Macé in Antibes, a coal train was put into operation daily from the port of Nice to the gas plant of Cannes, located near Mandelieu. Since this service was entirely satisfactory and the PLM Marseille-Ventimiglia line was almost exclusively reserved for military transport to Italy, the tramway provided from 17 November 1917 an additional service. It transported cement from Contes to Mandelieu for the construction of the new military camp at Fréjus. When the cement arrived at the end of the Cannes network, cement was transshipped by trucks to a destination beyond the Esterel.

The wartime traffic made it possible to smooth out administrative difficulties between companies of the Nice and Cannes tramways, and even to silence the claims of the municipalities crossed for a tax on goods in transit!

Transport of the wounded.

From the first months of the conflict, most of the large hotels in the towns and cities of the Côte d’Azur had been requisitioned to house wounded and convalescing soldiers, war orphans and civilian refugees from the evacuated areas. The lines of the urban network of Nice as well as those of the coast which served these establishments experienced an intense traffic, increased from 1917 by contingents of Americans.

If for able-bodied passengers this influx only caused capacity problems, it was quite different for the transport of the most seriously injured who had to travel lying down. During the summer months, sixteen modified open trailers were used to transversely arrange ten stretchers. During the cold season, a tractor and eight vans were fitted out to longitudinally receive twelve stepped stretchers on three levels. If necessary, eight conventional urban power cars could each carry eight stretchers. Depending on the formation of the convoy and the gradients to be covered (many temporary hospitals were served by the steeply sloping Cimiez line), from 60 to 72 seated and lying injured people could be taken from the PLM station to the care and convalescent establishments.

There were twenty-eight such establishments in the city of Nice and its surroundings, these included the two mixed civilian and military hospitals of St. Roch and Villefranche, six auxiliary hospitals, ten additional hospitals, seven hospitals managed by volunteer staff and three convalescent centres, most of which were set up in requisitioned villas, residences and hotels. Their total capacity reached 7131 beds in care units and 1275 beds in convalescent homes, the numbers are mentioned in brackets in the following list.

  • Eight establishments were served by the Cimiez line: École Normale (300 beds), Hermitage hotels (375, served by a private funicular railway). Regina (650), Majestic (650), Winter-Palace (400), de Nice (350). Riviéra (150) and Alhambra (162).
  • The largest was at the terminus of the Imperial Park line: Imperial Hotel (800).
  • Only one was served by the St. Sylvestre line: Parc Chambrun residence (280).
  • Seven were located in the 1st town centre and served from avenue de la Gare or rue de Lépante: Hôpital St. Roch (275), clinique des Augustines (100), asile Evangélique (80), Grand hôtel (550), hôtels des Palmiers (350), Continental (575) and Gallia (300).
  • Eight establishments were located on the Carras line: Lenval (65), Russian (24) and American (30) hospitals, Négresco (400), Ruhl (550), Royal (275), Ang1terre (175) and Palace (400) hotels.
  • Three were located along the first line of Villefranche: English hospitals (60) and Villefranche (30), Villa Schiffanoia (50).

The following three images come from Jose Banaudo’s book. [1]

References

  1. Jose Banuado, Nice au fil du Tram, Volume 1; Les Editions du Cabri, 2004.
  2. http://transporturbain.canalblog.com/pages/les-tramways-de-nice—de-l-apogee-au-declin/31975780.html, accessed on 24rh August 2018.



Tramways de l’Aude – Overview – Part 1

Les Tramways de l’Aude operated a departmental network in the department of Aude between 1901 and 1934. [4] A series of metre-gauge lines existed around Narbonne and Carcassonne. The lines were predominantly alongside roads with the exception of short sections where alignments required a deviation from the side of the carriageway.  [1] Gradients could be steep, almost as steep as 1in 20 and the horizontal alignment often had to accommodate tight curves. [4] The extent of this metre-gauge network is shown above. The sketch map is taken from the back cover of the definitive French text about ‘Les Tramways de l’Aude’ by Michel Vieux. [5]

Essentially, trains were steam-hauled throughout the life of the line.   Apparently some use was made of Autorails from 1924 onwards but resulting improvements were only mediocre. [4] Wikipedia [1] suggests that lines were closed by 1933. I have seen one article which talks of final closure on 7th August 1934. [4]

One short section of the network from Carcassonne to Lézignan was built on the territory of the department of Hérault , between the communes of Félines and Olonzac.

La compagnie des tramways à vapeur de l’Aude (TVA), was formed on 7th November 1898 . Its headquarters were in Carcassonne. The new company replaced Mr. Hugues Bardol, contractor and concession holder for a tramway network in the department of Aude. This company adopted a ‘TVA’ logo, although on rolling stock only the letters TA were used. [3] Stations were well equipped and laid out but income and traffic were essentially seasonal and labour costs were relatively high because of the bulk of the transported goods and large numbers of barrels. [4] L’Aude’s economy in the late 19th century was heavily dependent on vineyards and problems with transport were increasingly occurring. La Piege, to the east of the department, fed it with seeds and fodder. An example of the problems being experienced is quoted on the Baraigne village website:

Transport by carts are currently so expensive, so long and difficult, that in the canton of Belpech, instead of sending the goods on Castelnaudary, we prefer to transport them directly to Mazères and Saverdun, in the department of Ariège , to ship them to Narbonne.” [3]

So, to avoid poor quality roads, goods were transported over a route that was 140 kilometres long! It became imperative to find a suitable solution which mm in I mixed transport costs. As we will see in a later post, the solution in this case was a meandering tramway between Belpech, Salles sur l’Hers and Castelnaudary. [3]

La Société générale des transports départementaux (SGTD) operated several networks (Railways of the Suburbs of Reims , Tramways of Eure-et-Loir , Tramways of the Côte d’Or). In 1928, it began negotiations to take over the network in l’Aude using a mixed rail-road operation. After redemption of the company’s assets trams steam Aude, their service commenced on  1st August 1930.

The network had a total length of 342 kilometres and served much department. The lines can be divided into four groupings: [1]

Connections to other networks (junction stations), particularly with the network of the Compagnie des Chemins de Fer included:Castelnaudaryline Bordeaux-Saint-Jean – Sète-VilleBram, line Bordeaux-Saint-Jean – Sète-Ville; Carcassonne, line Bordeaux-Saint-Jean – Sète-Ville, line Carcassonne – RivesaltesCaunesline Moux – Caunes-Minervois; Lezignan, line Bordeaux-Saint-Jean – Sète-Ville; Narbonne, line Bordeaux-Saint-Jean – Sète-Ville, line Narbonne – Port-BouLa Nouvelle , line Narbonne – Port-Bou. [1]

Most of the lines of the network opened between 1901 and 1905: Carcassonne – Caunes: 10th March 1901;  Homps – Lézignan: 16th December 1901; Carcassonne – Caunes: 5th February 1902; Olonzac – Homps: 5th February 1902; Thézan – La Nouvelle: 5th June 5, 1902; Luzignan – Thézan: 22nd June 1902; Ripaud – Tuchan: 10th October 1902; Castelnaudary – Halls: 1st January 1903; Halls – Belpech: 14th June1903; Conques – Lastours: 15th June 1903; La Nouvelle – La Nouvelle Plage: 14th July 1904; Narbonne – Ouveillan: 12th February 1905; Narbonne – Fleury: 12th February 1905; Fabrezan – Saint Peter: 1st April 1905; Bram – Prouille  : 10th May 1905; Bram – Saint Denis: 10th May 1905; Les Palais – Mouthoumet: 10th May 1905; Narbonne – Thézan: 10th May 1905. [1]

Three opened at a later date: Bram – Fanjeaux: November 20, 1906; Felines – Olonzac: October 1, 1908; and Caunes – Felines: June 15, 1910. The last two openings were sections of the Carcassone-Lézignan line and required major construction work. [1]

Rolling stock and Locomotives

Locomotives: there were 45 locomotives in all. They were all 0-6-0 locomotives built by Corpet-Louvet and delivered between 1899 and 1914. [2] They were as follows:

No. 1 to 3 Corpet-Louvet n ° 776-778 in 1899;
No. 4 to 5 Corpet-Louvet n ° 785-786 in 1899;
No. 6 to 26 Corpet-Louvet n ° 789-807 in 1900 and 1901;
No. 27 Corpet-Louvet No. 932 in 1902;
No. 28 to 35 Corpet-Louvet n ° 809-816 in 1903;
No. 36 to 37 Corpet-Louvet n ° 1164-65 in 1908;
No. 38 Corpet-Louvet n ° 1229 in 1908;
No. 39 to 41 Corpet-Louvet n ° 1370-72 in 1912;
No. 42 to 43 Corpet-Louvet n ° 1495-1496 in 1914;
No. 55 to 56 Corpet-Louvet n ° 1054-55 in 1905.
No. 55-56 came from the Mining Company of Villerouge and Albas, in Félines-Terménès. [1]

Autorails: There is evidence of the use of small railcars from around 1924 onwards. [4]

Passenger Cars:  72 2-axle cars [1]

Baggage vans:     27 vans with postal compartment [1]

Freight wagons:  86 covered wagons, 81 open wagons, 186 flat wagons and 10 flat wagons with pivoting sleepers. [1]

References

  1. https://fr.m.wikipedia.org/wiki/Tramways_de_l%27Aude, accessed on 24th August 2018.
  2. Taken from a list of Corpet-Louvet locomotives established by Sébastien Jarne, http://demophile1.free.fr/Corpet&Louvet.doc, accessed on 25th August 2018.
  3. http://sgdelestaing.pagesperso-orange.fr/Francais/Tramway.htm, accessed on 24th August 2018.
  4. http://ruedupetittrain.free.fr/lignes/sudest/tramway-aude.htm, accessed on 27th August 2018.
  5. Michel Vieux (ed: Roger Latour); Tramways à vapeur de l’Aude – Le petit train des vignes.

Choices: John 6: 56-69; Joshua 24: 1-2a, 14-18; Ephesians 6: 10-20

The right to choose. …. That phrase has been used in a whole series of contexts over recent years. It has become one to the defining characteristics of our society. We are told time and again just how important it is that we have the freedom to make choices. And rightly so, because the ability to make choices to make value judgements is one of the distinctive marks of being a human being.

I am sure you can think of examples – but here are a few …

A Woman’s Right to Choose – I am not going to enter the very complex debate about abortion. It is enough to acknowledge that a woman’s right of choice is an important issue in the ethical debate that surrounds abortion. This is the context that we most often talk of a right to choose.

The Right to Choose – is the title of a government advice booklet to agencies dealing with involved with handling cases of forced marriage. Each individual has a right to choose who they marry and an inalienable right not to be forced into a marriage for whatever reason.

The Right to Choose has recently been extended in the health service to mental health patients as well as those suffering physical symptoms. We can increasingly choose where we are treated and when we are treated. The Heath system is changing slowly to focus more on the patient than the clinician.

The withdrawal of the right to choose is also significant: Right wing totalitarian regimes deny freedom of choice to their subjects. Difference is frowned upon. Left wing/communist regimes value the proletariat above the individual, subjugating individual freedom to the needs of the masses.

In a very significant way, when we lose the ability to choose, we become less than human. Freedom and choice are really as fundamental to our lives as the right to shelter, food and water.

Successive governments have been right to emphasise freedom to choice.

Some of us might want to question whether we really do have freedom to choose. … So often, the right to choose a school for our children is limited, or perhaps negated, by the catchment area of the school. … Patients’ choice in the health service is often limited by our ability to travel to a hospital. … It is often almost impossible for a woman in abusive relationship to make the choice to leave, she feels completely trapped by her circumstances.

Nonetheless I feel so much better when I’m treated as an individual and given a say in the things that affect me. When I am given the freedom to choose.

Freedom of choice is so important. … Yet putting the two words “freedom” and “choice” in the same phrase is perhaps misleading. … For the very exercise of our freedom to choose restricts our freedom. When we choose to join a club, we are choosing to be bound by its rules, if not we very soon find that we are no longer welcome. When we choose to marry, we commit ourselves to one person, we are not free to play the field.

Choice, by its very nature restricts freedom.

Our readings set for 26th August 2018 seem to focus on that ability to choose.

Joshua actually uses the word. … “Choose this day whom you will serve,” he says. “As for me and my household, we will serve the Lord.”

Paul in Ephesians encourages us to make the choice to stand firm under attack, to stand against evil, and he promises us that God’s armour, God’s resources are available to us as we stand firm.

Jesus presents his disciples with a choice. “If my words are too hard for you,” he says, “you don’t have to stay!” And we heard Peter’s response, “Lord, to whom can we go? You have the words of eternal life.”

All three passages leave us with a challenge: “What choice are we going to make?”

Are we going to do our own thing, follow our own instincts, in life? Or are we going to commit ourselves to God’s agenda? Are we going to stick with God even when the going gets tough?

God gives us the freedom to choose. He does not force us to accept him. Jesus doesn’t demand our allegiance. He offers himself to us as friend and as Lord, with every possibility of our turning our back on him.

Vulnerable love, love which was willing to die for us, love which does not impose itself on us but waits patiently for our decision. Love which is prepared to release us if we choose to turn away from him.

We are free to choose.  …. Yet as we exercise our freedom to choose, we make commitments which on the face of it restrict our freedom. We cannot make Christ ‘Lord’ and still give other things a more important place in our lives. Christ being ‘Lord’, means just that, Lord of our lives, our families, our work, our lifestyle. The free choice we have made, the one we continue to make as we commit ourselves to Christ each week in worship, seemingly limits our freedom.

And yet, here is perhaps the greatest paradox of all, when we commit ourselves to Christ as Lord we don’t feel trapped by our choices – we feel set free, set free to be who we really are. Here in the Christian family, when it is functioning as Jesus intended, we find our true freedom, our true dignity, our true equality as we worship the one who is worthy of all the praise that we can offer.

Contemporary society talks of human rights and ‘the freedom to choose’. In Christian worship, we confess that we cannot speak of ‘our rights’, for we have been given everything and forgiven everything and promised everything, not as of right, but of the loving grace of God who, as we freely give ourselves to him, as we chose his sovereignty, freely gives us all things.

When we come to Communion, we exercise our right, our freedom to choose, and as we take bread and wine into ourselves, we commit ourselves again to a choice to be God’s children and family. The end of August heralds a new cycle, a new academic year, it is a time for re-commitment re-commitment to God’s sovereignty in our lives. And as we make that renewed commitment we experience once again the release that comes from being who we truly are! … Those who are loved, accepted and redeemed, chosen ourselves by the grace of God.

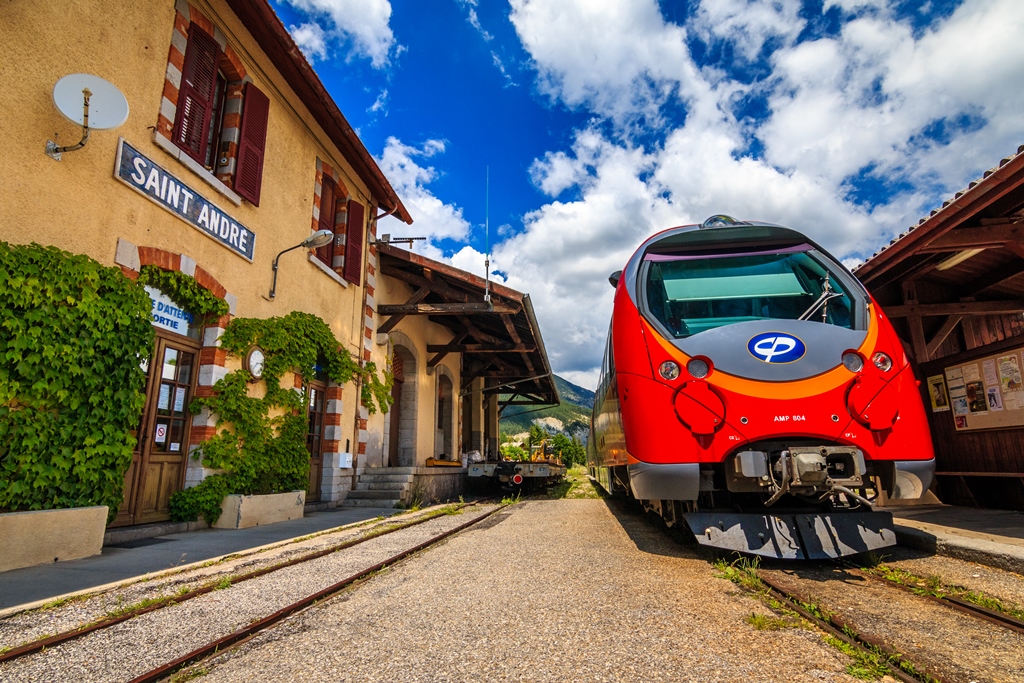

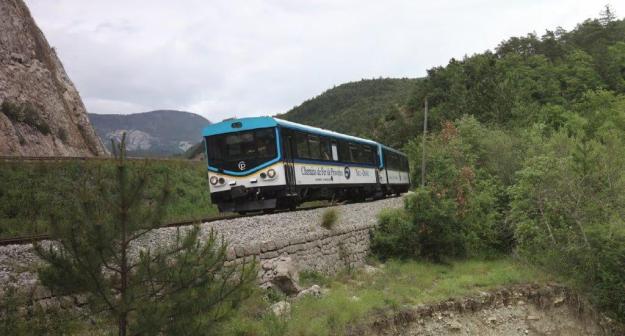

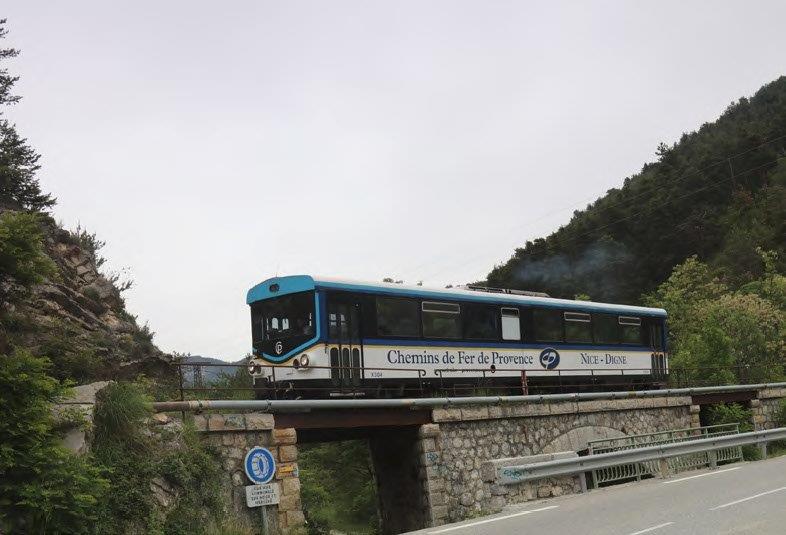

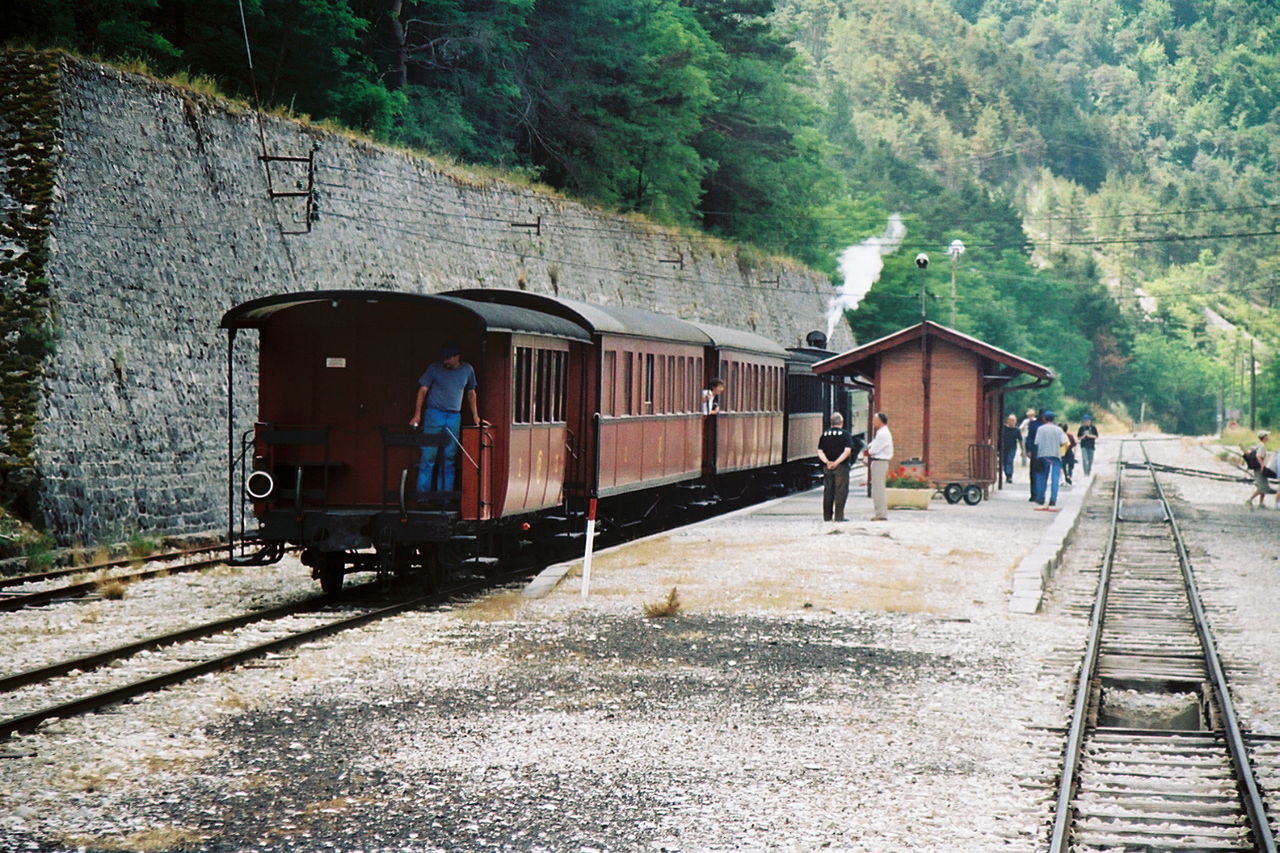

Nice to Digne-les-Bains Part 14 – Mezel to Digne (Chemins de Fer de Provence 78)

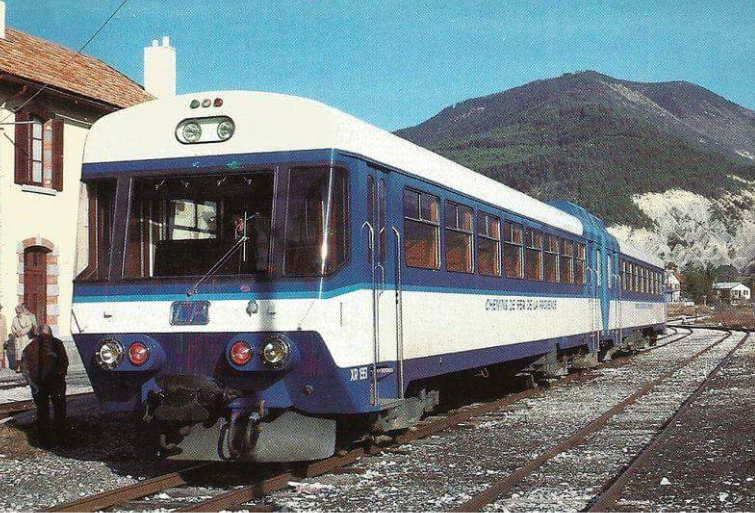

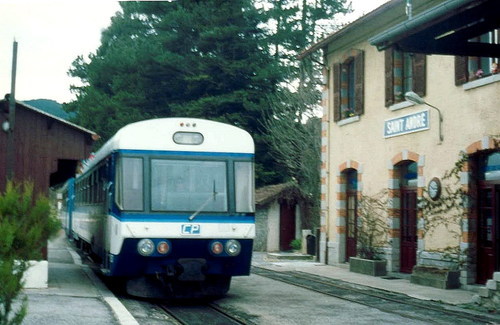

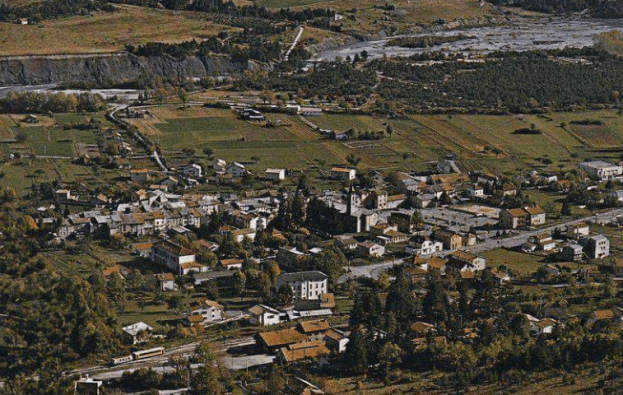

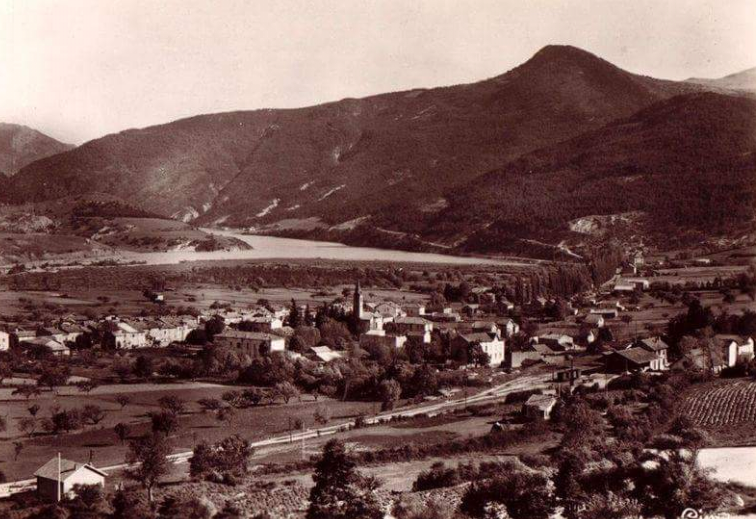

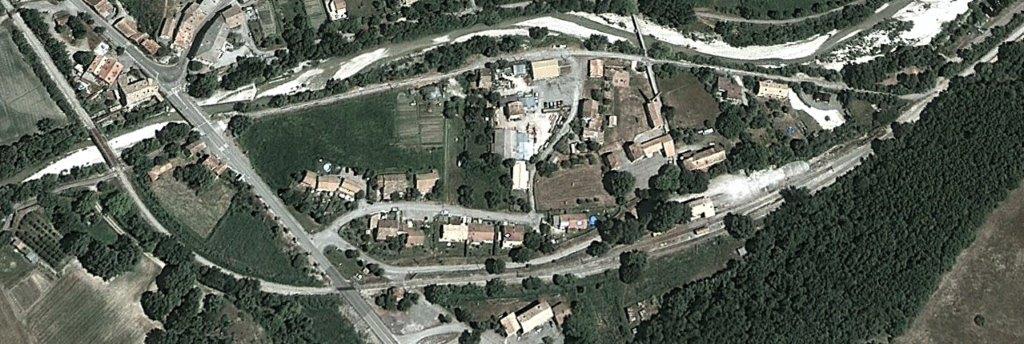

Mezel and Châteauredon are two villages in the valley of l’Asse. Mézel is a small village, 15 km south of Digne-les-Bains. It’s a long, narrow village, with one long main street, the Rue Grande, set back from the D907 road that passes by on the East side of the village. Mezel is just under 1.5km south of the railway station. Châteauredon is also a small village. It is less than 1.5km to the Northeast of the railway station. The l’Asse flows to the Southeast of both villages.

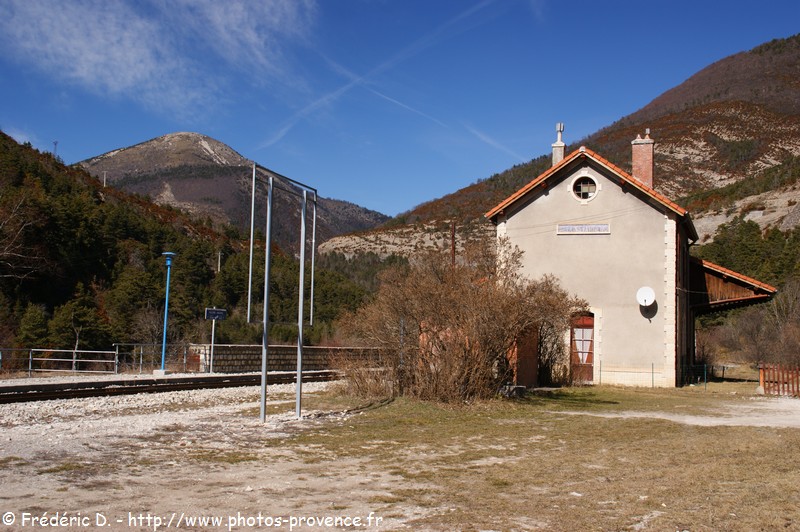

Mezel/Châteauredon Station is roughly midway between the two villages and is sited between the ‘D907’ and the ‘D17’.Mézel/Châteauredon Station, (c) Kjell Strandberg. [1]

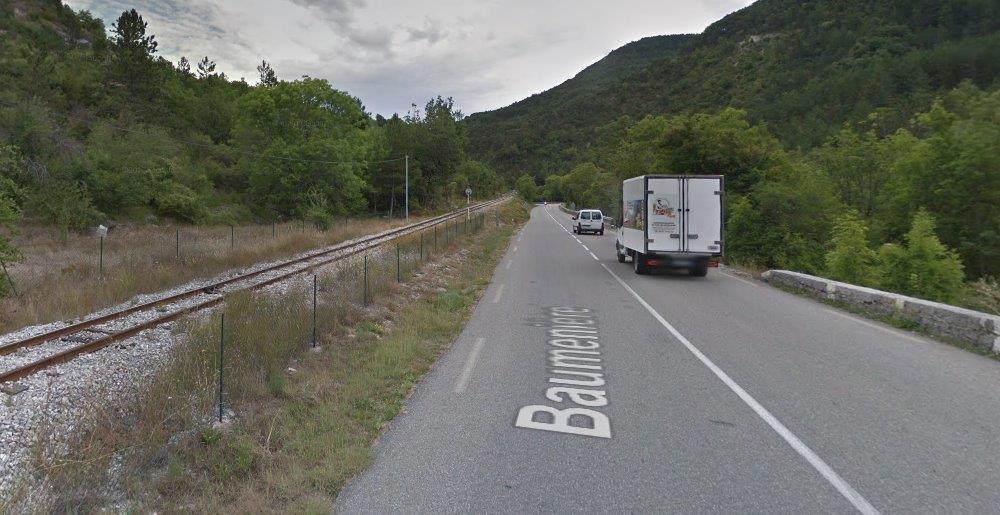

We set off from the station, initially in a westerly direction and the line runs on the north side of the ‘D17’ which can be seen to the left of the line in the first image below.Just under a kilometre from the station, the ‘D17’ crosses the line by means of a level crossing. The two images above are taken from the cab of an autorail approaching the level crossing. [2]

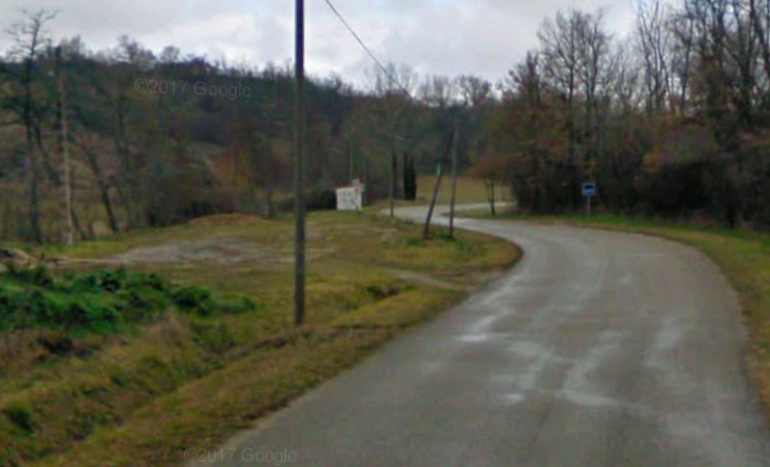

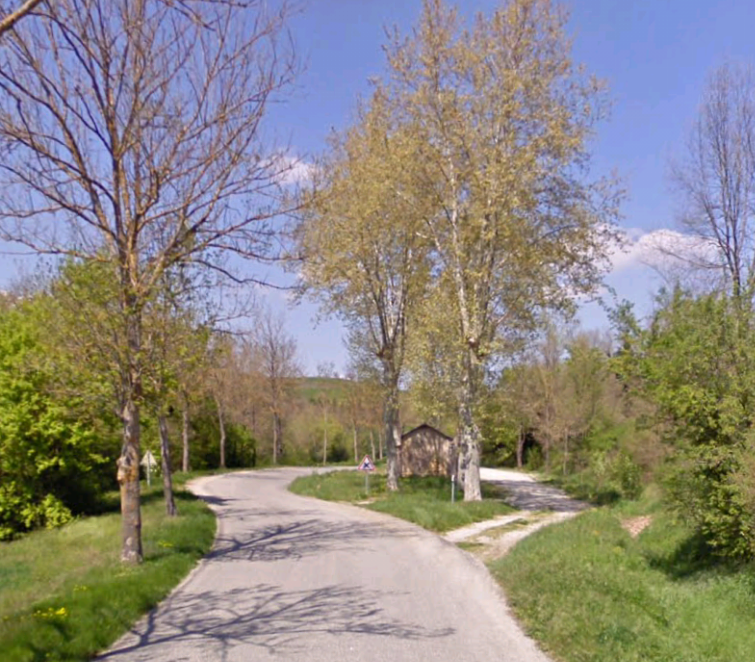

The two views below come from Google Streetview. The first is taken of the crossing looking northwest, the second is taken looking back to the Southeast.The crossing keeper’s cottage remains!

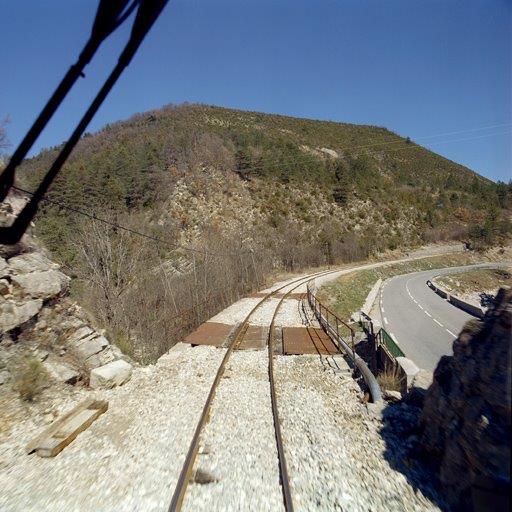

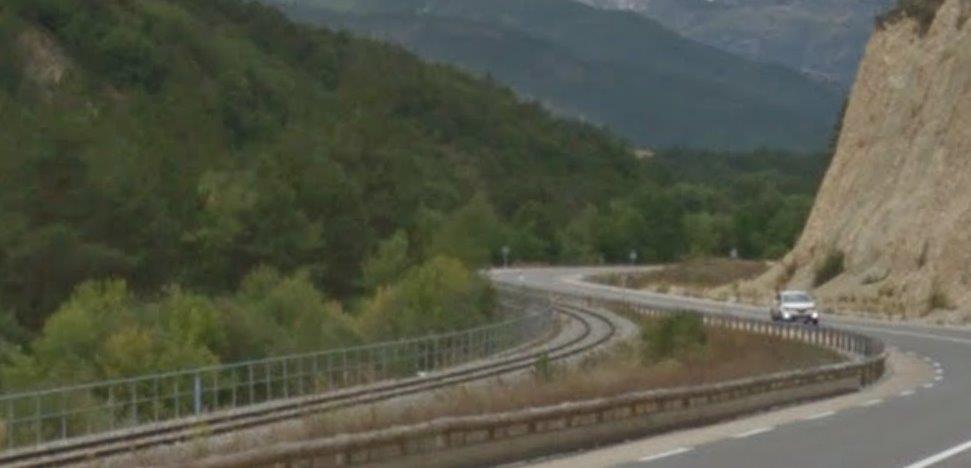

The road continues to follow the railway but now on its northeast side. They are immediately adjacent to one another once again by the time the railway reaches l’Arrêt des Lavandes.

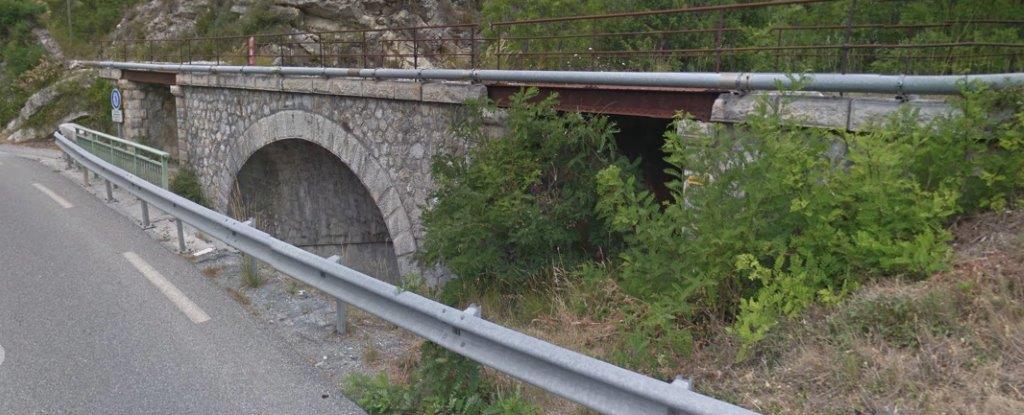

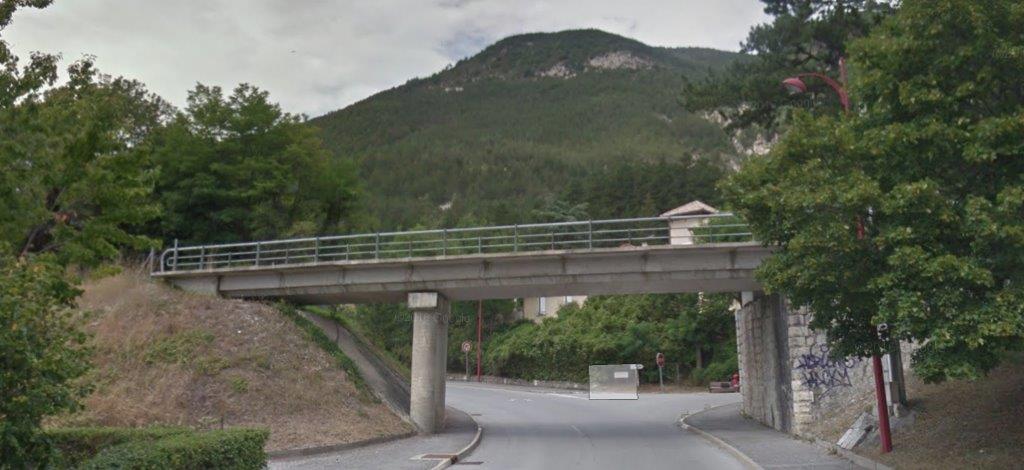

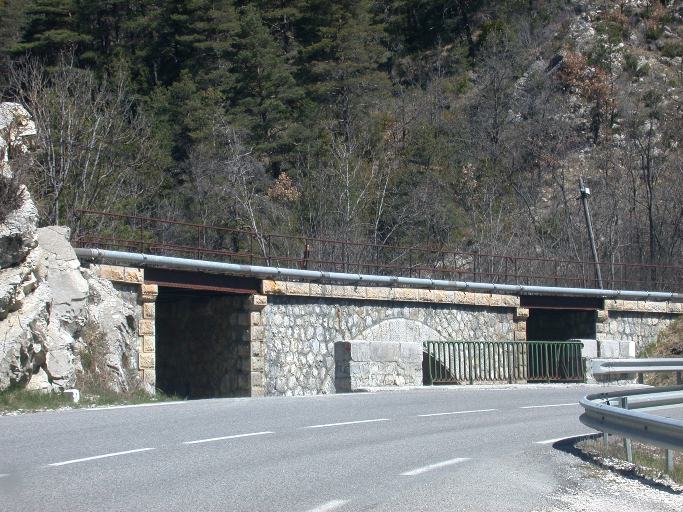

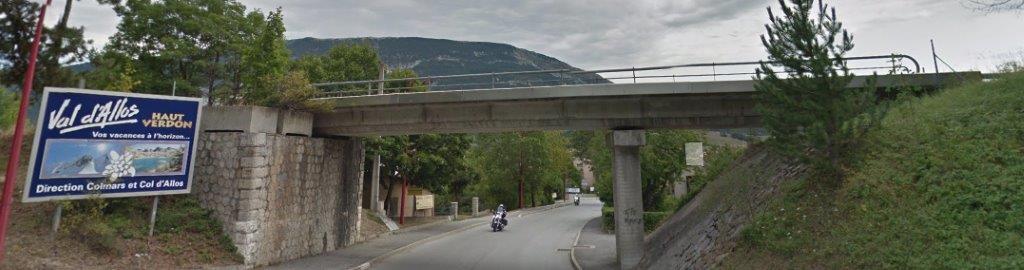

Road and rail remain close for a further kilometre or so before the road turns sharply under the railway through a low single lane bridge. Immediately after the bridge (below) the railway turns through 90 degrees from a northwesterly trajectory to a northeasterly alignment and gradually pulls away from the ‘D17’.The railway curves away to the north. [2]

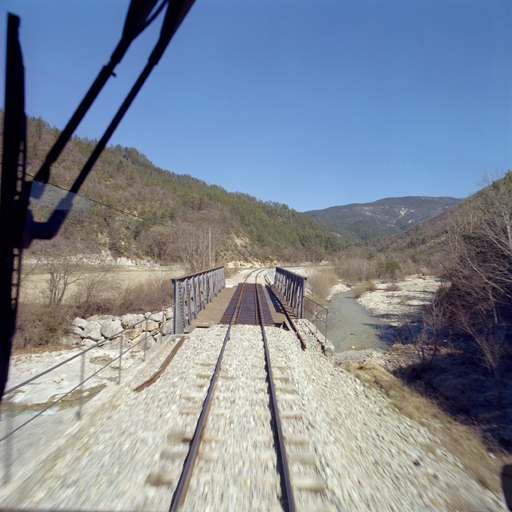

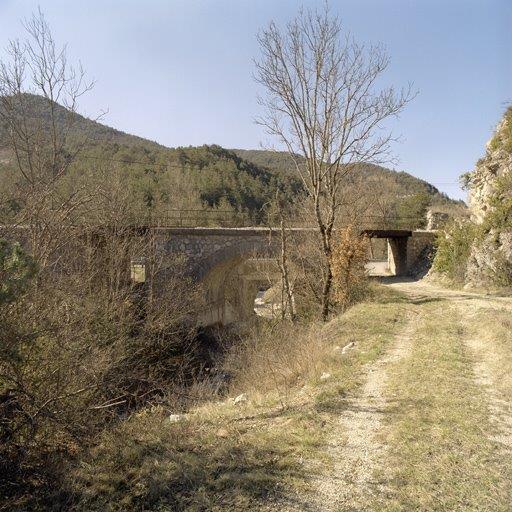

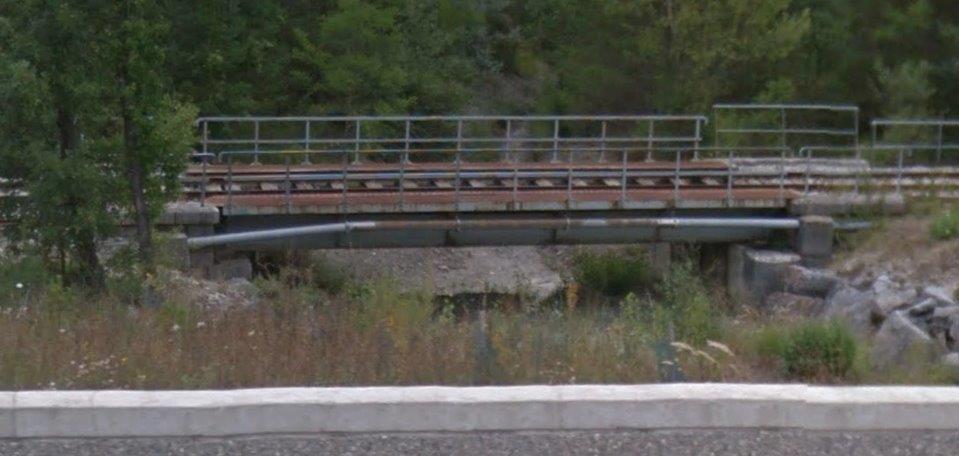

The next structure on the line is the bridge of Le Chaffaut de Saint-Jurson over the Torrent de Roche Chave as shown on the adjacent map and the staellite image below.The bridge is a fine masonry arched viaduct, seen first from the upstream side. [3]And then from the downstream side. [3]

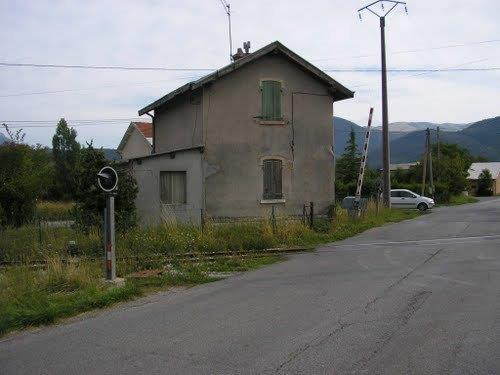

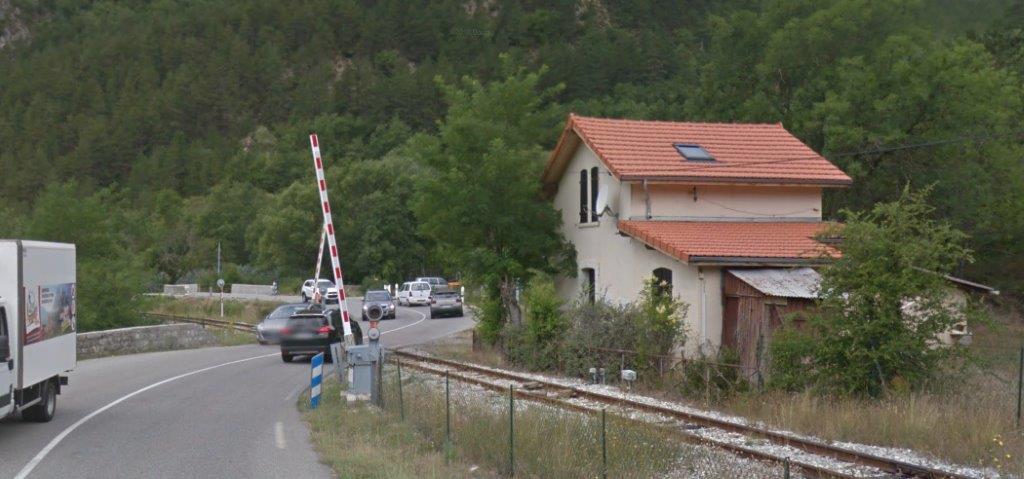

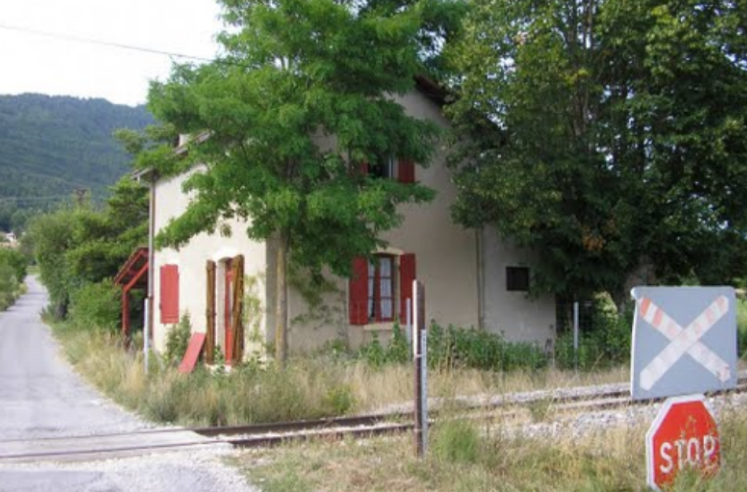

About a kilometre further north is the Arrêt de Saint-Jurson, immediately adjacent to a level crossing for the village road.L’Arrêt de Saint-Jurson, immediately adjacent the level crossing and so very close to what was the crossing keepers cottage. [4]

After the Halt for Saint-Jurson, the railway curves gently round towards a Westerly direction, crossing the Torrent du Bat de l’Anesse and then passing under and accommodation bridge which carries part of the road called Les Hermittes over the line. After travelling under the overbridge, trains then sweep round to a more Northerly direction before entering the Tunnel des Hermittes. The tunnel is 300 metres long and sits about 580 metres above sea-level. Once again the tunnel is marked on the plan below with red, blue and green dots. [5]

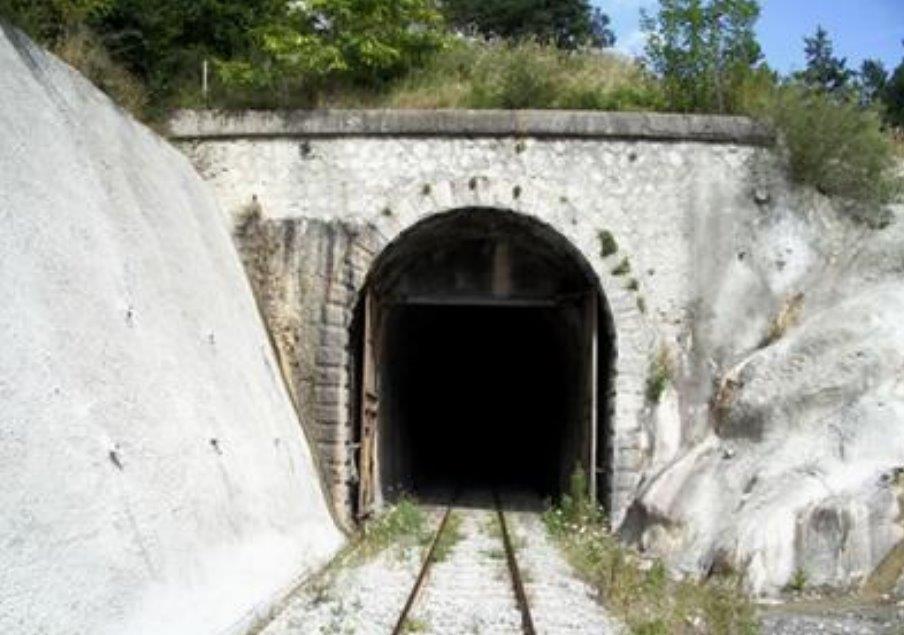

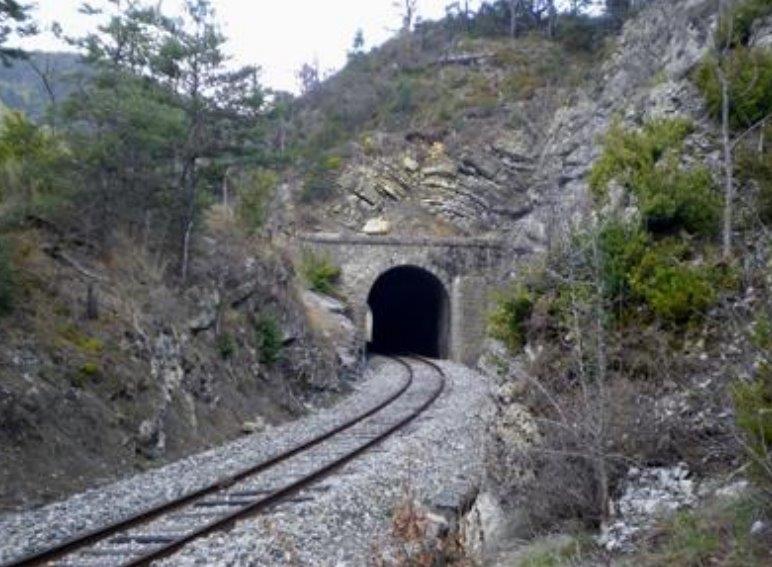

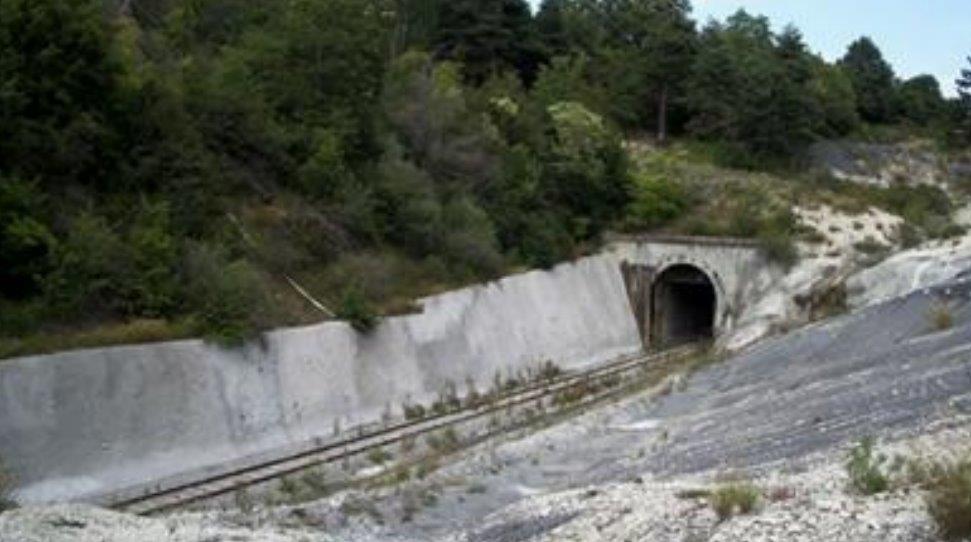

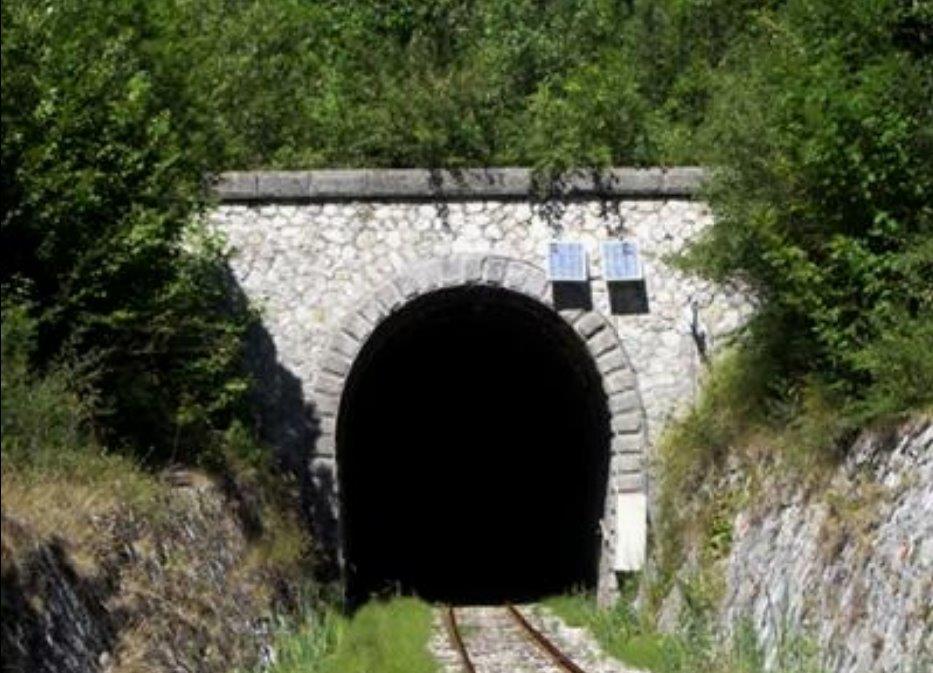

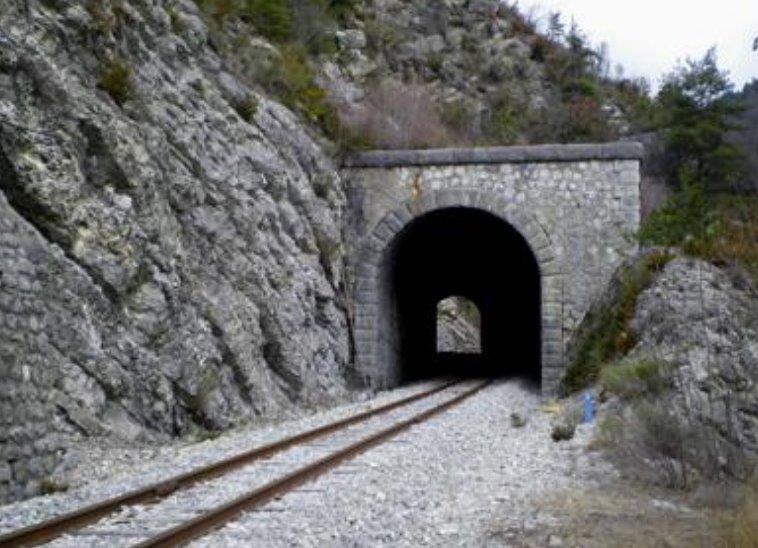

The southern portal. [6]Two images (above) of the northeastern portal. [5][6]

After leaving the northeastern portal of the Tunnel des Hermittes, trains crossed the Ravin de Saint-Pierre and entered the small halt which serves the Golf Course at Digne-les-Bains. L’Arret on the rail-simulator. [7] I have not been able to find any photographs of the halt.

North of the Golf Course, the line begins to run alongside the Route de Chaffaut and then enters another Station – La Gare de Gaubert-Le Chaffaut. A driver’s eye view (above) approaching the Gare de Gaubert-Le Chaffaut from Nice. [2]

The adjacent map shows the station site and the viaduct to the north.

The first image below is taken from the narrow lane to the East of the station.

The next two are taken from the same lane, the first just north of the station building the next a little further to the north of the station buildings.

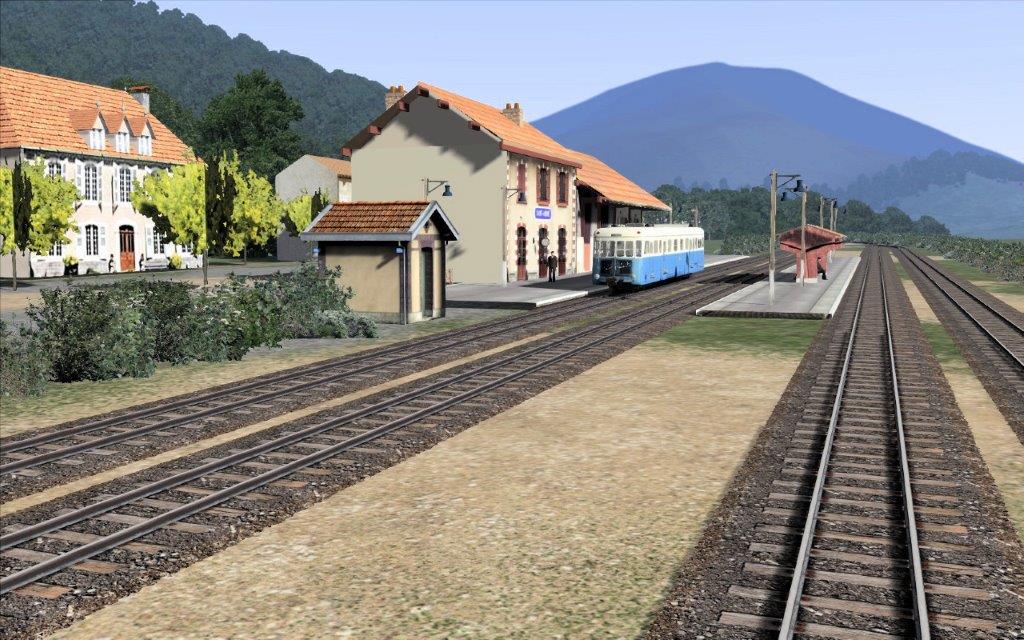

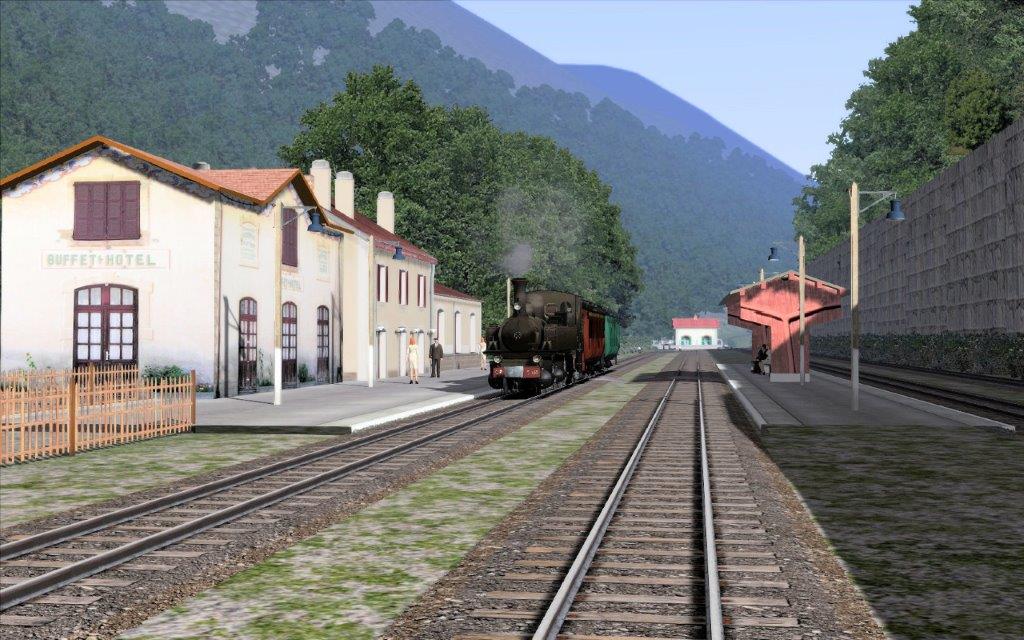

The fourth image below is a rail-simulator image of the station. A rail-simulator image of la Gare de Gaubert-Le Chaffaut. [7]Looking toward Nice with an Autorail leaving the station. [8]Looking back through the station site after the train sets off for Digne. [8]An Autorail arrives from Digne. [8]

Immediately after leaving the station heading for Digne trains pass over a small viaduct which takes the line across a single lane road and the Ravin des Beaumes. The Viaduct over the Ravin des Beaumes, viewed from the East.The Viaduct over the Ravin des Beaumes, viewed from the West. On the D12 looking Northeast, the line crosses the road on a low-headroom bridge. Looking back along the D12 to the railway over-bridge.

A little further along the line it encounters an aqueduct. As can be seen below the aqueduct is dry at the surface. The first image below show an accommodation road-crossing on the left of the satellite image above, which is immediately followed by two views of the aqueduct. One showing its bridge of the D12 and the other over the railway. The last of the four images immediately below shows the line beyond the aqueduct and is taken from the D12. A driver’s eye view of the Aqueduc de Gaubert. [2]

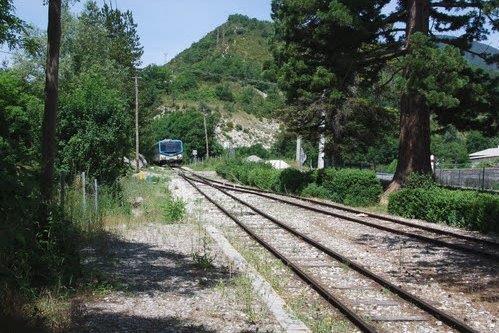

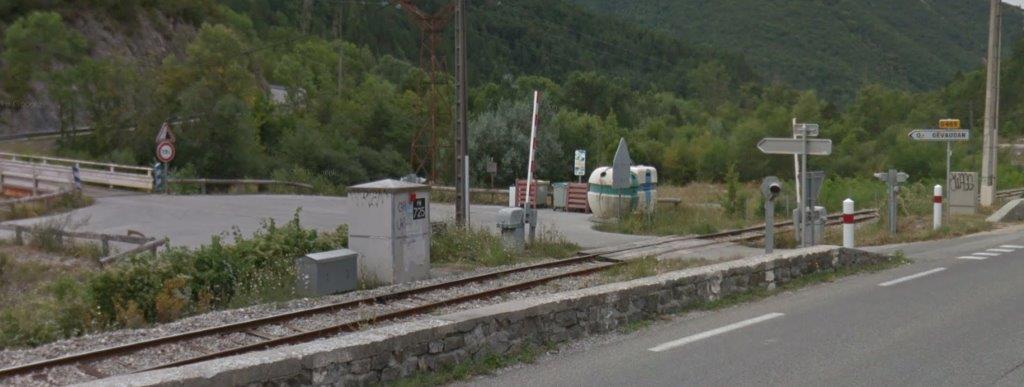

The next point of reference on the line is the level-crossing at Route du Plan de Gaubert. The fist image below looks back along the line towards Mezel, the second looks forward to Digne, and the third shows the level-crossing viewed from the East.The level-crossing appears at the bottom of the adjacent map.

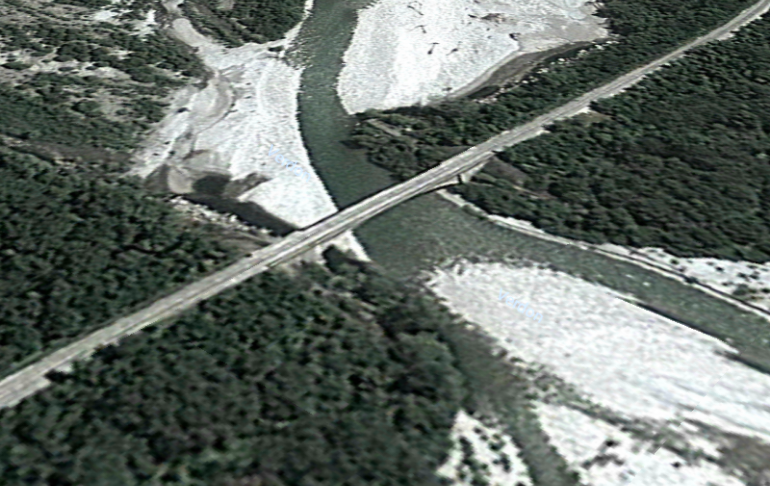

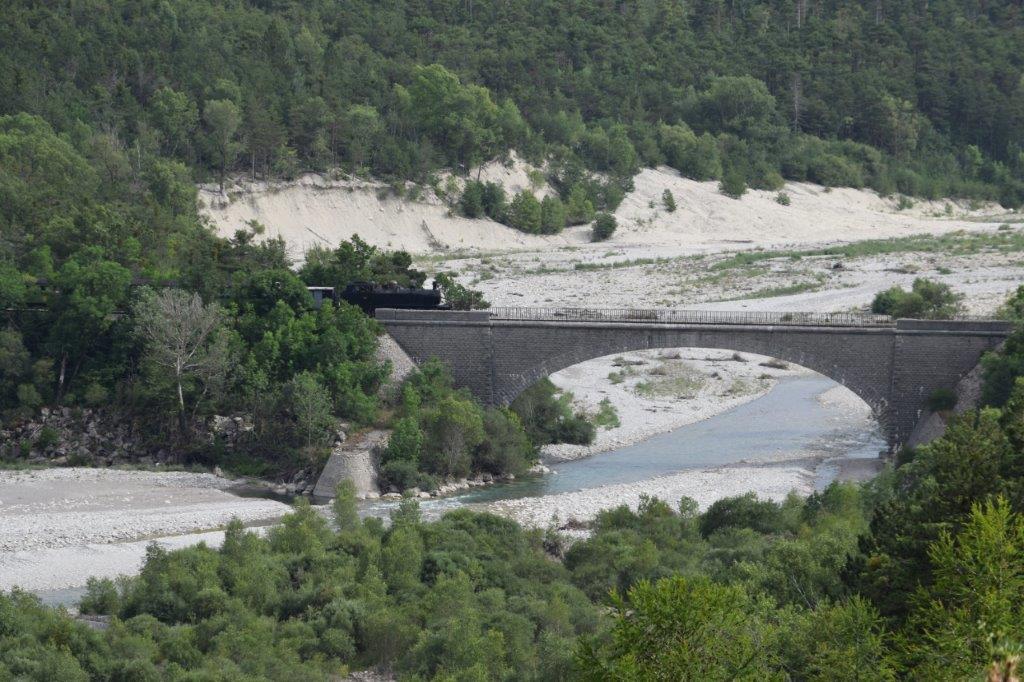

There is another halt just to the south of the river – L’Arret du Plan d’eau des Ferreols and then the line crosses La Bleone  and the N85 on its way into Digne-les-Bains.

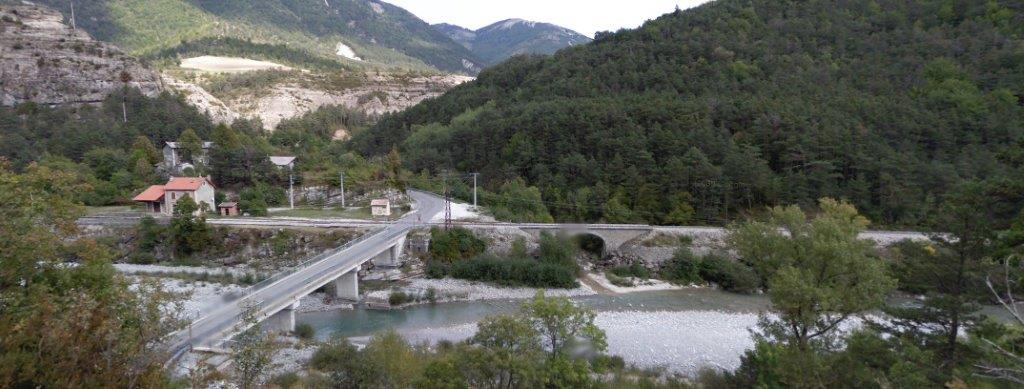

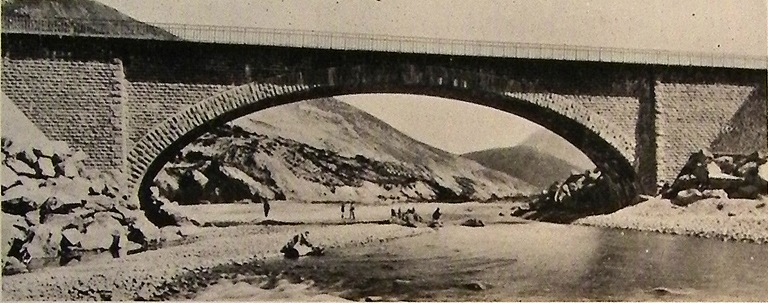

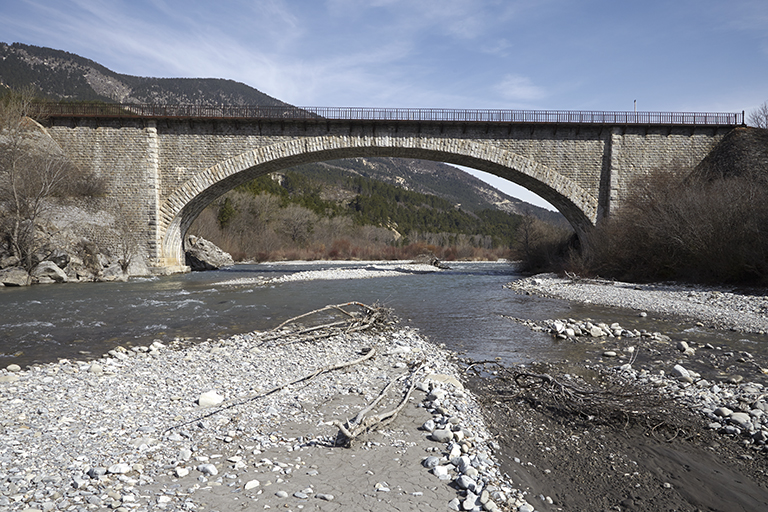

An early postcard image showing the bridge over La Bleone. [10]Railway bridge over La Bleone and the N85 with the span over the road appearing to be much newer than the spans over the river! [9]The railway bridge over the river and N85 viewed from the West on the N85.A plan of the whole station site.The level crossing on Route Napoléon, Avenue de Verdon.The level crossing on Route Napoléon, Avenue de Verdon.The crossing keeper’s cottage, looking towards the terminus at Digne.Looking ahead towards Digne Station from the level-crossing on  Chemin du Hameau des Hautes Sieyès.The water tower at the mouth of the station yard in Digne – the railway stations are off to the left by a few hundred yards. Then picture is taken from the north side of the tracks.A view of the same water tower from the south.A line side view of the water tower and the station yard beyond. [15]Two images of the goods shed, the second is from the cab of an Autorail.  [2]A drawing of the good shed. [15]The Engine Shed seen from the cab of an Autorail travelling towards the passenger station buildings. [2]A line side view of the Engine shed looking East towards the passenger facilities at the station. [15]The Engine Shed from the south side of the station complex.A driver’s eye view of the line from the engine shed looking east towards the station platforms. [2]The turntable and Engine shed looking West. [15]Two drawings (above) of the Engine Shed. [15]Two images (above) of the pedestrian underpass just to the east of the Engine Shed. The first shows the north entrance and the second, the with entrance.Looking ahead from the cab of an Autorail. This gives a good idea of the length of the station site. The passenger facilities seem to be a very long way distant. [2]A larger scale map of the station complex.

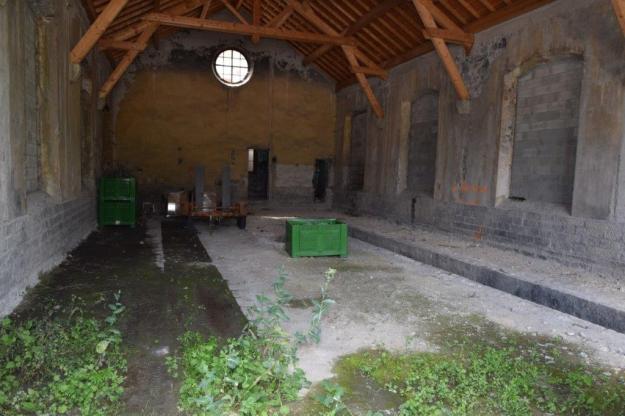

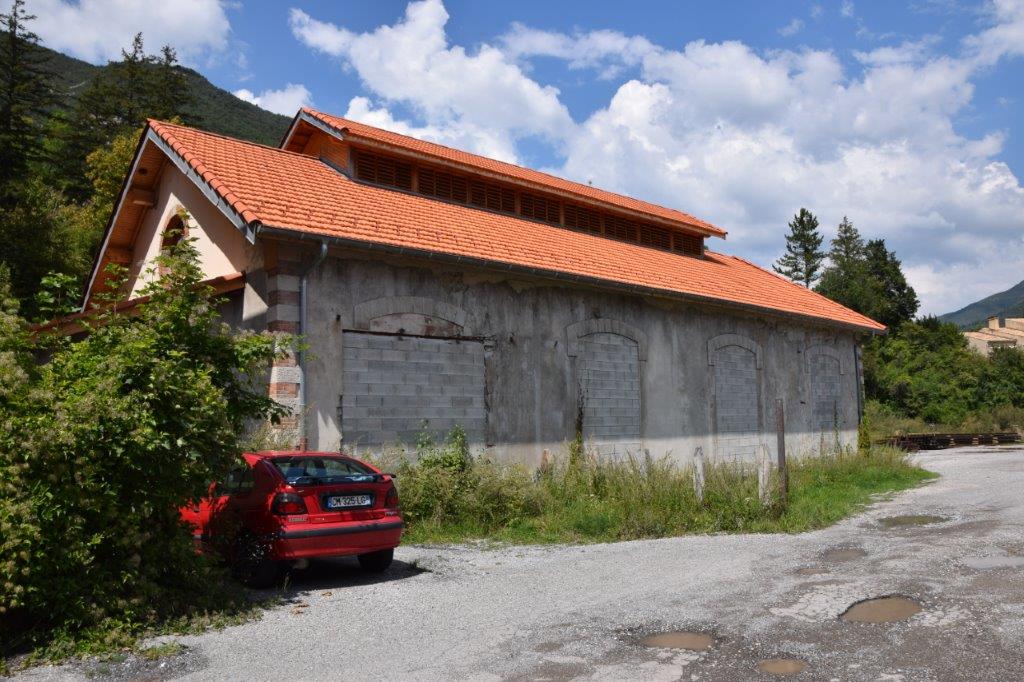

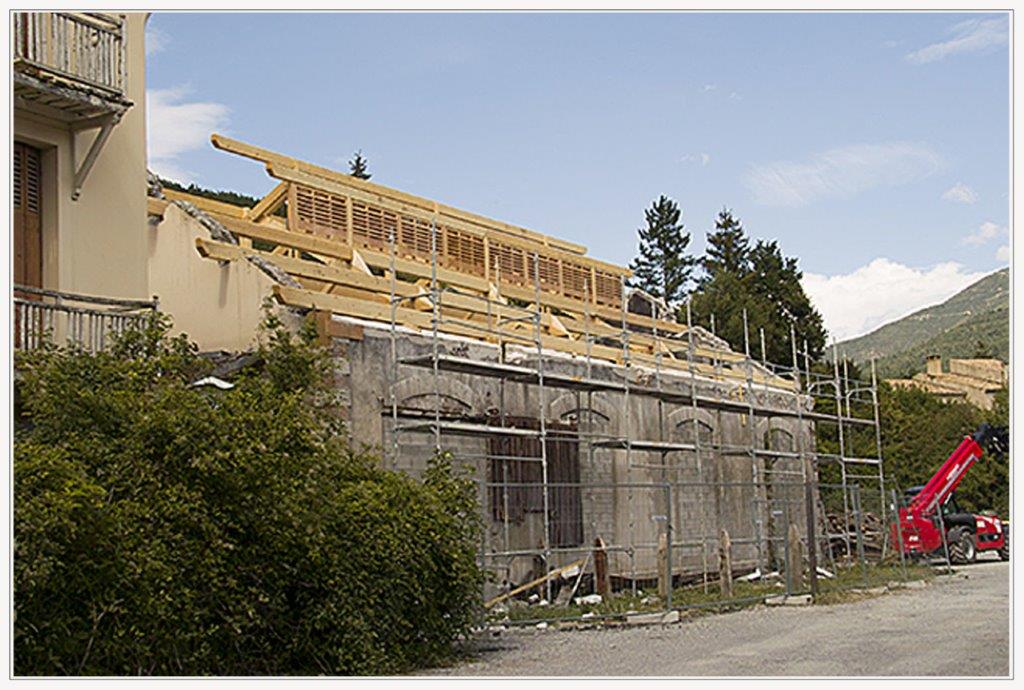

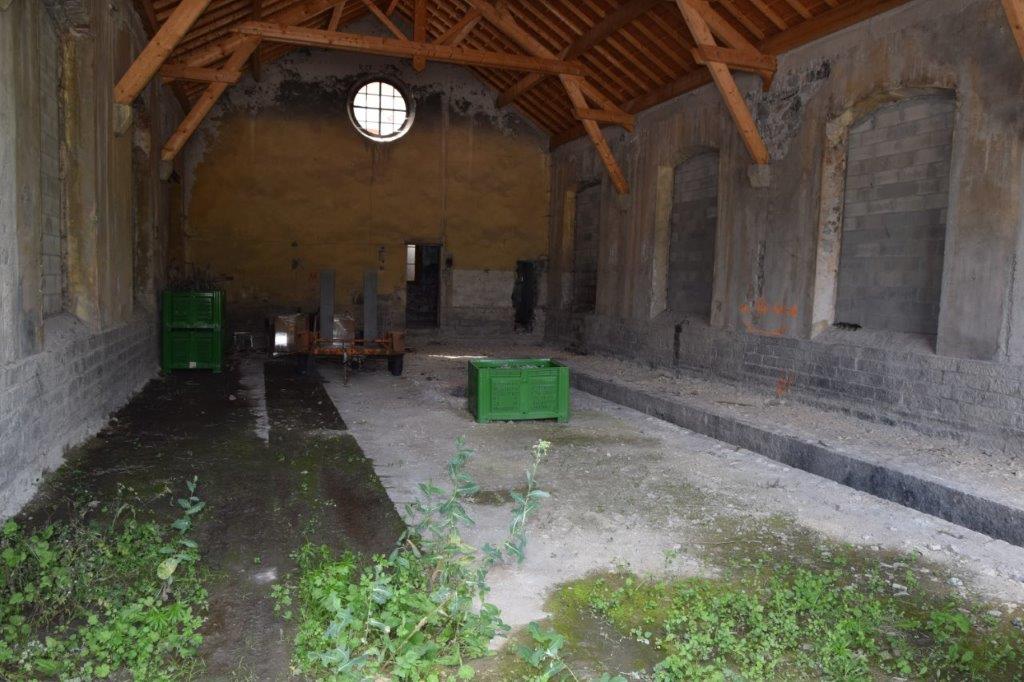

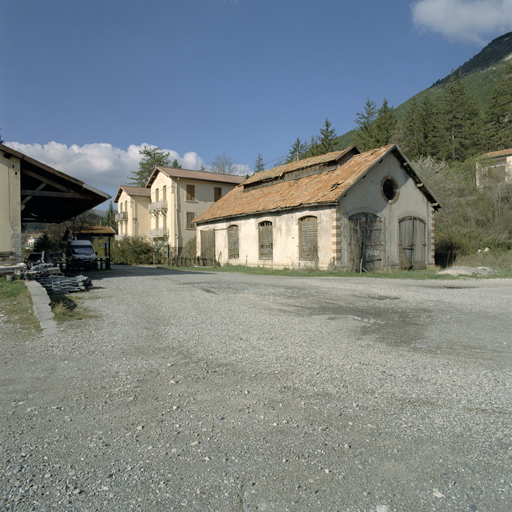

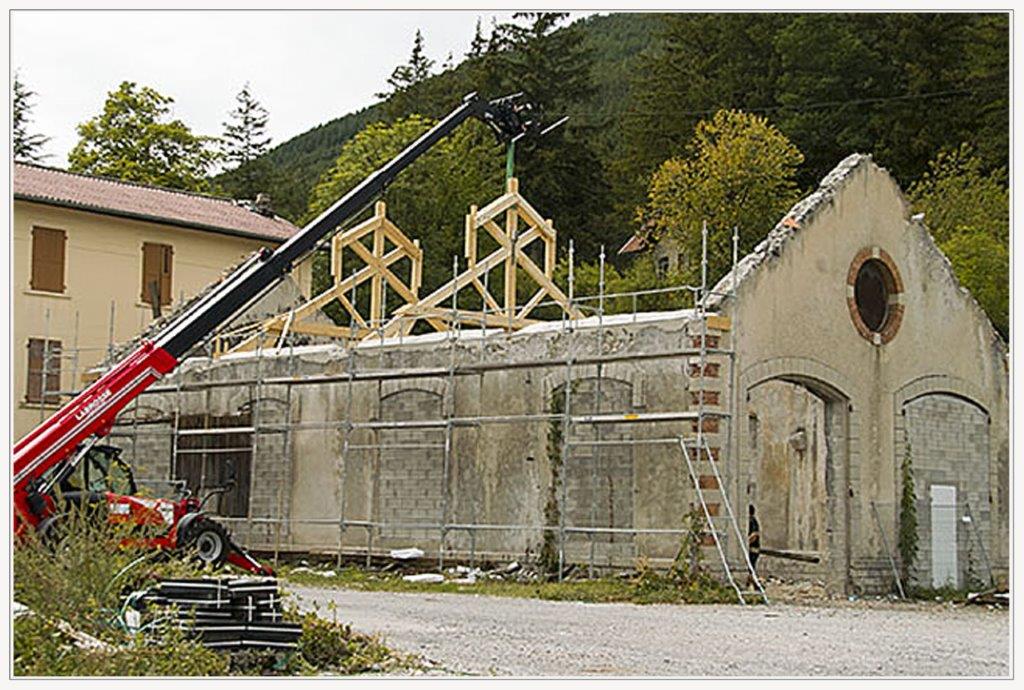

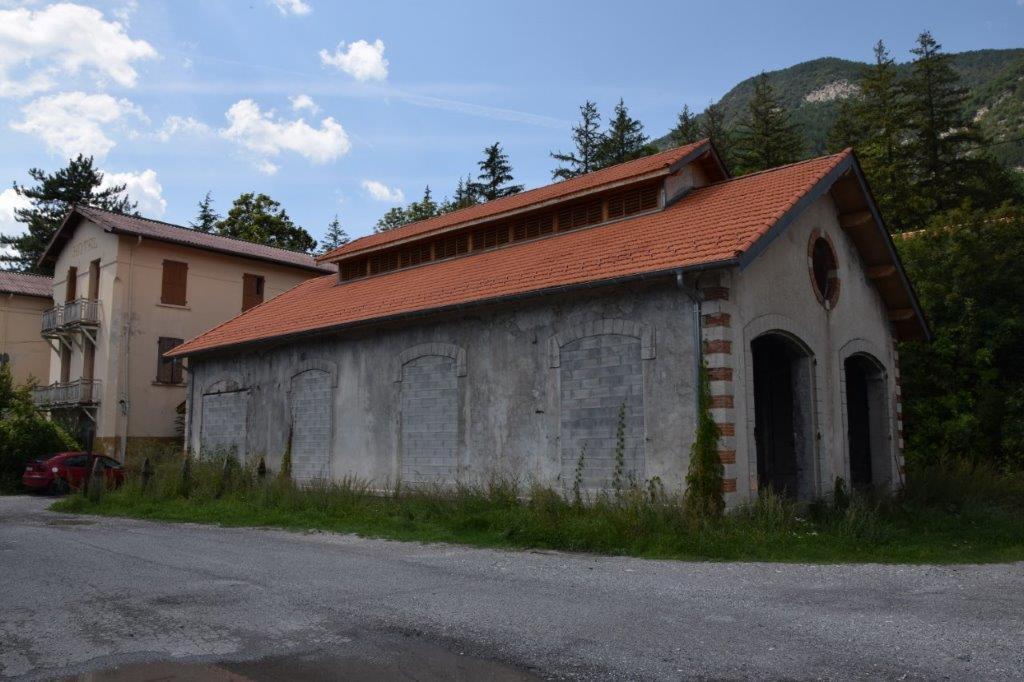

The transfer building and platform set aside for the transshipment of goods from the metre-gauge line from Nice to the standard-gauge branch which fed Digne from the mainline to the West. [15]The original passenger station building for the metre-gauge line. [15]The station courtyard looking East, with the metre-gauge station building to the right and the original standard gauge facilities on the left. [15]Modern traction stabled on the line to the old station building. [13]A view across the passenger facilities of the station complex taken from the northwest.A view of the shared station platform at Digne in the 1980s. [12]Three images (above) in monochrome showing the shared passenger facilities at Digne. [16]A later image of the station after the removal of the standard-gauge lines. [13]A closer view showing the platform in use in the early 21st Century and the old station building for the Nice to Digne line. [13]The early 21st Century station! [13]The early 21st Century station. [13]Images of the standard gauge station from the North side of the complex.A closer view of the station forecourt highlighting the proximity of the two station buildings and their different architecture.The immediate station plan in the early 21st Century.These three images (above) show different iterations in the planning of the station with the bottom image best reflecting what was built on the site. [15] In the 20th Century the facilities for the metre-gauge line were altered to provide a shared platform with the standard-gauge branch.

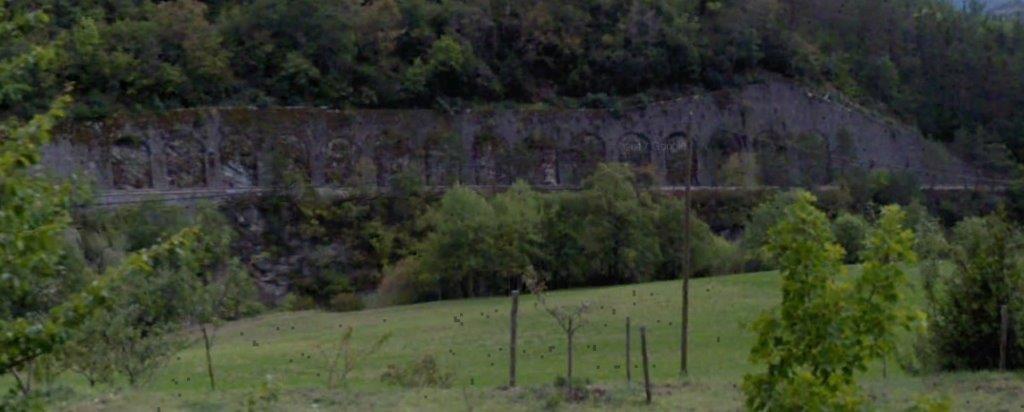

On the south side of the site the land drops away from the station and in order to maximise the space on the site a significant retaining wall had to be built on the south boundary of the site.One plan showing the contruction of the retaining wall. [11]An impressive shot of the Nice-Digne Line Station building and the retaining wall supporting it above the Avenue de Verdun.  [13]A further diagram of the retaining wall. [15]The retaining wall in the early 21st Century, two views (above) taken from Google Streetview.The Chemins de Fer de Provence Station Hall. [13]Three drawings of the Chemins de Fer de Provence Station Building. [15]

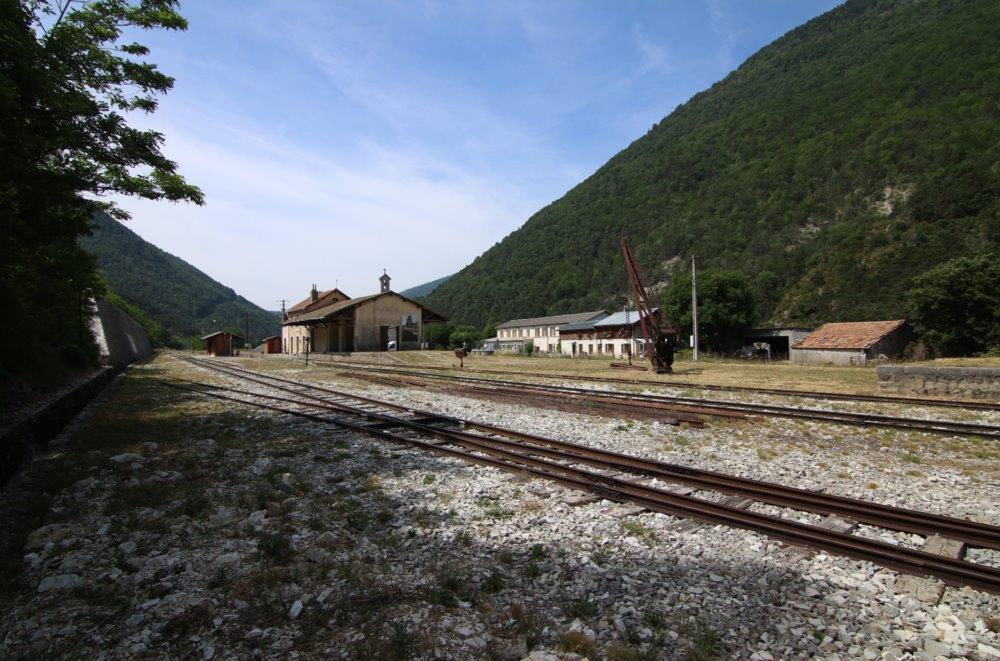

Two videos are included below which give a good idea of the condition of the station site. [14]

To finish this blog post I will include some postcard images of the station site from earlier year and then reflect a little on what might be happening in the future.

First the postcards from the CPArama website …..The standard-gauge PLM station and engine shed. [10]The station courtyard. [10]The two stations taken from the top of the retaining wall at the south side of the site. [10]The station courtyard from the West. [10]The PLM station looking West. [10]The Chemins de Fer de Provence Station Building. [10]The PLM Station taken from alongside the standard-gauge Engine Shed. [10]An early steam-hauled service is about to set off on the journey towards Nice. [10]

And finally, what about the future. ….

Traffic on the metre-gauge line is hampered by that fact that the standard-gauge connection to Digne has been cut. Christopher James has mentioned that there has been talk of a possible metre-gauge line extension to meet the SNCF mainline at Château-Arnoux Saint-Auban, however, this is probably beyond the resources of the Chemins de Fer de Provence.

In looking for plans of the Station Site at Digne les Bains, I noticed reference to a ‘Project de Tram Train Digne Manosque’. It can bee seen on the Openstreetmap plan below and is shown as a dotted line which runs from Digne (immediately below) to Château-Arnoux Saint-Auban.The project is intended to use the old standard-gauge formation and its line into Château-Arnoux Saint-Auban is shown above. The project now has a website: http://transport-provence-alpes.centerblog.net/12-projet-multimodal-digne-sisteron-manosque. Is the scheme feasible? There are some questions about this which appear in the comments on the website.

How likely is this scheme, does anyone know?

References

  1. https://www.google.co.uk/maps/place/M%C3%A9zel%2FCh%C3%A2teauredon/@44.010038,6.201066,3a,75y,90t/data=!3m8!1e2!3m6!1sAF1QipMAOPyxuAbfSVVUTAyfZOew2a0G07LK1iGfYxyI!2e10!3e12!6shttps:%2F%2Flh5.googleusercontent.com%2Fp%2FAF1QipMAOPyxuAbfSVVUTAyfZOew2a0G07LK1iGfYxyI%3Dw129-h86-k-no!7i1500!8i1000!4m5!3m4!1s0x12cb91840c767ed3:0xa02521aa30f35bdd!8m2!3d44.0097448!4d6.2007228, accessed on 19th August 2018.
  2. http://www.rd-rail.fr/1-PHOTOS/PH43/index-ph43.html, accessed on 12th August 2018.
  3. https://dossiersinventaire.maregionsud.fr/gertrude-diffusion/dossier/ponts-des-chemins-de-fer-de-provence/6db00f0d-4794-4fb9-8d66-a7675e5c748b, accessed on 12th August 2018.
  4. https://fr.wikipedia.org/wiki/Le_Chaffaut-Saint-Jurson, accessed on 20th August 2018.
  5. http://www.tunnels-ferroviaires.org/tu04/04070.2.pdf, accessed on 20th August 2018.
  6. https://dossiersinventaire.maregionsud.fr//gertrude-diffusion/dossier/tunnel-ferroviaire-des-hermittes/77ea863f-d328-4776-b1ec-90bb186ff2aa/illustration/0, accessed on 20th August 2018.
  7. http://www.railsim-fr.com/forum/index.php?/topic/10163-le-train-des-pignes/&page=2, accessed on 15th August 2018.
  8. https://leonardetsesamis.com/1er-mai-2010-a-la-gare-de-gaubert-le-chaffaut, accessed on 20th August 2018.
  9. https://structurae.net/structures/digne-railroad-bridge, accessed on 21st August 2018.
  10. https://www.cparama.com/forum/digne-les-bains-t8.html, accessed on 21st August 2018.
  11. https://dossiersinventaire.maregionsud.fr//gertrude-diffusion/illustrations/info?id=89daf5fe-9604-4fba-8755-6a48acf5a242&slug=ivr9320110400342nuc2a, accessed on 21st August 2018.
  12. https://fr.wikipedia.org/wiki/Ligne_de_Saint-Auban_%C3%A0_Digne, accessed on 1st August 2018.
  13. https://mapio.net/place/16814242, accessed on 21st August 2018.
  14. These two videos are available on YouTube.
  15. https://dossiersinventaire.maregionsud.fr/gertrude-diffusion/dossier/gare-de-digne-les-bains/704d17b3-45a1-4cec-bd88-9dc73d3724af, accessed on 21st August 2018.
  16. http://cccp.trainprovence.free.fr/cccp/article-alpazur2007.html, accessed on 21st August 2018.
