David continues:

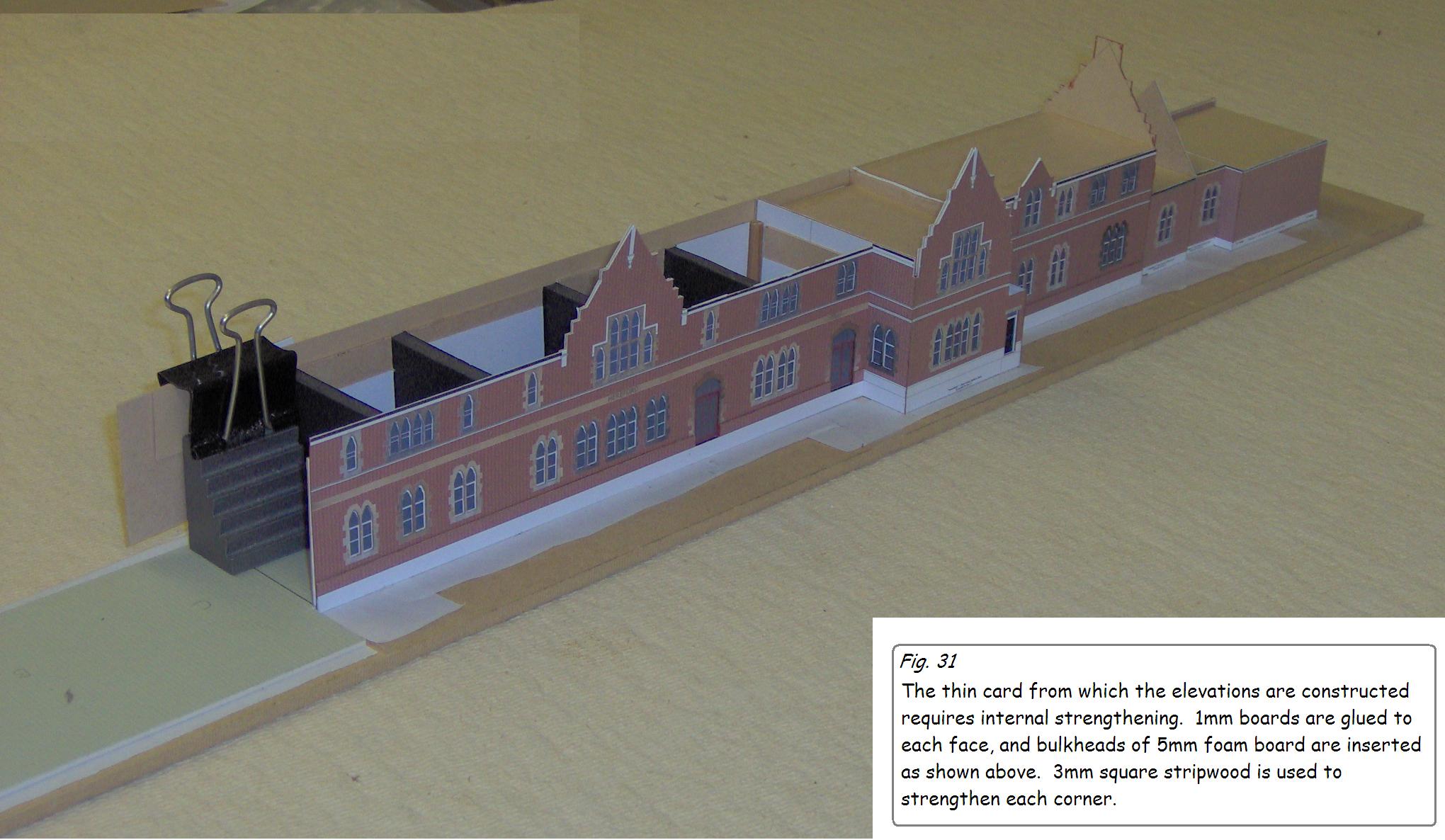

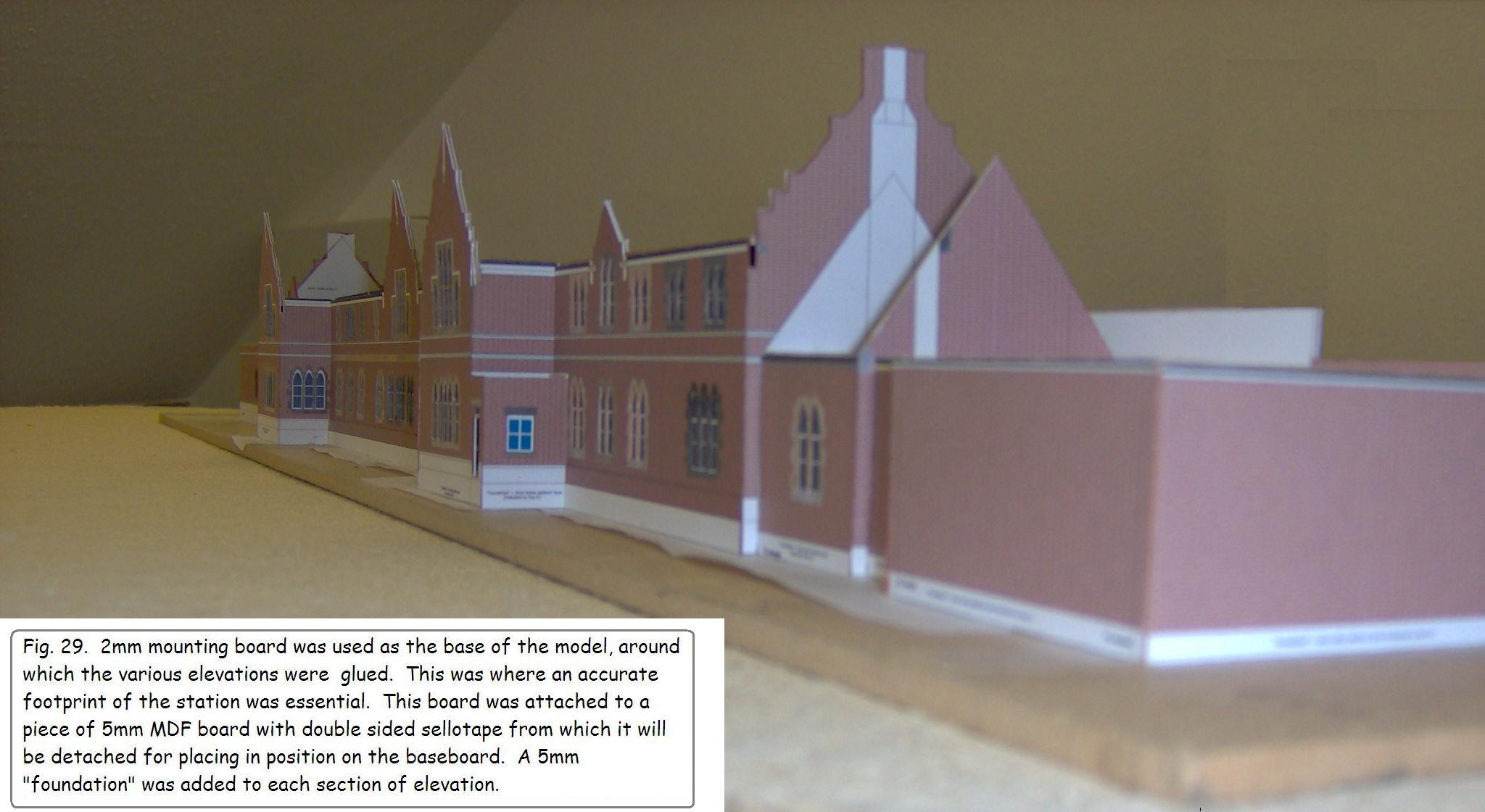

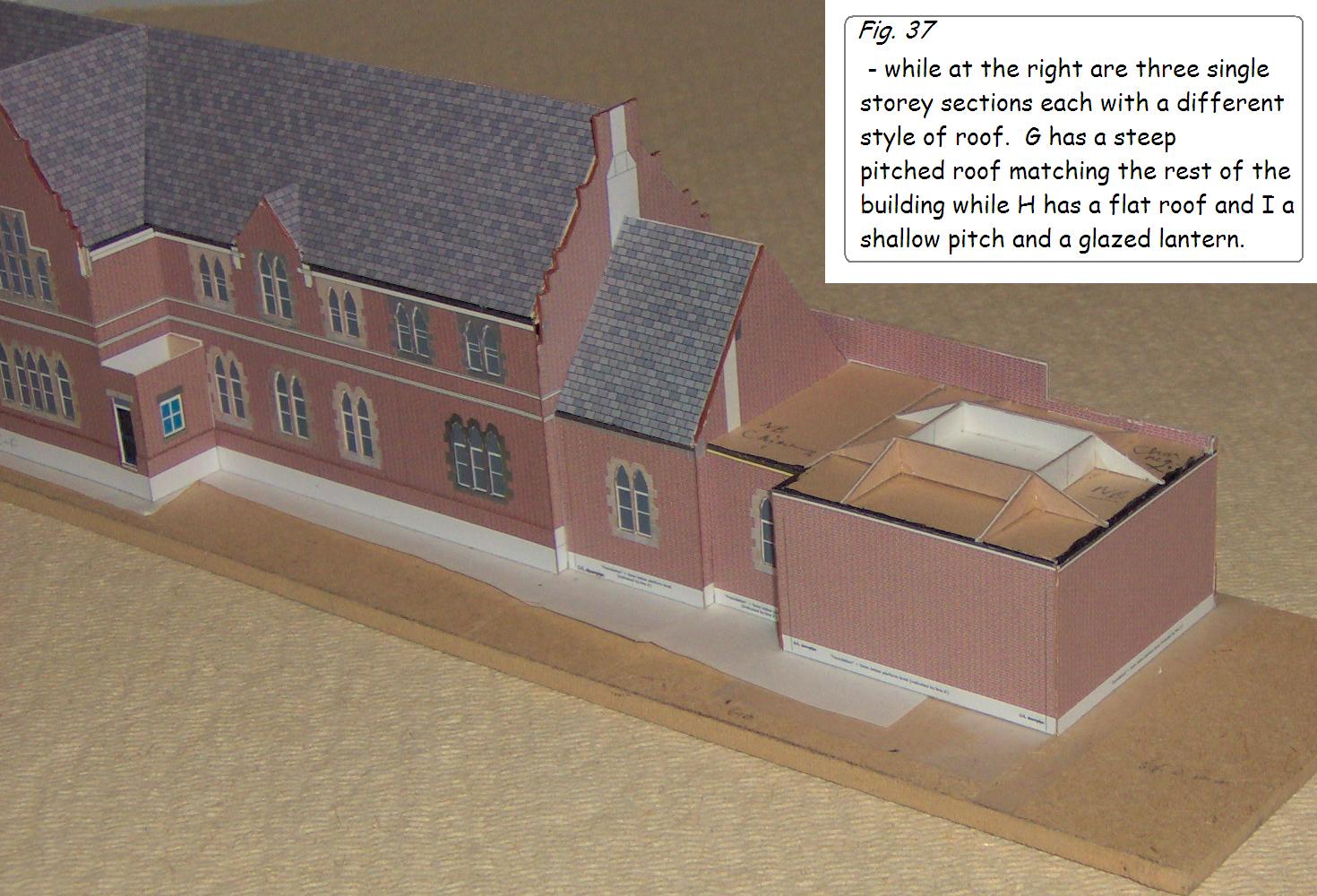

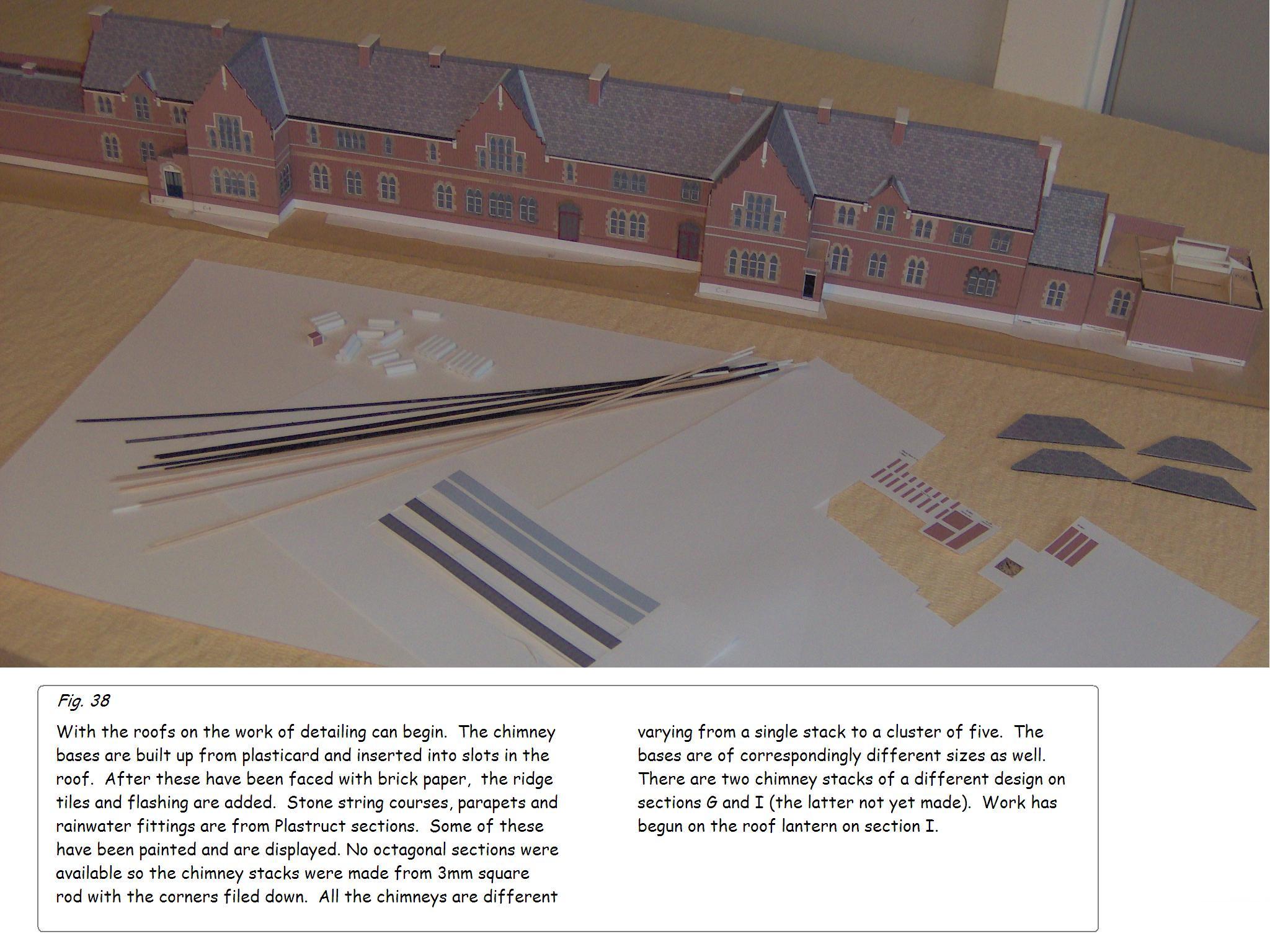

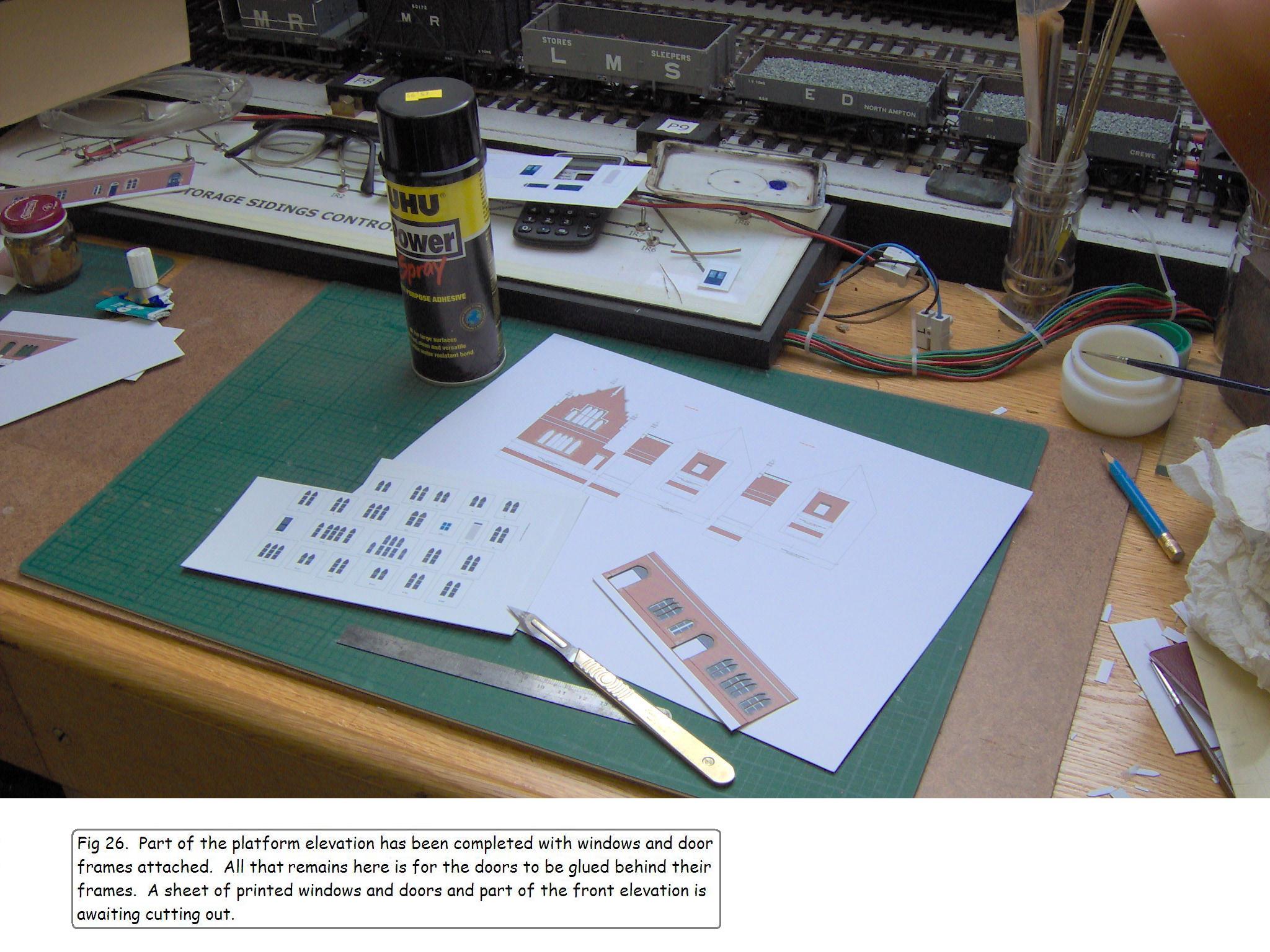

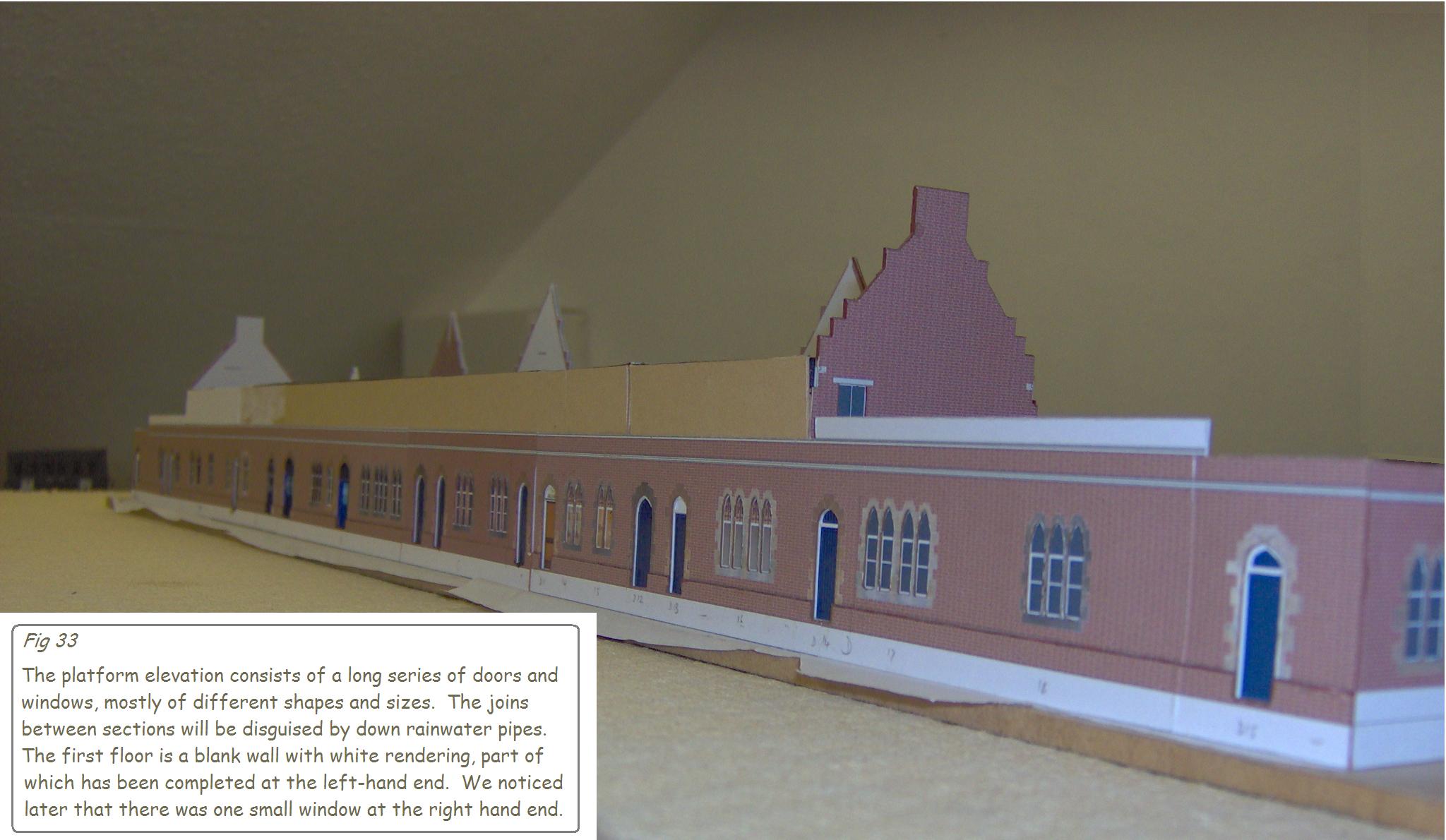

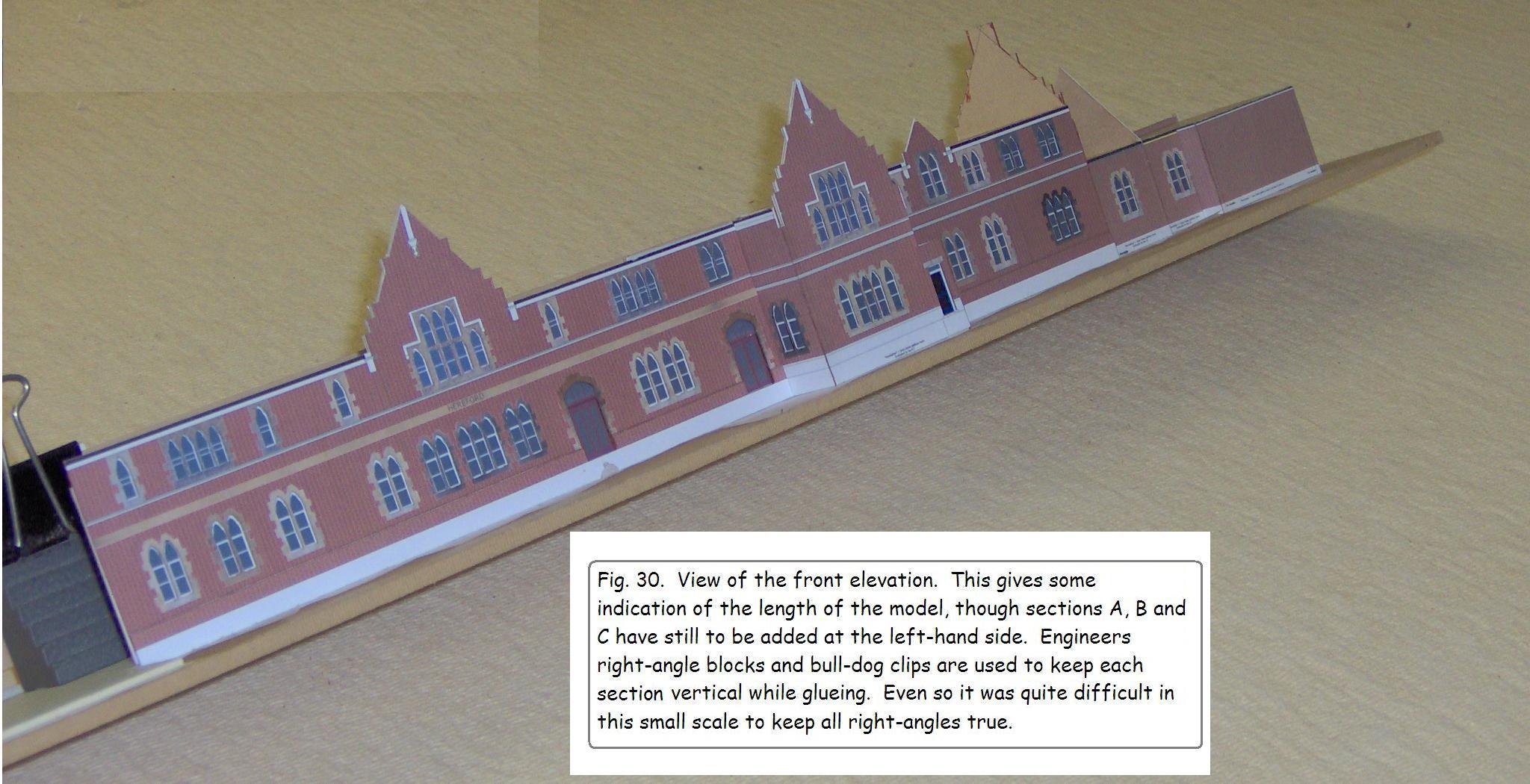

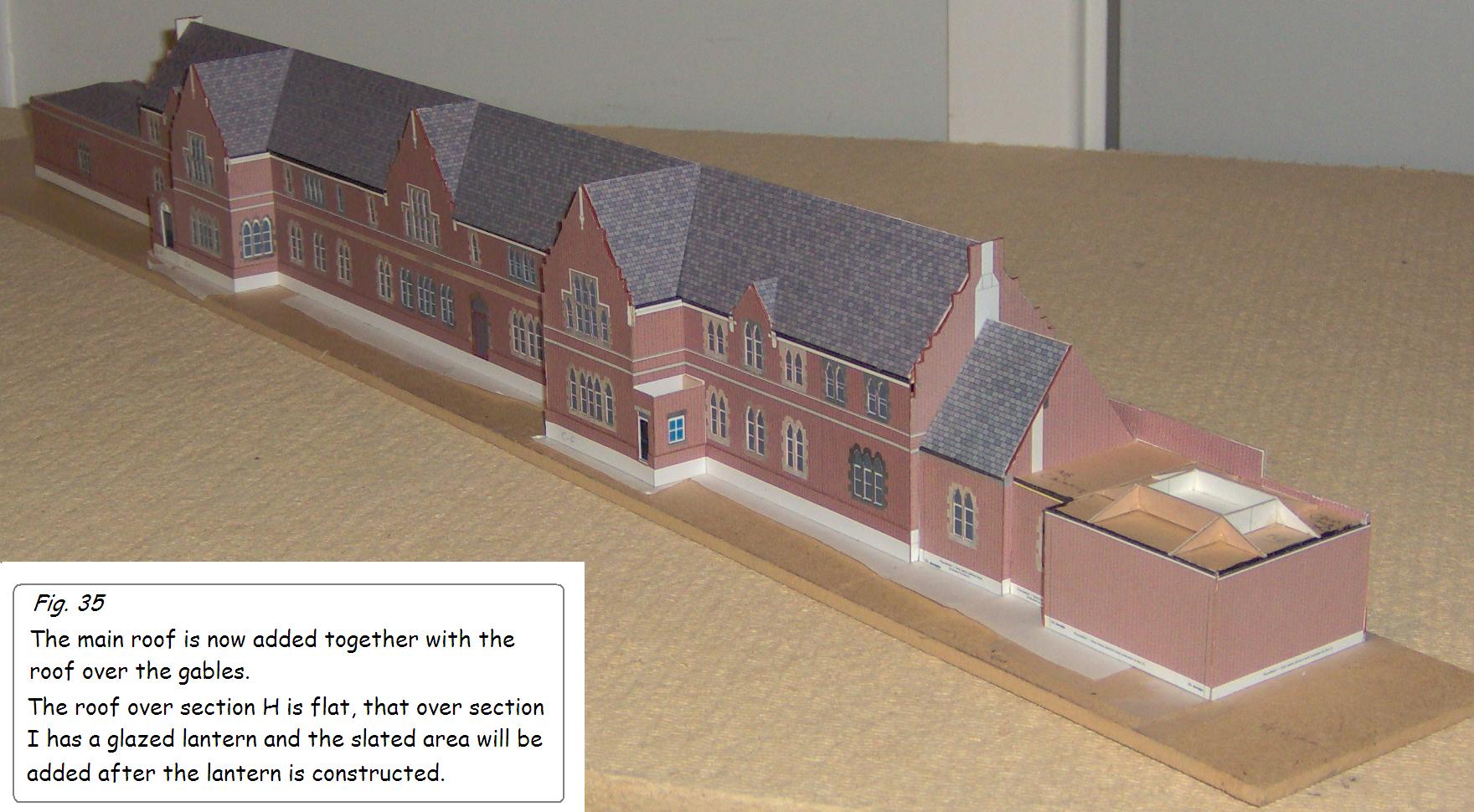

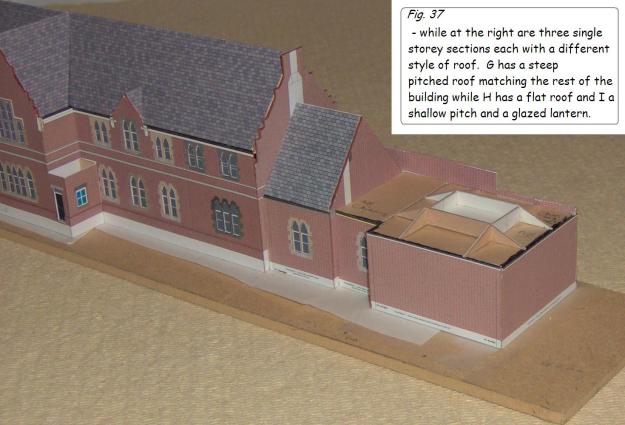

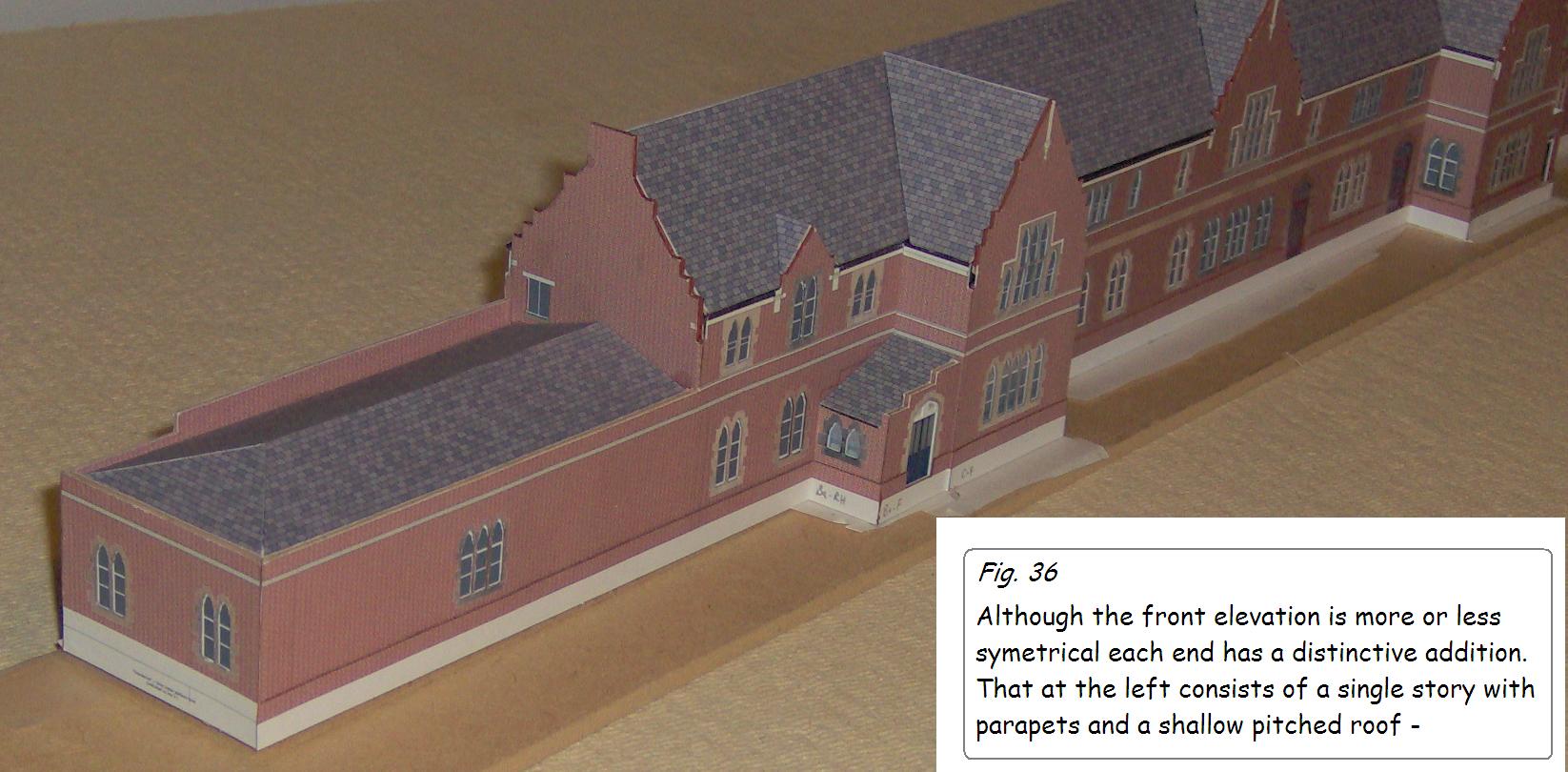

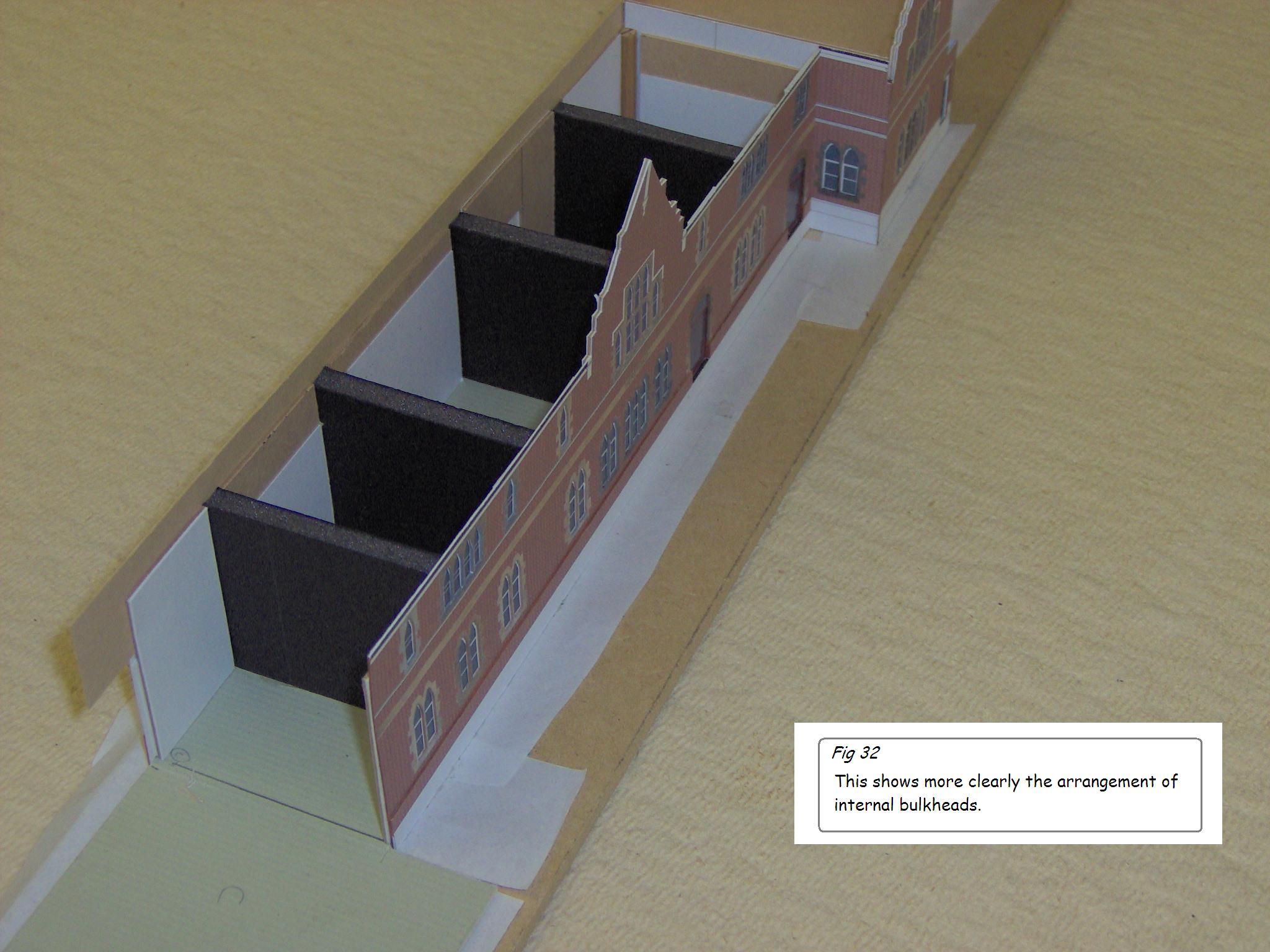

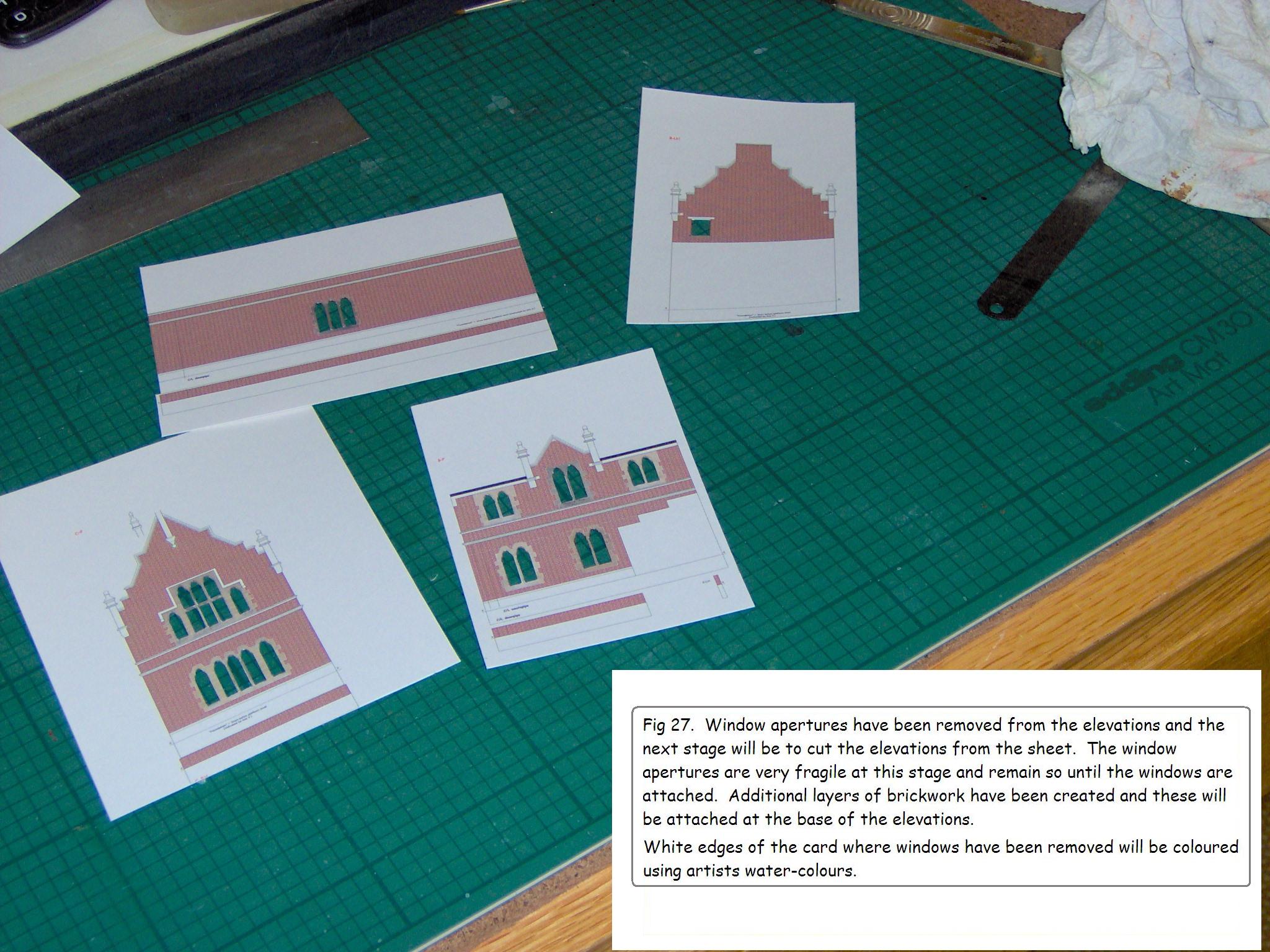

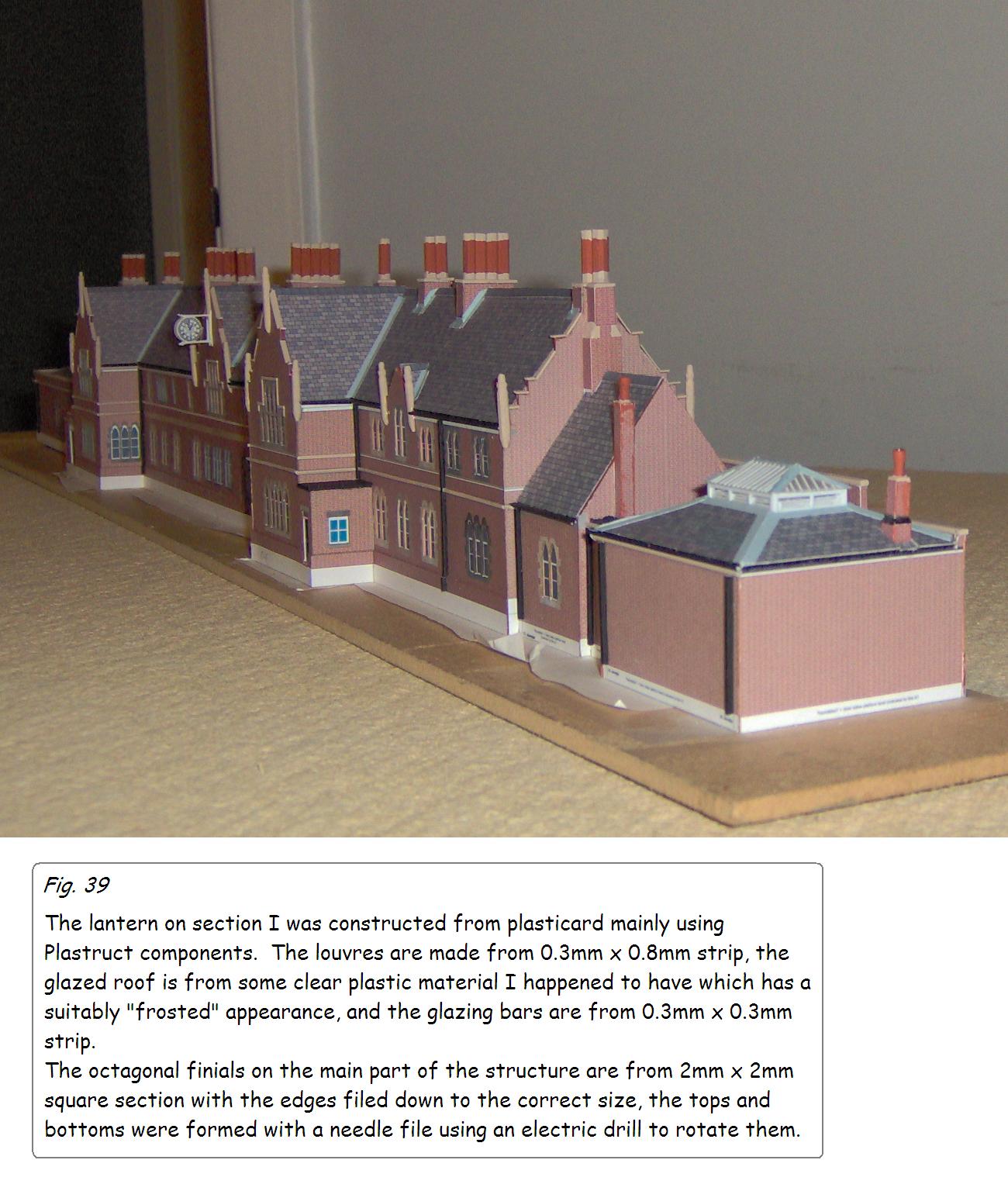

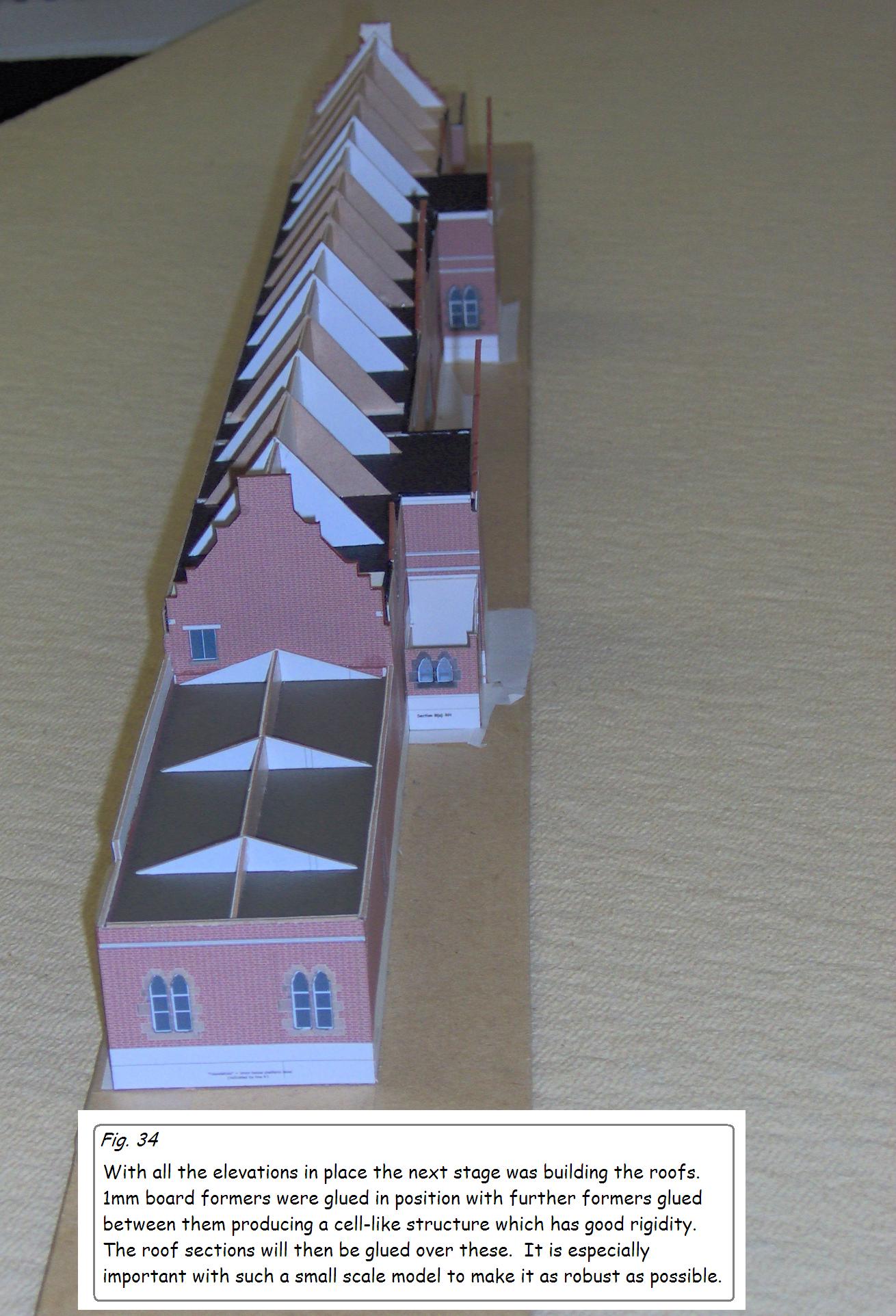

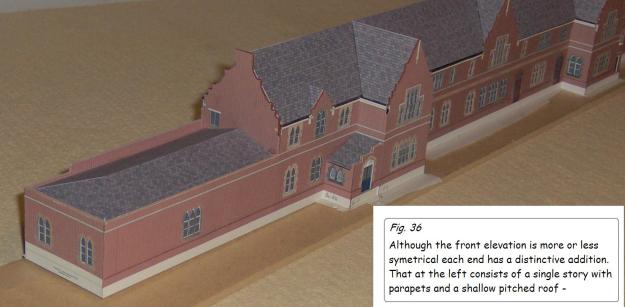

Once the fixative has dried the various door and window spaces can be carefully removed and the elevations cut out. This process and the various stages in construction are shown in figs. 26-39, below.

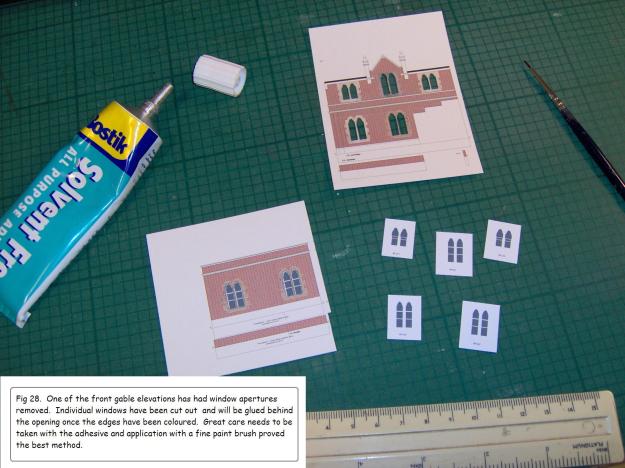

Doors and windows were printed onto glossy photo-paper, cut out and glued behind the appropriate apertures. It was not possible to produce transparent windows, so the glass was coloured navy-black, and in some cases, notably the platform and front elevations of the buffet where illuminated from within, these were copied straight from the photographs.

David goes on to describe the method of construction:

Method of Construction

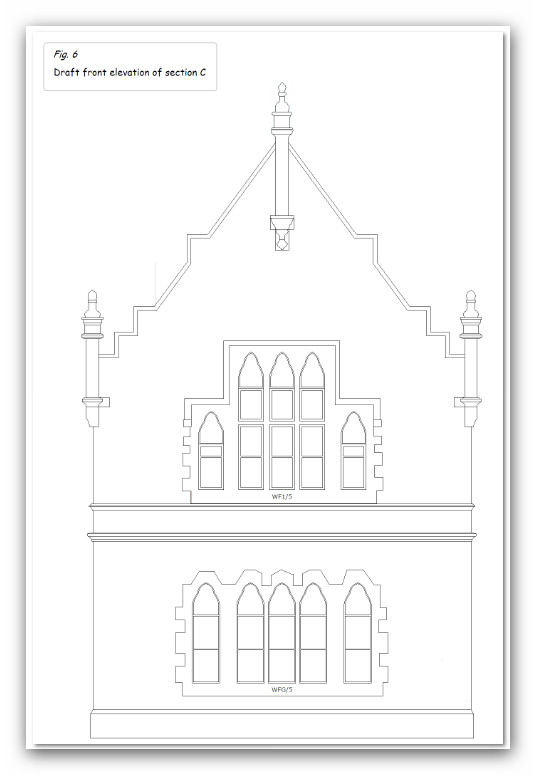

The first step was to make a line drawing of the front elevation of section C just to make sure that my estimated dimensions were on the right lines and that printing would be of the necessary accuracy (see fig. 6).

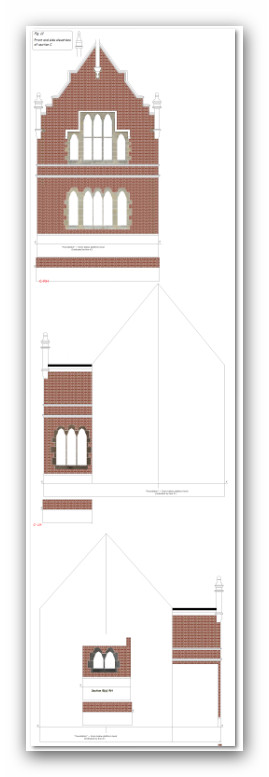

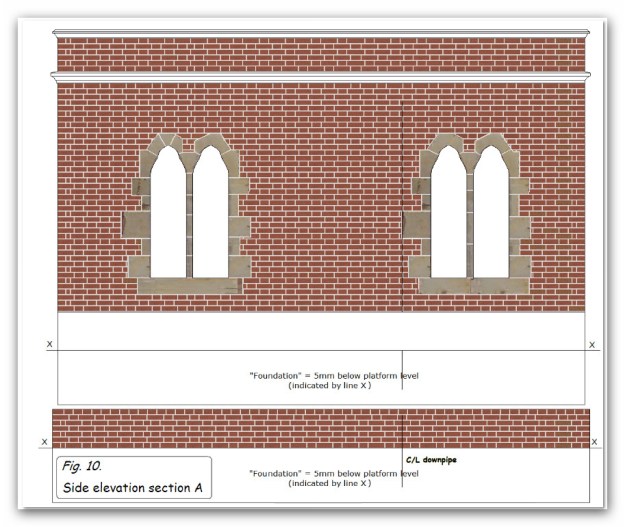

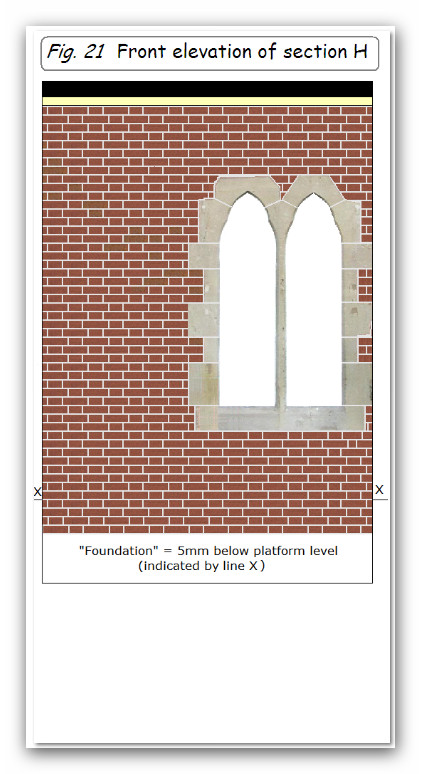

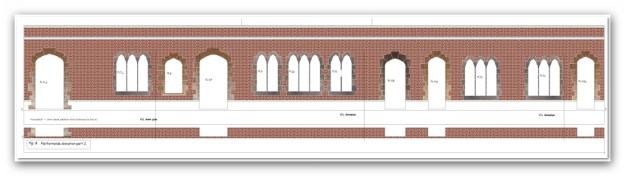

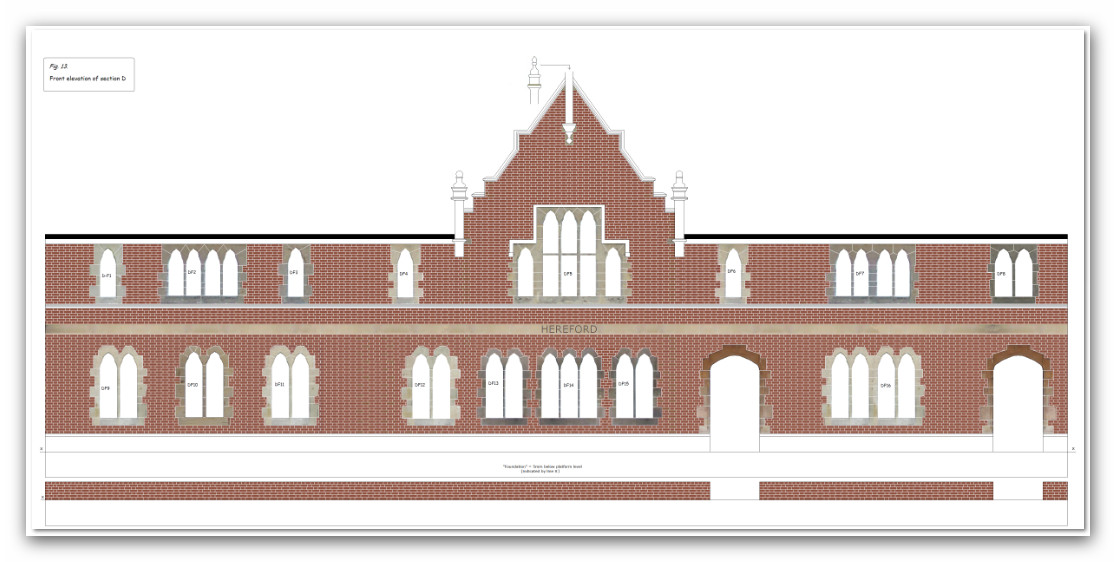

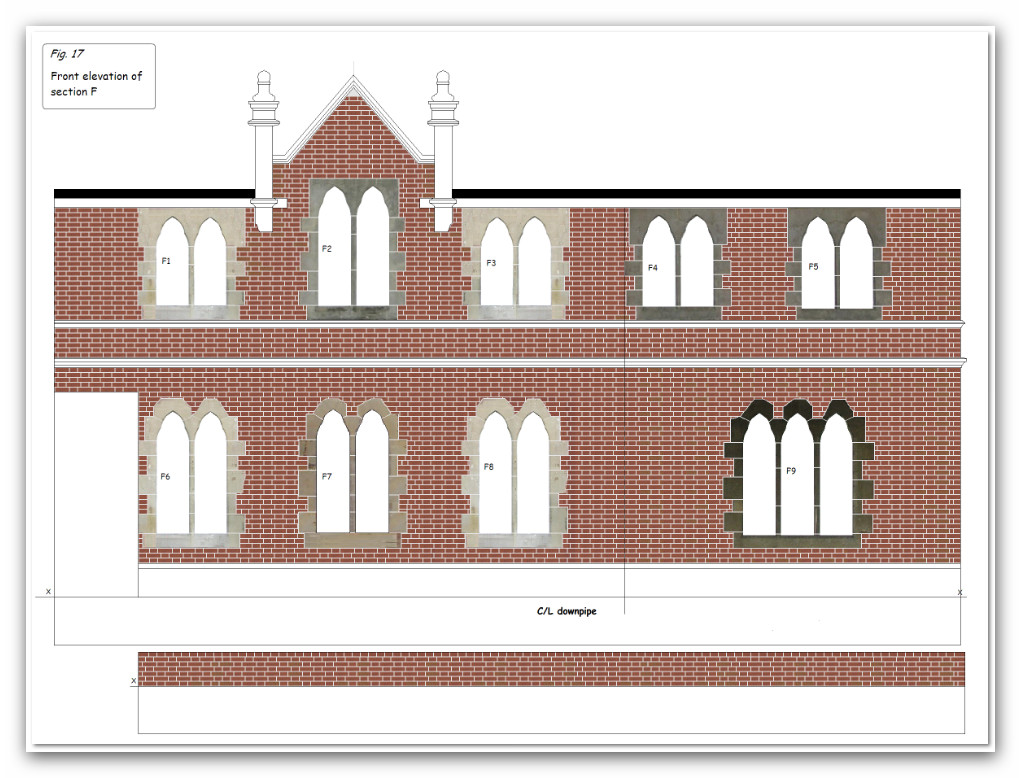

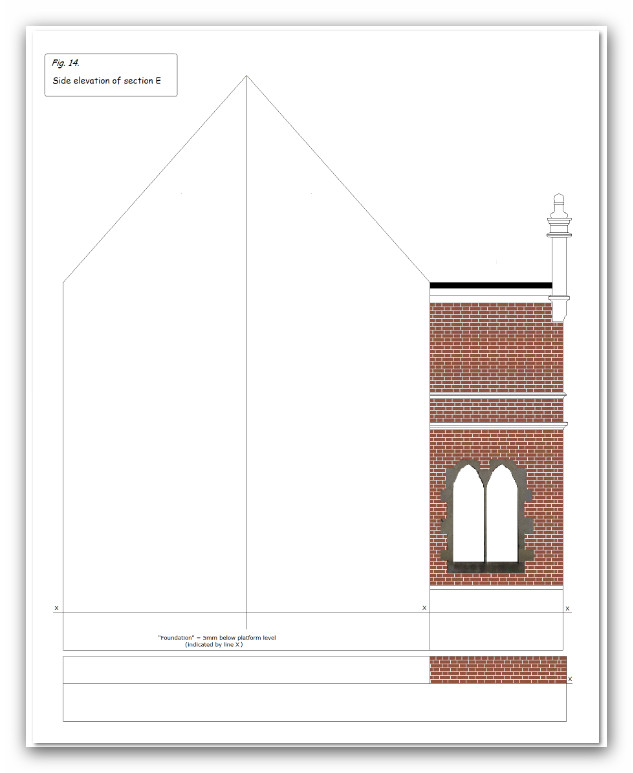

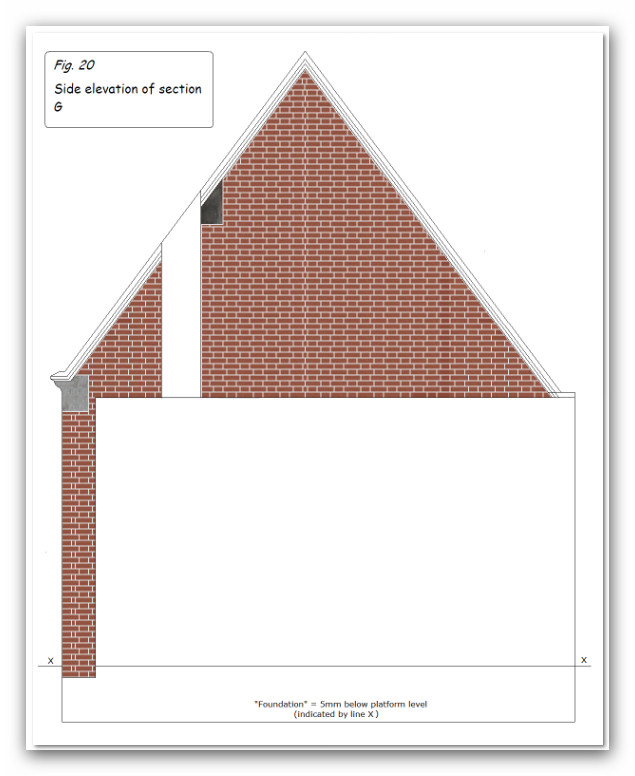

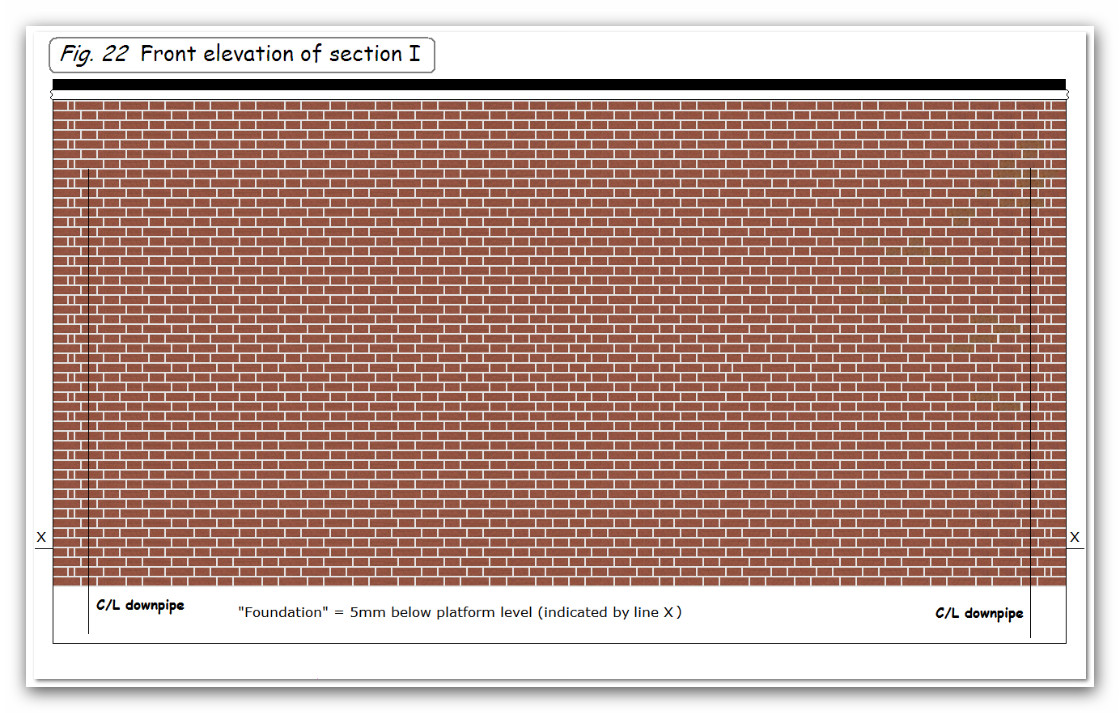

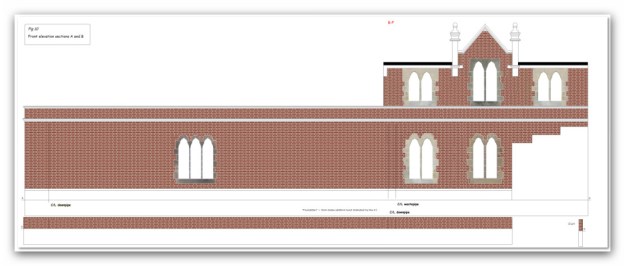

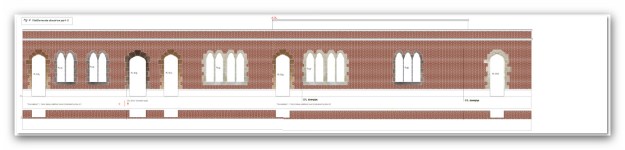

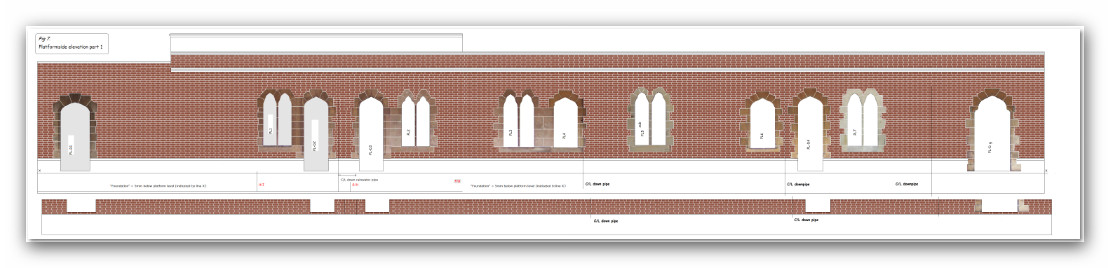

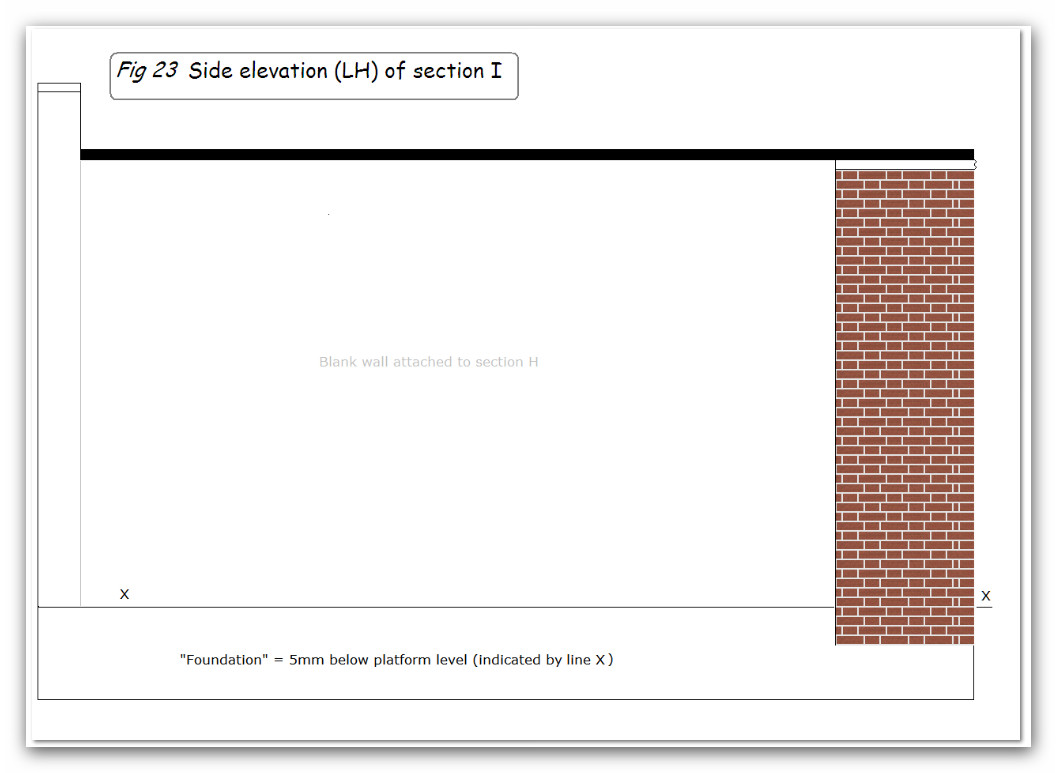

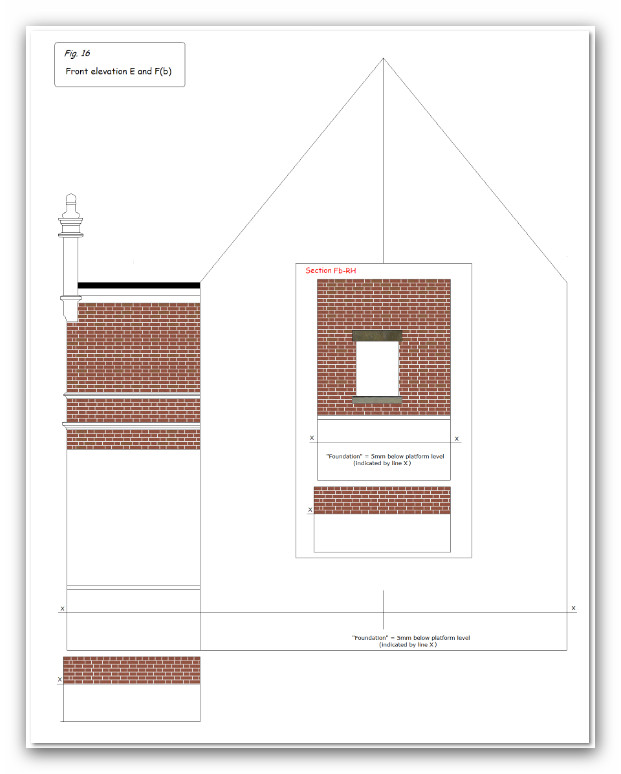

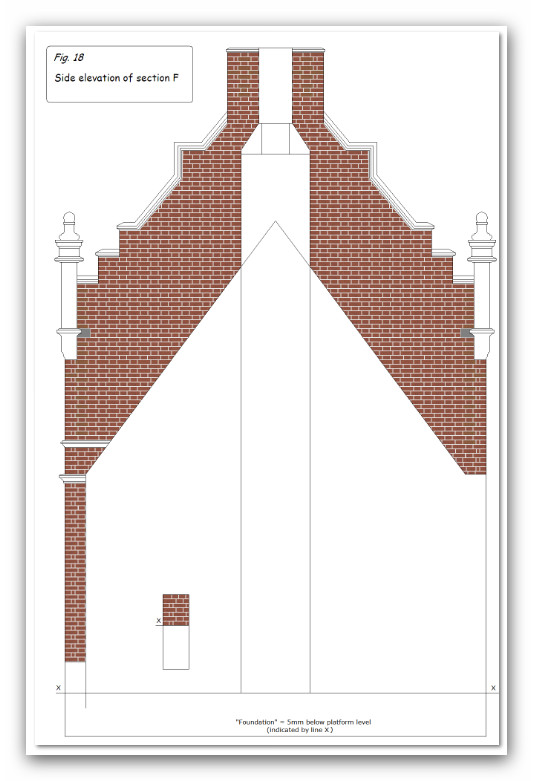

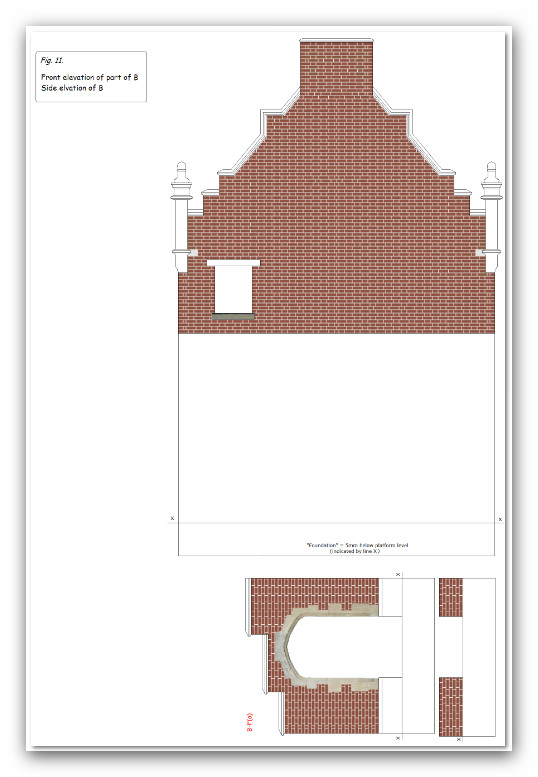

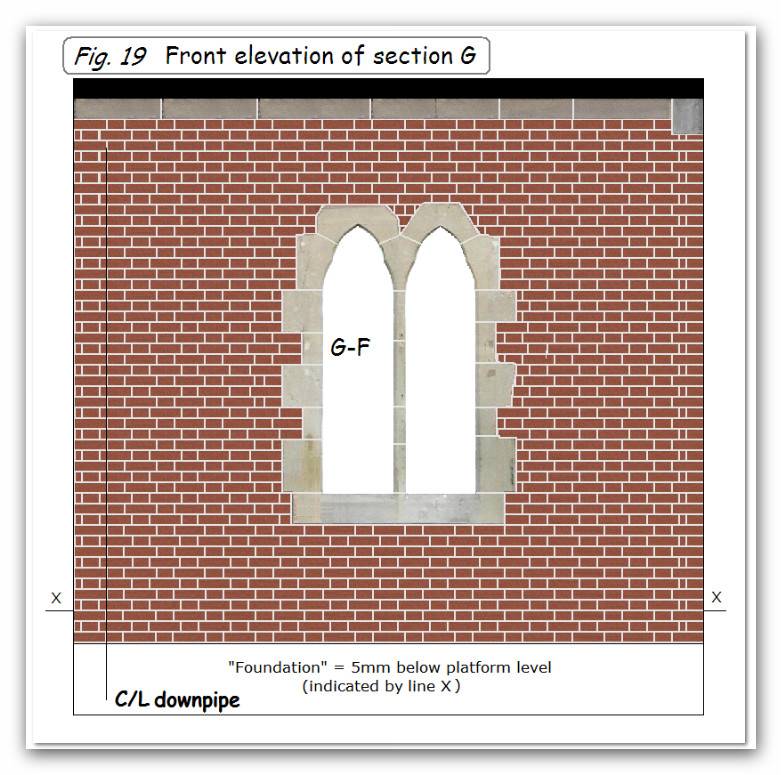

Next followed the detailed drawing of all the elevations -front, side and platform. Wherever possible, actual door and window surrounds were copied from the photographs and resized in situ (see figs. 7- 23, below).

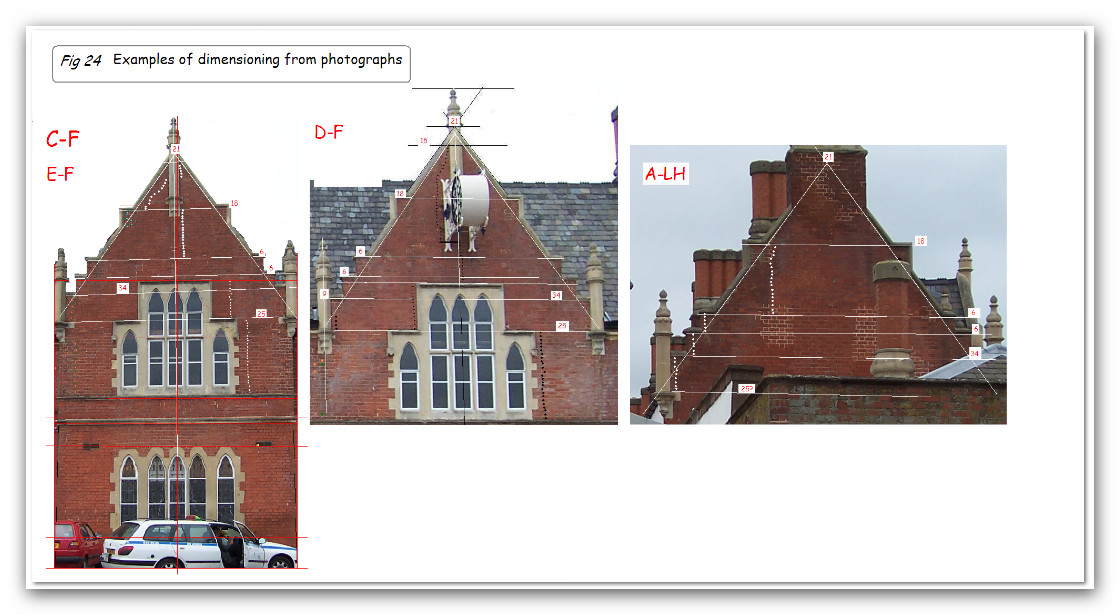

The process of determining dimensions was carried out from the photographs, and some examples of this are shown in fig. 24, below.

These images were then printed onto A4 sheets of white card. The ink used in inkjet printers appears to be soluble in water and white spirit so each sheet was sprayed with artist’s fixative. This seems to give some protection but care has to be taken to protect the parts from contact with these. I’m also not too sure about the colour permanence of the ink so it may be a good idea to shield models made this way from direct sunlight.

David continues:

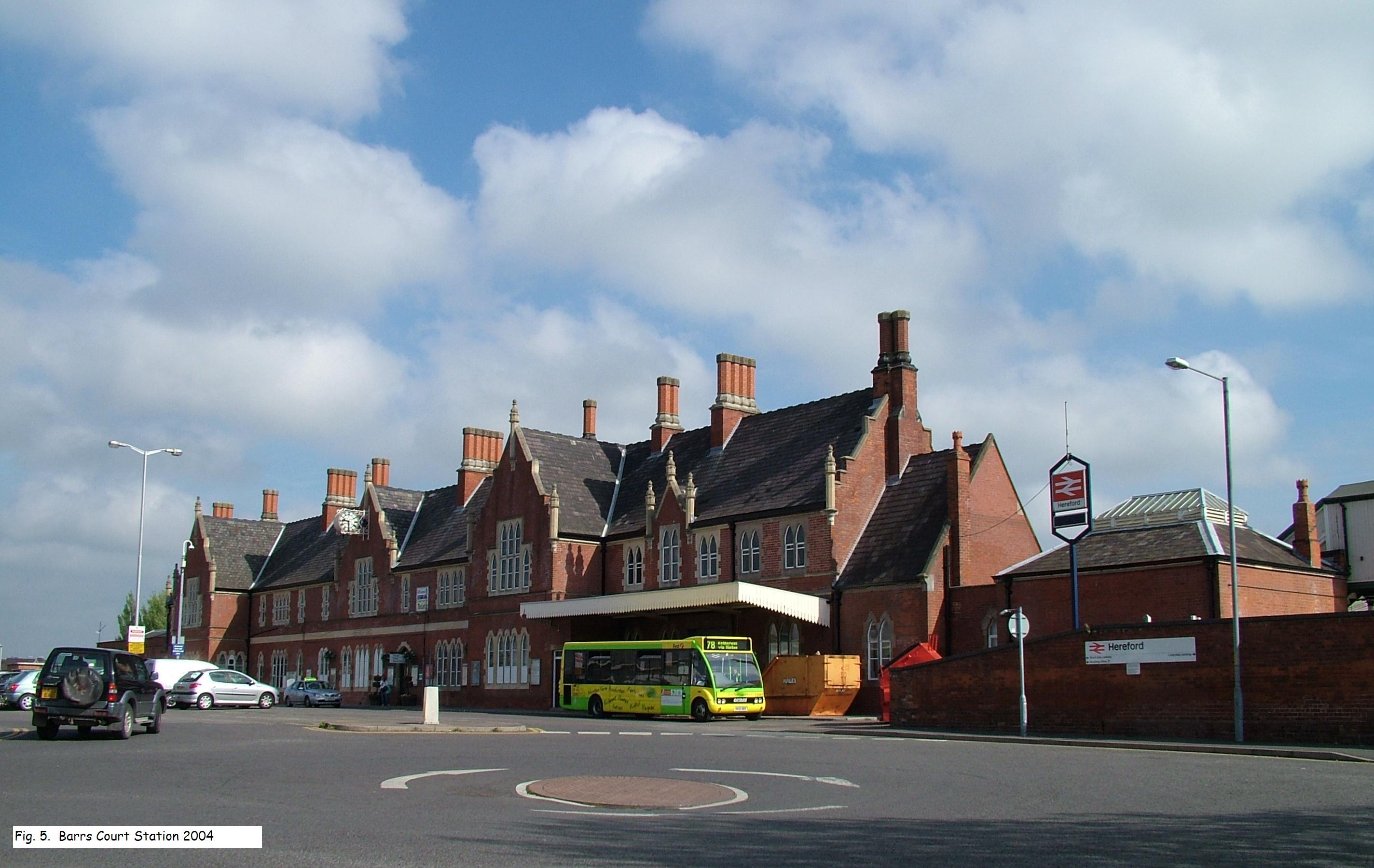

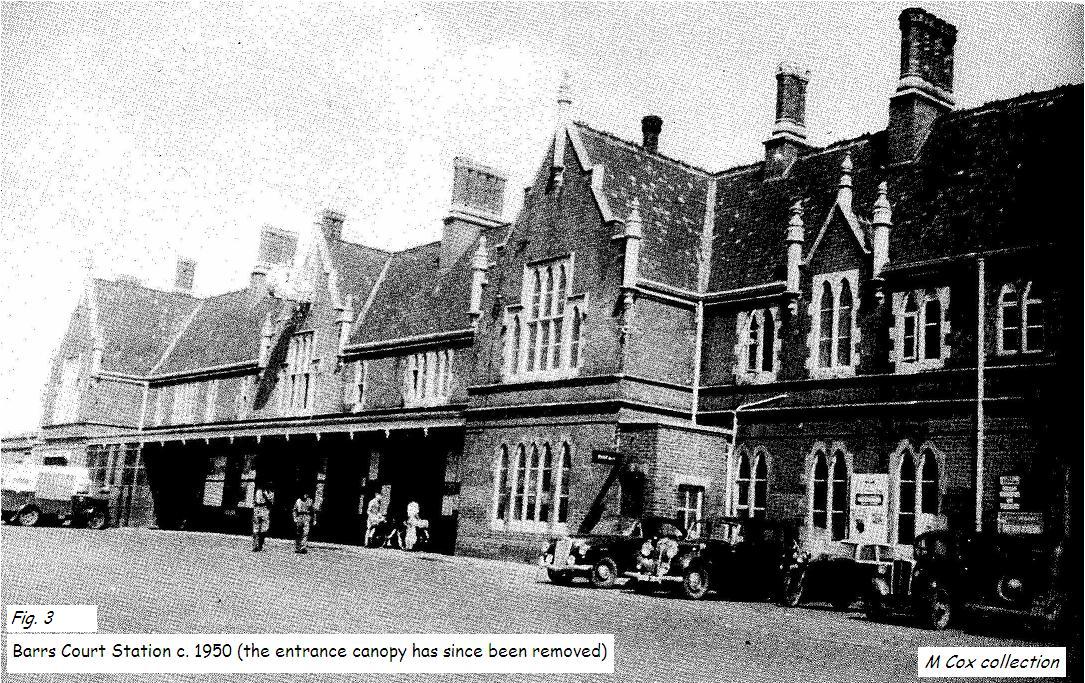

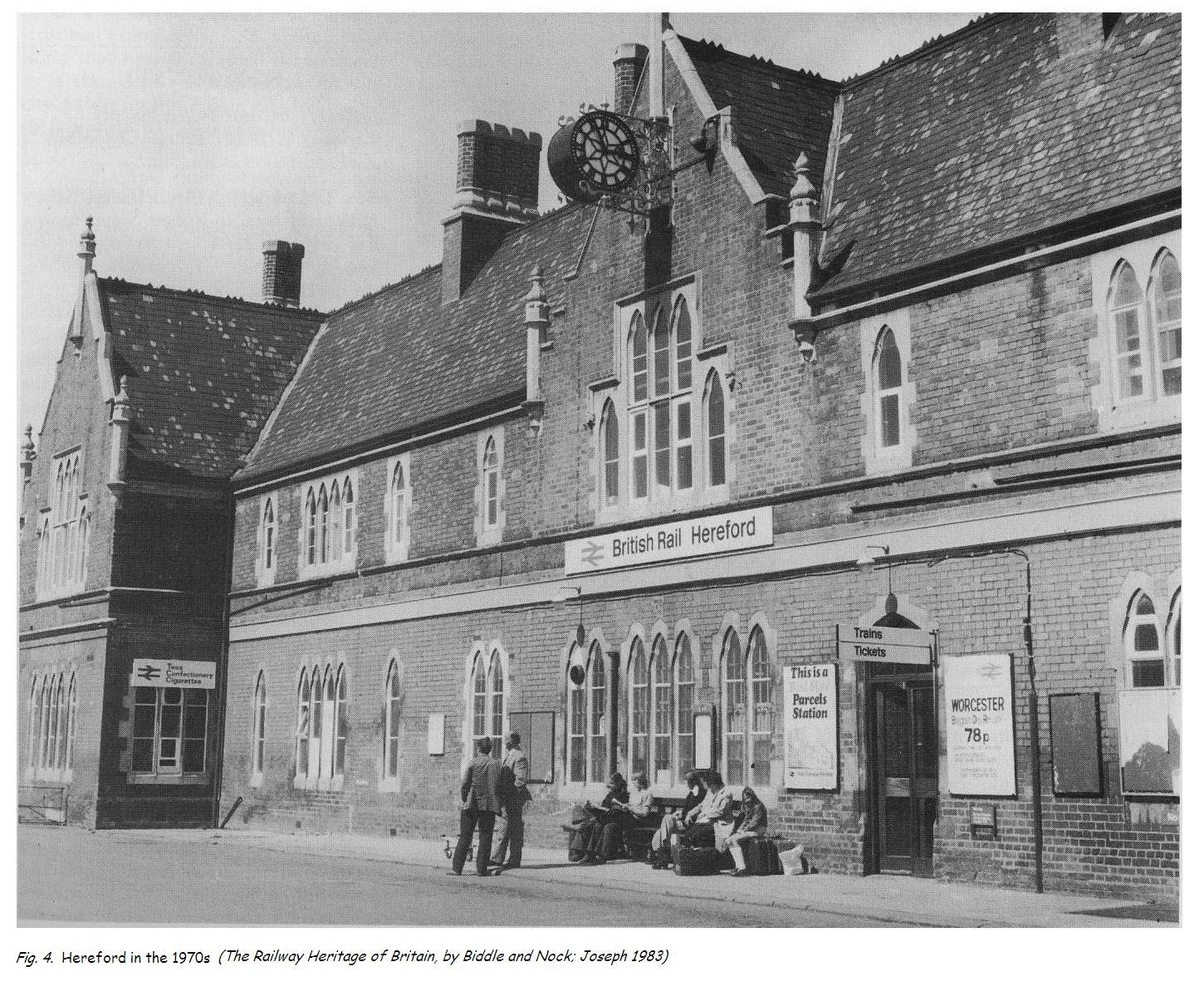

Roger’s layout is based in the 1950s – 1960s. One photograph has been traced for that period (see fig 3), and another from the 1970s (see fig 4) These show a number of differences from the 2004 view (see fig 5).

The lack of any detailed images from the period required meant that some intelligent guesswork would be needed with particular regard to doors and windows. The main change from the present day would have to be the re-instatement of the canopy over the main frontage (section B).

The canopy over section F would need to be omitted, as would the industrial-type steel doors in this section and the corresponding section of the platform side. These were replaced by windows as it was presumed that the later canopy and doors were provided for parcels and mail access.

The two doors in section B are different to other doors, but they could be 1950s so have been left. The doors in section A and the side of section I look to be more recent and have been omitted.

Figure 5

David continues:

The first job was to create as accurate a plan of the building as possible. In doing this it soon became obvious that more photographs would be required, and it was necessary to obtain accurate dimensions for the bricks used, and if possible an accurate sizing of one of the bays for comparative purposes.

Fortunately through the auspices of the N gauge Society Roger was able to contact a colleague who carried out a survey and took more photographs.

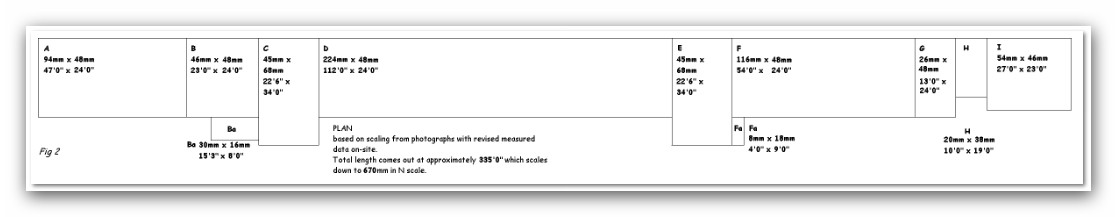

From these an approximate plan was drawn, from which it emerged that the building was about 330 feet in length which translates as 660mm in N gauge. There were 9 distinct blocks or sections of the building and these were labelled A-I to assist in identification as the various parts of the model were drawn and cut out. A final and accurate plan would not be possible until all the detailed elevations were created (see fig.2).

Figure 2

My father-in-law, David Cambridge became interested in the model of Hereford that I am building in N Gauge and undertook to build a card model of Barrs Court Station for the layout. I think the model is amazing.

David did this work a few years ago. Sadly, since then, David has died.

The remainder of this post and those that follow under this heading are David’s own description of the work he did to build the model.

Barrs Court Station

This large two-storey railway station of red brick was built in 1853 for the Shrewsbury & Hereford Railway. The architect was R. E. Johnston and the building with its groups of lancet windows set in rusticated stone panels, its tall chimneys and gables, steep roofs and octagonal stone finials is listed Grade II.

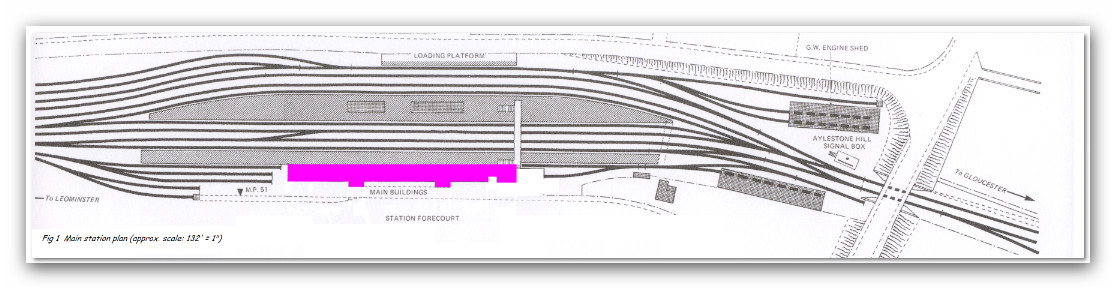

Roger’s N gauge scale model of Hereford railway station and its environs required a model of Barrs Court station. He had taken a large number of photographs of the station, but been unable to trace any drawings or plan of the building except for its footprint on an OS map (see fig. 1).
I had some experience of creating models, albeit in 7mm scale, by calculating dimensions from photographs and creating designs along the lines used by Metcalfe card model buildings. This was relatively straightforward using the MSPaint accessory in Microsoft Windows.

While I wanted the model to be as detailed as I could make it I soon realised that in this small scale certain compromises would be necessary. As regards the brick-work it would not be feasible to create separate bricks in relief, so I decided to draw the elevations in as large a pixel scale in MSPaint as was practicable and to draw in individual bricks.

I settled on a scale of 600 pixels per inch and a table was drawn up listing the number of pixels required for inches and feet in 2mm scale. This ensured dimensional accuracy when printing the designs for the various parts of the model.  The table is reproduced below.

Fig. 1

Paint template for HEREFORD station @ 300 x 300 dpi

Prototype dim.      Dim @ 2mm scale                       Pixel equivalent

                                                                    400dpi             300dpi            600dpi

½ inch                         0.08 mm                      1                      1                      2

1 inch                          0.17 mm                      3                      2                      4

2 inches                       0.33 mm                      5                      4                      8

3 inches                       0.5   mm                      8                      6                      12

4 inches                       0.67 mm                      10                    8                      16

5 inches                       0.83 mm                      13                    10                    20

6 inches                       1.0   mm                      15                    12                    24

7 inches                       1.17 mm                      18                    13                    26

8 inches                       1.33 mm                      20                    15                    30

9 inches                       1.5   mm                      23                    17                    34

10 inches                     1.67 mm                      26                    19                    38

11 inches                     1.83 mm                      28                    21                    42

1 foot                          2.0   mm                      31                    23                     46

2 feet                           4.0   mm                      62                    47                    94

3 feet                           6.0   mm                      93                    70                    140

4 feet                           8.0   mm                      124                  94                    188

5 feet                           10.0 mm                      155                  118                  236

6 feet                           12.0 mm                      186                  141                  282

7 feet                           14.0 mm                      217                  165                  330

8 feet                           16.0 mm                      248                  188                  376

9 feet                           18.0 mm                      279                  212                  424

10 feet                         20.0 mm                      310                  236                  472

11 feet                         22.0 mm                      341                  259                  519

12 feet                         24.0 mm                      372                  283                  566

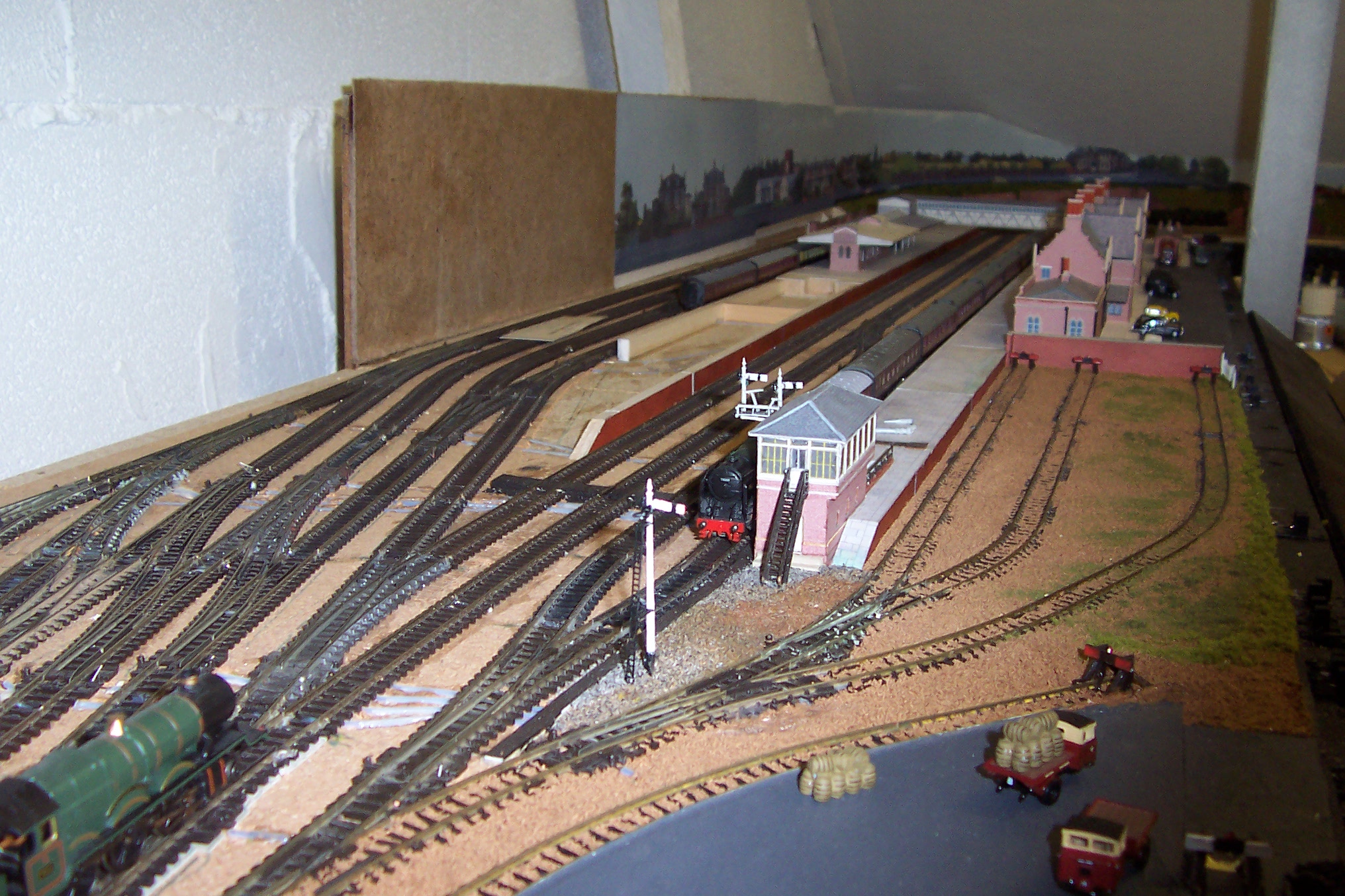

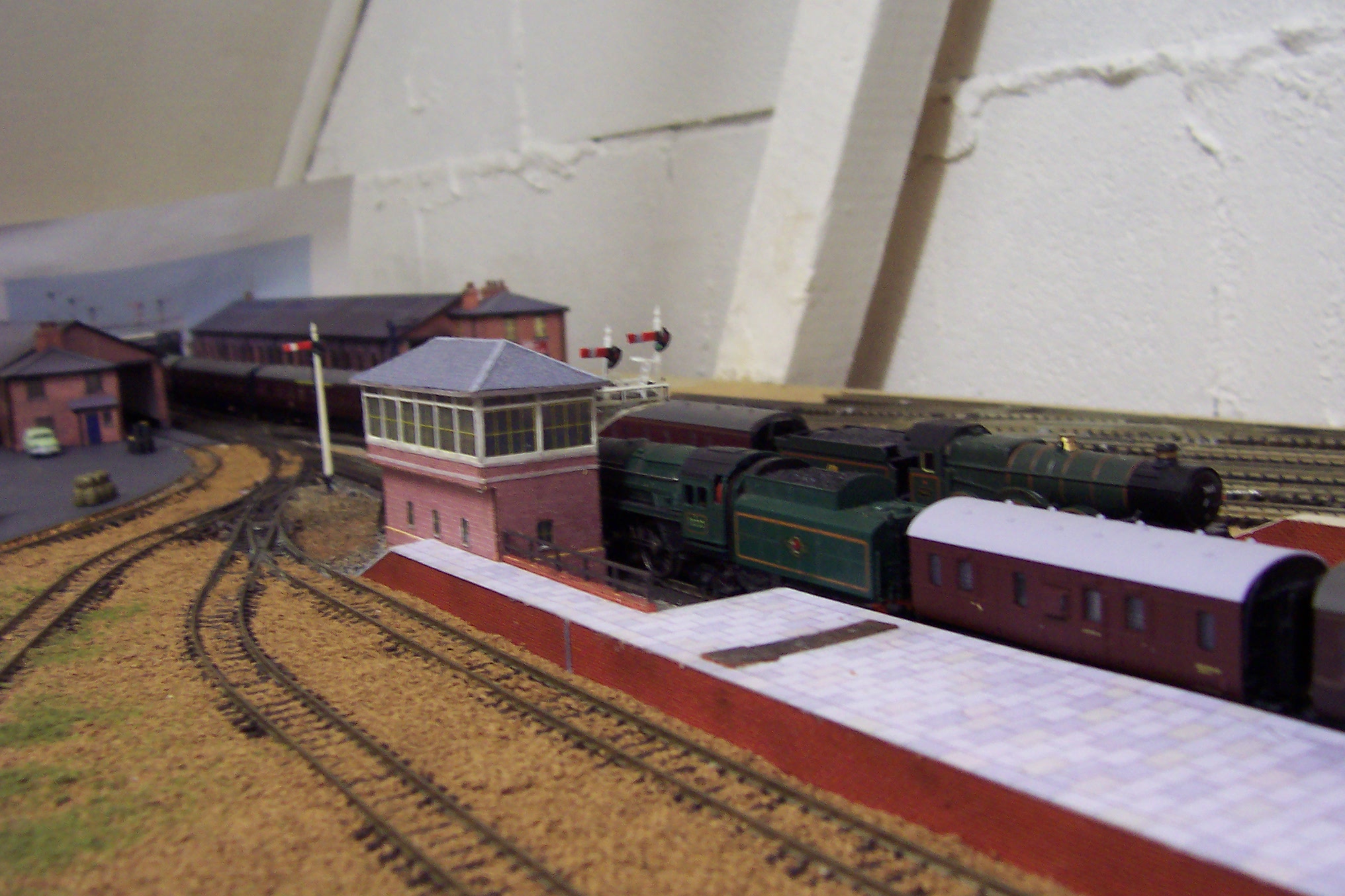

Two Photographs of the signalbox in position on the layout.
