Horse-Drawn Tramways of the Wye Valley

2 Replies

A great Christmas purchase from Rossiter Books in Leominster! (£12.99, ISBN 978-1-910839-60-7, Paperback, 176 pages, 242 x 171mm). NB: The images in this article are sourced from the internet.

Horse-Drawn Tramways of the Wye Valley [1] by Heather Hurley, published by the Logaston Press in Novber 2022, is an excellent introduction to the early tramways in the Wye Valley. A short-lived transport system of horse-drawn waggons on rails, operating from the late eighteenth century to the introduction of steam locomotives in the middle of the nineteenth century, primarily used for transporting goods such as coal and wood.

Heather Hurley explores all of the tramways known to have existed in and around the Wye Valley from Kington, through Brecon and Hay to Abergavenny, Monmouth, the Forest of Dean and Hereford; the routes taken, the companies that built and ran them, and the people who used them. She draws on extensive research of Tramway Company archives, Acts and ledgers, maps and plans, newspapers and journals, archaeological reports, books and illustrations, as well as detailed fieldwork.

As the back cover states, Hurley’s book is richly illustrated and offers captivating insights into early nineteenth-century transport history, trade routes and the beginnings of the steam railways on the Welsh border.

Heather Hurley has a keen interest in local history. She has written several books, including ‘The Scudamores of Kentchurch and Holme Lacy’, ‘The Story of Ross’ and ‘Landscape Origins of the Wye Valley’. She is planning to produce a parallel volume about the railways of the Wye Valley in due course.

Horse-Drawn Tramways of the Wye Valley is an easy to read but well-researched introduction to tramways in the Southern Marches. Evidence of Hurley’s detailed research can be found in the extensive notes which support each chapter. Solid research does not, however, mean that this is primarily a dry academic book. It is accessibly produced with appropriate illustrations and a confident narrative.

The first chapter gives an overview of transport systems which predated the introduction of tramways. A chapter is devoted to the development of the horse-drawn tramways which includes an important section focussing on the horses used, before the more usual engineering matters of waggons, rails and stone ‘sleepers’ are covered.

The Monmouth Tramroad (or Railway),
© Afterbrunel and licenced for use under a Creative Commons Licence (CC BY-SA 4.0). [2]

Individual chapters are devoted to the major networks which developed along the Wye Valley:

  • The Monmouth Tramroad
  • The Severn and Wye Tramroad
  • The Bishopswood, Scott and Teague Tramways
  • The Hay Railway
  • The Kingston Railway
  • The Abergavenny and Hereford Rail Road.
Brecon – the longest railway in the world: … This ‘diorama’ was installed by British Waterways in the ‘noughties’ beside the canal at Brecon. It commemorates the one-time ‘longest railway in the world’ which ran from Brecon to Kington via Hay-on-Wye. It was actually two horse-drawn tramways which met end-on at Eardisley – The Hay Railway and the Kingston Railway. The combined length exceeded 36 miles and claimed the title of the longest railway between 1820 and 1837, © Copyright Alan Bowring and licensed for reuse under a Creative Commons Licence (CC BY-SA 2.0). [3]
Grosmont Tramroad: Behind Werngifford are the remains of a tramroad built in the early 19th century. It formerly connected with the Llanfihangel Tramroad to form a through route between Abergavenny and Hereford until replaced by the modern railway in 1854, © Copyright Alan Bowring and licensed for reuse under a Creative Commons Licence (CC BY-SA 2.0). [4]

Two further chapters cover some local tramways of interest and the coming of steam-power.

The history of each of the major lines is recounted is some detail, each route is surveyed and details of goods carried are provided. For each line, some notes are provided on remains visible in the 21st century and on where documents recording its life can be found.

The extent of the coverage in a paperback book of 176 pages is to be commended. No doubt some readers will want to look at one or more of the routes portrayed in more detail than is possible in a book of this nature. The book might have benefitted from the addition of maps to support the detailed route descriptions provided towards the end of each of the major chapters. The book is, however, a wonderful introduction to its subject and has been an excellent post-Christmas read!

I wholeheartedly recommend this book to anyone interested in the industrial history of the Welsh Marches and the Forest of Dean. Anyone interested in the history of tramways/tramroads in the UK would do well to purchase a copy, not only for the informative narrative and illustrations but also for the detailed endnotes.

The Logaston Press takes its name from the hamlet of Logaston, in the beautiful countryside of rural north-west Herefordshire. It was here that Logaston Press was set up by Andy Johnson in 1983, and later run by Andy together with his wife Karen.

In 2018 Andy and Karen handed over the reins to Richard and Su Wheeler, who now run Logaston Press from the nearby village of Eardisley.

Logaston Press publishes books on local history, landscape, archaeology, architecture, and a range of walks guides – all focussed on the ‘Logaston heartlands’ of the Southern Marches: Herefordshire, Shropshire, Worcestershire and Gloucestershire, Radnorshire, Breconshire and Montgomeryshire.

In almost four decades, Logaston Press has published more than 350 titles, with more than 100 books currently in print. Its books are beautifully produced, ethically printed and reasonably priced. They are are a pleasure to own.

Logaston Press is rooted in the people and places of the Southern Marches and is dedicated to publishing books that explore and illuminate this extraordinary part of the world.

References

  1. Heather Hurley; Horse-Drawn Tramways of the Wye Valley; Logaston Press, Eardisley, 2022.
  2. https://en.wikipedia.org/wiki/Monmouth_Railway, accessed on 1st January 2023.
  3. https://www.geograph.org.uk/photo/757089, accessed on 2nd January 2023.
  4. https://www.geograph.org.uk/photo/635820, accessed on 2nd January 2023.

Brain’s Tramway (Forest of Dean)

Leave a reply

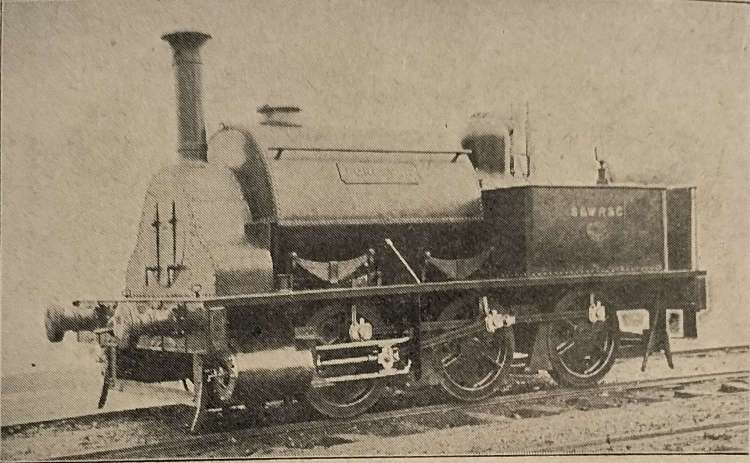

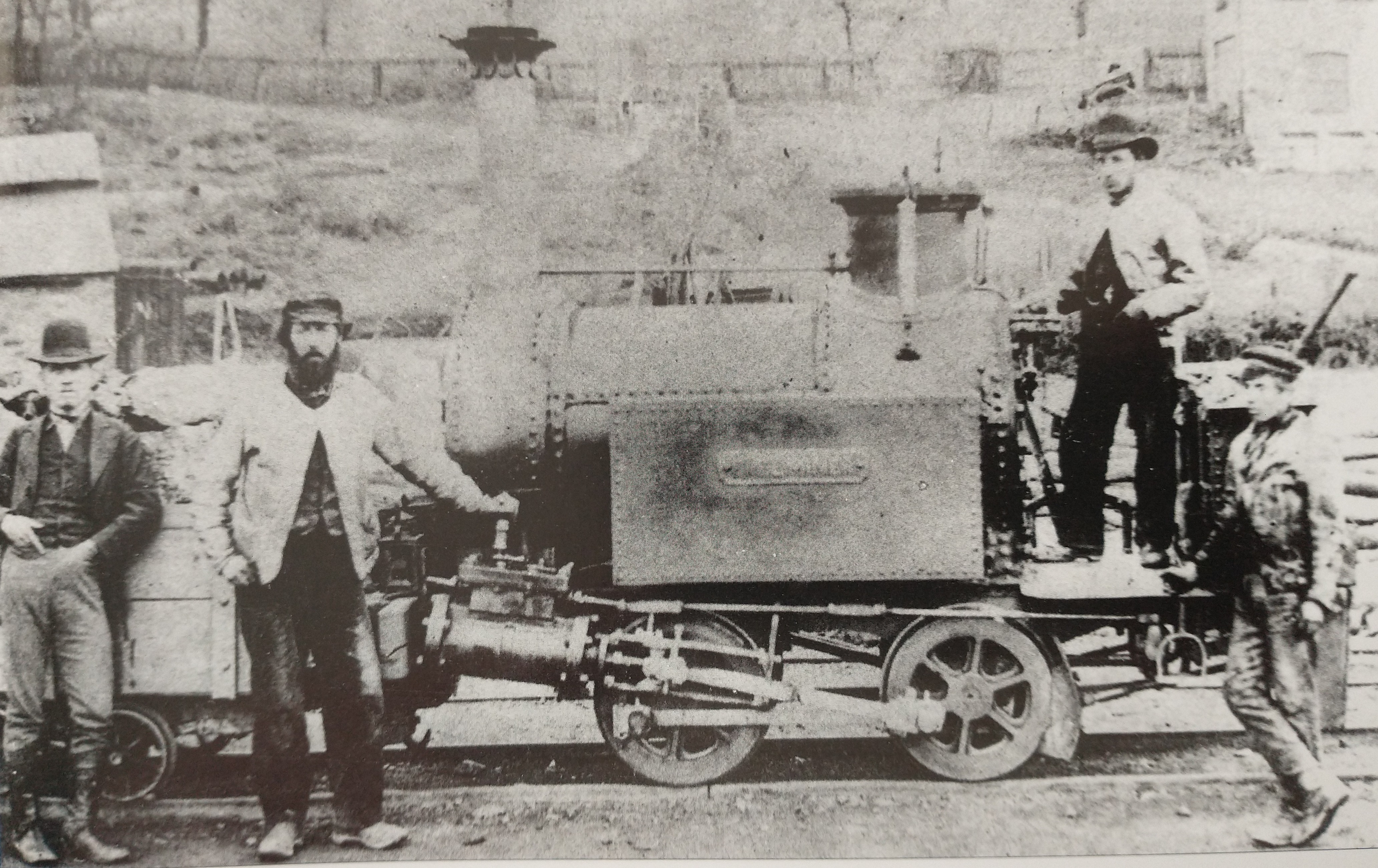

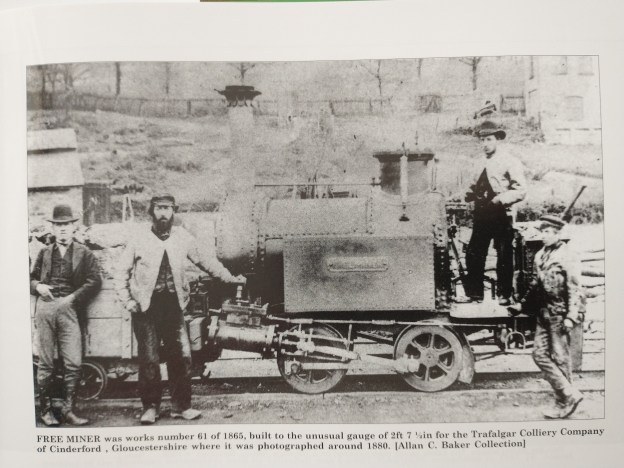

The featured image above shows the locomotive ‘Free Miner’ which was Works No. 61, at the Lilleshall Company Works, it was delivered to Trafalgar Colliery in February 1865 for use on the Tramway. The picture comes from Bob Yate’s book about the Lilleshall Company locomotives and railways, (c) Alan C. Baker Collection. [5: p55]

A little while ago, I wrote an article about the Trafalgar Colliery in the Forest of Dean and as part of that article started to cover Brain’s Tramway. That article can be found at:

https://rogerfarnworth.com/2019/09/24/trafalgar-colliery-and-railway

In that article, I noted that Brain’s Tramway was built soon after the opening of the colliery to connect to the Great Western Railway’s Forest of Dean Branch at Bilson [1] The single line of 2ft 7.5in gauge utilised edge rails laid on wooden sleepers and ran east from the colliery, turning south-east at Laymoor, and terminated 1.5 miles away at interchange sidings at Bilson. It would appear that the authorisation for its construction was a Crown licence for ‘a road or tramway 15 feet broad’ dated May 1862. The date the line was opened for traffic is unknown as, although the first of three locomotives used on the tramway was built in 1869, it is possible that it may have been horse worked before this date. [2]

I noted that the colliery appeared to have owned three locomotives: ‘Trafalgar’ and ‘The Brothers’ were 0-4-2 side-tank locos. The third locomotive was ‘Free Miner’, an 0-4-0 side-tank. The locomotive ‘Trafalgar’ continued in use until 1906, working on the northern extension of the tramway, built in 1869, to the Golden Valley Iron Mine at Drybrook. [2] we will return to these three locomotives later in this article.

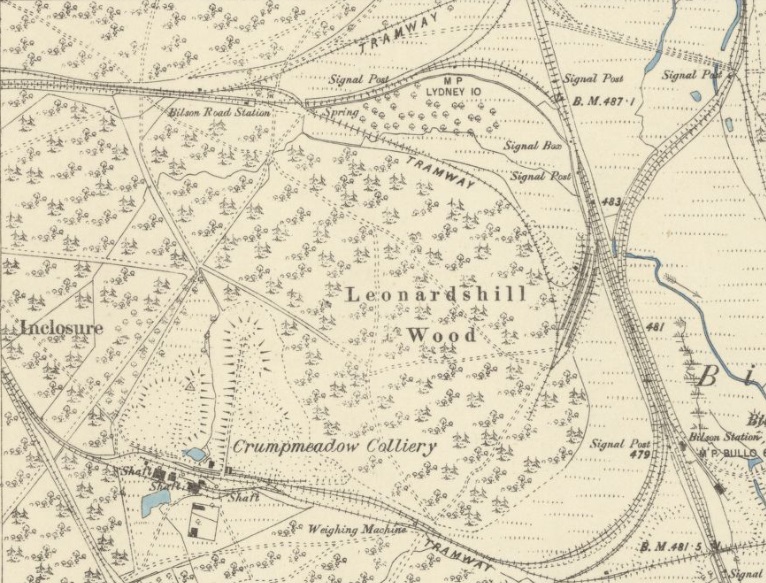

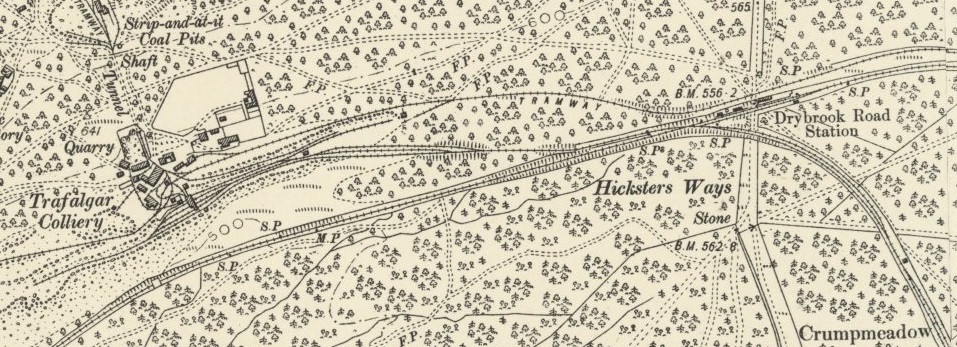

6″ OS Map from 1901 showing both Mr Brain’s Tramway and the standard-gauge sidings of the Colliery and their connection to the Severn & Wye Railway close to Drybrook Road Station. [16]

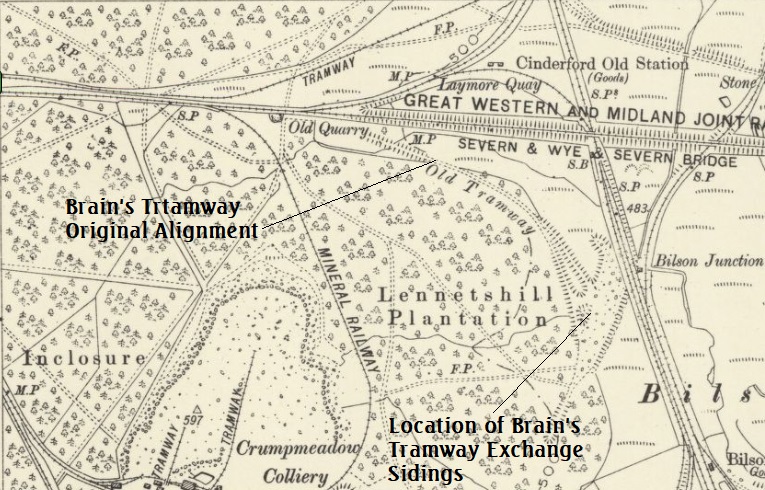

The extent of Mr Brain’s Tramway when first built to the Bilson Exchange Sidings. The point of conflict with the Severn and Wye near Laymoor (as mentioned below) can easily be picked out on the map extract. [3]

Tramway locomotives hauled trains of 20-25 trams of coal on each trip along Brain’s Tramway to Bilson, until 1872 when the Severn & Wye built their branch to Bilson. This crossed the tramway on the level near Laymoor and resulted in the need for the two companies to negotiate an acceptable coexistence. This became more urgent once the Servern and Wye extended beyond Drybrook Road an when, in 1878, passenger trains began running over the crossing.

Although a connection had been made to the Severn and Wye Railway in 1872 [1] at a point between Serridge Junction and Drybrook Road station, a large element of Trafalgar’s output still travelled along the tramway to Bilson. [2]

In my article about the colliery, I noted that in 1872, agreement was reached between the Severn and Wye and Trafalgar Colliery for sidings to be put in to serve the colliery screens. Soon after the Mineral Loop of the Severn and Wye was completed, a loop off the main line was installed and sidings were laid. However, the Severn and Wye was dismayed to note at a later date that Trafalgar Colliery was still making heavy use of the tramway.

The Lightmoor Press website comments that:

“Finally, in December 1889, an agreement was entered into between the Severn & Wye and the Trafalgar Colliery Company who, it was said, ‘are desirous of obtaining railway communication to Bilson Junction in lieu of their existing trolley road.’ It was agreed that on or before 31st March 1890 the colliery company would construct new sidings and the railway company would lay in a new junction at Drybrook Road. Although the new junction was a quarter of a mile closer to Drybrook Road than the old sidings, the mileage charge was to remain the same.  The accommodation, on approximately the same level as Drybrook Road station, was to be constructed so that traffic to and from the Great Western would be placed on a different siding to that which was to pass over the Severn & Wye system. For taking traffic to Bilson Junction for transfer to the Great Western the colliery was to be charged 7d per loaded wagon, although empties were to pass free. The transfer traffic also had to be conveyed ‘at reasonable times and in fair quantities so as to fit in with the ordinary workings of the Railway Company trains’. The new sidings were brought into use on 1st October 1890.” [2]

The Lightmoor Press article notes that this “agreement finally resulted in the abandonment of the length of the tramway from Laymoor to Bilson Junction. Two of the colliery’s narrow gauge locomotives were put up for sale, neither sold.” [2]

A couple of things:

1. More about the locomotives in use on Brain’s Tramway

Further research has resulted in a bit more information about the locomotives that worked on the Tramway. ….

These locomotives were built by the Lilleshall Iron Co. The first, ‘Free Miner’ was built in 1865. I came across the locomotive in a book by Bob Yate, “The Railways and Locomotives of the Lilleshall Company.” [5] I have recently (2022) moved to Telford and I have been reading a number of publications about the industry, canals, tramways and railways of the area. The Lilleshall Company was the major player in the industrial scene in the Telford (East Shropshire) area throughout the 19th century and much of the 20th century. It had its own system of canals, tramways and railways. Ultimately it had a large roster of industrial locomotives. In the mid-19th century, the Lilleshall Iron Co. built locomotive for others. Bob Yates features ‘Free Miner’ in his list of locomotives built by the Lilleshall Company.

‘Free Miner‘ was Order No. 61 at the Lilleshall Works. It was built in 1865 to a 2ft 7.5 in gauge. It was an 0-4-0T locomotive which the Industrial Railway Society Handbook records as having 8″ x 14″ outside cylinders.  It was delivered new in February 1865 to Cornelius Brain, Colliery, Cinderford, Gloucestershire. It was possibly scrapped in 1906.  [5: p52]

The date of delivery calls into question the comments above about the date of opening of the line as we now know that a single locomotive was available early in 1865, rather than in 1869. Given that approval for the construction of the Tramway was only given in 1862, it may well be that it was only operated under horsepower for a very short period.

‘Free Miner’ was Works No. 61, at the Lilleshall Company Works, it was delivered to Trafalgar Colliery in February 1965, (c) Alan C. Baker Collection. [5: p55]

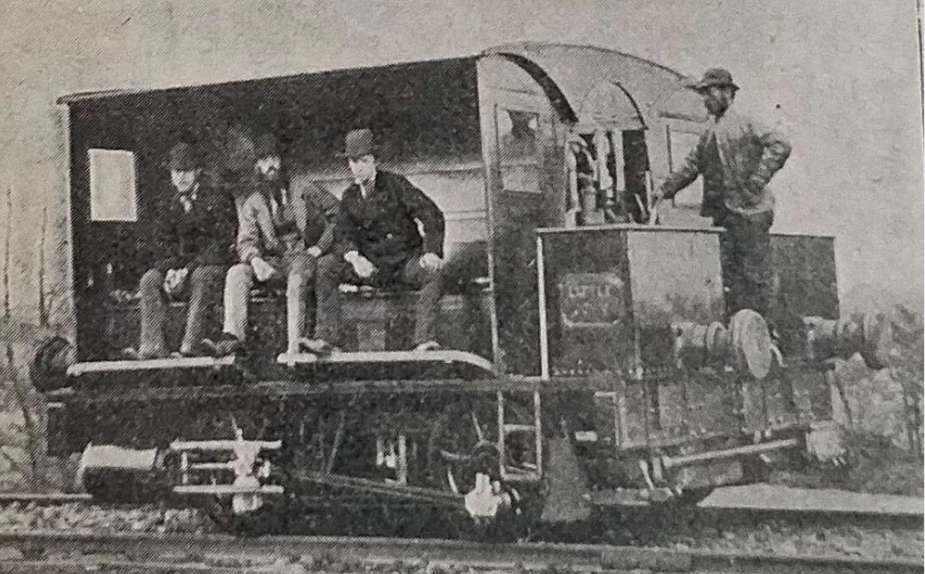

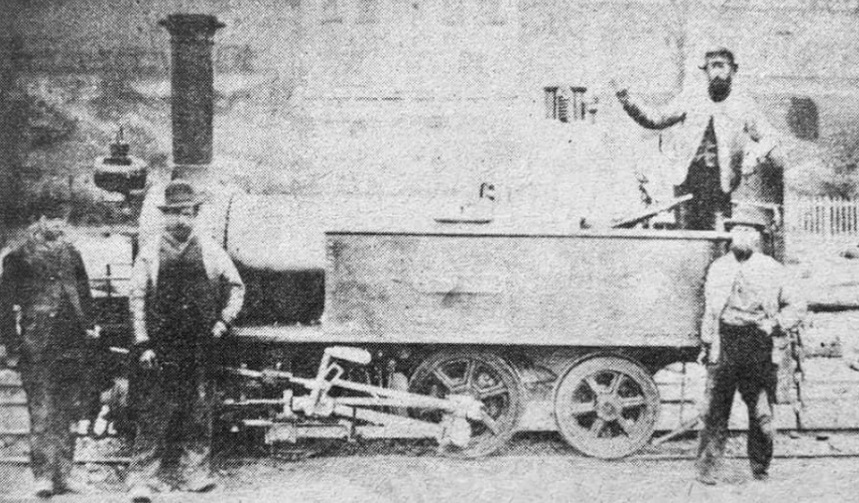

Bob Yate also provides information about the other two locomotives ‘Trafalgar’ and ‘The Brothers’. ‘Trafalgar‘ was supplied to the colliery in 1869. Bob Yates provides the following information: Gauge 2ft 7.5in; Works No. 140; 0-4-2T with 8″ x14″ outside cylinders. It was delivered new in April 1869. Yate comments that an early photograph of this locomotive reveals that it was supplied without a cab, and that the trailing wheels were only about 6″ diameter less than the driving wheels. The safety valves were mounted on a ‘haystack’ firebox. Scrapped c 1906.  [5: p56] Both Yate [5: p56] and Lightmoor [2] say the the locomotive was of an 0-4-2T wheel arrangement. What seems not to have been noted is the very short wheel-base of the locomotive as can be seen in the image below. Also evident is the minimal difference in size between the driving wheels and the trailing wheels that Yate refers to.

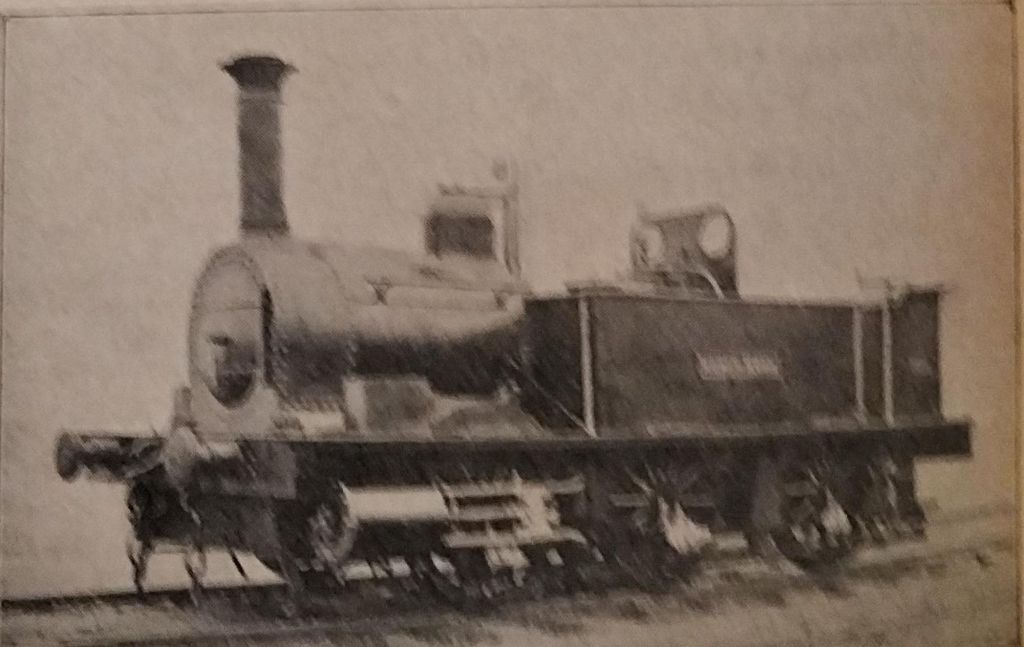

‘Trafalgar’ which was delivered to the colliery in April 1869. [4]

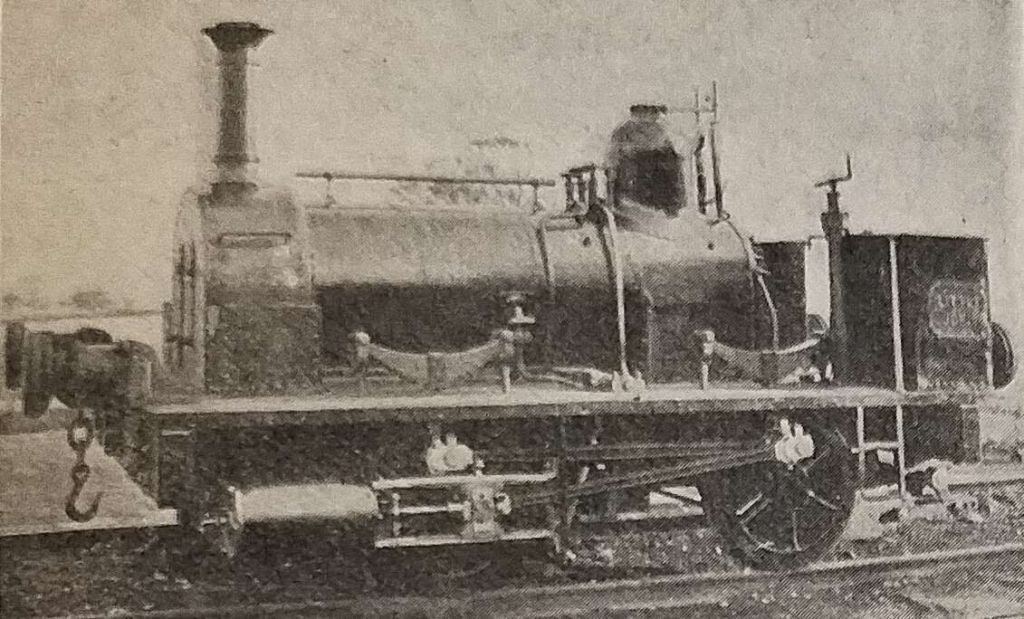

‘The Brothers‘ was delivered new by the Lilleshall Company in August 1870. It was Order No. 159 on the Lilleshall Company books. Yate records this as a sister locomotive to ‘Trafalgar’ with the same details/dimensions. He notes, however that the Register of Drawings in the archives of the Ironbridge Gorge Museum Trust has the cylinder bore being 8.5in diameter. [5]

2. The Northern Extension

A brief mention, on the Lightmoor Press website, of ‘Trafalgar’ being used on the tramway’s northern extension, [2] encouraged a look at that section of the tramway.

When I was writing about the Trafalgar Colliery, [6] I did not have access to the 1878/79 Ordnance Survey of the Forest which was published in 1883. That shows the transshipment sidings at Bilson junction, the Laymoor crossing and the erstwhile Bilson Road Station. It also shows the northern extension of the tramway diverging from the line to the transshipment sidings just to the North of Bilson Road Station.

The tramway branch was built in 1869/70. It “ran north to the Golden Valley Iron Mine near Drybrook. … The earthwork remains of embankments, cuttings and the interchange embankment are visible on aerial photographs.” [8]

“The tramway earthworks divide in two at its eastern end, the northern branch heading towards Drybrook, the southern heading towards Bilson Interchange.” [8]

“The Brain family used clay from Trafalgar colliery at brickworks at Steam Mills.”[12][13] The tramway “ran northwards by way of Steam Mills and Nailbridge to iron-ore workings near Drybrook. In 1890 the Severn & Wye provided Trafalgar with a line to Bilson but the narrow-gauge railway continued to carry coal to Steam Mills and Nailbridge.” [13][14]

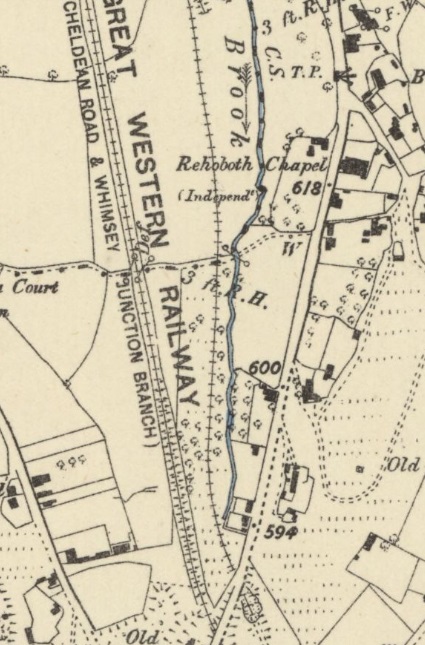

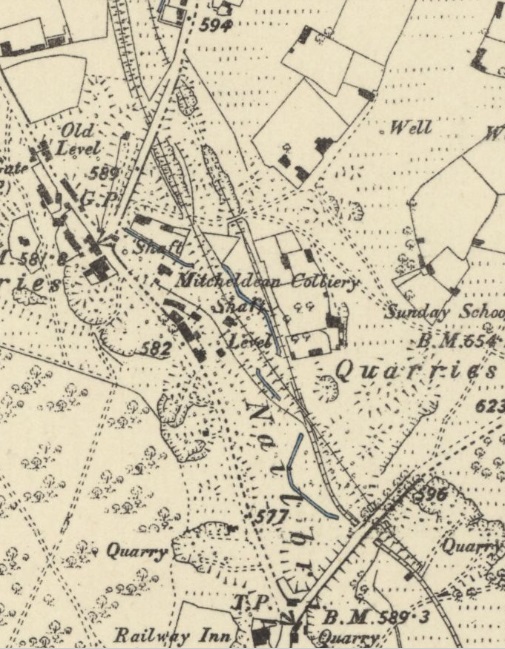

The 6″ OS Mapping published in 1883 showing the Bilson end of Brain’s Tramway and, at the very bottom of the extract, the tramway serving the Crumpmeadow Colliery. [6]
The Northern Extension of Brain’s Tramway can be seen crossing the Forest of Dean Branch of the GWR/Severn & Wye & Severn Bridge Railway and then turning to head North passing to the East of Winning and New Bowson Collieries. It continues North-northeast passing off the map extract close to ‘Steam Mills’ [7]

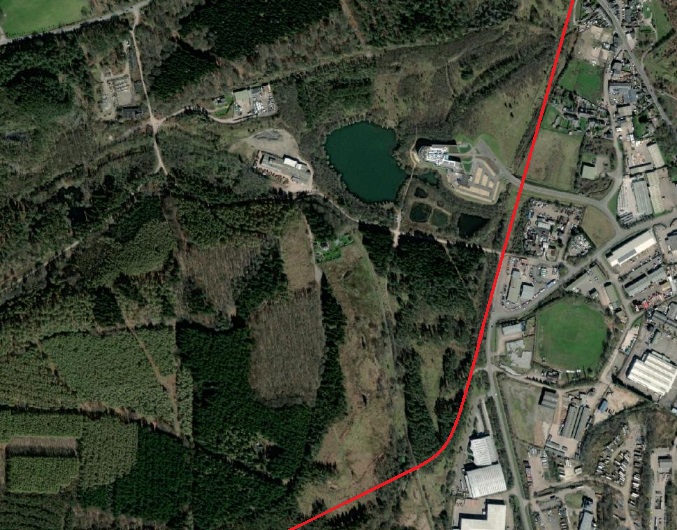

A similar area to that shown in the map extract above. a red line marks the approximate alignment of the tramway on the modern satellite image. The location of the surviving embankment is highlighted. [11]
Looking Southwest along the line of the embankment which used to support the Northern extension of Brain’s Tramway. [My photograph, 15th September 2010]

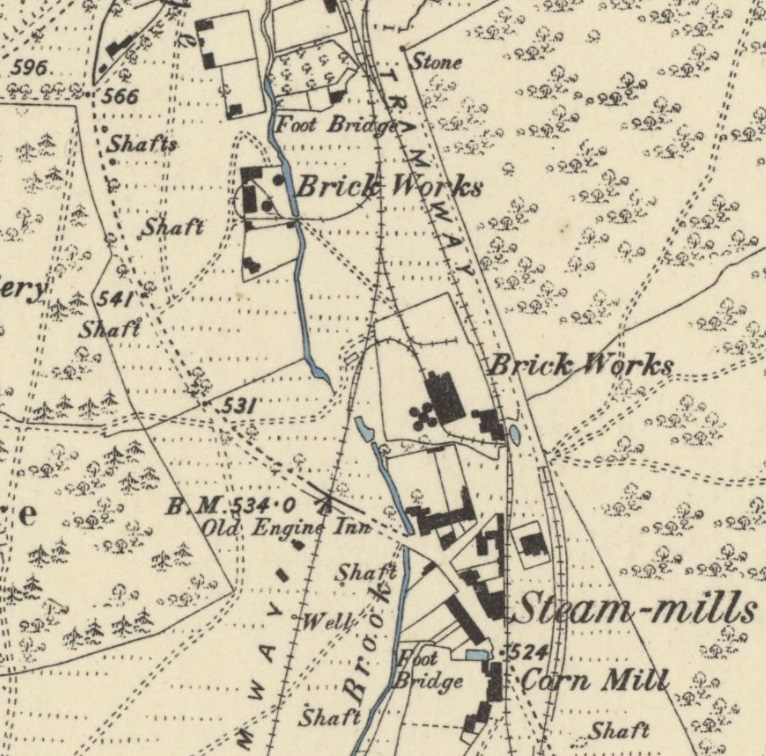

Brain’s Steam-mills on an enlarged extract from the 6″ 1878/79 OS Maps. The tramway connections to the industrial premises can easily be picked out. [7]

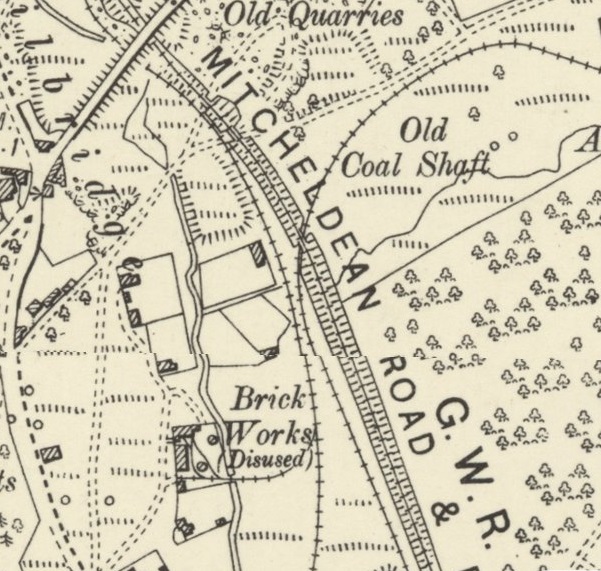

This is an extract from a later edition of the 6″ OS Maps (from 1901, published in 1903). On the last map extract a complicated tramway junction appears at the top-centre. That junction had been rationalised by 1901. It is much easier to see on this plan that Brain’s Tramway continued North alongside The GWR branch-line which does not itself appear clearly on the following mapping from 1881/82. [9]
Back with the 1881/82 mapping, Brain’s Tramway can be seen in a short tunnel before passing under the road at the top of the plan. [7]

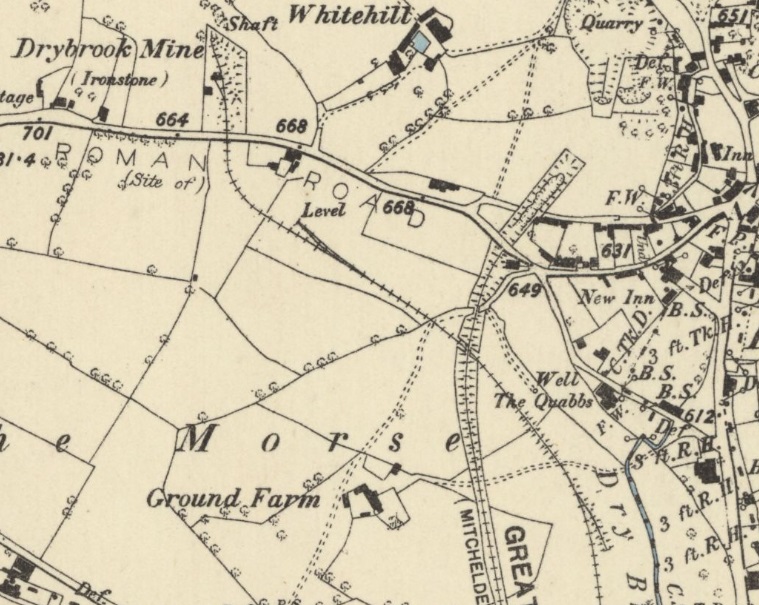

These two 6″ 1878/79 OS Survey plans should be taken together. They show the final length of the Tramway as it served Drybrook Iron Mine. [7]

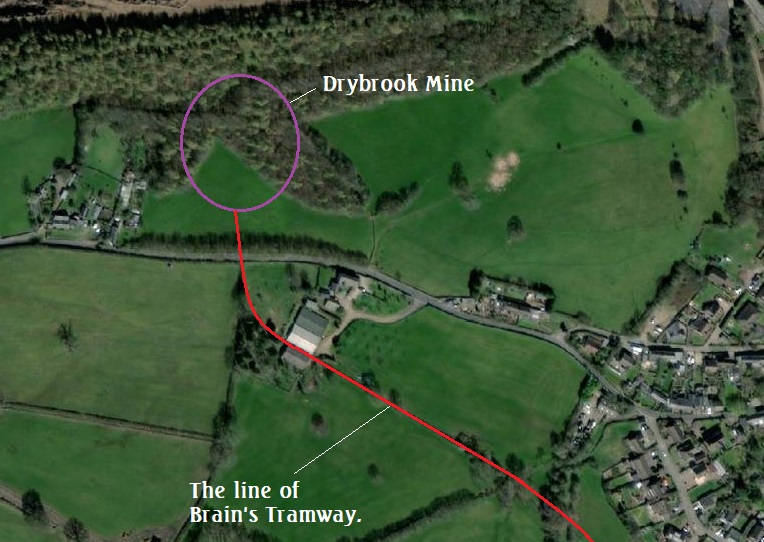

This satellite image shows the location of Brain’s Drybrook Mine. [15]

References

  1. https://www.forestofdeanhistory.org.uk/resources/sites-in-the-forest/trafalgar-colliery, accessed on 30th August 2019.
  2. http://lightmoor.co.uk/forestcoal/CoalTrafalgar.html, accessed on 30th August 2019.
  3. https://maps.nls.uk/view/101453394, accessed on 20th September 2019.
  4. http://www.industrialgwent.co.uk/wuk12c-fodne/index.htm, accessed on 24th September 2019.
  5. Bob Yate; The Railways and Locomotives of the Lilleshall Company; Irwell Press, Clophill, Bedfordshire, 2008.
  6. https://maps.nls.uk/view/101453397, accessed on 15th June 2022.
  7. https://maps.nls.uk/view/101453373, accessed on 15th June 2022.
  8. https://www.heritagegateway.org.uk/Gateway/Results_Single.aspx?uid=1386093&resourceID=19191, accessed on 25th June 2022.
  9. https://maps.nls.uk/geo/explore/#zoom=15.821121422997756&lat=51.84498&lon=-2.51483&layers=6&b=1, accessed on 25th June 2022.
  10. https://maps.nls.uk/geo/explore/#zoom=15.821121422997756&lat=51.83884&lon=-2.51419&layers=6&b=1, accessed on 25th June 2022.
  11. https://maps.nls.uk/geo/explore/#zoom=15.821121422997756&lat=51.83247&lon=-2.51658&layers=6&b=1, accessed on 25th June 2022.
  12. The Public Records Office (P.R.O., F 3/402) consulted by British History Online, https://www.british-history.ac.uk/vch/glos/vol5/pp326-354#h3-0008, accessed on 25th June 2022.
  13. https://www.british-history.ac.uk/vch/glos/vol5/pp326-354#h3-0008, accessed on 25th June 2022.
  14. Paar, G.W.R. in Dean, p145-8; Gloucester Records Office (D 262/T 1) consulted by British History Online, https://www.british-history.ac.uk/vch/glos/vol5/pp326-354#h3-0008, accessed on 25th June 2022.
  15. https://maps.nls.uk/geo/explore/#zoom=17.0&lat=51.85615&lon=-2.52378&layers=6&b=1, accessed on 26th June 2022.
  16. https://maps.nls.uk/geo/explore/#zoom=16.0&lat=51.82653&lon=-2.54090&layers=6&b=1, accessed on 26th June 2022.

The Forest of Dean Tramways and Railways – An Addendum:

Leave a reply

In this addendum to the articles already written about the Forest of Dean, we take a general look at the Forest through the eyes of Humphrey Household.

While on holiday in the Forest of Dean in September 2021, I picked up a secondhand copy of “Gloucestershire Railways in the Twenties” by Humphrey Household. [1]  It consists of a review of the development of the railways in Gloucestershire supported by a series of photographs which were predominantly taken in the 1920s by Humphrey Household. The photos are a significant resource. The text of the book is well-written. Its final two chapters were of real interest to me.

IMG_20210917_171410913~2

The two chapters are entitled “Leckhampton Quarries” and “The Forest of Dean.” I have covered the first of these two chapters elsewhere. The second provides some interesting comments and photographs relating to the Forest.

Household had been fascinated by the Forest of Dean from an early age but did not start to photograph the Forest railways until the late 1940s. Nevertheless, his photographs from that time are illuminating. The first four photographs show the Lydney docks/canal, one, from April 1948, shows one of the coal shipping hoists on a length of the canal. He notes that the wagon turntable on the rail approach bore the date 1873. (p126) Two photographs (p125) were taken in August 1948 and show, first, the canal entrance and then the inner gates and basin with the Alma of Bristol moored. The fourth photograph is undated but shows the loading of coal and a little of the layout of tracks above the coal hoist.

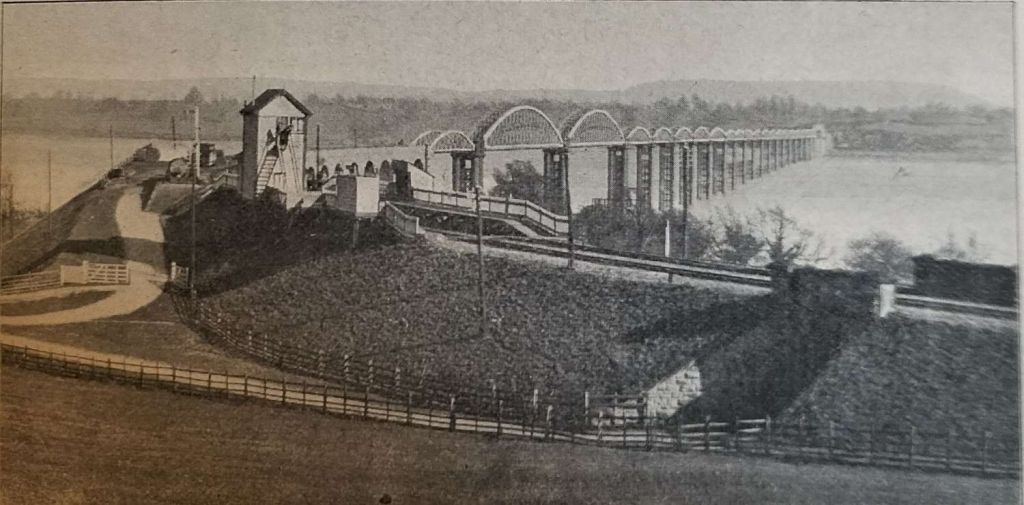

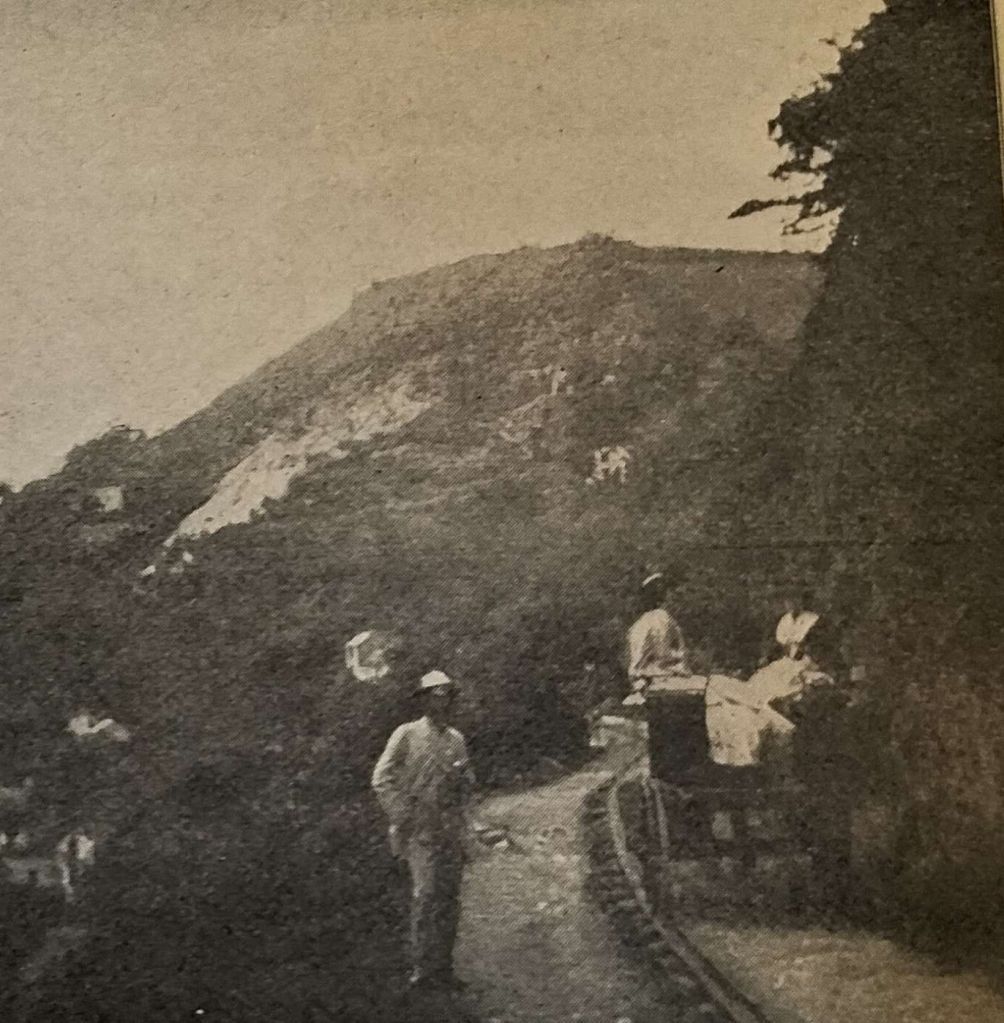

Household also provides photographs of the route of the Bullo Pill Tramway. He notes that “after leaving the Riverside and passing the Bullo Cross Inn it followed a meandering course close to the contour, sometimes on a low embankment, always maintaining a gentle gradient for horses returning with empty wagons. But between Servernside and the valley of the Bideford Brook which the tramway followed from Lower Soudley through Ruspidge to Cinderford, there lay a ridge which had to be pierced. There had been plenty of canal runnels before then, but that at The Haie, 1,100 yards long, was certainly one of the earliest to be driven for a railway.” (p127). [2]

Household comments that “in 1826 a new company, the Forest of Dean Railway, was formed to take over the tramway and complete the wet dock. … The Bullo line, still remembered as the ‘dramroad’, was remarkably simple in operation. The wagons, carrying a ton or two at a time, proceeded at no ‘faster rate than a Horse could walk’, and when two met, the loaded one had right of way, the other perforce returning to the nearest turnout. Through the tunnel, wherein none might ‘carry or use a lighted torch’, the wagons passed in groups, the driver of the rearmost distinguishing it with the branch of a tree and blowing a horn when he emerged at the further end.” (p127-130)

The operation was straightforward. The new tramway company halved the tolls charged for coal and completed the wet dock, enlarging the wharves at the same time. The use of steam locomotives was considered but rejected because of the alignment of the route and the size of the bore of Hair Hill Tunnel. However the arrival of the broad gauge running from Gloucester to Chepstow in 1851 changed things. The Forest of Dean Railway sold out to the South Wales company and Brunel decided to convert the tramway so as to be able to accept steam locomotives. A series of six photographs taken by Household in April 1952 show different part of the alignment of the Bullo Pill Tramway.

Household also mentions an abortive attempt to construct a third tramway midway between the other two. The intended route ran between Purton Pill and Foxes Bridge (on the Littledean-Coleford road – the B4266). He says that “the prospectus bore the grandiose title of the Purton ‘Steam Carriage Road’. [3] Construction began, and at Viney Hill above Blakeney part of the formation can be seen leading in s south-easterly direction from beside the A48 Lydney road, and nearer Purton there is a completed arch intended to carry the railway over the Blakeney-Purton road.” (p130) Household provides two further photographs (p134) to illustrate the two locations that he mentions. Grace’s Guide provides a photograph of the three-span arched viaduct to which, I think, Household refers. It remains today sitting over the road between Purton and Etloe. [4]

References

  1. Humphrey Household; Gloucestershire Railways in the Twenties; Alan Sutton Publishing Ltd., Gloucester, 1984 (reprinted 1986) ….  the relevant chapter can be found from p124 onwards.
  2. This line and its tunnel are covered in an article which can be found at: https://rogerfarnworth.com/2018/03/13/bullo-pill-and-the-forest-of-dean-tramway
  3. The National Archive holds records associated with this proposed line which can be accessed at Kew. The relevant details can be found on the following links: https://discovery.nationalarchives.gov.uk/details/r/C7435267, accessed on 17th September 2021. https://discovery.nationalarchives.gov.uk/details/r/C7435264, accessed on 17th September 2021. Further details are available on Grace’s Guide, https://www.gracesguide.co.uk/Purton_Steam_Carriage_Road, accessed on 17th September 2021.
  4. https://www.gracesguide.co.uk/File:JD_Purton_2016_01.jpg, accessed on 17th September 2021.

The Forest of Dean – Milkwall Tramway at Dark Hill

Leave a reply

In early September 2020, while staying in Bream in the Forest of Dean we walked around the Titanic Steel Works and the Dark Hill Ironworks of father and son David and Robert Mushet. These two establishments sit adjacent to what was the Coleford branch of the Severn and Wye Joint Railway. They were also served, in its time, by the Milkwall branch of Severn and Wye Tramway.

The location is significant in the development of the Bessemer Process for making hardened steel. Robert Mushet took the relatively novel ideas of Bessemer and refined them to the point where the process became functional in an industrial context. [3]

The tramway closed when the Coleford Branch opened as the route of the new railway closely followed the old tramway. There are only a few places where the route of the old tramway diverged from the newer railway and one of these locations is in the area of the Mushet owned works. The next few OS Map extracts come from the very early series of 25″ OS Maps which were drawn in the period from 1873-1888, nonetheless, the old tramway was by this time only a memory,

At the Eastern end of the Dark Hill Iron Works site, the old tramway diverged from the line of the Severn and Wye Joint railway. The loop shown here was no doubt provided to lessen the gradient. Steam power enabled the newer railway to take a more direct route. The Severn and Wye Joint Railway is shown by the double black lines which curve from the right of the map extract to pass through the words ‘Darkhill Iron Works’ at the bottom of the extract. [1]

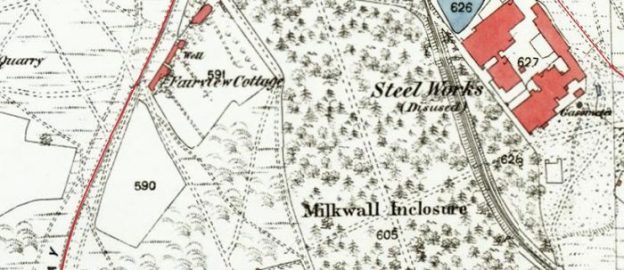

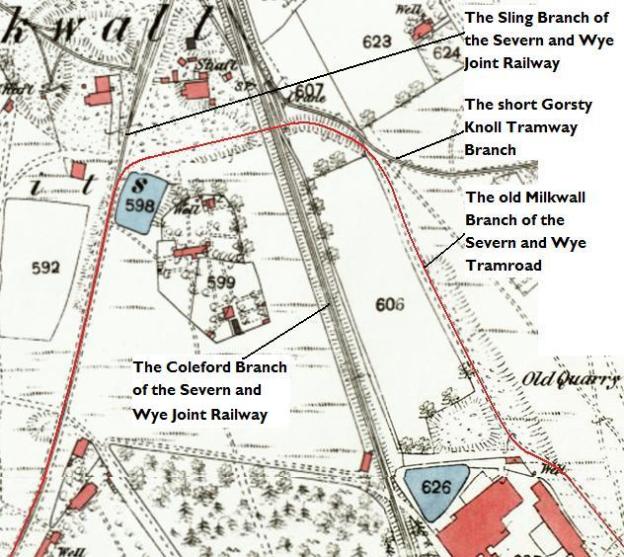

The tramway route shown by the thin red line ran across the North side of Darkhill Iron Works and then on the Northeast side of the Titanic Steel Works. The  Severn and Wye Joint Railway looped round the South side of the two sites. [1]

The two distinct red lines which appear on this map extract are both part of the old Milkwall branch of the Severn and Wye Tramroad. That to the West of the Map extract became the Sling Branch which left the Coleford Branch of the Severn and Wye Joint Railway at the small Milkwall Station to the North. That railway can be seen running to the West side of the Titanic Steel Works. The other red line is just to the Northeast of the Titanic Steel Works. [1]The two arms of the tramway which are seen as red lines on the map extract prior to this one are shown coming together just to the South of the Milkwall Station on the Severn and Wye Joint Railway which is sited just off the North side of this map extract.

We followed a Heritage Walk route which took us around Milkwall and Dark Hill areas of the Forest. [2] We encountered a significant section of the old stone sleepers which were used to support the cast-iron L-shaped plates which the trams ran on. Pictures I took at that location follow. I have also included a photograph taken the same week at the Dean Forest Railway which shows how the plates were keyed-in to the stone sleepers using  purpose made ‘chairs’.

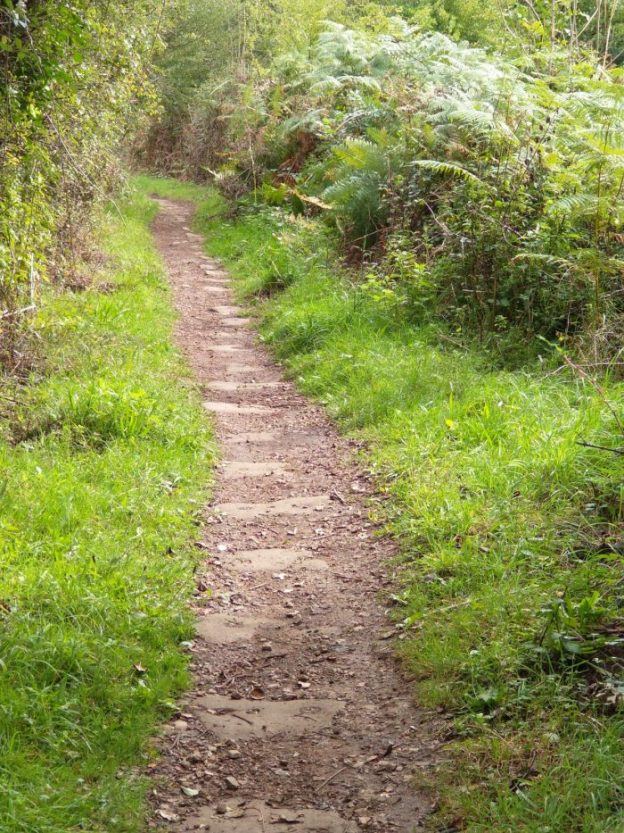

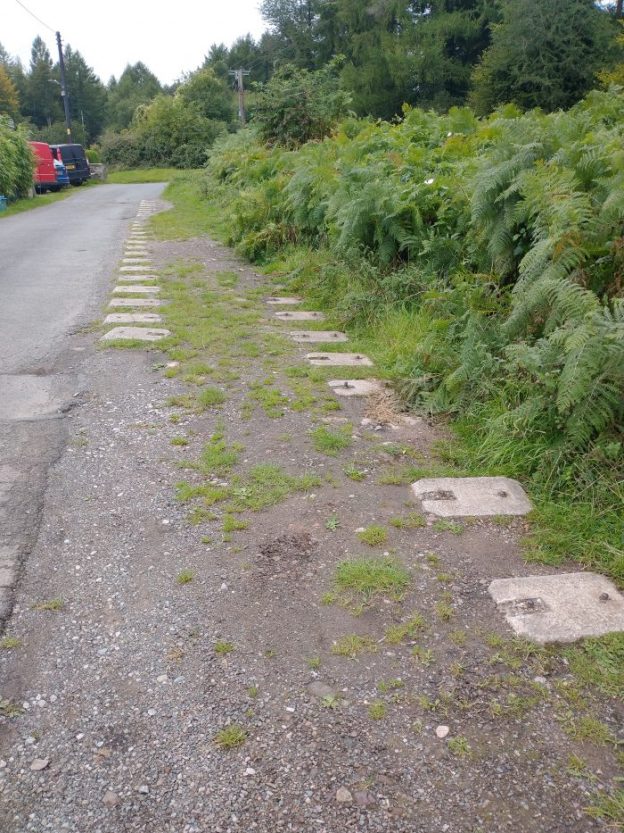

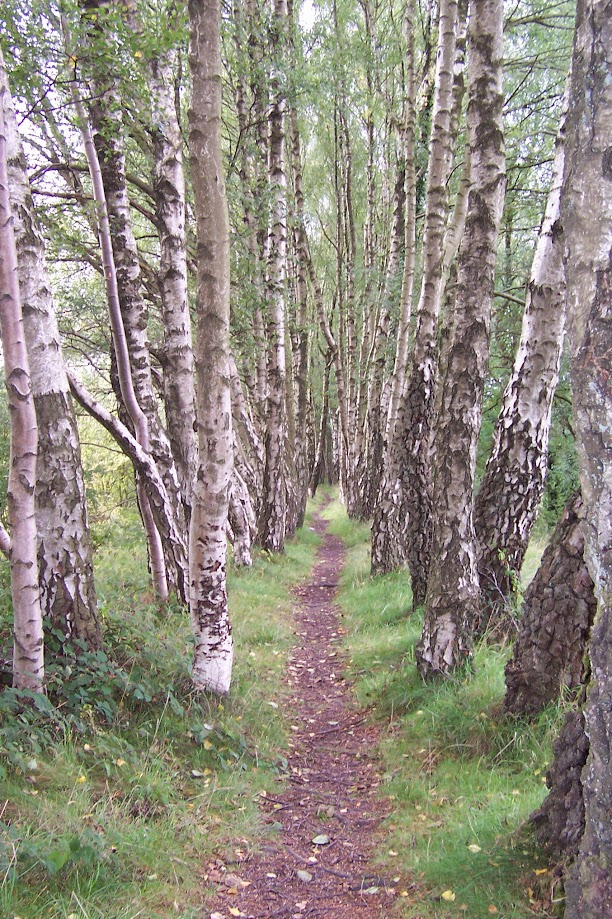

Generally the modern footpaths which follow the routes of these old tramways are not wide enough to allow both rows of stone sleepers to be seen.

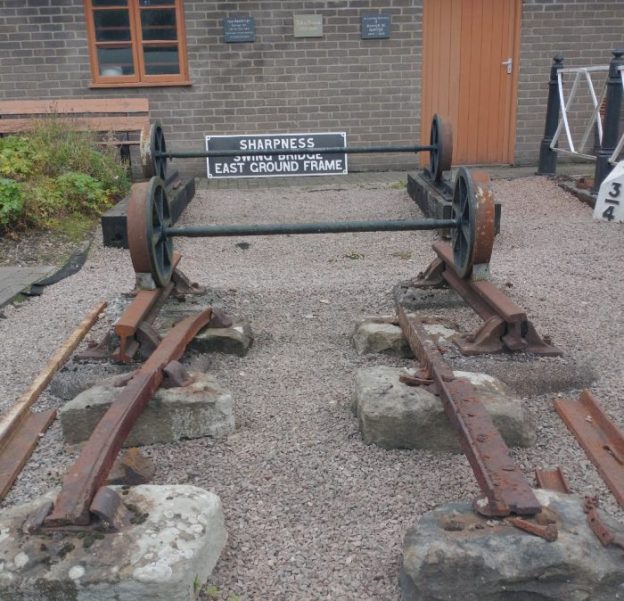

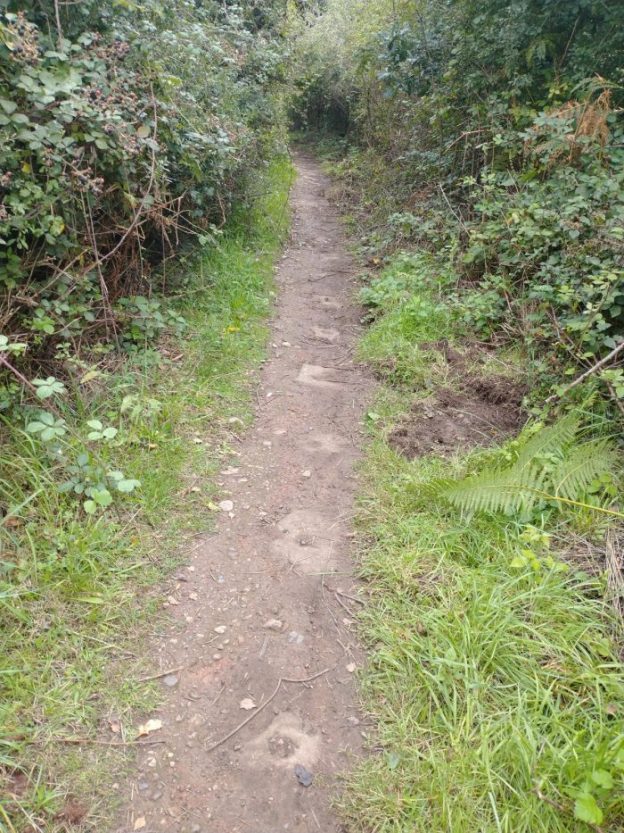

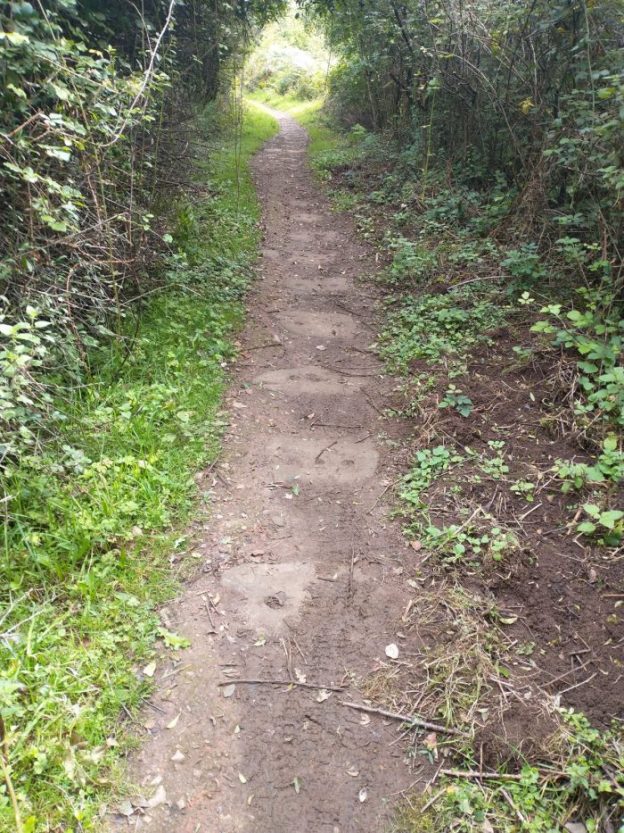

The different gauges used at different times in the Forest can be seen clearly in this picture taken at the Dean Forest Railway at Norchard on 2nd September 2020. The tramway gauge and construction can be seen in the foreground. Tramways in the forest were of 3’6″ to 3’8″ track gauge. Each plate was fixed in place by a metal chair which in turn was supported by an independent stone block/sleeper. All the photographs above are my own.

As we noted when looking at the map extracts above, the Sling branch of the Severn and Wye Joint Railway followed the line of the older Milkwall Tramway. Our walk took us, for a short distance, along the line of the Sling Branch. The more modern rails of the branch were supported on concrete blocks similar in size to the stone blocks which once supported the tramway. My picture below shows these concrete blocks where they are still visible outside Fairview Cottage which appears in the third of the four map extracts above.

References

  1. https://maps.nls.uk/geo/explore/#zoom=15.577087890792386&lat=51.77809&lon=-2.59762&layers=178&b=1, accessed on 3rd September 2020.
  2. There is an app which can be downloaded to mobile phones which provides access to a number of different Walks, one of these is the Coleford Heritage Walk, part of which we followed: https://www.forestersforest.uk/projects/12/hidden-heritage-app, accessed on 3rd September 2020.
  3. David and Robert Mushet: http://www.wyedeantourism.co.uk/mushets#, accessed on 8th September 2020.





The Forest of Dean – Bream Heritage Walk, the Oakwood Tramway and Flour Mill Colliery

1 Reply

We are in the Forest of Dean again for a week away from work. On 1st September 2020 we followed a sign-posted circular walk which started in the centre of the village of Bream on the Southwest side of the Forest. The route was planned with the support of the Big Lottery Heritage Fund and featured a series of different heritage locations around the village. An overview plan appears below. [1]

Bream was one of a number of villages which sat on the edges of the old Royal Forest of Dean and in pre-industrial times had a population of around 300. The industrialisation of the Forest brought relatively rapid expansion to many of these villages. Bream’s population in the early 21st century is over 3,000.

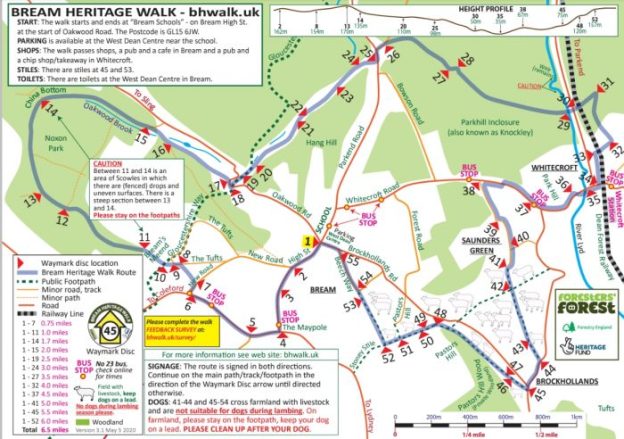

The walk, including the different detours that we chose to make was about 7.5 miles in length. The first sections of the walk were along modern roads but we soon found ourselves walking along one of the access routes that would have been used by the workers in the iron ore mines in and around Noxon Park.

We passed a number of caves and sink-holes which were created by early iron ore miners. The area is riddled with underground workings and a number of relatively large caves have, over the years collapsed to create large and deep depressions (or scowles) at the surface. These can be found between locations 11 and 14 on the walk route map.

Initially, these workings were served by packhorses that carried the iron-ore away to be refined, but by the 19th century, plateways or tramways were being built to improve the transport of the ore.

The walk took us first along the route of the China Bottom Branch of the Oakwood Tramway which was covered in an earlier post about the tramways in the Forest (https://rogerfarnworth.com/2017/10/02/oakwood-and-dikes-tramways). [2] The branch ran between the approximate locations 13 and 14 on the map above. The track shows up on the old map below as two dotted lines leading from the bottom left of the map towards China Bottom.

When we reached China Bottom, we joined the route of the Oakwood Tramway which can be seen running left to right across the map extract below. The early China Bottom Branch served the small mines in the Noxon Park. These were superseded by the larger mines at China Bottom and Princess Louise and the early tramway branch was then abandoned and the cast-iron rails were lifted.

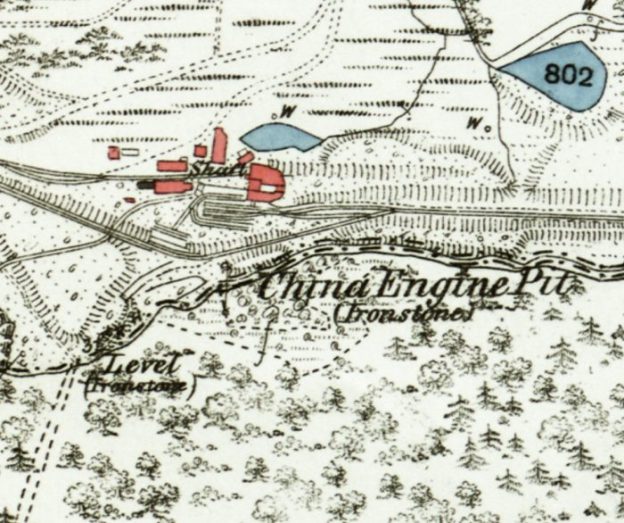

Extract from the OS 25″ Map on the mid 19th Century. [5]

China Bottom takes its name from a large iron-ore mine which once occupied the site which was called ‘China Engine Pit’. Its name indicates that the mine had a powerful steam engine which lifted iron-ore to the surface and pumped out water from the mine. “These engines were usually beam engines of the type used in Cornish tin mines, as seen on the TV series Poldark.” [7]

Close by was another large iron-ore mine called the ‘Princess Louise’ which had a 180 metre deep shaft. For more information, see the ‘Derelict Places’ Website. [3]

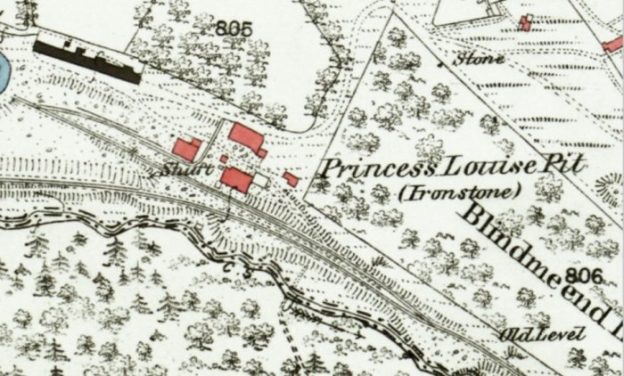

Princess Louise Pit, OS 25″ Map from the mid 19th century. [6]

The Oakwood Tramway

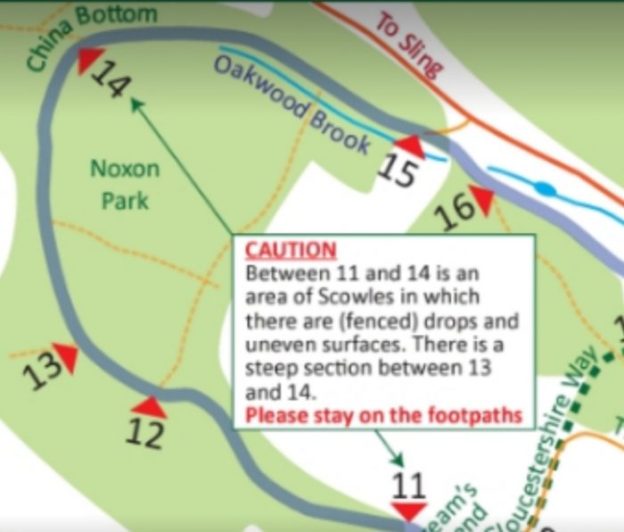

From location 14 through to between location 20 and 21 our path followed the route of the Oakwood Tramway. We picked it up again by taking a diversion northwards from location 24.

Oakwood Tramway ran, at first, on the Northern side of Oakwood Brook,  between locations 14 & 15.  The brook was culverted under the tramway and then supplied water power for Oakwood Mill which sat close to the brook between it and the road between Sling and Bream. [1]

At location 16 on the walk we passed Oakwood Mill Land Level, another iron ore mine.

“The land level was driven from 365 feet O.D. at the entrance. It is an adit or tunnel driven into the hill side for a distance of 1650 feet (500 metres). From the far end of the tunnel further levels were driven at right angles to facilitate mining and removal of the iron ore.  The level also allowed water to drain from the iron ore measures above 365 feet, allowing previously underwater deposits to be exploited. The level can be seen on Sopwith’s Map of 1835“. [11]

In 1827 David Mushet the metallurgist laid the earliest length of the Oakwood Tramroad from this area to Parkend. “Within a short distance you can observe a series of large flat stones in the pathway. These are sleepers for the Oakwood Tramway which terminated at Parkend and was used to transport mainly iron ore for transfer to the railway at Marsh Sidings (near Parkend’s Fountain Inn).” [11]

To the left and right of the walk route we came across dry mill ponds which originally “fed the water wheel at the Oakwood Corn Mill. The mill occupied the old buildings to the left and the waterwheel which drove the machinery was situated in a sunken chamber at the side. The sluice gate, which released the water onto the wheel, can be seen in the far corner of the stone-lined pond. It is probable that the operation of the mill was sporadic and dependant on the mill ponds containing sufficient water to drive the wheel.” [11]

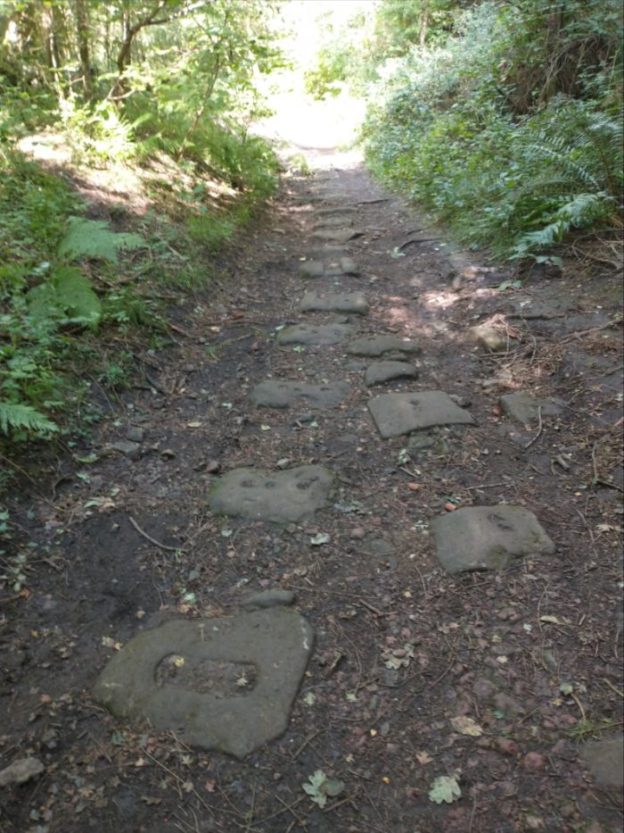

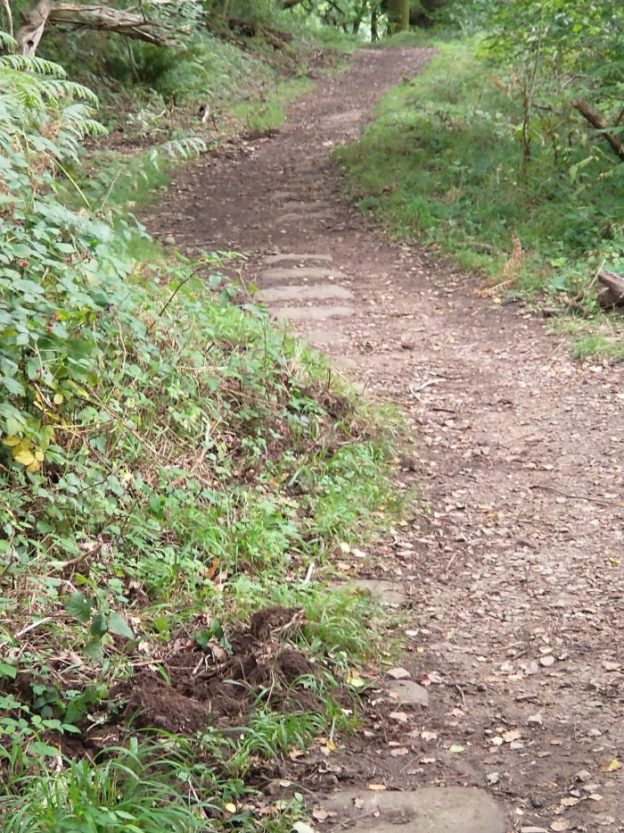

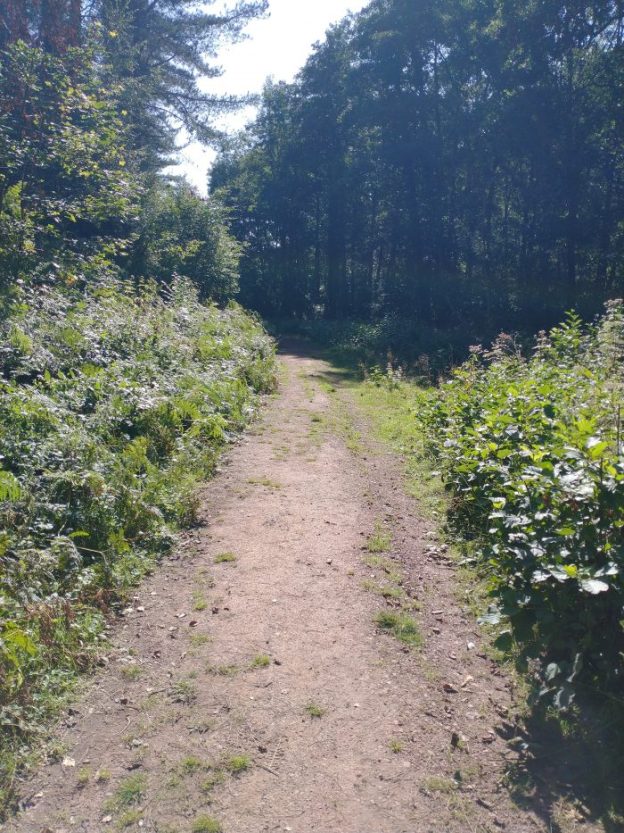

The route of the Oakwood Tramway between locations 14 and 15, 1st September 2020.The different gauges used at different times can be seen clearly in this pisture taken at the Dean Forest Railway at Norchard on 2nd September 2020. The tramway gauge and construction can be seen in the foreground. Tramways in the forest were of 3’6″ to 3’8″ track gauge.

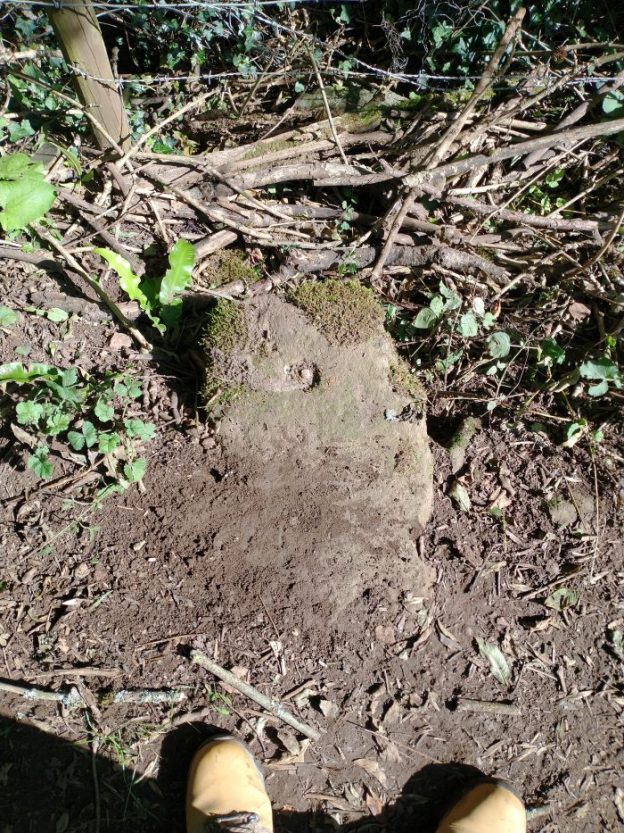

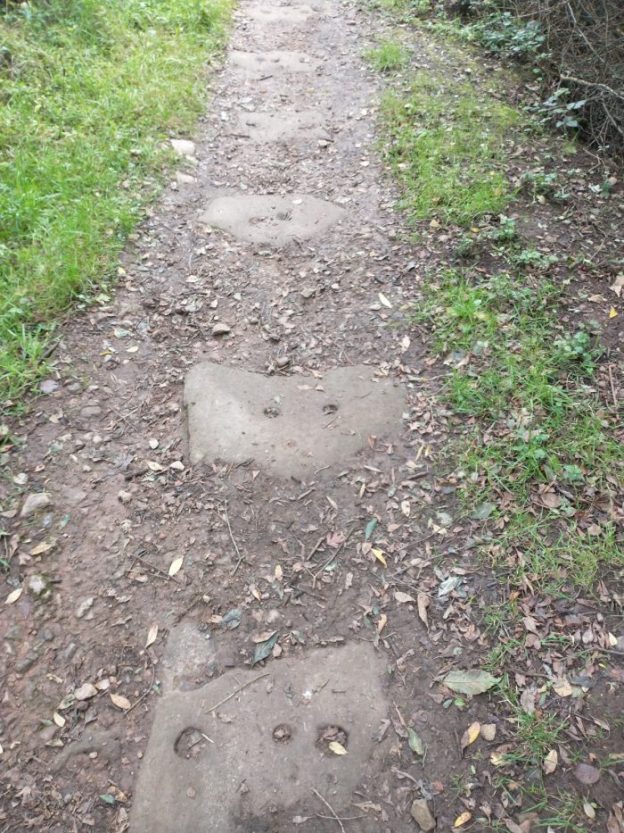

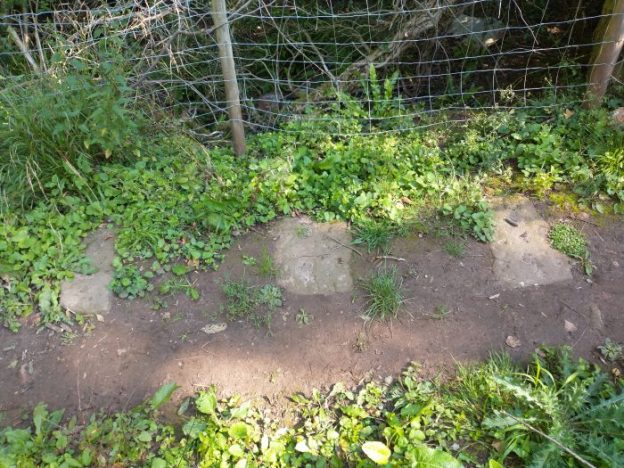

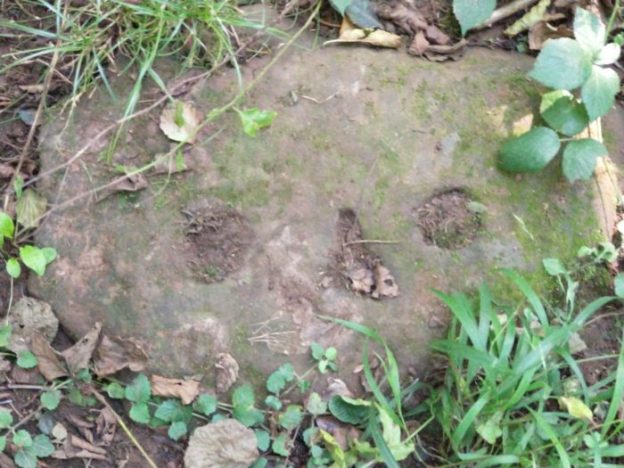

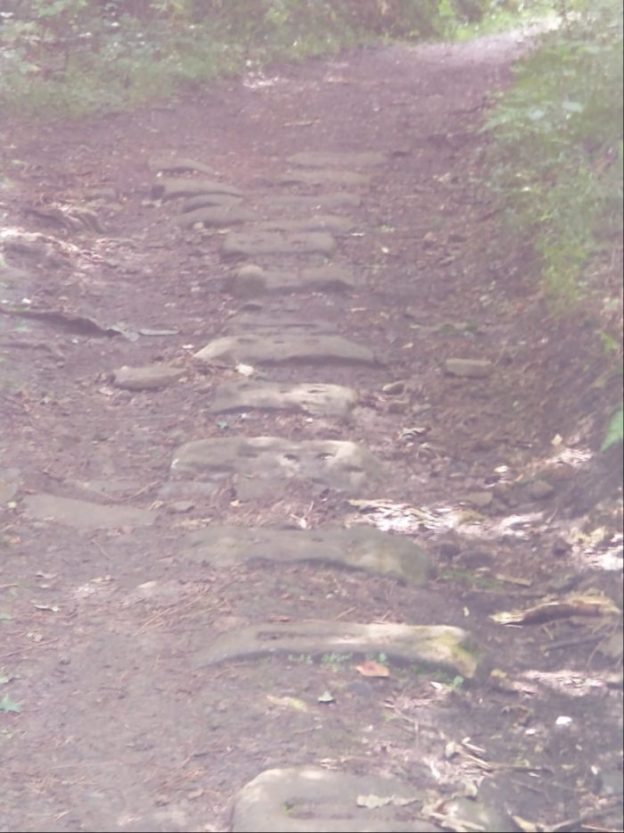

The Oakwood Tramway most probably consisted of L-shaped cast-iron rails resting on stone blocks or sleepers, as shown above, which served to spread the load over the ground, and to maintain the gauge. We located a number of these stone blocks along the first length of the tramway between 14 and 20. Each had two or three holes into which the rails or ‘plates’ were fixed. A few photographs taken on 1st September 2020 at different locations along the path, follow. …

There were long lengths of the route where usage and time have resulted in these stone blocks/sleepers being covered. “From this point, the tramroad did not plunge down the slope to the bottom of Mill Hill, it ……. went to the right and took a level path that hugged the hillside as it continued along the valley.” [12] It then turned to the Northeast following the valley.

In the valley bottom is what, in the 21st century, is a large white rendered private house. This was, until 1969, the ‘Oakwood Inn’.

At location 19 on the walk we passed what was once Oakwood Mill Deep Level iron-ore mine. It was driven in the early 1800’s by “David Mushet and it drained water from the earlier surface workings, both draining the mine of water and allowing a much easier extraction of ore.” [13] And at location 20, we passed the remains of Bromley Furnace.

The next significant location on the walk is the Oakwood Chemical Works and Flour Mill Colliery. We will return to look at the route of the tramway after we have looked at the Flour Mill Colliery site.

Flour Mill Colliery and its present use.

At locations 21, 22 and 23 on the walk we passed the site of Flour Mill Colliery. The walk runs immediately alongside the remaining colliery buildings on the line of the old tramway.

A while ago, the Colliery and the current use of its remaing buildings featured on my blog. [4]

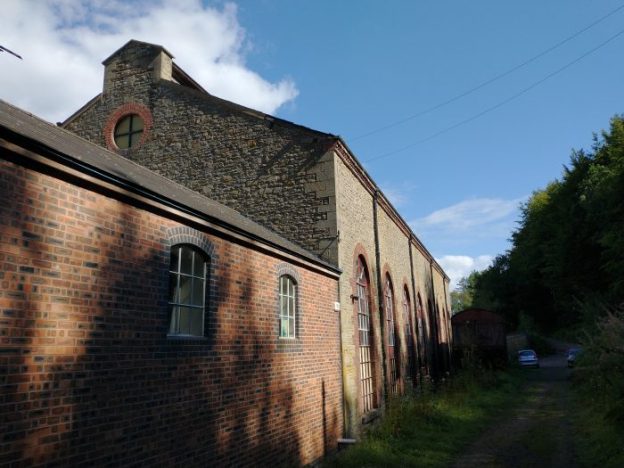

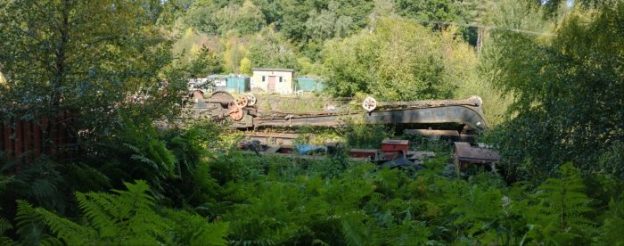

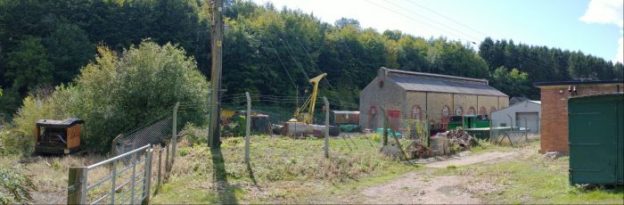

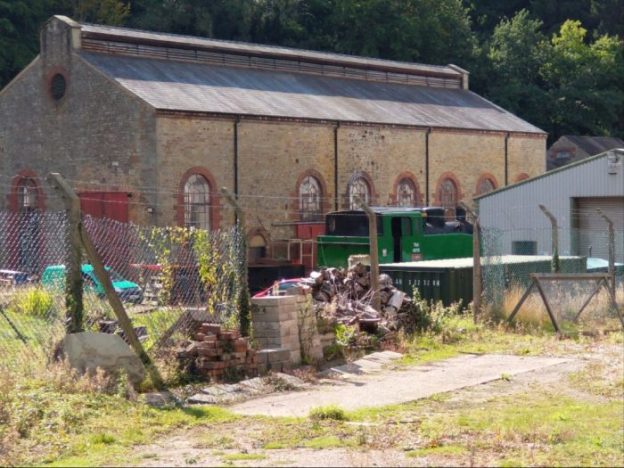

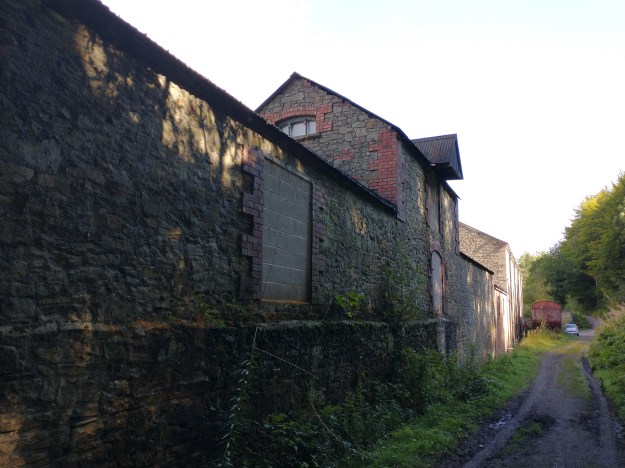

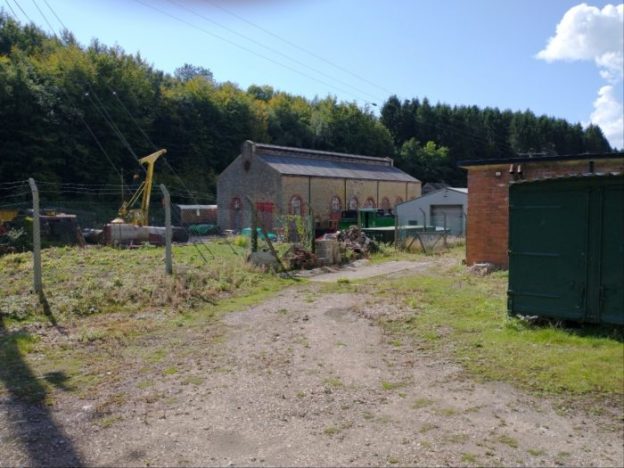

The buildings of Flour Mill Colliery sit immediately alongside the route of the Heritage Walk, 1st September 2020.The Electricity Generating Hall/Building of the old colliery is now in use as an engineering works, 1st September 2020.

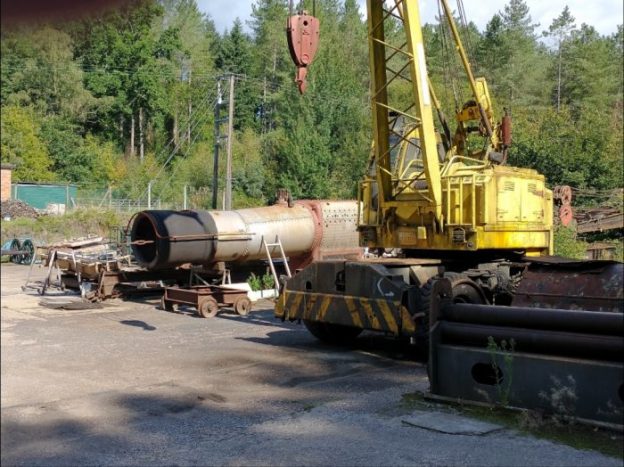

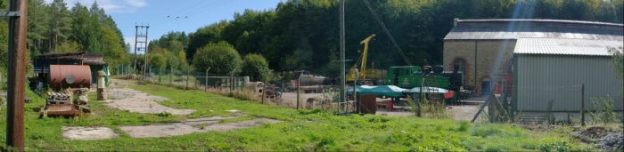

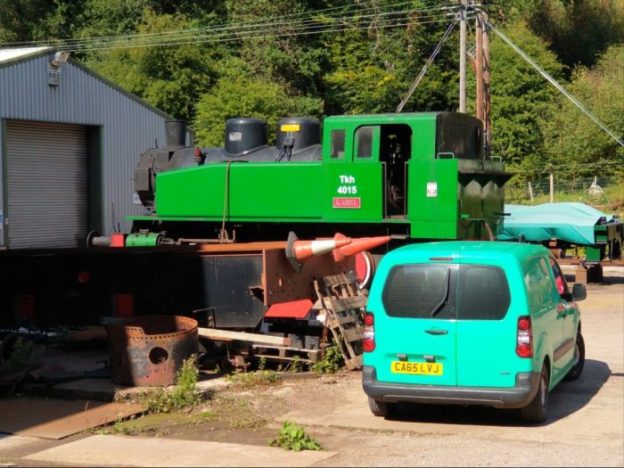

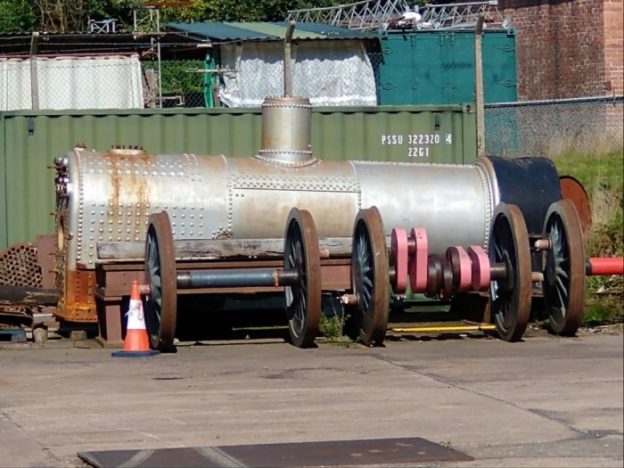

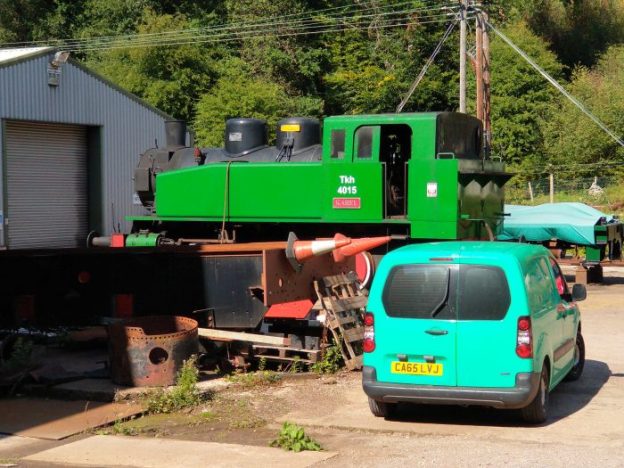

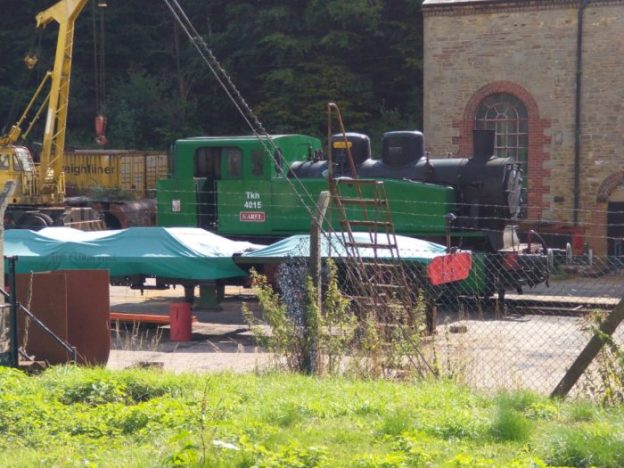

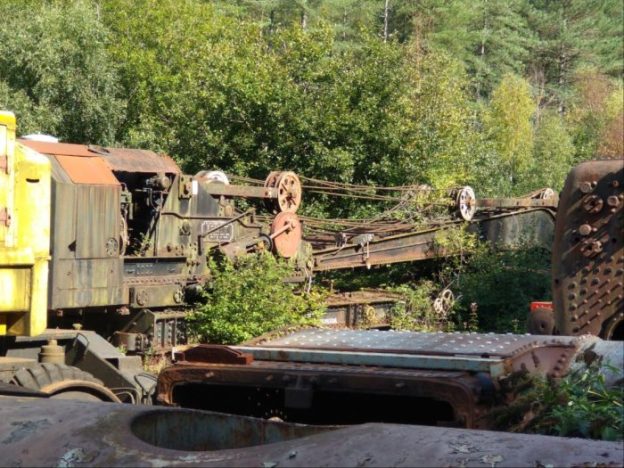

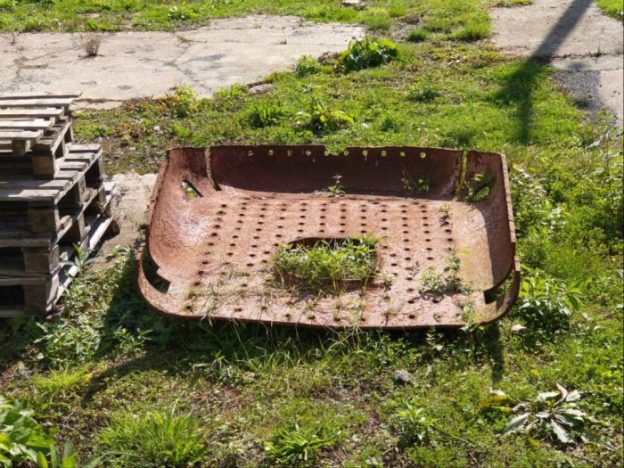

These buildings are now in use for the repair and refurbishment of steam locomotives. We spent a while wandering around the boundary of the works.

For more pictures please click here, [9] and for more information about the engineering works please click here. [10]

The route of the walk deviates away from the tramway alignment approximately at the entrance to the modern works, just northeast of the electricity generating hall. The tramway route begins to drop away heading for the transshipment wharves at Parkend.

When Flour Mill Colliery was expanding in the late 19th century it had to bridge the Oakwood Tramway which ran through the enlarged site. The later 25″ OS Map extract below shows the site of Flour Mill Colliery towards the end of the 19th century. The Oakwood tramway can be seen bridged by a relative wide man-made land bridge. [15] This is approximately at location 23 on the walk. The Oakwood Tramway leaves the map extract in the top right corner heading for Parkend. A rope-worked incline runs away to the right just to the South of the Oakwood Tramway. That incline led to what was most recently known as the Princess Royal Colliery.  ……

The 25″ OS Mapping of the late 19th century shows that Flour Mill Colliery had two shafts. The more southerly of the two had required a bridge between the shaft and the colliery spoil heaps. The more northerly of the two shafts, later required a land bridge over the tramway which was first culverted before the land was built up to provide access across the Oakwood tramway to a rope worked incline which took coal from Flour Mill Colliery to Princess Royal Colliery. [8][14]

The Oakwood Tramway again

25″ OS Map extract [18]

To the Northeast of the land bridge, Oakwood Tramway was in deep cutting. Its route could only be found by taking a deviation from the Bream Heritage Walk at location 24 on the walk route shown above. It was a delight to find significant remains of the tramway between this point and the Parkend Road.

The Oakwood Tramway was a single-track line with passing places. The two pictures immediately below were taken to the North of location 24 on the Bream Heritage Walk. They show the location of one of these passing places. A shirt loop of line left the main route and returned back to join it in a very short distance. Just long enough to accommodate a train of trams and their motive power (a horse or two)! The map extract below shows the location. [16]

The two pictures show the northern end of the passing loop which can be seen on the OS Map above. The first looks north, the second looks South. Both pictures were taken on 1st September 2020.The rope-worked incline passed under the Bream to Parkend Road at this location. The barrier protect the drop into the cutting, (Google Streetview).

Our walk turned away from the Tramway just North of the location of the passing loop shown in the pictures above. We walked up to the Parkend Road and turned back towards Bream. We were able to make out the point where the rope-worked incline passed under the road. The last picture above was taken from the Bream to Parkend Road at location 25 on the Bream Heritage Walk,

References

  1. https://bhwalk.uk, accessed on 1st September 2020.
  2. https://rogerfarnworth.com/2017/10/02/oakwood-and-dikes-tramways. The Oakwood Tramway ran West to East before turning Northeast towards Parkend.
  3.  https://www.derelictplaces.co.uk/main/industrial-sites/8587-princesss-louise-iron-mine-forest-dean.html, accessed on 1st September 2020.
  4.  https://rogerfarnworth.com/2017/09/30/the-flour-mill-colliery.
  5. https://maps.nls.uk/geo/explore/#zoom=17&lat=51.75812&lon=-2.59536&layers=178&b=1, accessed on 2nd September 2020.
  6. https://maps.nls.uk/geo/explore/#zoom=17&lat=51.75805&lon=-2.59121&layers=178&b=1, accessed on 2nd September 2020.
  7. https://bhwalk.uk/china-bottom, accessed on 3rd September 2020.
  8. https://maps.nls.uk/geo/explore/#zoom=17&lat=51.75823&lon=-2.57385&layers=168&b=1, accessed on 2nd September 2020.
  9. https://rogerfarnworth.com/2020/09/04/the-flour-mill-colliery-and-the-flour-mill-ltd-again, blog post completed on 4th September 2020.
  10. https://theflourmill.com, accessed on 2nd September 2020.
  11. https://bhwalk.uk/oakwood-mill-land-level, accessed on 1st September 2020.
  12. https://bhwalk.uk/oakwood-mill, accessed on 1st September 2020.
  13. https://bhwalk.uk/oakwood-mill-deep-level, accessed on 2nd September 2020.
  14. https://bhwalk.uk/flourmill-colliery, accessed on 3rd September 2020.
  15. https://bhwalk.uk/flourmill-land-bridges, accessed on 3rd September 2020.

The Flour Mill Colliery and The Flour Mill Ltd again!

6 Replies

We were staying in the Forest of Dean in September 2020 and followed the Bream Heritage Walk. Details of the walk can be found on my blog, [1] and independently on-line here. [2]

The walk passes alongside the engineering works at Flour Mill Colliery. [3] We spent a while walking round the industrial site before continuing our walk.

“The Flour Mill is a listed building which was converted to a railway workshop in 1995 – 1996, and used as such since 1996. The Flour Mill Ltd operates the business in the building undertaking work repairing and overhauling steam locomotives.” [3] Please note that this is a working site and not a visitor attraction.

It was possible, from outside the boundaries of the site, to take a number of photographs which might be of interest. …..

Locomotive boiler and driving wheels/axles. Others may be able to give an idea of the provenance, 1st September 2020.















These two photographs show Locomotive TDK 4015 ‘Karel’ outside the main works building. This locomotive was imported to UK and moved to the Avon Valley Railway. It was withdrawn in 2013, and sent to the Flour Mill in the Forest of Dean for overhaul. It returned to traffic September 2016 but was back under repair again in 2020. It was made by Fablok, Poland in 1947. [4][5] (1st September 2020).

Another locomotive boiler and the site crane, 1st September 2020.

These two images show a railway crane awaiting refurbishment. I will have to rely on others to provide more information! (1st September 2020).

The next series of images are all taken from the North boundary of the site.

More information about the site can be found on The Flour Mill’s website. [3]

References

  1. https://rogerfarnworth.com/2020/09/04/the-forest-of-dean-bream-heritage-walk-the-oakwood-tramway-and-flour-mill-colliery, published on 4th September 2020.
  2. https://bhwalk.uk, accessed on 1st September 2020.
  3. https://www.theflourmill.com, accessed on 2nd September 2020.
  4. https://www.avonvalleyrailway.org/about-us/locomotives-rolling-stock/tkh49-no-4015-karel, accessed on 3rd September 2020.
  5. https://en.wikipedia.org/wiki/Fablok_TKh49, accessed on 3rd September 2020.

Two Pocket Books about the Forest of Dean

Leave a reply

In the Autumn of 2019 we spent a week in the Forest of Dean. I came across two books about the Forest which are both quite small. Both are facsimile copies of much older works.

A Week’s Holiday in the Forest of Dean

The first appears in the featured image above. It is a copy of a book written by John Bellows, a well-known publisher based in Gloucester. “A Week’s Holiday in the Forest of Dean” was first published in the 1880s and facsimile copy was prepared and published in 2013 by Holborn House Publishing. [1] A preface has been added, written by Ian Standing, it gives some biographical details about John Bellows and covers the publication history of the book.

Bellows chose to travel from the Midland Station in Gloucester to Berkeley Road and then through Sharpness along the Severn and Wye Joint Railway. His journey took him across the Severn Railway Bridge and on through Lydney into the Forest.

He describes the station at Speech House Road and the walk up to Speech House from the Station.

Then, the following morning, Bellow’s party travelled down the hill from Speech House to Cannop Brook. Crossing the bridge, they spent a short while viewing the chemical works which were at that location before pungent odours chased them away. Their route, for a short way, was then along an old tramway. [1:p25] Might this tramway have been the Bixlade Tramway or part of the route of the Severn and Wye Tramway which was the fore-runner of the later standard-gauge railway?

Perhaps the more likely tramway is that which ran up Wimberry Slade, the route of which ran through what became Cannop Colliery and in much more recent times a Highway Depot for the Forest and a Cycle Hire Centre.

There are references throughout the text to the railways in the Forest. … In Bellows journeys around the Forest, trains were used, as were the railway lines which carried them. Bellows casually remarks that the route to Trafalgar Pit from Speech house involved his party walking, “straight across the open turf and down the path across the Beechen Hurst, til [they] strike the Railway in the Valley, mount the embankment, and walk along it to the right as far as the signal-box, where we leave it for a forest path on the left, running parallel to the line, which brings us to the huge ‘dirt-heap’, on which the rubbish of the pit is shot.” [1:p59]

Bellows party goes on to visit St. Briavels. He comments: “The train from Speech House Road would deposit us at Millwall Station, with no fewer than nine important iron ore mines within the circuit of a mile.” [1:p61]

This little facsimile book is a pleasure to read and a excellent way if getting a feel for what the Forest of Dean was like in the late 19th century.

Fine Forest of Dean Coal

The second little book was originally published by the Forest of Dean Colliery Owners’ Association, Cinderford. It carries a lot of contemporary advertising and is itself a publicity booklet for the coal mining industry in the Forest of Dean. It has been reproduced in the Lightmoor Facsimile Series and is No. 2 in that series.

The booklet contains a short history of mining in the Forest, clarifies the status of Free Miners, explains the arrangement of the different coal measures underground.

The Fuel research board had just completed a survey of the coalfield focussing on the Coleford Highdelf Seam which was worked by the remaining large collieries. The moisture content of the coal prior to extraction and treatment was 3.4%. Once air-dried, the moisture content reduced to 2.8%. The volatile matter in the coal amounted to close to 40%.

All of the collieries in operation in the forest were fitted with modern screening arrangements and picking belts. Cannop had recently had a Dry-Cleaning Plant installed for small coal below 2″.

The booklet focusses on each of the collieries in the Forest in turn: Cannop, Lightmoor, Eastern United, Northern United, Lydney & Crump Meadow, Parkend Deep Navigation (New Fancy), Princess Royal, Park Collieries. Each has at least one photograph.

References

1. Ian Standing and David Harris; A Week’s Holiday in the Forest of Dean; facsimile copy of a publication with the same title written by John Bellows; Holborn House, 2013.

2. J. Burrow, Ed.; Fine Forest of Dean Coal; Forest of Dean Colliery Owners’ Association, Cinderford; facsimile published by Lightmoor in the series … Lightmoor Facsimile Series, No. 2.

Trafalgar Colliery and Railway

14 Replies

OS Grid Reference: SO625144 – The featured image above is taken from the Way-Mark site covering the Forest of Dean . [3]

The History of the Colliery and its Tramway and Railway Connections

The Trafalgar gale was leased to Corneleus Brain in 1842, but work does not  to seem  to have  commenced until 1860. After 1867, coal from the adjacent Rose-in-hand gale was also worked. [1]

Since at least 1847 Corneleus and Francis Brain had been lessees of the Rose-in-Hand gale and in 1867 they obtained permission from the Crown  to effectively amalgamate the two games into one for the purpose of working the coal which would have been raised via the shafts at Trafalgar.  No record a shaft for the Rose-in-Hand exists. Coal, prior to 1867, was brought to the surface via the Royal Forester gale which ultimately became part of Speech House Hill Colliery. [2]

It seems as though the Brains also acquired the Strip-and-at-it Colliery which lay close to Trafalgar across a small ridge.  Strip-and-at-it had already been worked for some time ,The probably since 1832.  The gale was surrendered to the Crown in 1864 and was then acquired by the Brains. [2]

There were two shafts at Trafalgar, which were worked by the same winding engine. They extended through the Upper Coal Measures (Supra-Pennant Group) down to the Churchway High Delf Seam at a depth of 586 ft. The two shafts were less than 40 yards apart. Coal was lifted up one shaft and empties were taken down the other shaft. [1][2]

The Lightmoor Press website comments as follows :

“One shaft was the downcast, where fresh air went down into the workings, and the other had a kind of bonnet fitted over the tacklers which covered the top of the land pit so that very little air was lost.  The main upcast shaft was called Puzzle, as the pit had been driven up-hill to the surface.

The cage was guided down the shaft by wooden guides running inside metal shoes on the side of the cage.  Wooden guides were used on both pits.  Ten men and boys could ride in each cage.

A report in the Gloucester Journal  in February 1867 tells how in working the ‘large vein of coal’ at the colliery the declavity was so great that the ordinary method of hauling to the bottom of the shaft, presumably horse or man power, was impracticable.  Corneleus’ son, William Blanch Brain, the colliery engineer therefore erected a small winding engine on the surface close to the pit’s mouth in order to draw the loaded carts from the coal face to the bottom of the shaft.  The carts were connected to a long chain which ran to the far extremities of the workings.  Initially the great drawback was the delay in communication between the coal face and the pit bank when hauling was required. So W. B. Brain, who was also an electrician, procured a pair of electric bells and placed one in the winding engine house and the other at the top of the ‘dipple’ or haulage road.  Several tappers were then placed along the road allowing the men in any part of the works to signal for the starting or stopping of the haulage engine.  The bell at the top of the dipple kept the men at pit bottom informed as to what was happening.  The success of the system was such that communication between pit bottom and the main winding engineman was also electrified.  At pit bottom, a pair of tappers, one white and one red, were provided and on touching the white one a bell in the engine room sounded and the words ‘go on’ appeared on the dial plate attached.  On touching the red the word ‘stop’ was shown.

Electrical communication was also used on the surface, enabling W. B. Brain in his office to be kept in touch with the happenings at the pit.  Another snippet mentioned in the article was that a patent pump was in use at the colliery which instead of throwing successive stream of water threw a continuous one.” [2]

It is of interest that in the 1880s, when the Forest of Dean was a highly industrialised area, people were chosing to take a holiday in the forest and choosing too to visit working pits. John Bellows wrote a guide book in 1880 entitled, ‘A Week’s Holiday in the Forest of Dean’. It contains a commentary about the Trafalgar Colliery. The Lightmoor Press website quotes from it:

“Before going down (underground) we may as well look at the large sandstone quarry on the premises where stones are cut for supporting the galleries below.  Let us pass through the tramway tunnel, 150 yards long, cut through the ridge of the hilltop, to a shaft on the other side.  This narrow ridge is the outcrop of the measures, and in the tunnel we can examine, rock, clod and duns, and a little thin coal with rock again below it. Having seen this we turn back again, enter the cage, and, closing our eyes to avoid the giddiness, are lowered 600 feet so smoothly, that we are hardly conscious of motion.  At the bottom we go into the underground office, and are supplied with a little brass lamp, and a bunch of cotton waste to wipe our hands upon, and then attended by ‘the bailey’ enter one of the main roadways. … Where necessary, the underground workings are lighted with gas, and one of the partners, Mr. William Brain, is now preparing to adopt the electric light (which is already in use on the surface at night) and also to utilise electricity as a motive power at many of the underground inclines, or dipples, in the colliery, where steam is not available; and thus save many horses.  There are more than forty horses living in this pit.  They never return to daylight until worn out or disabled. Some of them have been down here a dozen years, and are in excellent health.

Fire damp is wholly unknown in the Forest of Dean, and miners work with naked lights. Choke damp breaks in rarely, and seldom gives any trouble.  The pit is remarkably free from water, and being furnished with every known appliance, and most admirably kept, is probably one of the best in the Forest, or out of it.  Eleven hundred men and boys are employed here: 600 underground getting coal, and 500 as labourers &c., above ground, and in subsidiary occupations.  Good colliers earn, at present, 3s 8d per day; masons 3s 4d; and labourers, 2s 4d.  One can hardly imagine anything more severe in the way of labour than that of a miner lying on his side in a four foot passage, cutting away with his pick the hard rock encasing the seam. … The output from Trafalgar, at the moment we are writing, which is a dull season is seven hundred tons of coal per day.” [2][4]

Trafalgar Colliery. [10]Trafalgar Colliery. [11]

The Trafalgar colliery was unique in Dean in being lit by gas, and electric pumps were installed underground in 1882, the first recorded use of electric power in a mine. [1] Gas was forced down the shaft by means of a one horse horizontal engine erected in the gas house at the pit bank. The gas house appears as a building shown on the 1898 Severn & Wye plans containing a circular structure. [2][8] It appears on the 5th map extract below.

Francis William Thomas (Frank) Brain had been associated with the use of electric floodlights on the Severn Bridge in 1879 where they had been used to enable construction work to continue at night to make the best use of the tides. After use on the bridge, the apparatus, consisting of a couple of powerful lamps supplied by a Gramme machine, was re-erected at Trafalgar on the surface to light the colliery yard. The Lightmoor website continues:

“Electricity was also used at Trafalgar when the first underground pumping plant was installed in December 1882.  The installation at Trafalgar was the first recorded use of electric power in mines. The equipment consisted of a Gramme machine on the surface driven by a steam engine and a Siemens dynamo used as a 1.5 horse power motor belted to a pump underground. The Gramme machine still exists today, preserved in the National Museum of Wales in Cardiff.  It attained such success that three additional plants were erected in May 1887 and these did the larger part of the pumping.  The last installation consisted of a double-throw nine inch plunger, by ten inch stoke, situated 2,200 yards from the generator and 1,650 yards from the bottom of the shaft.  The pipe main was seven inches in diameter and at its maximum speed of twenty-five strokes a minute the pump lifted 120 gallons to a height of 300 feet.  The current was conveyed to the motor by an 13/16 copper wire carried on earthenware cups.  The E.M.F. was 320 volts and the current required was 43 amperes.  The installation cost of the engine and the electrical plant was £644, whilst the weekly cost for maintenance, including 15% for depreciation and interest on capital was £7 17s. or .002d. per horse power per hour.  The efficiency attained throughout was only 35% but the engine which was an old one lost 6.49 horse power, or 22% alone.  If this was removed from the equation then the efficiency was 45%.” [2]

In the mid-1880s, the Trafalgar Colliery got into some financial difficulty. This was resolved in a way that kept the creditors at bay and left the Brain family in overall control. To do this a new company was formed – the Trafalgar Colliery Co. Ltd. This new company saw the amalgamation of the interests of the Brain family at Trafalgar and the Wye Colliery Co. who leased Speculation Colliery. Both mines came under the control of this new company. [2]

A narrow-gauge tramway (Brain’s Tramway) was built soon after the opening of the colliery to connect to the Great Western Railway’s Forest of Dean Branch at Bilson [1] The single line of 2ft 7.5in gauge utilised edge rails laid on wooden sleepers and ran east from the colliery, turning south-east at Laymoor, and terminated 1.5 miles away at interchange sidings at Bilson. It would appear that the authorisation for its construction was a Crown licence for ‘a road or tramway 15 feet broad’ dated May 1862. The date the line was opened for traffic is unknown as, although the first of three locomotives used on the tramway was built in 1869, it is possible that it may have been horse worked before this date. [2] Brain’s Tramway will, I hope, be the subject of a future post in this series. 6″ OS Map from 1901 showing both Mr Brain’s Tramway and the standard-gauge sidings of the Colliery and their connection to the Severn & Wye Railway close to Drybrook Road Station. [8]The extent of Mr Brain’s Tramway when first built to the Bilson Exchange Sidings. The point of conflict with the Severn and Wye near Laymoor (as mentioned below) can easily be picked out on the map extract. [8]Two pictures above taken along the line of Brain’s tramway – August 2017. [14]

Tramway locomotives hauled trains of 20-25 trams of coal on each trip along Brain’s Tramway to Bilson, until 1872 when the Severn & Wye built their branch to Bilson. This crossed the tramway on the level near Laymoor and resulted in the need for the two companies to negotiate an acceptable coexistence. This became more urgent once the Servern and Wye extended beyond Drybrook Road an when, in 1878, passenger trains began running over the crossing.

Although a connection had been made to the Severn and Wye Railway in 1872 [1] at a point between Serridge Junction and Drybrook Road station, a large element of Trafalgar’s output still travelled along the tramway to Bilson. [2]

In 1872, agreement had been reached between the Severn and Wye and Trafalgar Colliery for sidings to be put in to serve the colliery screens. Soon after the Mineral Loop of the Severn and Wye was completed, a loop off the main line was installed and sidings were laid. However, the Severn and Wye was dismayed to note that Trafalgar was still making heavy use of the tramway.

The Lightmoor Press website comments that:

An approach was made to the colliery company to provide arrangements for loading hand picked nut coal on the Severn & Wye sidings as well as on the Great Western at Bilson. This was rejected at first but by January 1887, after further negotiations, Trafalgar approved a proposal whereby the Severn & Wye altered the sidings and shed whilst the colliery company altered the screens, thus resolving this ‘vexed question’.

Finally, in December 1889, an agreement was entered into between the Severn & Wye and the Trafalgar Colliery Company who, it was said, ‘are desirous of obtaining railway communication to Bilson Junction in lieu of their existing trolley road.’
It was agreed that on or before 31 March 1890 the colliery company would construct new sidings and the railway company would lay in a new junction at Drybrook Road. Although the new junction was a quarter of a mile closer to Drybrook Road than the old sidings, the mileage charge was to remain the same.  The accommodation, on approximately the same level as Drybrook Road station, was to be constructed so that traffic to and from the Great Western would be placed on a different siding to that which was to pass over the Severn & Wye system. For taking traffic to Bilson Junction for transfer to the Great Western the colliery was to be charged 7d per loaded wagon, although empties were to pass free. The transfer traffic also had to be conveyed ‘at reasonable times and in fair quantities so as to fit in with the ordinary workings of the Railway Company trains’.

The new sidings were brought into use on 1st October 1890.” [2]

This agreement resulted in the abandonment of the length of the tramway from Laymoor to Bilson Junction. Two of the colliery’s narrow gauge locomotives were put up for sale, neither sold. [2]

The colliery appears to have owned three locomotives: ‘Trafalgar’ and ‘The Brothers’ were 0-4-2 side-tank locos. The third locomotive was ‘Free Miner’, an 0-4-0 side-tank. Trafalgar continued in use until 1906, working on the northern extension of the tramway, built in 1869, to the Golden Valley Iron Mine at Drybrook. [2]

Trafalgar was one of the larger pits, employing 800 men and boys in 1870, and producing 88,794 tons of coal in 1880 and about 500 tons/day in 1906. [1]

However, by 1913 difficulties were being encountered with water. The managements of both Foxes Bridge and Lightmoor Collieries were worried about the threatened abandonment of Trafalgar. They feared that if pumping ceased, their own collieries might be under threat from the build-up of water within Trafalgar’s workings.  The colliery was offered for sale to Crawshay’s, the owners of Lightmoor and with an interest in Foxes Bridge, but at a figure they would not entertain at that time. [2]

At the beginning of 1919 the main dip roadway at Trafalgar was suddenly, and unexpectedly, flooded.  A report in the Gloucester Journal  on 25 January stated that as a result of the flooding 450 men were temporarily unemployed.  Apparently the electric pump, which had drained the deep workings for over 30 years, failed. [1][2]

The flooding once again led to worries by the Foxes Bridge and Lightmoor managements  about the dangers to their concerns.  Trafalgar was now offered for sale at £16,000. The Foxes Bridge and Lightmoor managements were prepared to offer £10,000 and, in an attempt to meet the difference, the Crown agreed to provide £4,000 should the sale go through.  It was estimated at this time that there was still 2.5 million tons of coal to be worked in the pit and its associated gales which would give the Crown an annual return from tonnage rates of £1,000 for 20 years, certainly paying back the £4,000. Trafalgar was sold in November 1919. It continued to be worked until 1925, producing around 4,500 tons of coal each year. After closure, it may have been that pumping continued for a while but was interrupted by the coal strike in 1926, one report stating that upon the conclusion of the strike the workings were found to be flooded.  The effects of the colliery were sold off by auctions between 1925 and 1927. [1][2][3]

Various Locations around the site of the Colliery

  1. Trafalgar Arch – between Serridge Junction and Drybrook Road, the Severn and Wye Railway ran very close to the large spoil heap of Trafalgar Colliery. The line was protected by a stone retaining wall braced at one point by a brick-lined stone arch. This was built by the S&WR at a cost of about £200 in 1878 or thereabouts, after lengthy negotiations with the colliery company, who wanted to tip spoil on the other side of the line. It is uncertain whether or not the bridge was used for this purpose and tipping appears to have continued on the original site. In 1887 the retaining wall was damaged by a major slip. It was replaced by a stronger one in 1904, but this soon collapsed, and was eventually rebuilt. The bridge was renovated when the old railway track-bed became a cycleway. The arch was restored to as-new condition before October 2001. [9] It is highlighted on the 25″ OS Map extract below. [8] We walked to the colliery location in September 2019 and took the picture of the arch below.

    Trafalgar Arch – taken on 18th September 2019. (My photograph)

    The Strip-and-at-it end of the Tramway Tunnel [12]The Trafalgar end of the Tunnel. [12]The locations of the two shafts at Trafalgar Colliery. [14]

    A view from immediately to the North of the East end of the Spoil Heap at Trafalgar Colliery. [15]

  2. The Disused Tunnel – the tunnel between Trafalgar and Strip-and-at-it Collieries was  cut through a small ridge between the two collieries. It had a very narrow bore as is evident in the adjacent pictures. The north portal, in the first of the photographs, is very difficult to access. The south portal was in the wall of an old quarry facing the site of the Trafalgar Pit.
  3. The Colliery Screens – there are remains of retaining walls from the screens which can still be seen on site, a picture appears below.
  4. The tip – the Colliery spoil heap still exists on the north side of the cycleway which follows the Severn and Wye Railway formation. “The earthwork remains of the Trafalgar Colliery spoil heap are visible as an earthwork on aerial photographs. This massive spoil heap was situated to the south west of the colliery buildings and is centred on SO 6223 1424. It measures 485 metres in length and up to 120 metres in width. North east of the spoil heap at SO 6241 1445 is a quarry where stone was extracted for colliery buildings and shaft linings.” [13] It was later used as the route of the tramway through the tunnel to Strip-and-at-it Mine. The spoil heap material is derived from the Supra-Pennant Coal Measures.
  5. The Shafts – the two shafts are marked in the early 21st Century by two large standing stones, as shown in the adjacent image.
  6. Trafalgar House – the home of Sir Francis Brain is still in use as a private dwelling. Two modern pictures are shown below. These are followed by a small extract from the 25″ OS Map [8] and a picture of the house and tramway which is in an article by Ian Pope in Archive Journal No. 84. [16]

The remaining colliery buildings and screens. [14]

Trafalgar House. [14] ……. (NB: This is actually the next door property, please see comments below)

Trafalgar House,. The picture was taken in 2002. [1]

25″ OS Map – Trafalgar House. [8]

Trafalgar House early in the life of the Colliery. [16]

References

  1. https://www.forestofdeanhistory.org.uk/resources/sites-in-the-forest/trafalgar-colliery, accessed on 30th August 2019.
  2. http://lightmoor.co.uk/forestcoal/CoalTrafalgar.html, accessed on 30th August 2019.
  3. http://way-mark.co.uk/foresthaven/historic/trafalgr.htm, accessed on 30th August 2019.
  4. John Bellows; A Week’s Holiday in the Forest of Dean; 1880, replica edition Holborn House, 2013.
  5. Cyril Hart; The Industrial History of Dean; David & Charles, Newton Abbott, 1971.
  6. https://rogerfarnworth.wordpress.com/2017/09/28/the-branch-tramways-and-sidings-of-the-severn-and-wye-tramroad, collated in February 2018. This link gives some background information on all of the branch tramways of the Severn and Wye. I hope to be able to provide some more specific detail on a number of these tramways in the future.
  7. Gloucestershire County Council Historic Record Archive which holds a great deal of source information. Monument No. 5701; https://www.heritagegateway.org.uk/Gateway/Results_Single.aspx?uid=4329&resourceID=108, accessed on 20th September 2019. … The Severn and Wye Co built a branch from Mirystock to Churchway, where a junction was made with the Bullo Pill tramroad in 1812 (This became the GWR Forest of Dean Branch). A short loop line at Mirystock was constructed in 1847 to give better access to the Churchway branch from the south, a second spur to the Churchway branch was constructed in 1865. … The Churchway Tramway closed in 1877 and was lifted almost immediately. I hope that this tramway will be the subject of a future post. The 25″ OS Maps of the time, very fortunately, were drawn over a significant time frame. This means that one part of the Mirystock Mine appears on the maps (below) but not the southern half which was the part which obliterated the junction of the Churchway Tramway with the Severn and Wye Main line. Four extracts from those maps appear below. The first three show the length of the Churchway tramway, the fourth shows the junction with the Severn & Wye Tramroad in slightly greater detail. These are sourced from reference 8 below.
  8. https://maps.nls.uk/os/25inch-england-and-wales, accessed on 20th September 2019.
  9. https://www.forestofdeanhistory.org.uk/resources/sites-in-the-forest/trafalgar-arch, accessed on 22nd September 2019.
  10. http://way-mark.co.uk/foresthaven/historic/hstcin0e.htm, accessed on 22nd September 2019.
  11. https://www.flickr.com/photos/8812089@N06/15926122657, accesed on 22nd September 2019. … Attribution-NonCommercial-ShareAlike 2.0 Generic (CC BY-NC-SA 2.0)
  12. https://aboutangiekay.blogspot.com/2019/04/strip-and-at-it-and-other-reprehensible.html?m=1, accessed on 22nd September 2019.
  13. https://www.heritagegateway.org.uk/Gateway/Results_Single.aspx?uid=8597&resourceID=108, accessed on 24th September 2019.
  14. http://www.industrialgwent.co.uk/wuk12c-fodne/index.htm, accessed on 24th September 2019.
  15. https://www.geograph.org.uk/photo/4957275, accessed on 24th September 2019.
  16. Ian Pope; Mr Brain’s Tramway; in Archive No. 84, Black Dwarf, Lightmoor Press, Lydney, 2014; p3-31.

Different Railway Gauges in operation the Forest of Dean

Leave a reply

In September 2019, my wife and I spent a week in the Forest of Dean. On one day, we visited the Dean Forest Railway at Norchard. [1] Around the site at Norchard are a number of permanent outdoor displays.

The featured image in this post shows three gauges that for a very short time were all in use on the trackbed of the Severn and Wye Railway through the Forest.

The original gauge was the track-gauge used by the Severn and Wye Tramroad. Rails were cast iron and each section was around 1 metre in length. They were held in place not by timber sleepers but by stone blocks placed on the line of the rails. The gauge (or spacing between the two rails) was 3ft 6ins. This gauge was used by many of the branch tramways in the forest.

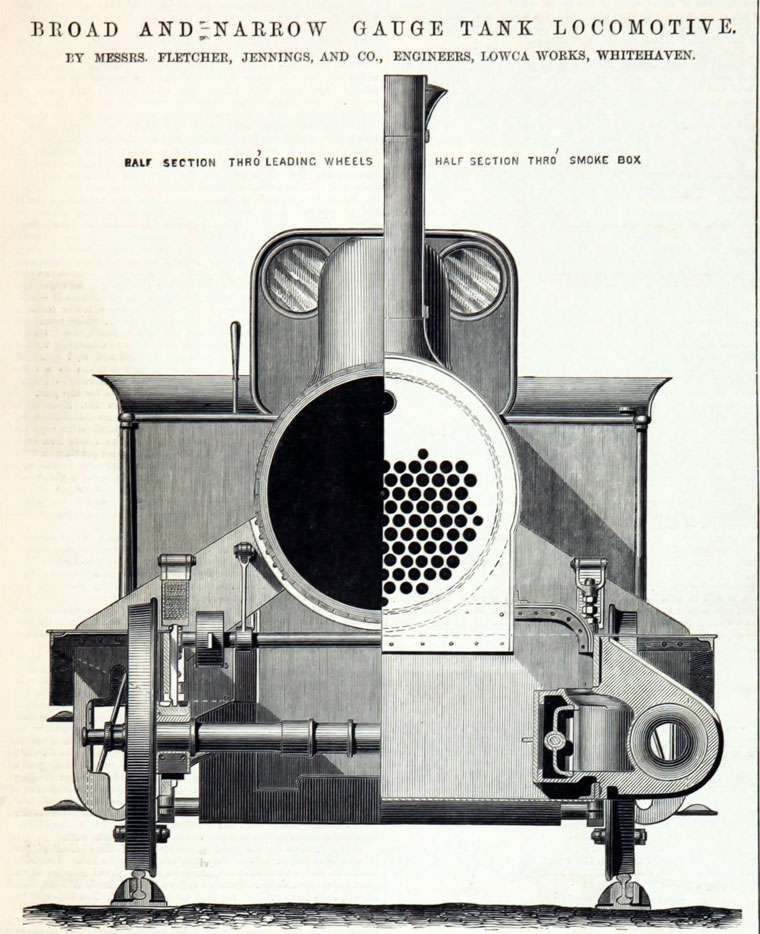

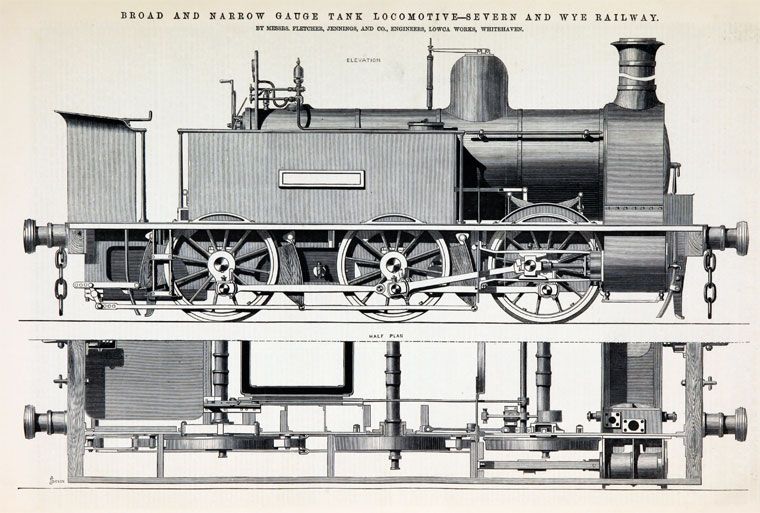

When the Severn and Wye became a Railway rather than a Tramroad the standard gauge for the Great Western Railway was what we now call ‘broad-gauge’ – 7 ft 1⁄4 in (2,140 mm). The Severn and Wye was constructed to the same standards as the Great Western, so avoiding the need for transhipment facilities at railheads such as Lydney Junction.

The Great Western Railway lost the ‘gauge war’  in the UK. Standard-gauge became the gauge first used by George Stephenson – 4 ft ​8 1⁄2 in (1,435 mm) gauge. After the decision was made that all future lines in the UK would be built to the standard-gauge, there was period of mixed-gauge operation (tracks were laid with three rails), the Great Western Railway did not complete the conversion of its network to standard gauge until 1892. [2]

All three of these gauges could be found on the formation of the Severn and Wye Railway until 1892.

However, these were not the only track gauges in use in the Forest.  An example of a different gauge in use us provided by Mr Brain’s Tramway which linked Trafalgar Colliery and Drybrook to Bilson Sidings and Transhipment Wharfs. It had a gauge of 2 ft ​7 1⁄2 in (800 mm). Brain chose this gauge for his tramway because it matched the gauge used underground within his collieries and so saved an additional transhipment cost at the pithead. [3]The display outlining the use of tramways which is on show in the Dean Forest Railway Museum at Norchard.The display outlining the change of gauge which is on show in the Dean Forest Railway Museum at Norchard.



References

1. https://www.deanforestrailway.co.uk, accessed on 14th September 2019.

2. https://en.m.wikipedia.org/wiki/Standard-gauge_railway, accessed on 15th September 2019.

3. Ian Pope; Mr Brain’s Tramway; Archive No. 84, Lightmoor Press, Lydney, p2-32.



Speech House (Hill) Colliery and Railway

1 Reply

Speech House Hill Colliery was located at OS Grid Reference: SO614119. The featured image above comes from the Sungreen website © Mark Ward. He comments: “This lantern slide shows the Speech House Hill Colliery in c1908; I believe coal winning had ceased some years earlier and it looks as though dismantlement of the engine house had begun.” [2] Elsewhere the colliery is referred to as “Speech House Colliery.”The signboard on the site of the old Speech House Colliery sits close to the climbing wall in the Beechenhurst Lodge area which is maintained by the Forestry Commission in the 21st century.

The Royal Forester Gale was first recorded as being worked in the 1830s and 40s by Richard James [1] of Whitecroft. In April 1832, he applied to the Crown for the gale but it was not granted to him.  Undeterred he erected buildings and commenced work ‘at considerable cost’ and his right to work the gale was confirmed by the Awards of 1841. [3]

It was later bought by the Brain brothers, who had the adjoining Rose-in-Hand gale. [1] It was in January 1847, that Cornelius and Francis Brain, as lessees of the adjoining Rose-in-Hand gale, were applying for an extension of time for beginning work and it was stated that they had bought Royal Forester in order to drive a level through it to drain Rose-in-Hand. [3]

In July 1856 an application was made to the Crown by the registered owners of Rose-in-Hand, Ephraim Brain and John Holingsworth, to make a tramroad connection to the Severn & Wye by means of an incline parallel to the Coleford-Cinderford road.  It would appear, however, that this was not costructed until 1869. [3] The Speech House Hill Colliery Co. had, by this time, taken over the Royal Forester gale. [1]

The Rose-in-Hand gale became part of Trafalgar Colliery and remained in the ownership of the Brain family. [3]

The Speech House Hill Colliery Co. was turn bought out by the Great Western (Forest of Dean) Coal Consumers Co. Ltd (a Crawshay company) in 1873. [1]

Although the tramroad connection was only completed in 1869, it was superseded by a railway connection  to  the Severn and Wye Railway in 1874. [3] The sidings in place in the early 20th century are shown below in the extracts from the OS Maps of the time. [4]This extract shows what was to become the access to the Cannop Colliery heading West from the Severn and Wye Railway. The Severn and Wye runs north-south in the extract. The Speech House Colliery head-shunt is on the right. [4]Rail access to Speech House Colliery involved leaving the Severn and Wye Railway in a Northerly direction and then setting back into the colliery. [4]The approach to Speech House Colliery sidings. [4]The track arrangement at the Colliery. [4]

The organising of the link to the colliery from the Severn and Wye was a matter for serous negotiation. “Crawshay offered the prospect of 100,000 tons of coal traffic per year, but laid heavy emphasis on the expenses to be incurred by the colliery in laying sidings, and intimated that they were considering sinking two pits near the Forest of Dean Central line at Foxes Bridge to avoid a steep underground pitching betwen the coal face and the existing pit bottom.  Concerned at the possible loss of such a lucrative traffic to the Great Western, the S & W agreed to loan rails, sleepers etc. if the necessary earthworks were done by the colliery company.  Following further discussions, it was decided to let the construction of the branch, and by July 1874 J. E. Billups was appointed contractor.  Part of the estimated cost of £3,300 was met by the Severn & Wye whose committee, on 5th April 1875, were conveyed to the colliery where they ‘had the satisfaction to find the Branch Line leading thereto as well as the Colliery Works in good order.  This colliery is now delivering excellent coal upon our line.'” [3]

Yields were not necessarily as good as Crawshay had intimated, 56,976 tons of coal were produced in 1880 from the Supra-Pennant Group (the top part of the Upper Coal Measures). The winding shaft (eventually 420 ft deep) reached the Churchway High Delf Seam (3 ft 3 in. thick) at 393 ft. [1]

The website, http://www.archive-images.co.uk has a series of images of the colliery, one of which is an underground view. These can be viewed, with watermark on their site or purchased for a relatively significant sum for each image. [5]

The colliery had a rather chequered history, passing through a succession of owners, until it was finally bought by Henry Crawshay & Co. Ltd, owners of the adjacent Lightmoor Colliery, in 1903. [1]

The barrier to the latter colliery was opened up and most of the surface works at Speech House Hill, no longer being required, were closed by 1906. [1] Crawshay’s prediction of traffic finding its way to other lines bore fruit some years after it was first intimated.

The main shaft at Speech House was maintained as an emergency exit for Lightmoor until the gale was surrendered in 1937. [1]

The area has been landscaped and now forms the Forestry Commission’s Beechenhurst Picnic Site which is a very popular Forest location. [1]

The pictures below were taken on 20th September 2019 and show the line of the branch off the Severn and Wye Railway which is now a cycle path, the the route of the sidings leading to the colliery screens. Finally some pictures of the location of Speech House Road Station on the Severn and Wye Railway and it’s small goods yard.

Looking South along the old Severn and Wye Railway along what is now the visitor access road for parking at Cannop Ponds.

The view South from what would have been the end of the station platform at Speech House Road Station on the Severn and Wye Railway.

At the midpoint of the old station, the Forestry Commission have provided a station name board.

The view South from a point close to north end of the Station facilities.

The view from the modern highway into the old station site. In taking this picture, I am standing at the location of the old railway crossing.

Looking across the old railway crossing from the North.

Looking North from the same point.

The area of the station goods yard is seen here from the South. The access road to Cannop Ponds runs through the site.

References

  1. https://www.forestofdeanhistory.org.uk/resources/sites-in-the-forest/speech-house-hill-colliery, accessed on 30th August 2019.
  2. https://www.sungreen.co.uk/Beechenhurst/speech_house_colliery.html, accessed on 14th September 2019.
  3. http://lightmoor.co.uk/forestcoal/CoalRoyalForester.html, accessed on 14th September 2019.
  4. https://maps.nls.uk/geo/explore/#zoom=17.072932776256412&lat=51.8093&lon=-2.5670&layers=168&b=1, accessed on 15th September 2019.
  5. http://www.archive-images.co.uk/gallery/Archive-Images-of-the-Forest-of-Dean-Coalfield/pages/4, accessed on 15th September 2019.
